Tutorial: Microsoft Entra single sign-on (SSO) integration with SAP NetWeaver

In this tutorial, you'll learn how to integrate SAP NetWeaver with Microsoft Entra ID. When you integrate SAP NetWeaver with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to SAP NetWeaver.
  • Enable your users to be automatically signed-in to SAP NetWeaver with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • SAP NetWeaver single sign-on (SSO) enabled subscription.
  • SAP NetWeaver V7.20 or later

Scenario description

  • SAP NetWeaver supports both SAML (SP initiated SSO) and OAuth. In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

Note

Configure the application either in SAML or in OAuth as per your organizational requirement.

To configure the integration of SAP NetWeaver into Microsoft Entra ID, you need to add SAP NetWeaver from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type SAP NetWeaver in the search box.
  4. Select SAP NetWeaver from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for SAP NetWeaver

Configure and test Microsoft Entra SSO with SAP NetWeaver using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in SAP NetWeaver.

To configure and test Microsoft Entra SSO with SAP NetWeaver, perform the following steps:

  1. Configure Microsoft Entra SSO to enable your users to use this feature.
    1. Create a Microsoft Entra test user to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure SAP NetWeaver using SAML to configure the SSO settings on application side.
    1. Create SAP NetWeaver test user to have a counterpart of B.Simon in SAP NetWeaver that is linked to the Microsoft Entra representation of user.
  3. Test SSO to verify whether the configuration works.
  4. Configure SAP NetWeaver for OAuth​ to configure the OAuth settings on application side.
  5. Request Access Token from Azure AD to use Azure AD as the Identity Provider (IdP).

Configure Microsoft Entra SSO

In this section, you enable Microsoft Entra single sign-on.

To configure Microsoft Entra single sign-on with SAP NetWeaver, perform the following steps:

  1. Open a new web browser window and sign into your SAP NetWeaver company site as an administrator

  2. Make sure that http and https services are active and appropriate ports are assigned in SMICM T-Code.

  3. Sign on to business client of SAP System (T01), where SSO is required and activate HTTP Security session Management.

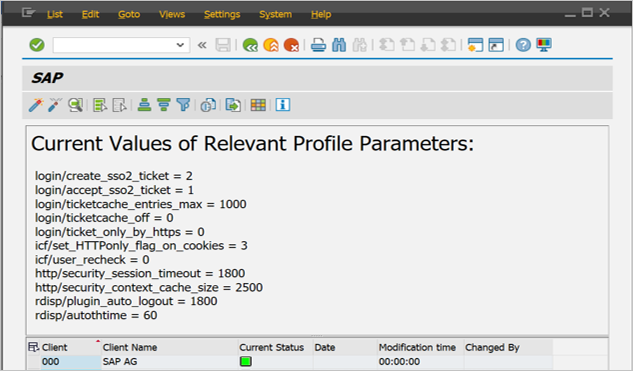

    1. Go to Transaction code SICF_SESSIONS. It displays all relevant profile parameters with current values. They look like below:-

      login/create_sso2_ticket = 2
      login/accept_sso2_ticket = 1
      login/ticketcache_entries_max = 1000
      login/ticketcache_off = 0  login/ticket_only_by_https = 0
      icf/set_HTTPonly_flag_on_cookies = 3
      icf/user_recheck = 0  http/security_session_timeout = 1800
      http/security_context_cache_size = 2500
      rdisp/plugin_auto_logout = 1800
      rdisp/autothtime = 60


      Note

      Adjust above parameters as per your organization requirements, Above parameters are given here as indication only.

    2. If necessary adjust parameters, in the instance/default profile of SAP system and restart SAP system.

    3. Double-click on relevant client to enable HTTP security session.

      The HTTP Security session

    4. Activate below SICF services:

      /sap/public/bc/sec/saml2
      /sap/public/bc/sec/cdc_ext_service
      /sap/bc/webdynpro/sap/saml2
      /sap/bc/webdynpro/sap/sec_diag_tool (This is only to enable / disable trace)

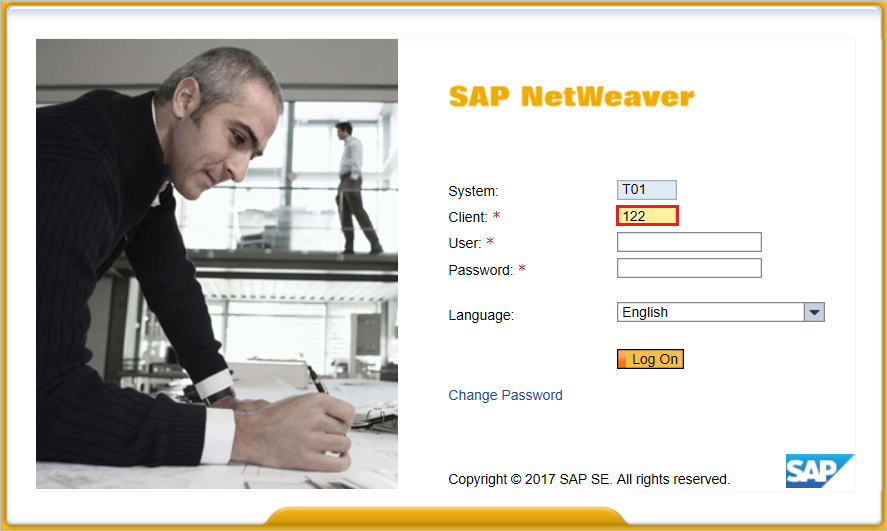

  4. Go to Transaction code SAML2 in business client of SAP system [T01/122]. It will open a user interface in a browser. In this example, we assumed 122 as SAP business client.

    Transaction code

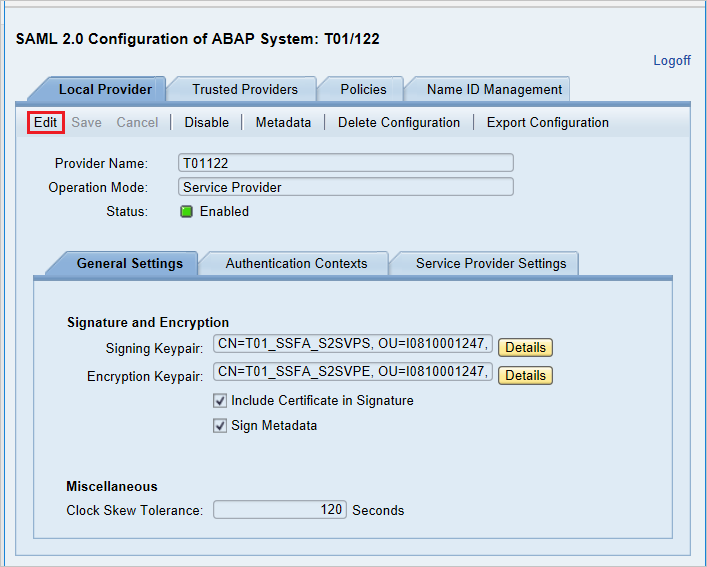

  5. Provide your username and password to enter in user interface and click Edit.

    username and password

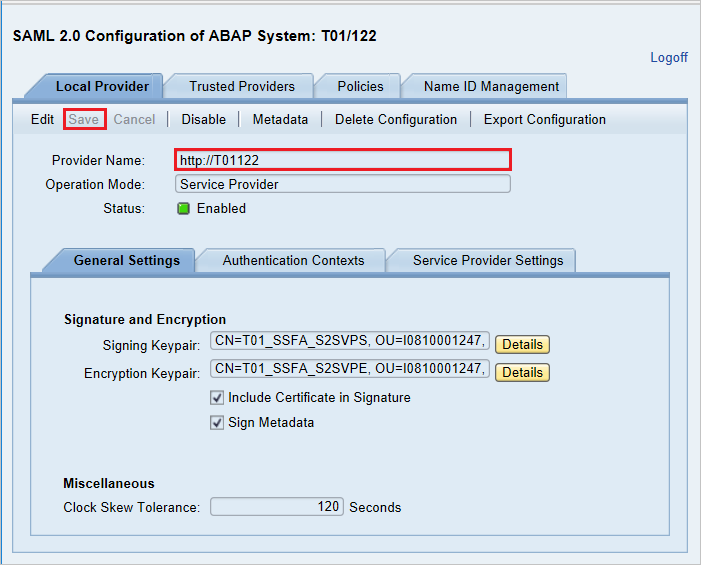

  6. Replace Provider Name from T01122 to http://T01122 and click on Save.

    Note

    By default provider name come as <sid><client> format but Microsoft Entra ID expects name in the format of <protocol>://<name>, recommending to maintain provider name as https://<sid><client> to allow multiple SAP NetWeaver ABAP engines to configure in Microsoft Entra ID.

    The multiple SAP NetWeaver ABAP engines

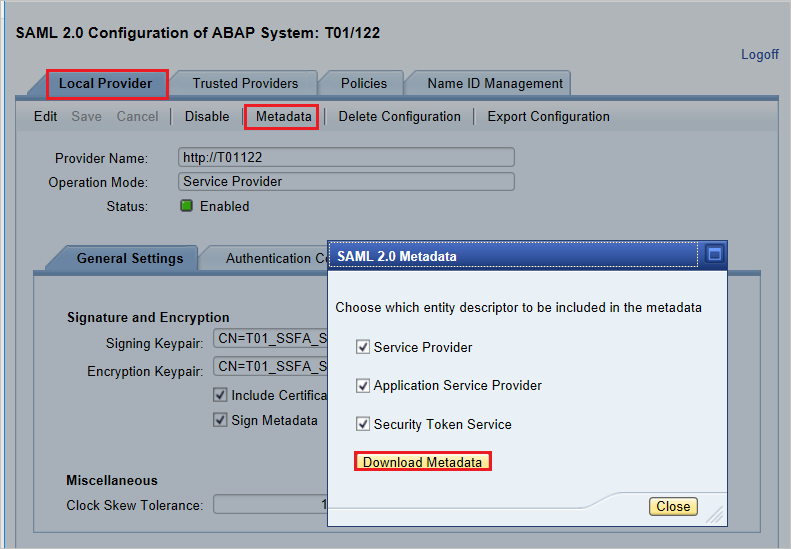

  7. Generating Service Provider Metadata:- Once we are done with configuring the Local Provider and Trusted Providers settings on SAML 2.0 User Interface, the next step would be to generate the service provider’s metadata file (which would contain all the settings, authentication contexts, and other configurations in SAP). Once this file is generated, upload this file to Microsoft Entra ID.

    Generating Service Provider Metadata

    1. Go to Local Provider tab.

    2. Click on Metadata.

    3. Save the generated Metadata XML file on your computer and upload it in Basic SAML Configuration section to autopopulate the Identifier and Reply URL values in Azure portal.

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > SAP NetWeaver application integration page, find the Manage section, and select Single sign-on.

  3. On the Select a Single sign-on method page, select SAML.

  4. On the Set up Single Sign-On with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode, perform the following step:

    1. Click Upload metadata file to upload the Service Provider metadata file, which you have obtained earlier.

    2. Click on folder logo to select the metadata file and click Upload.

    3. After the metadata file is successfully uploaded, the Identifier and Reply URL values get auto populated in Basic SAML Configuration section textbox as shown below:

    4. In the Sign-on URL text box, type a URL using the following pattern: https://<your company instance of SAP NetWeaver>

    Note

    Some customers have encountered an error of an incorrect Reply URL configured for their instance. If you receive any such error, use these PowerShell commands. First update the Reply URLs in the application object with the Reply URL, then update the service principal. Use the Get-MgServicePrincipal to get the Service Principal ID value.

    $params = @{
       web = @{
          redirectUris = "<Your Correct Reply URL>"
       }
    }
    Update-MgApplication -ApplicationId "<Application ID>" -BodyParameter $params
    Update-MgServicePrincipal -ServicePrincipalId "<Service Principal ID>" -ReplyUrls "<Your Correct Reply URL>"

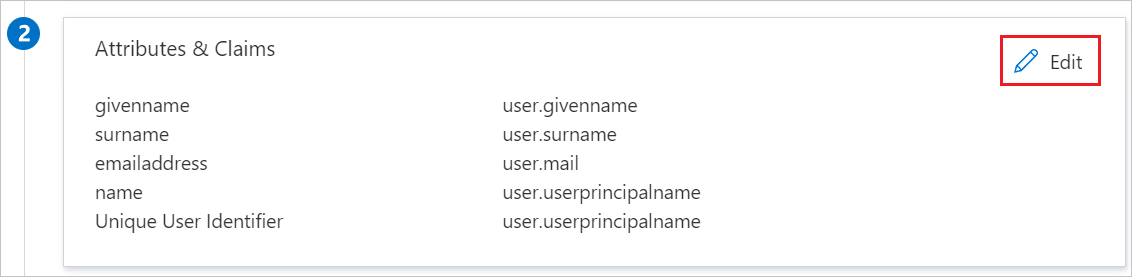

  6. SAP NetWeaver application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes. Click Edit icon to open User Attributes dialog.

    edit attribute

  7. In the User Claims section on the User Attributes dialog, configure SAML token attribute as shown in the image above and perform the following steps:

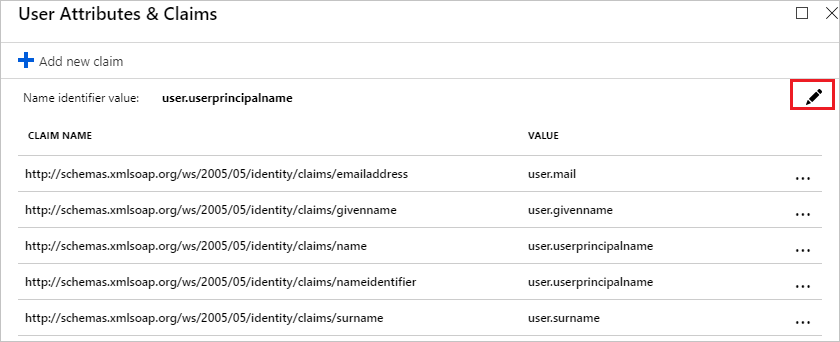

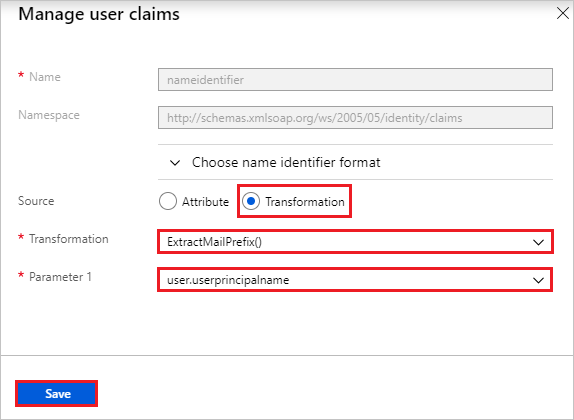

    1. Click Edit icon to open the Manage user claims dialog.

      edit icon


    2. From the Transformation list, select ExtractMailPrefix().

    3. From the Parameter 1 list, select user.userprincipalname.

    4. Click Save.

  8. On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The Certificate download link

  9. On the Set up SAP NetWeaver section, copy the appropriate URLs, based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to SAP NetWeaver.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > SAP NetWeaver.
  3. In the app's overview page, find the Manage section, and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
  6. In the Add Assignment dialog, click the Assign button.

Configure SAP NetWeaver using SAML

  1. Sign in to SAP system and go to transaction code SAML2. It opens new browser window with SAML configuration screen.

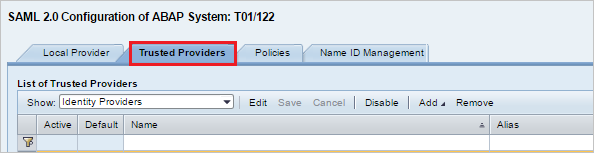

  2. For configuring End points for trusted Identity provider (Microsoft Entra ID) go to Trusted Providers tab.

    Configure Single Sign-On Trusted Providers

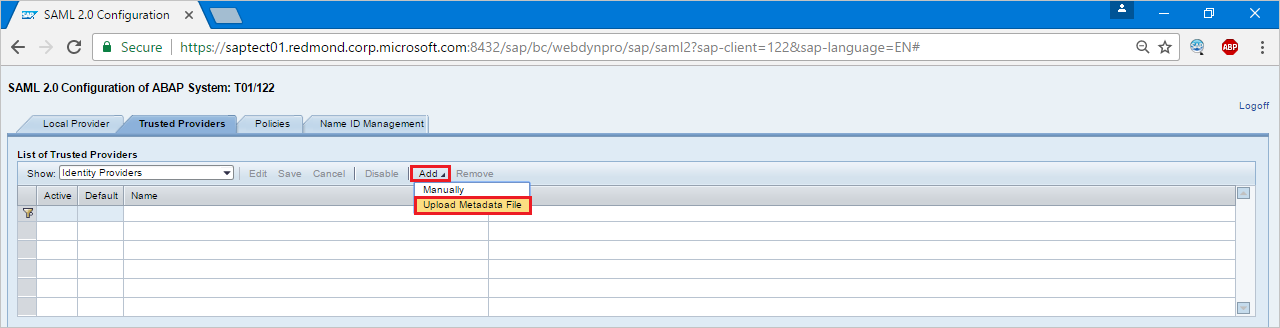

  3. Press Add and select Upload Metadata File from the context menu.

    Configure Single Sign-On 2

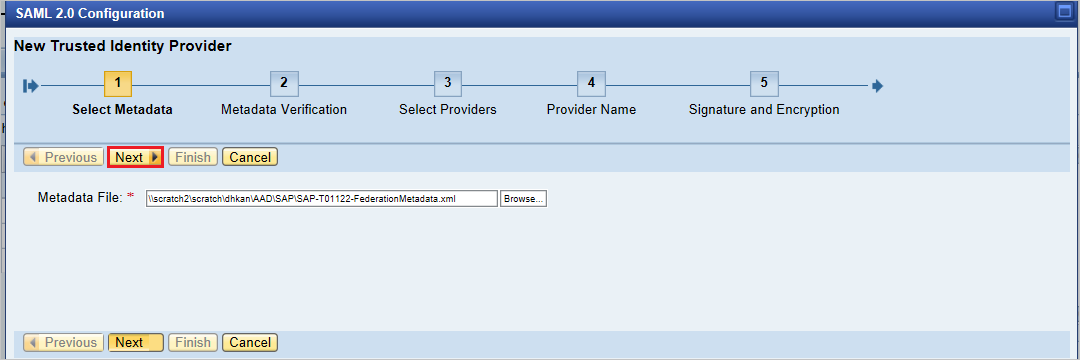

  4. Upload metadata file, which you have downloaded.

    Configure Single Sign-On 3

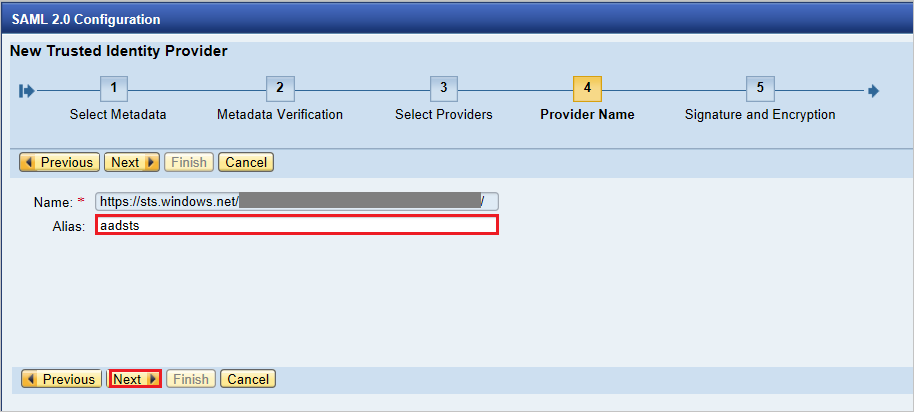

  5. In the next screen, type the Alias name. For example, type aadsts, and press Next to continue.

    Configure Single Sign-On 4

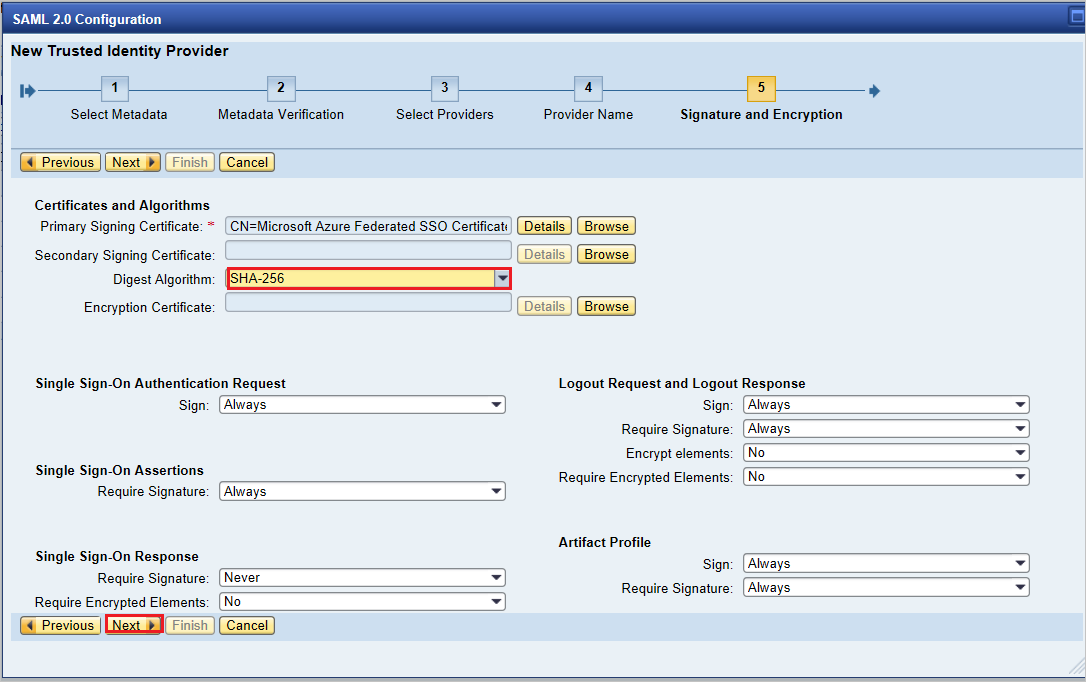

  6. Make sure that your Digest Algorithm should be SHA-256 and don’t require any changes and press Next.

    Configure Single Sign-On 5

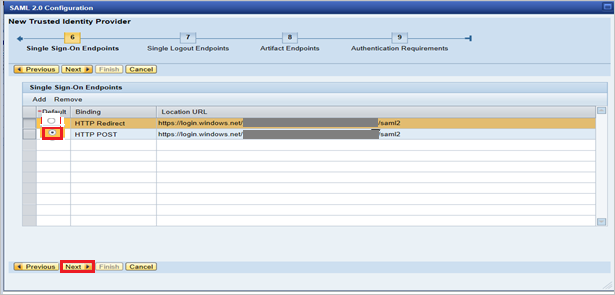

  7. On Single Sign-On Endpoints, use HTTP POST and click Next to continue.

    Configure Single Sign-On 6

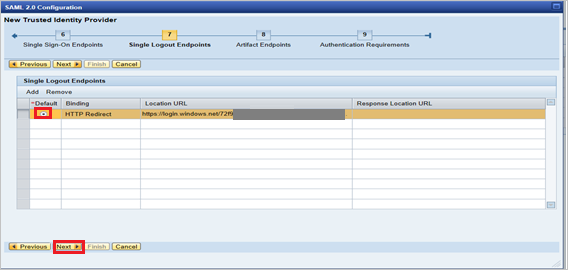

  8. On Single Logout Endpoints select HTTPRedirect and click Next to continue.

    Configure Single Sign-On 7

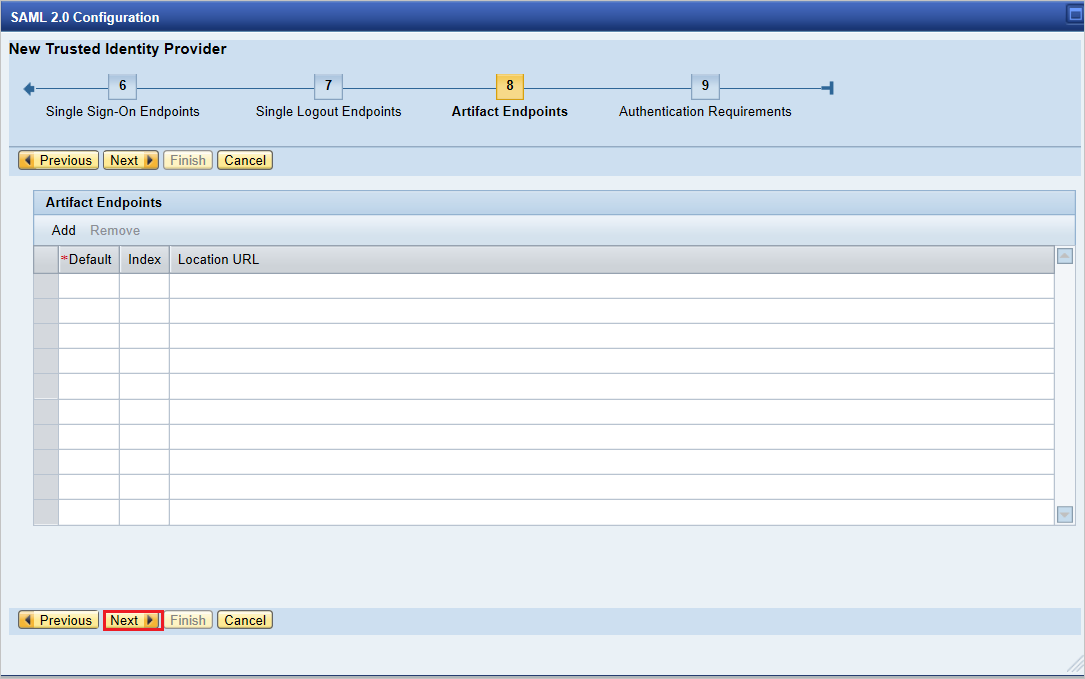

  9. On Artifact Endpoints, press Next to continue.

    Configure Single Sign-On 8

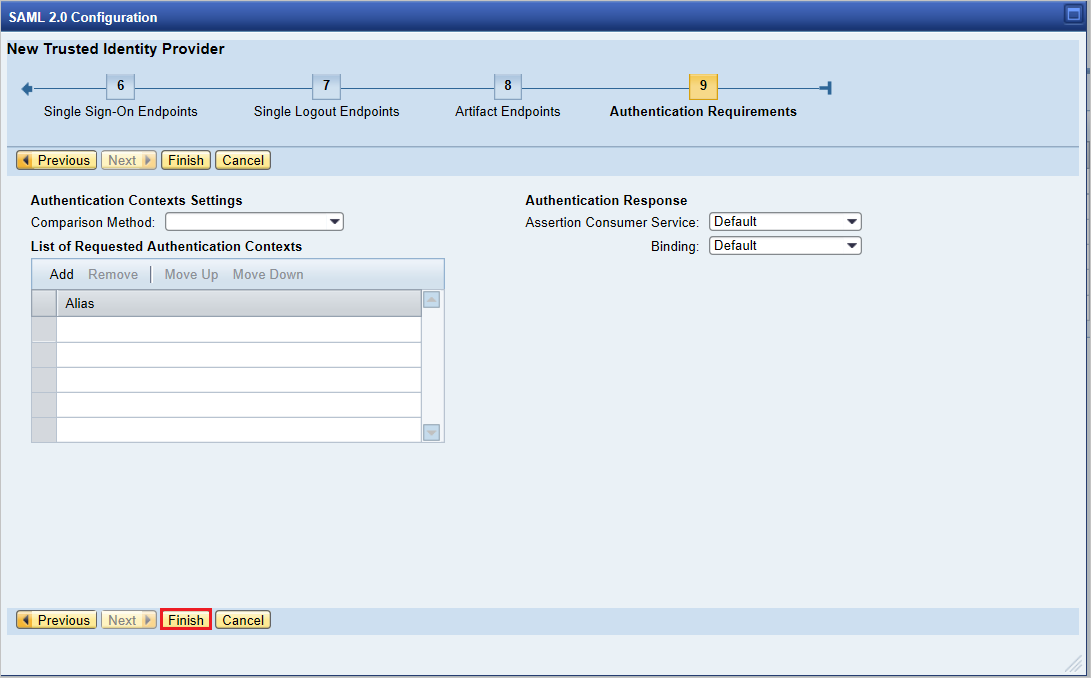

  10. On Authentication Requirements, click Finish.

    Configure Single Sign-On 9

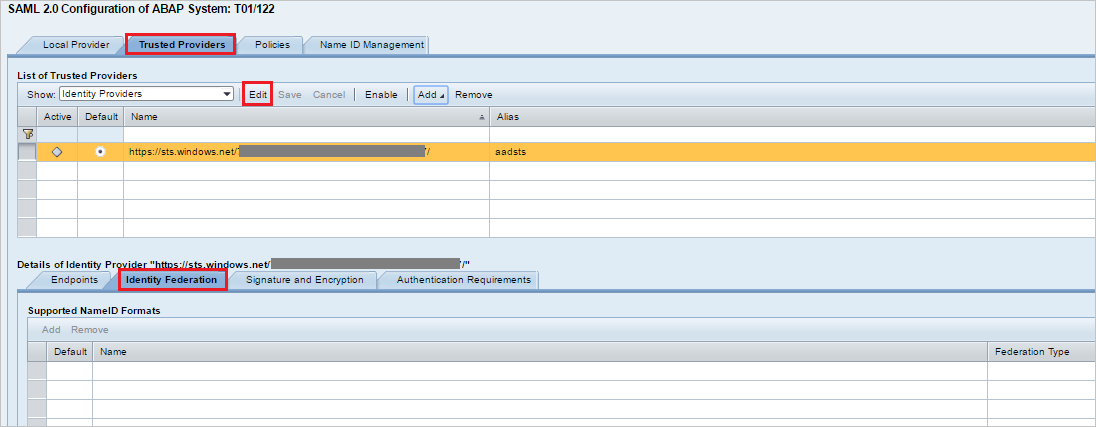

  11. Go to tab Trusted Provider > Identity Federation (from bottom of the screen). Click Edit.

    Configure Single Sign-On 10

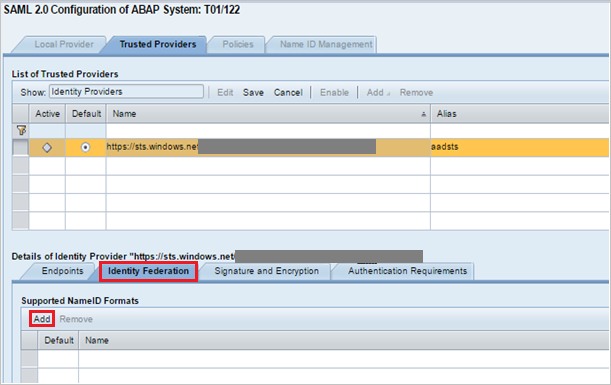

  12. Click Add under the Identity Federation tab (bottom window).

    Configure Single Sign-On 11

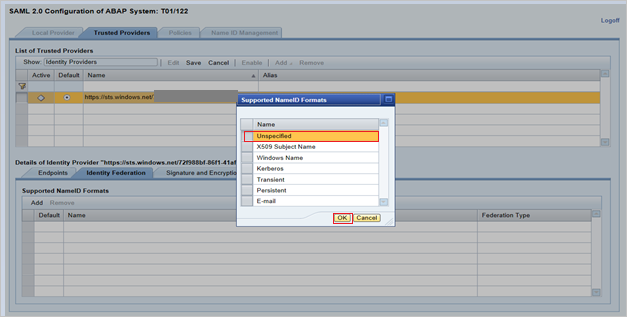

  13. From the pop-up window, select Unspecified from the Supported NameID formats and click OK.

    Configure Single Sign-On 12

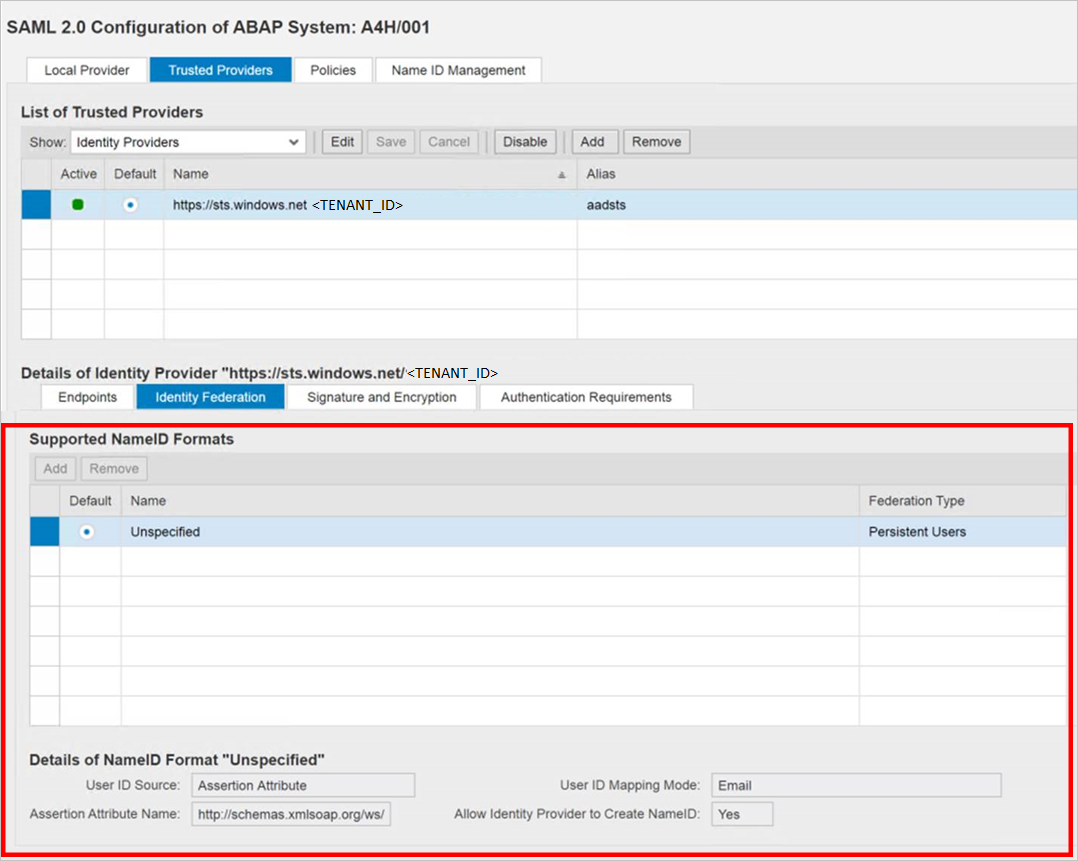

  14. Give the User ID Source value as Assertion Attribute, User ID mapping mode value as Email and Assertion Attribute Name as http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name.

    Configure Single Sign-On

  15. Note that User ID Source and User ID mapping mode values determine the link between SAP user and Microsoft Entra claim.

Scenario: SAP User to Microsoft Entra user mapping.

  1. NameID details screenshot from SAP.

    Configure Single Sign-On 13

  2. Screenshot mentioning Required claims from Microsoft Entra ID.

    Configure Single Sign-On 14

    Scenario: Select SAP user ID based on configured email address in SU01. In this case email ID should be configured in su01 for each user who requires SSO.

    1. NameID details screenshot from SAP.

      Configure Single Sign-On 15

    2. screenshot mentioning Required claims from Microsoft Entra ID.

    Configure Single Sign-On 16

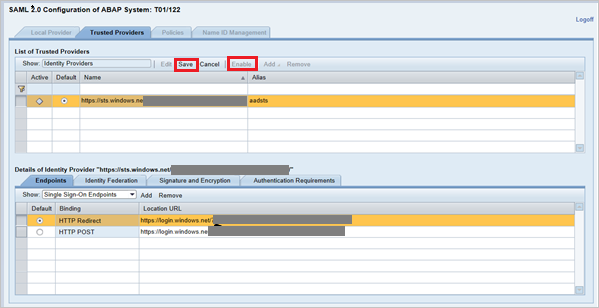

  3. Click Save and then click Enable to enable identity provider.

    Configure Single Sign-On 17

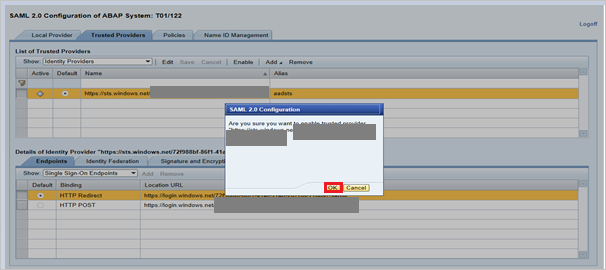

  4. Click OK once prompted.

    Configure Single Sign-On 18

Create SAP NetWeaver test user

In this section, you create a user called B.simon in SAP NetWeaver. Please work your in house SAP expert team or work with your organization SAP partner to add the users in the SAP NetWeaver platform.

Test SSO

  1. Once the identity provider Microsoft Entra ID was activated, try accessing below URL to check SSO, ensuring there will not be a prompt for username & password.

    https://<sapurl>/sap/bc/bsp/sap/it00/default.htm

    (or) use the URL below

    https://<sapurl>/sap/bc/bsp/sap/it00/default.htm

    Note

    Replace sapurl with actual SAP hostname.

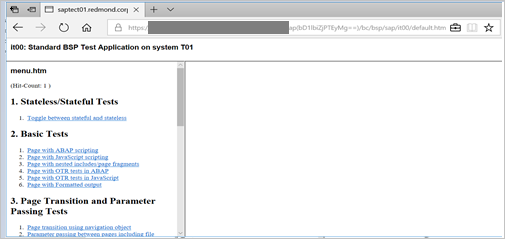

  2. The above URL should take you to below mentioned screen. If you are able to reach up to the below page, Microsoft Entra SSO setup is successfully done.

    test Single Sign-On

  3. If a username and password prompt occurs, you can diagnose the issue by enabling a trace, using the URL:

    https://<sapurl>/sap/bc/webdynpro/sap/sec_diag_tool?sap-client=122&sap-language=EN#

Configure SAP NetWeaver for OAuth

  1. SAP Documented process is available at the location: NetWeaver Gateway Service Enabling and OAuth 2.0 Scope Creation

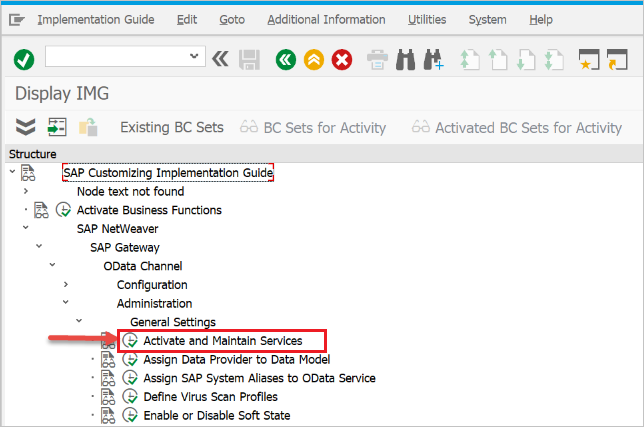

  2. Go to SPRO and find Activate and Maintain services.

    Activate and Maintain services

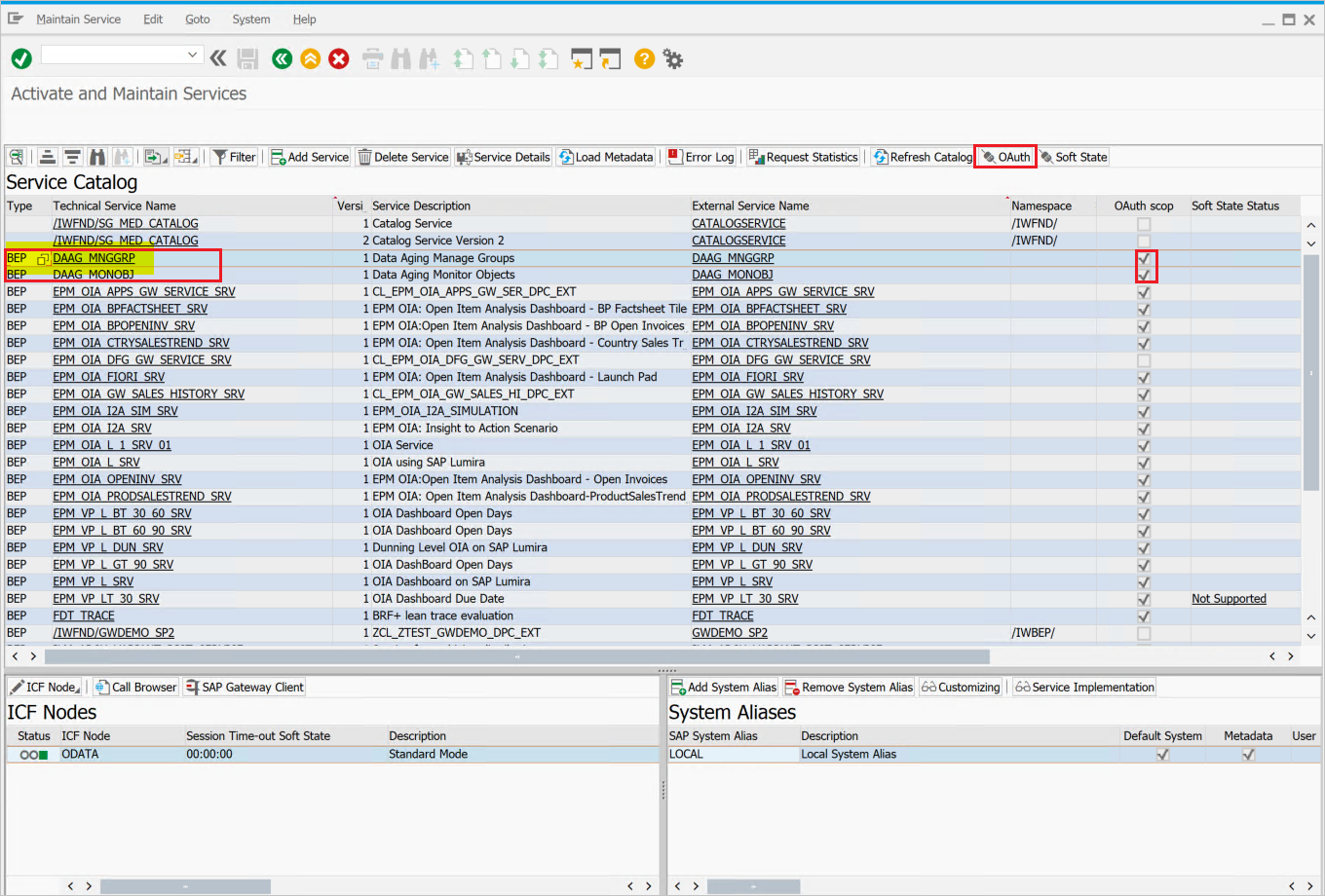

  3. In this example we want to connect the OData service: DAAG_MNGGRP with OAuth to Microsoft Entra SSO. Use the technical service name search for the service DAAG_MNGGRP and activate if not yet active, already (look for green status under ICF nodes tab). Ensure if system alias (the connected backend system, where the service actually running) is correct.

    OData service

    • Then click pushbutton OAuth on the top button bar and assign scope (keep default name as offered).

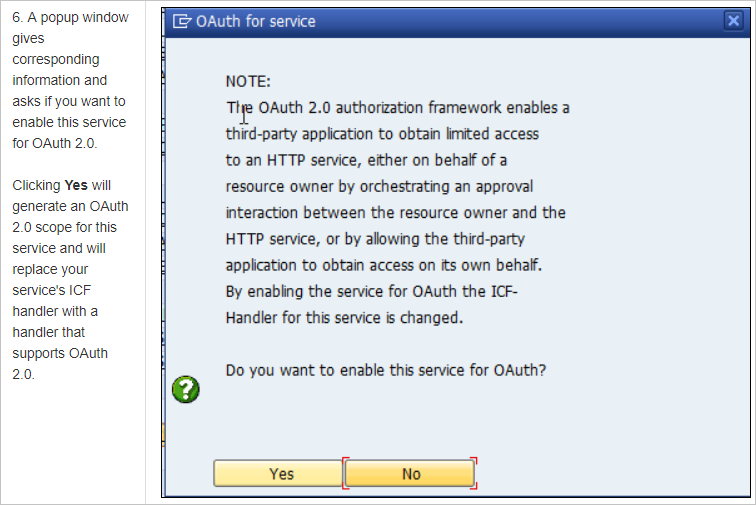

  4. For our example, the scope is DAAG_MNGGRP_001. It is generated from the service name by automatically adding a number. Report /IWFND/R_OAUTH_SCOPES can be used to change name of scope or create manually.

    Configure OAuth

    Note

    Message soft state status is not supported – can be ignored, as no problem.

Create a service user for the OAuth 2.0 Client

  1. OAuth2 uses a service ID to get the access token for the end-user on its behalf. Important restriction by OAuth design: the OAuth 2.0 Client ID must be identical with the username the OAuth 2.0 client uses for login when requesting an Access Token. Therefore, for our example, we are going to register an OAuth 2.0 client with name CLIENT1. As a prerequisite, a user with the same name (CLIENT1) must exist in the SAP system and that user we will configure to be used by the referred application.

  2. When registering an OAuth Client we use the SAML Bearer Grant type.

    Note

    For more details, refer OAuth 2.0 Client Registration for the SAML Bearer Grant Type here.

  3. Execute T-Code SU01 to create user CLIENT1 as System type and assign password. Save the password as you will need to provide the credential to the API programmer, who should save it with the username to the calling code. No profile or role should be assigned.

Register the new OAuth 2.0 Client ID with the creation wizard

  1. To register a new OAuth 2.0 client start transaction SOAUTH2. The transaction will display an overview about the OAuth 2.0 clients that were already registered. Choose Create to start the wizard for the new OAuth client named as CLIENT1 in this example.

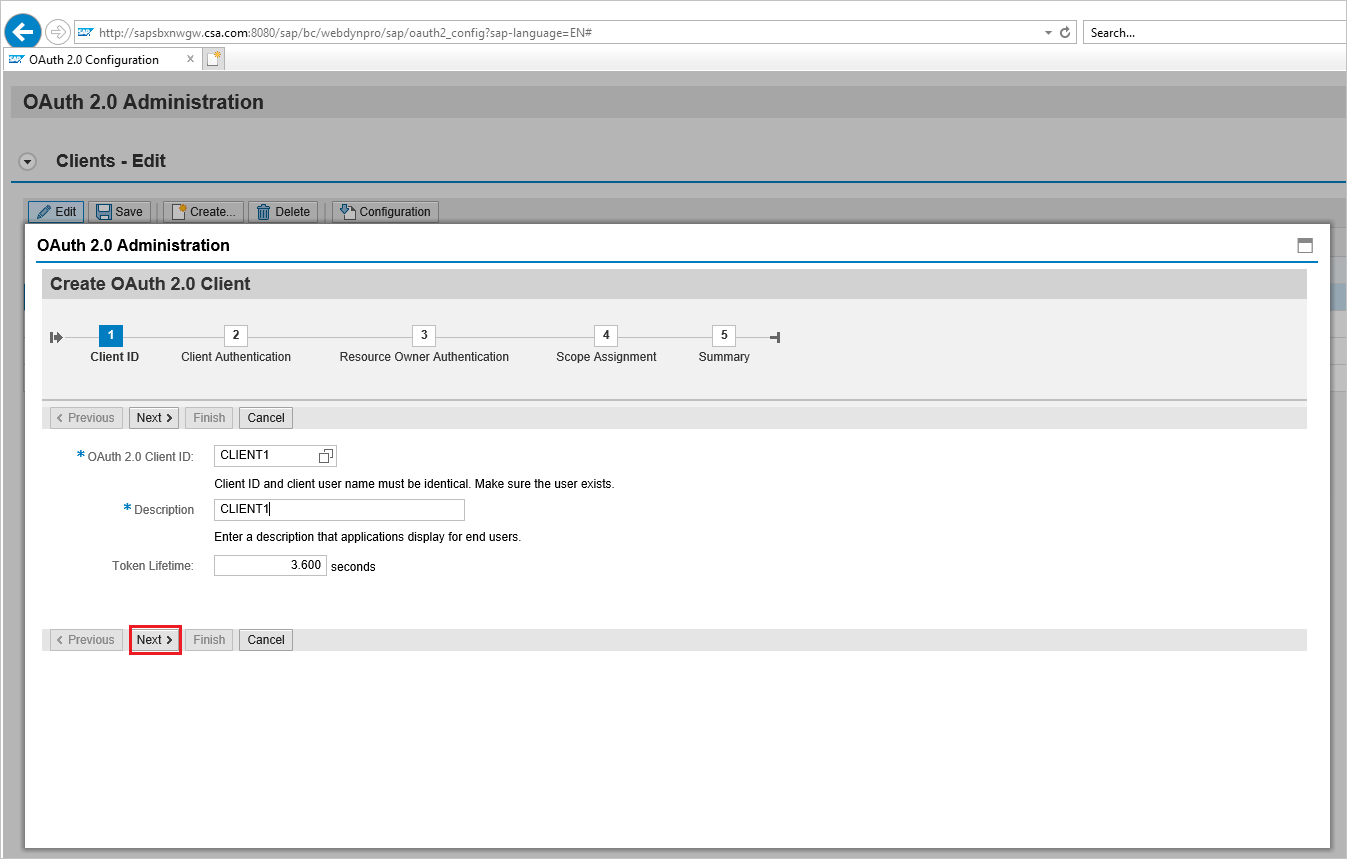

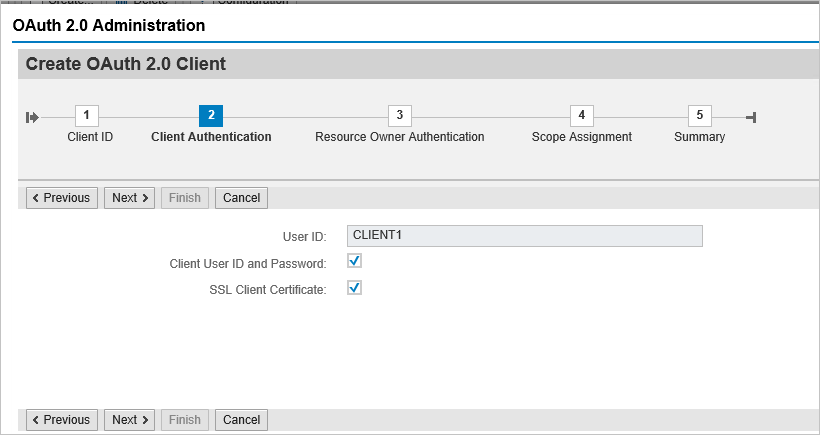

  2. Go to T-Code: SOAUTH2 and Provide the description then click next.

    SOAUTH2

    OAuth 2.0 Client ID

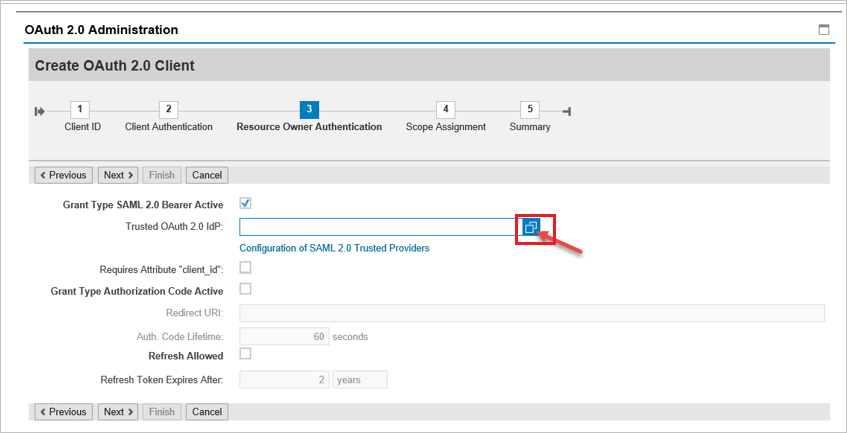

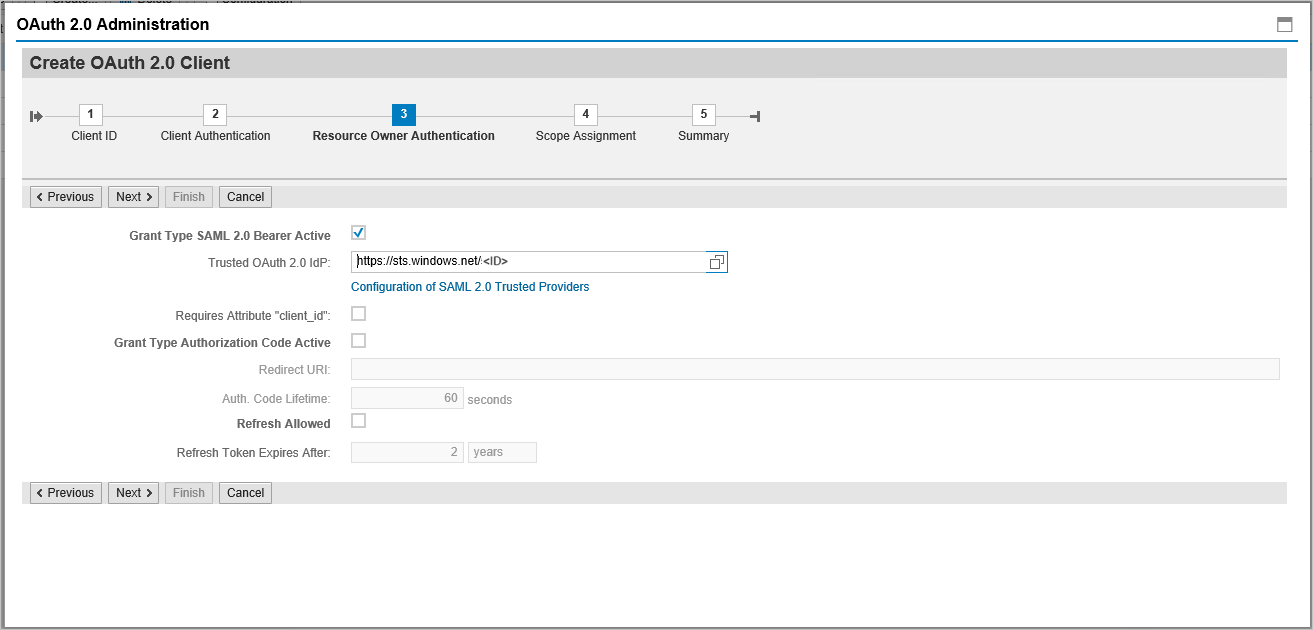

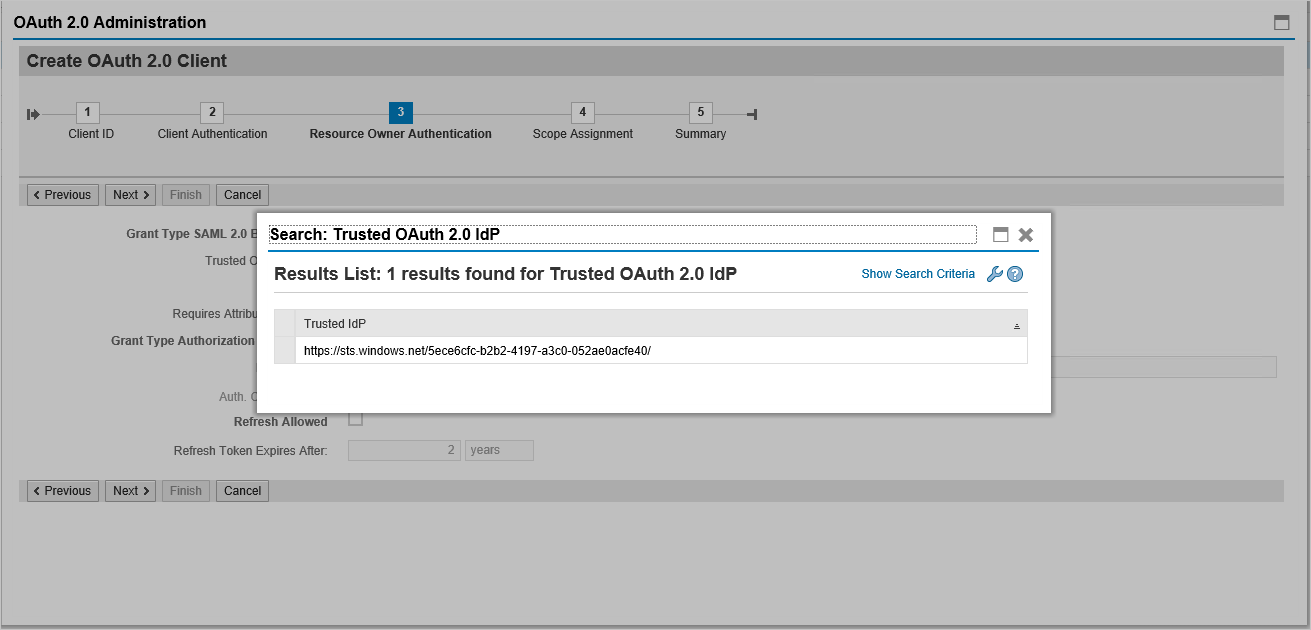

  3. Select the already added SAML2 IdP – Microsoft Entra ID from the dropdown list and save.

    SAML2 IdP – Microsoft Entra ID 1

    SAML2 IdP – Microsoft Entra ID 2

    SAML2 IdP – Microsoft Entra ID 3

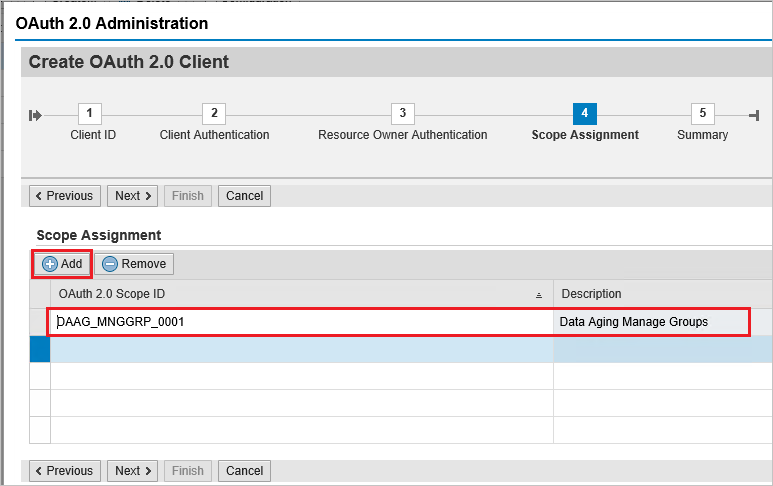

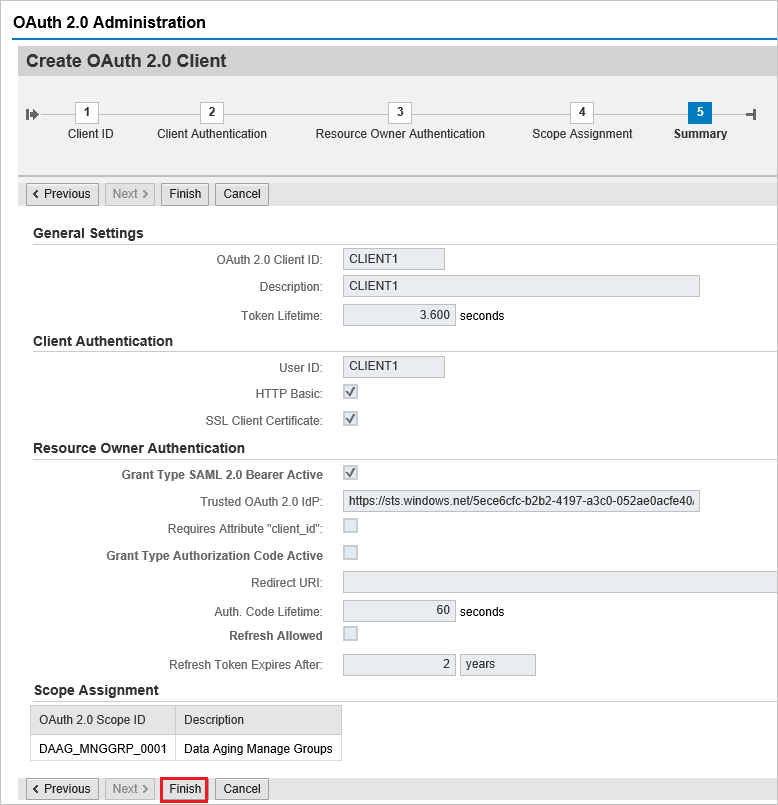

  4. Click on Add under scope assignment to add the previously created scope: DAAG_MNGGRP_001

    Scope

    scope assignment

  5. Click finish.

Request Access Token from Azure AD

To request an access token from the SAP system using Azure Active Directory (Azure AD) as the Identity Provider (IdP), follow these steps:

Step 1: Register Application in Azure AD

  1. Log into the Azure portal: Navigate to the Azure portal at portal.azure.com.
  2. Register a new application:
    • Go to "Azure Active Directory".
    • Select "App registrations" > "New registration".
    • Fill in the application details such as Name, Redirect URI, etc.
    • Click "Register".
  3. Configure API permissions:
    • After registration, navigate to "API permissions".
    • Click "Add a permission" and select "APIs my organization uses".
    • Search for the SAP system or relevant API and add the necessary permissions.
    • Grant admin consent for the permissions.

Step 2: Create Client Secret

  1. Navigate to the registered application: Go to "Certificates & secrets".
  2. Create a new client secret:
    • Click on "New client secret".
    • Provide a description and set an expiry period.
    • Click "Add" and note down the client secret value as it will be needed for authentication.

Step 3: Configure SAP System for Azure AD Integration

  1. Access SAP Cloud Platform: Log into your SAP Cloud Platform Cockpit.
  2. Set up trust configuration:
    • Go to "Security" > "Trust Configuration".
    • Add Azure AD as a trusted IdP by importing the federation metadata XML from Azure AD. This can be found in the "Endpoints" section of the Azure AD app registration (under Federation Metadata Document).
  3. Configure OAuth2 client:
    • In the SAP system, configure an OAuth2 client using the client ID and client secret obtained from Azure AD.
    • Set the token endpoint and other relevant OAuth2 parameters.

Step 4: Request Access Token

  1. Prepare the token request:

    • Construct a token request using the following details:
      • Token Endpoint: This is typically https://login.microsoftonline.com/{tenant}/oauth2/v2.0/token.
      • Client ID: The Application (client) ID from Azure AD.
      • Client Secret: The client secret value from Azure AD.
      • Scope: The required scopes (e.g., https://your-sap-system.com/.default).
      • Grant Type: Use client_credentials for server-to-server authentication.
  2. Make the token request:

    • Use a tool like Postman or a script to send a POST request to the token endpoint.
    • Example request (in cURL):
      curl -X POST \
        https://login.microsoftonline.com/{tenant}/oauth2/v2.0/token \
        -H 'Content-Type: application/x-www-form-urlencoded' \
        -d 'client_id={client_id}&scope=https://your-sap-system.com/.default&client_secret={client_secret}&grant_type=client_credentials'

  3. Extract the access token:

    • The response will contain an access token if the request is successful. Use this access token to authenticate API requests to the SAP system.

Step 5: Use the Access Token for API Requests

  1. Include the access token in API requests:
    • For each request to the SAP system, include the access token in the Authorization header.
    • Example header:
      Authorization: Bearer {access_token}


Next Steps

Once you configure Microsoft Entra SAP NetWeaver you can enforce Session Control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session Control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
