How to accelerate data prep with Data Wrangler in Microsoft Fabric

The Data Wrangler tool is a notebook-based resource that provides an immersive interface for exploratory data analysis. It combines a grid-like data display with dynamic summary statistics, built-in visualizations, and a library of common data-cleaning operations. You can apply each operation with a few steps. You can update the data display in real time, and generate code in pandas or PySpark that you can save back to the notebook as a reusable function. This article focuses on exploration and transformation of pandas DataFrames. For more information about using Data Wrangler on Spark DataFrames, visit this resource.

Prerequisites

Limitations

  • Custom code operations are currently supported only for pandas DataFrames.
  • The Data Wrangler display works best on large monitors, although you can minimize or hide different portions of the interface, to accommodate smaller screens.

Launching Data Wrangler

You can launch Data Wrangler directly from a Microsoft Fabric notebook to explore and transform any pandas or Spark DataFrame. For more information about using Data Wrangler with Spark DataFrames, visit this companion article. This code snippet shows how to read sample data into a pandas DataFrame:

import pandas as pd

# Read a CSV into a Pandas DataFrame
df = pd.read_csv("https://raw.githubusercontent.com/plotly/datasets/master/titanic.csv")
display(df)

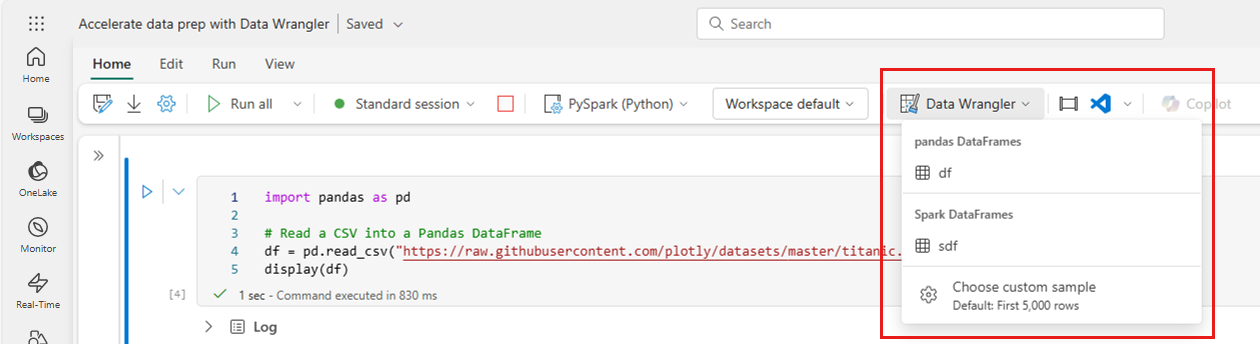

In the notebook ribbon "Home" tab, use the Data Wrangler dropdown prompt to browse the active DataFrames available for editing. Select the one you want to open in Data Wrangler.

Tip

Data Wrangler cannot be opened while the notebook kernel is busy. An executing cell must finish its execution before Data Wrangler can launch, as shown in this screenshot:

Screenshot showing a Fabric notebook with the Data Wrangler dropdown prompt.

Choosing custom samples

To open a custom sample of any active DataFrame with Data Wrangler, select "Choose custom sample" from the dropdown, as shown in this screenshot:

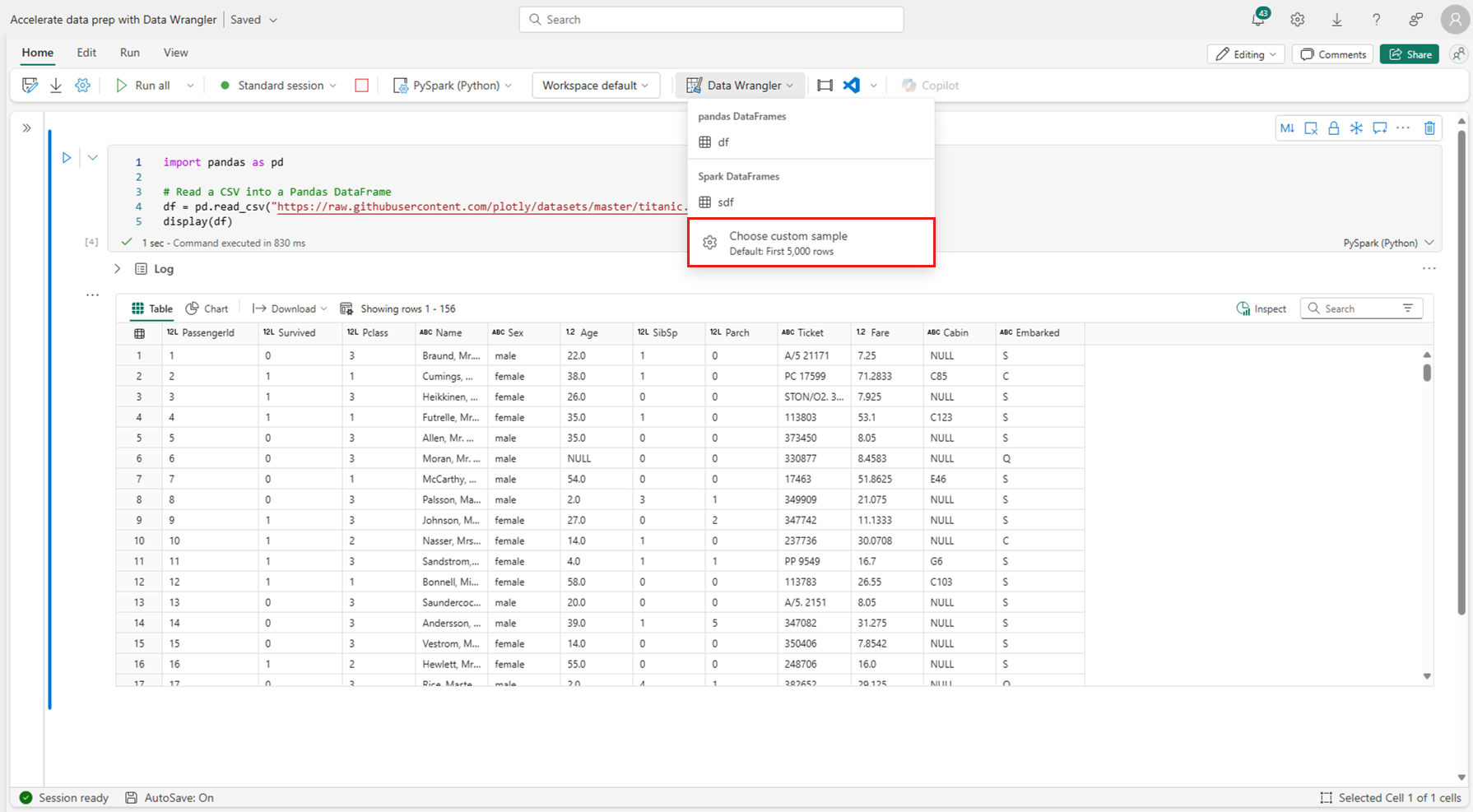

Screenshot showing the Data Wrangler dropdown prompt with the custom sample option outlined.

This launches a pop-up with options to specify the size of the desired sample (number of rows) and the sampling method (first records, last records, or a random set). The first 5,000 rows of the DataFrame serve as the default sample size, as shown in this screenshot:

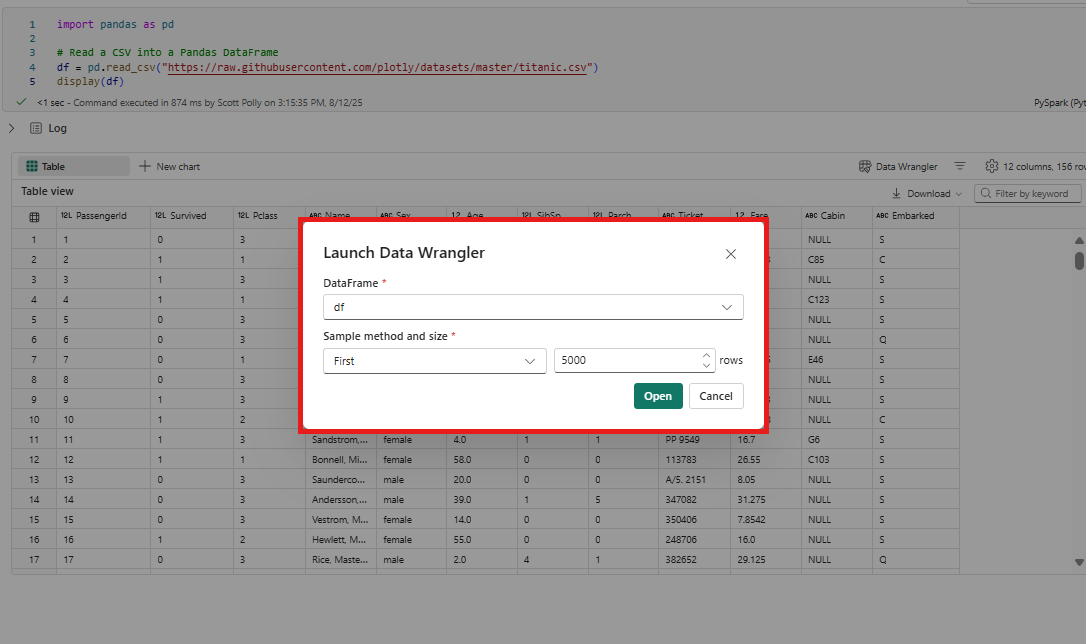

Screenshot showing the Data Wrangler custom sample prompt.

Viewing summary statistics

When Data Wrangler loads, it displays a descriptive overview of the chosen DataFrame in the "Summary" panel. This overview includes information about the DataFrame dimensions, its missing values, and more. Selection of any column in the Data Wrangler grid prompts the "Summary" panel to update and display descriptive statistics about that specific column. Quick insights about every column are also available in its header.

Tip

Column-specific statistics and visuals (both in the "Summary" panel and in the column headers) depend on the column datatype. For instance, a binned histogram of a numeric column appears in the column header only if the column is cast as a numeric type, as shown in this screenshot:

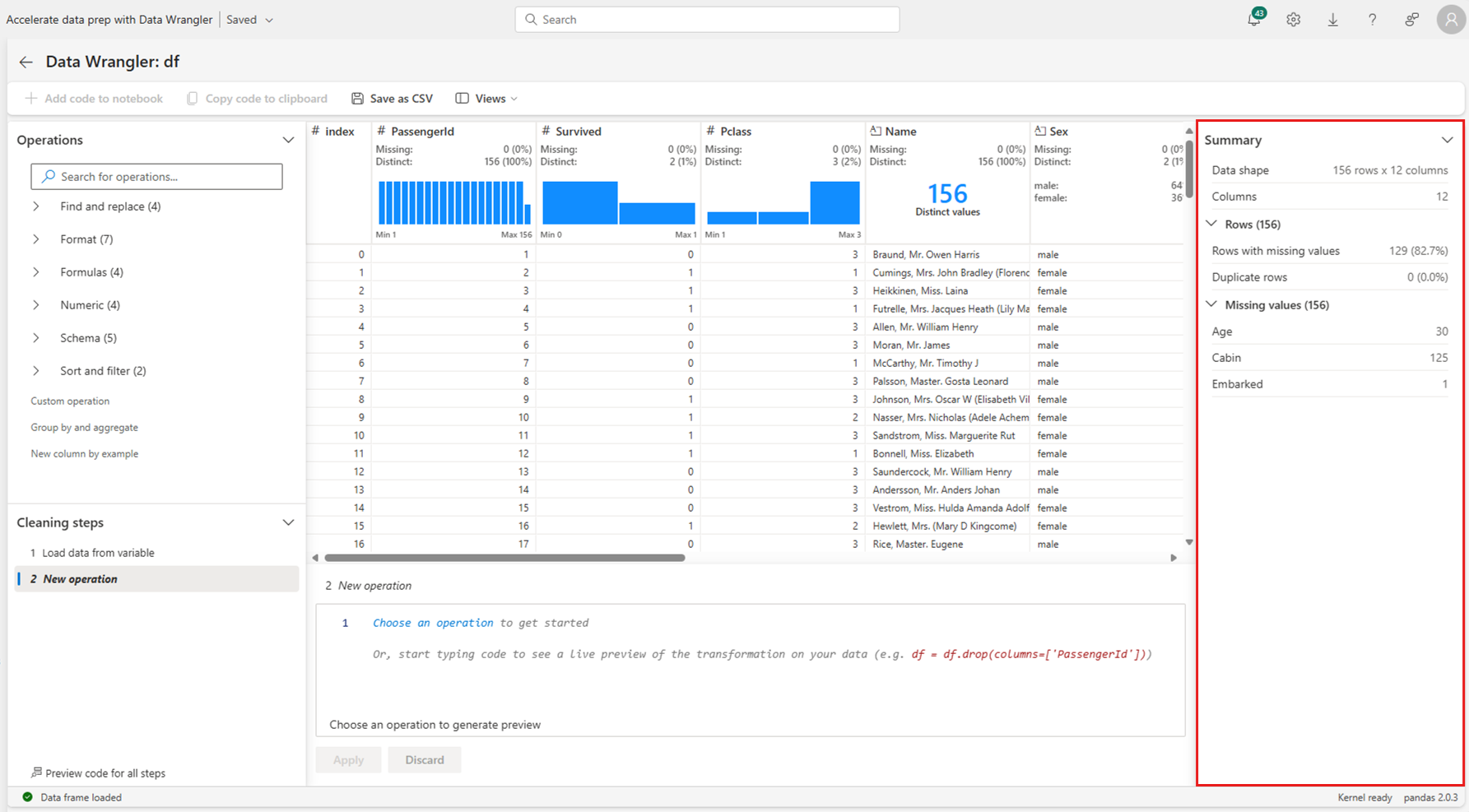

Screenshot showing the Data Wrangler display grid and Summary panel.

Browsing data-cleaning operations

A searchable list of data-cleaning steps can be found in the "Operations" panel. From the "Operations" panel, selection of a data-cleaning step prompts you to provide a target column or columns, along with any necessary parameters to complete the step. For example, the prompt to numerically scale a column requires a new range of values, as shown in this screenshot:

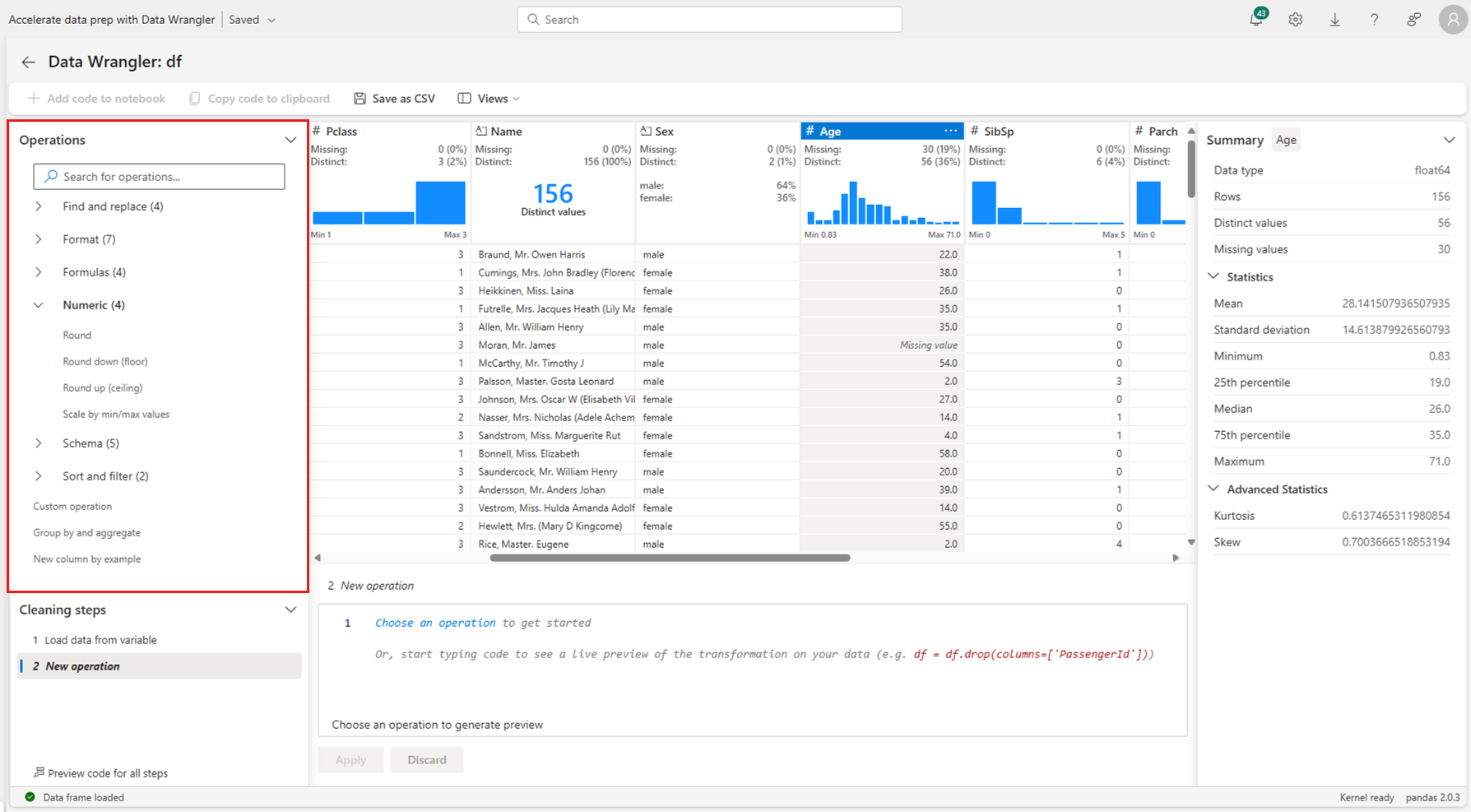

Screenshot showing the Data Wrangler Operations panel.

Tip

You can apply a smaller selection of operations from the menu of each column header, as shown in this screenshot:

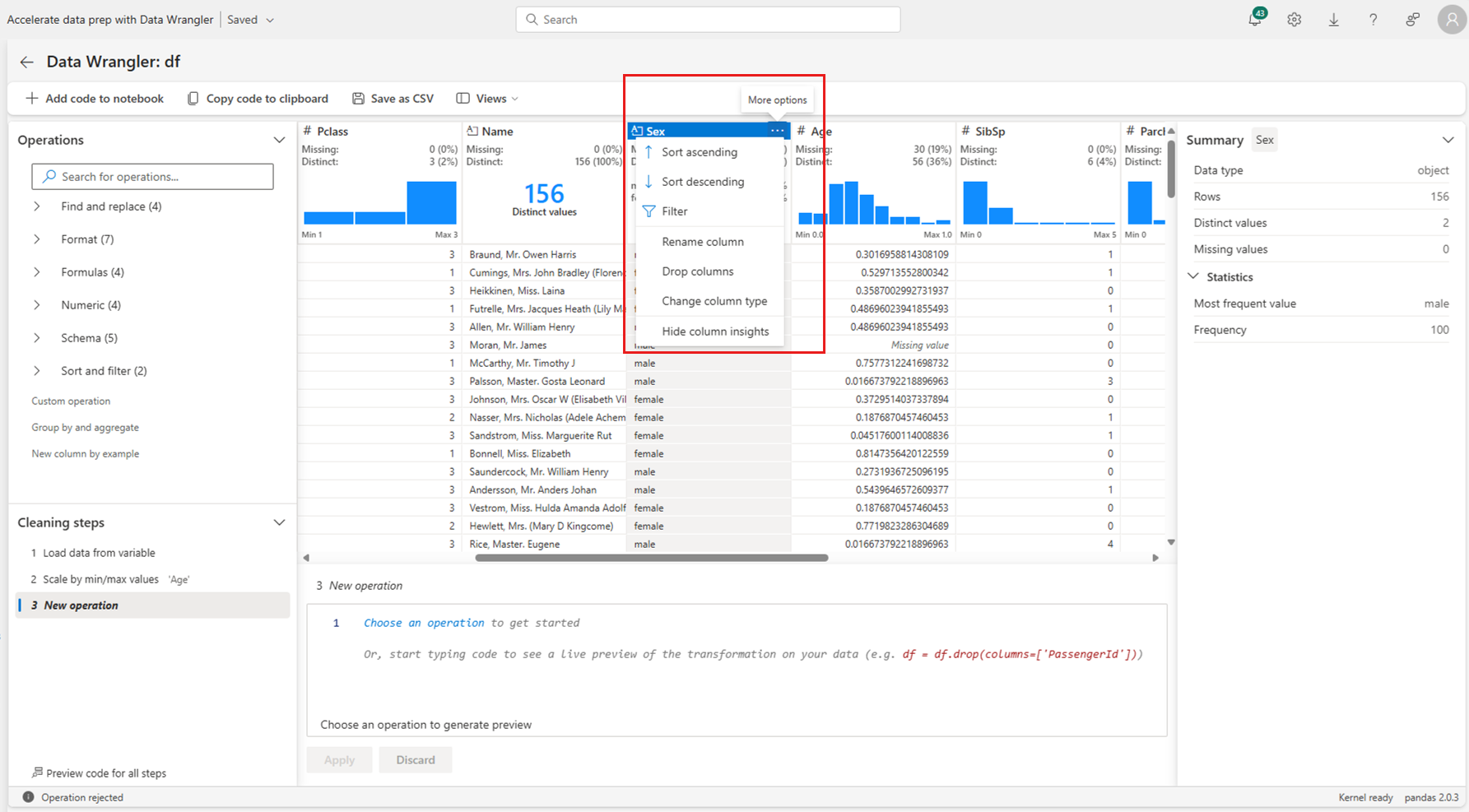

Screenshot showing a Data Wrangler operation that can be applied from the column header menu.

Previewing and applying operations

The Data Wrangler display grid automatically previews the results of a selected operation, and the corresponding code automatically appears in the panel below the grid. To commit the previewed code, select "Apply" in either place. To delete the previewed code and try a new operation, select "Discard" as shown in this screenshot:

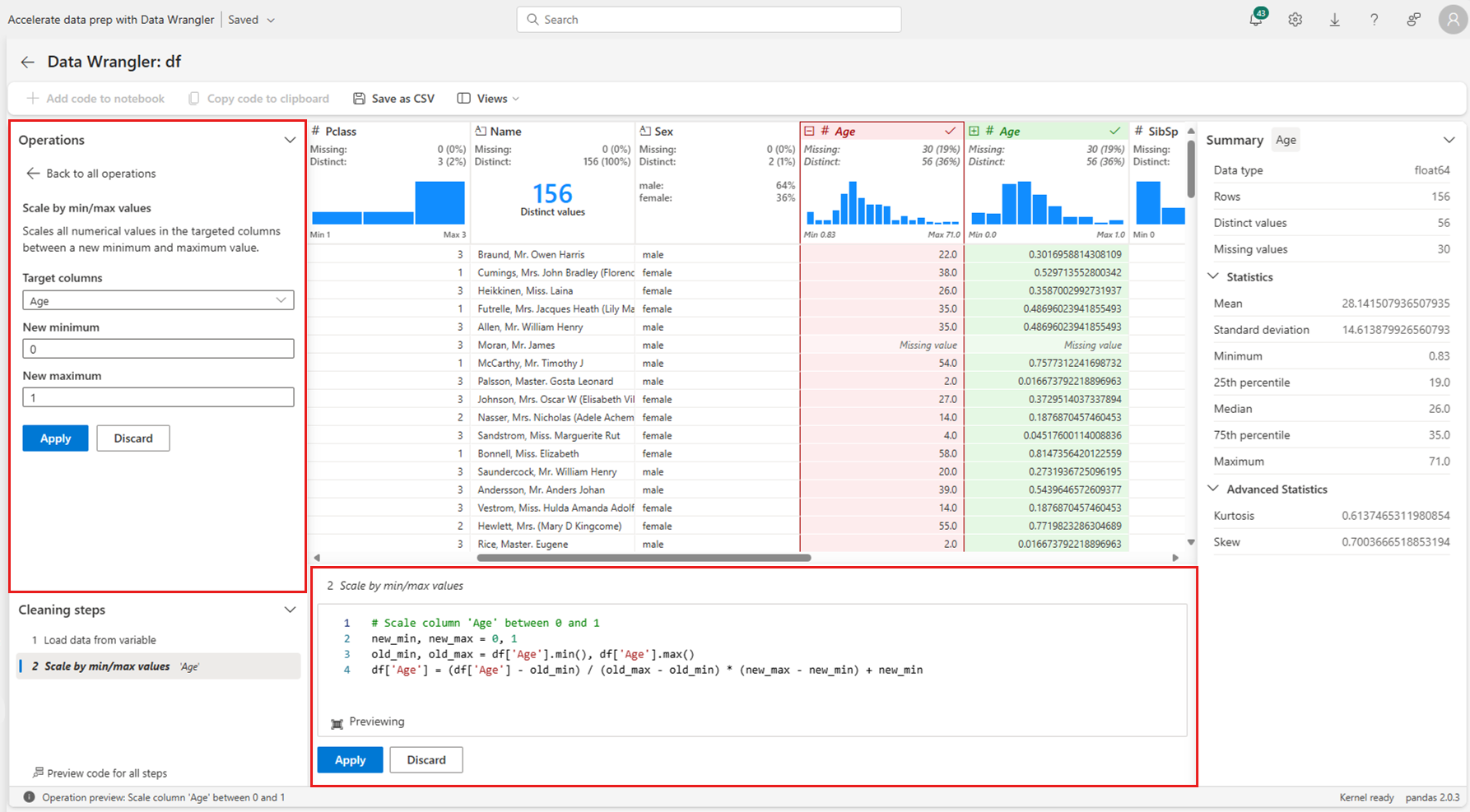

Screenshot showing a Data Wrangler operation in progress.

Once an operation is applied, the Data Wrangler display grid and summary statistics update to reflect the results. The code appears in the running list of committed operations, located in the "Cleaning steps" panel, as shown in this screenshot:

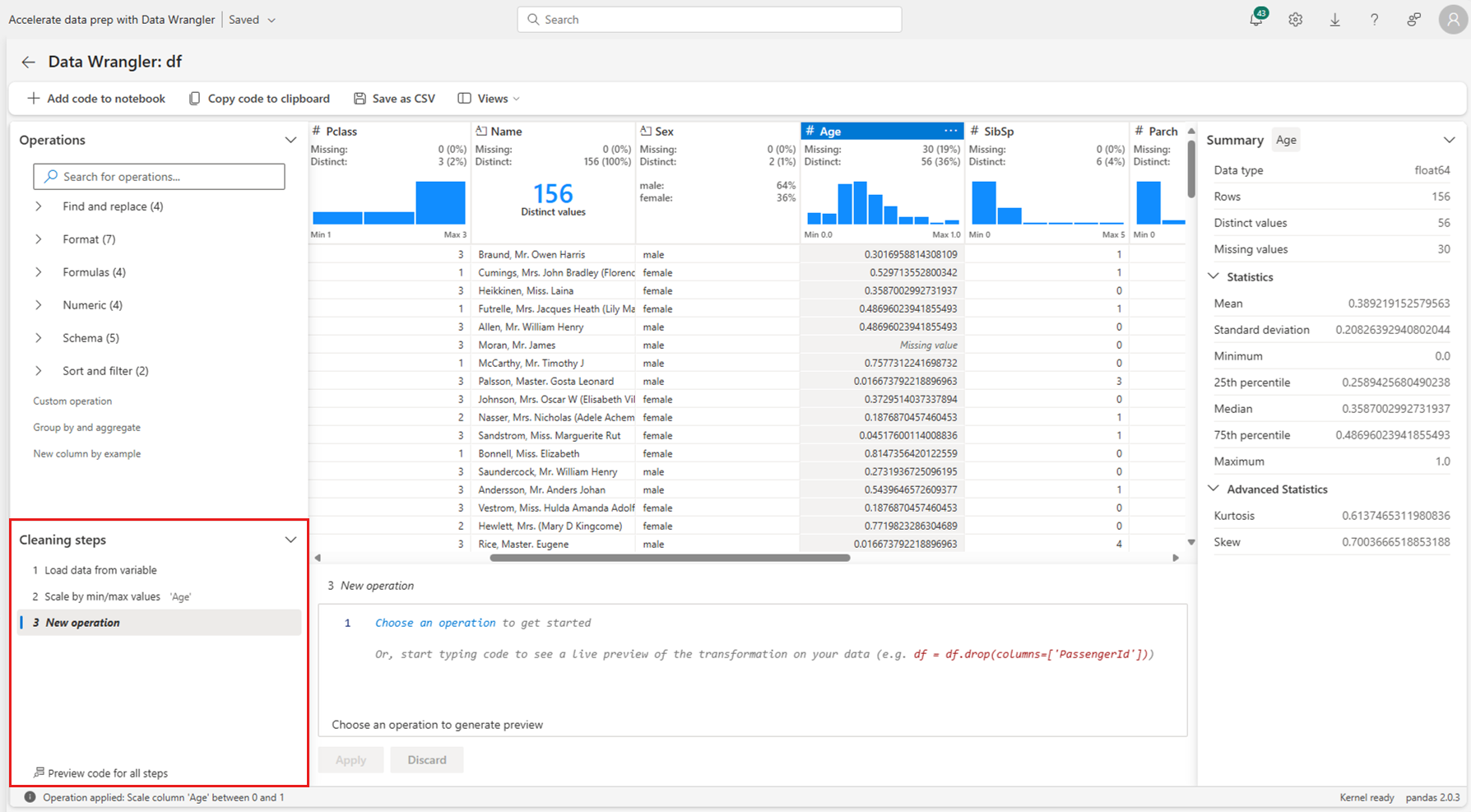

Screenshot showing an applied Data Wrangler operation.

Tip

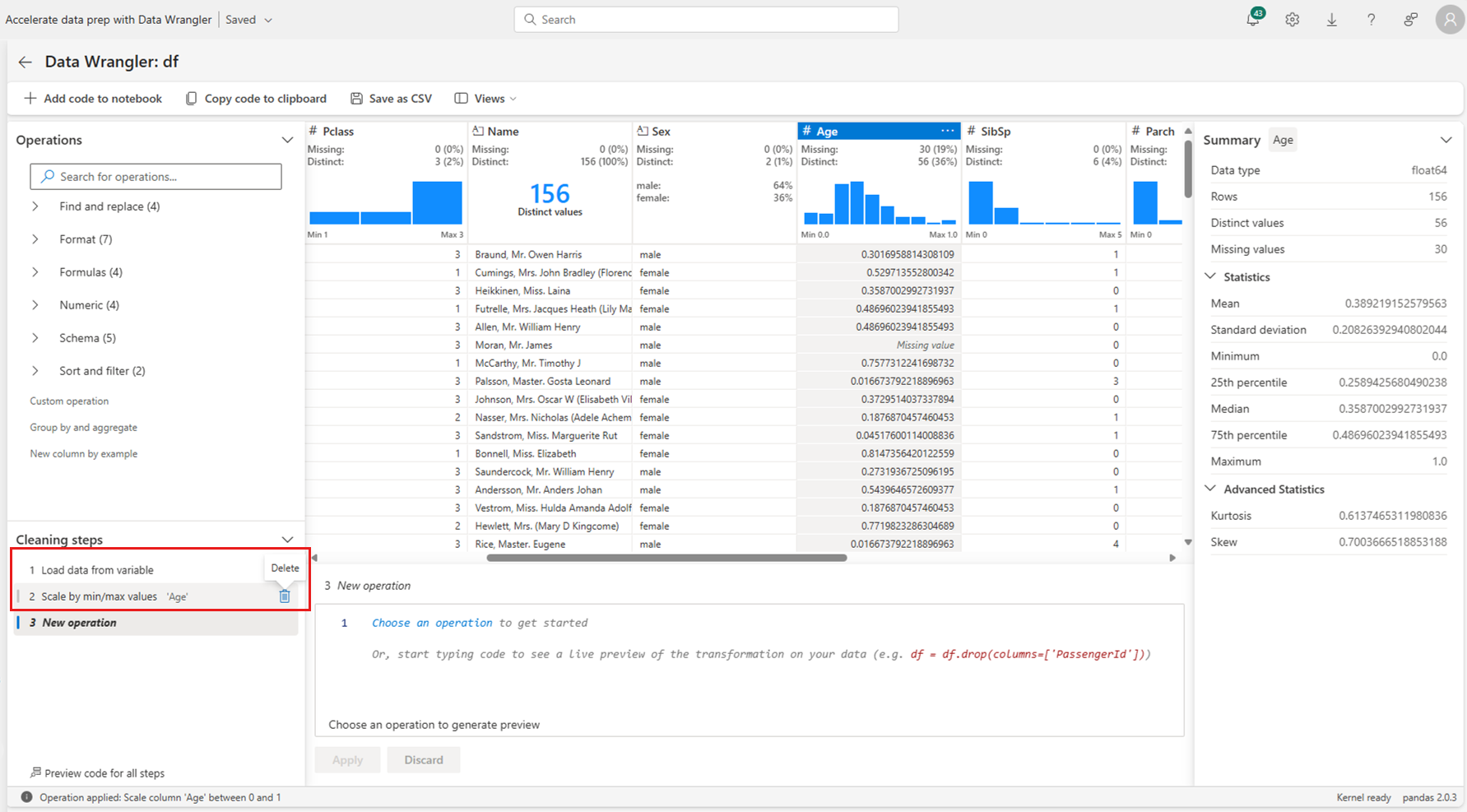

You can always undo the most recently applied step. In the "Cleaning steps" panel, a trash can icon will appear if you hover your cursor over that most recently applied step, as shown in this screenshot:

Screenshot showing a Data Wrangler operation that can be undone.

This table summarizes the operations that Data Wrangler currently supports:

Operation Description
Sort Sort a column in ascending or descending order
Filter Filter rows based on one or more conditions
One-hot encode Create new columns for each unique value in an existing column, indicating the presence or absence of those values per row
One-hot encode with delimiter Split and one-hot encode categorical data using a delimiter
Change column type Change the data type of a column
Drop column Delete one or more columns
Select column Choose one or more columns to keep, and delete the rest
Rename column Rename a column
Drop missing values Remove rows with missing values
Drop duplicate rows Drop all rows that have duplicate values in one or more columns
Fill missing values Replace cells with missing values with a new value
Find and replace Replace cells with an exact matching pattern
Group by column and aggregate Group by column values and aggregate results
Strip whitespace Remove whitespace from the beginning and end of text
Split text Split a column into several columns based on a user-defined delimiter
Convert text to lowercase Convert text to lowercase
Convert text to uppercase Convert text to UPPERCASE
Scale min/max values Scale a numerical column between a minimum and maximum value
Flash Fill Automatically create a new column based on examples derived from an existing column

Modify your display

At any time, you can customize the interface with the "Views" tab in the toolbar located above the Data Wrangler display grid. This can hide or show different panes based on your preferences and screen size, as shown in this screenshot:

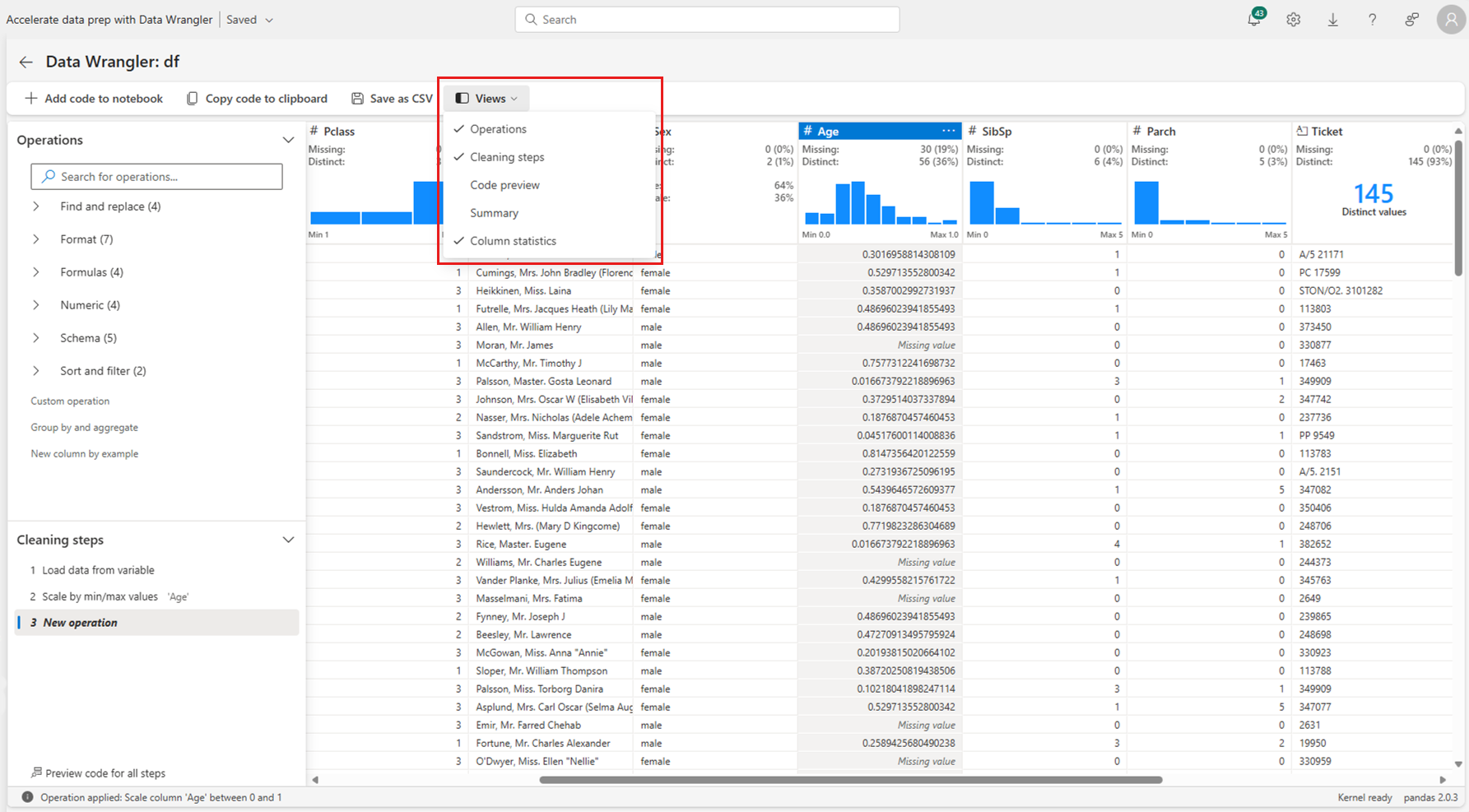

Screenshot showing the Data Wrangler menu for customizing the display view.

Saving and exporting code

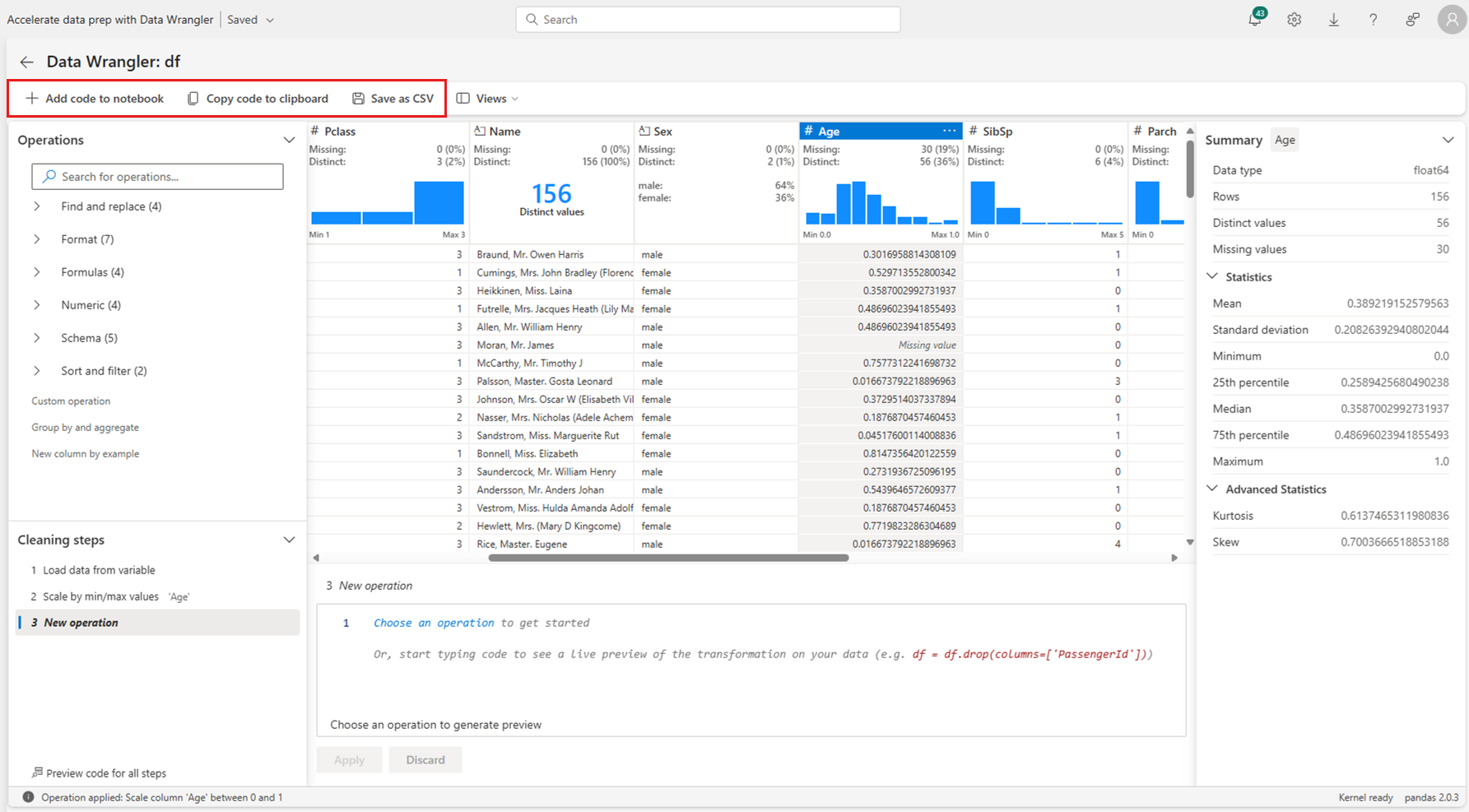

The toolbar above the Data Wrangler display grid provides options to save the generated code. You can copy the code to the clipboard, or export it to the notebook as a function. Exporting the code closes Data Wrangler and adds the new function to a code cell in the notebook. You can also download the cleaned DataFrame as a csv file.

Tip

Data Wrangler generates code that is applied only when you manually run the new cell, and it won't overwrite your original DataFrame, as shown in this screenshot:

Screenshot showing the options to export code in Data Wrangler.

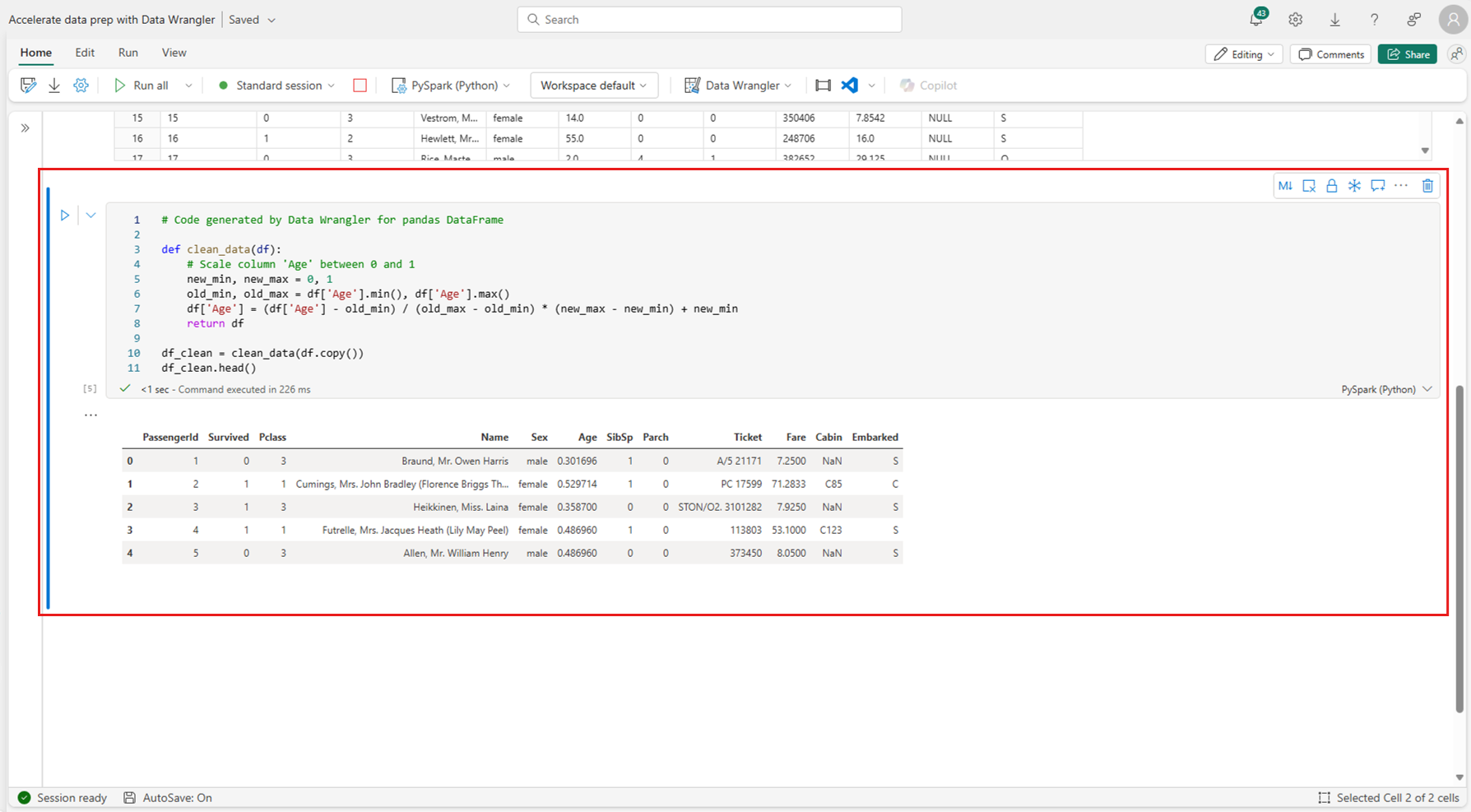

You can then run that exported code, as shown in this screenshot:

Screenshot showing the code generated by Data Wrangler back in the notebook.
