Configure root squash for Azure Files

✔️ Applies to: Classic NFS file shares created with the Microsoft.Storage resource provider

✔️ Applies to: NFS file shares created with the Microsoft.FileShares resource provider

✖️ Doesn't apply to: SMB file shares

Permissions for NFS file shares are enforced by the client operating system rather than the Azure Files service. Root squash is an administrative security feature in NFS that prevents unauthorized root-level access to the NFS server by client machines. This functionality is an important part of protecting user data and system settings from manipulation by untrusted or compromised clients.

Administrators should enable root squash in environments where multiple users or systems access the NFS share, especially in scenarios where client machines aren't fully trusted. By converting root users to anonymous users, root squash ensures that even if a client machine is compromised, the attacker can't exploit root privileges to access or modify critical files on the NFS server.

In this article, you learn how to configure and change root squash settings for NFS Azure file shares.

How root squash works with Azure Files

Root squash works by re-mapping the user ID (UID) and the group ID (GID) of the root user to a UID and GID belonging to the anonymous user on server. Root users accessing the file system are automatically converted to the anonymous, less-privileged user/group with limited permissions.

Although root squash is the default behavior in NFS, it's not the default option when creating an NFS Azure file share. You must explicitly enable root squash on the file share. You can do this when you create an NFS Azure file share, or later on.

Root squash settings

You can choose from three root squash settings:

• No root squash: Turn off root squashing. This option is mainly useful for diskless clients or workloads as specified by workload documentation. This is the default setting when creating a new NFS Azure file share.
• All squash: Map all UIDs and GIDs to the anonymous user. Useful for shares that require read-only access by all clients.
• Root squash: Map requests from UID/GID 0 (root) to the anonymous UID/GID. This doesn't apply to any other UIDs or GIDs that might be equally sensitive, such as user bin or group staff.

The following table highlights the UID behavior observed from the server when specific root squash options are configured.

Option	Client UID	Server UID
root_squash	0	65534
root_squash	1000	1000
no_root_squash	0	0
no_root_squash	1000	1000
all_squash	0	65534
all_squash	1000	65534

Configure root squash on an existing NFS file share (Microsoft.Storage)

For Azure classic file shares that use the Microsoft.Storage resource provider, you can configure root squash settings via the Azure portal, Azure PowerShell, or Azure CLI.

Portal

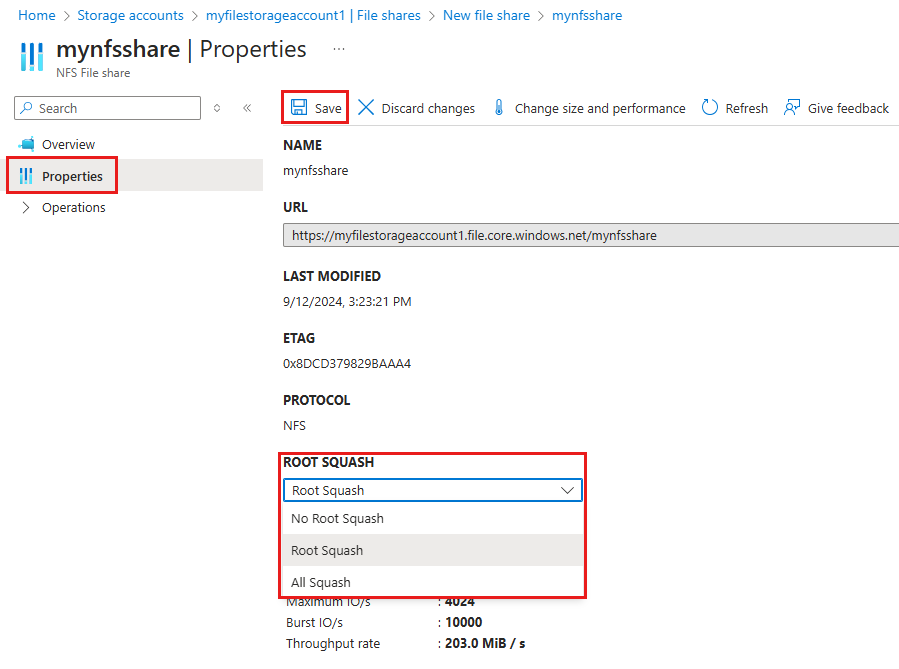

1. Sign in to the Azure portal and navigate to the FileStorage storage account containing the NFS Azure file share.

2. In the service menu, under Data storage, select File shares.

3. Select the file share for which you want to modify the root squash setting.

4. In the service menu, select Properties. Then toggle the Root squash setting as desired.



5. Select Save to update the root squash value.

Azure PowerShell

1. Sign in to Azure and select your subscription.

   Connect-AzAccount
   Select-AzSubscription -SubscriptionId "<your-subscription-id>"


2. To enable root squash on the file share, run the following command. Replace <resource-group-name>, <storage-account-name>, and <file-share-name> with your own values.

   Update-AzRmStorageShare `
     -ResourceGroupName <resource-group-name> `
     -StorageAccountName <storage-account-name> `
     -Name <file-share-name> `
     -RootSquash RootSquash


3. To disable root squash on the file share, run the following command. Replace <resource-group-name>, <storage-account-name>, and <file-share-name> with your own values.

   Update-AzRmStorageShare `
     -ResourceGroupName <resource-group-name> `
     -StorageAccountName <storage-account-name> `
     -Name <file-share-name> `
     -RootSquash NoRootSquash


4. To force squash for all users, run the following command to map all user IDs to anonymous. Replace <resource-group-name>, <storage-account-name>, and <file-share-name> with your own values.

   Update-AzRmStorageShare `
     -ResourceGroupName <resource-group-name> `
     -StorageAccountName <storage-account-name> `
     -Name <file-share-name> `
     -RootSquash AllSquash


5. To view the root squash property for a file share, run the following command. Replace <resource-group-name>, <storage-account-name>, and <file-share-name> with your own values.

   Get-AzRmStorageShare `
     -ResourceGroupName <resource-group-name> `
     -StorageAccountName <storage-account-name> `
     -Name <file-share-name> | fl -Property ResourceGroupName, StorageAccountName, Name, QuotaGiB,AccessTier,EnabledProtocols,RootSquash


Azure CLI

1. Sign in to Azure and set your subscription.

   az login
   az account set --subscription "<your-subscription-id>"


2. To enable root squash on the file share, run the following command. Replace <resource-group-name>, <storage-account-name>, and <file-share-name> with your own values.

   az storage share-rm update \
     --resource-group <resource-group-name> \
     --storage-account <storage-account-name> \
     --name <file-share-name> \
     --root-squash RootSquash


3. To disable root squash on the file share, run the following command. Replace <resource-group-name>, <storage-account-name>, and <file-share-name> with your own values.

   az storage share-rm update \
     --resource-group <resource-group-name> \
     --storage-account <storage-account-name> \
     --name <file-share-name> \
     --root-squash NoRootSquash


4. To force squash for all users, run the following command to map all user IDs to anonymous. Replace <resource-group-name>, <storage-account-name>, and <file-share-name> with your own values.

   az storage share-rm update \
     --resource-group <resource-group-name> \
     --storage-account <storage-account-name> \
     --name <file-share-name> \
     --root-squash AllSquash


5. To view the root squash property for a file share, run the following command. Replace <resource-group-name>, <storage-account-name>, and <file-share-name> with your own values.

   az storage share-rm show \
     --resource-group <resource-group-name> \
     --storage-account <storage-account-name> \
     --name <file-share-name>


Configure root squash on an existing NFS file share (Microsoft.FileShares)

For Azure file shares that use the Microsoft.FileShares resource provider, you can configure root squash settings using the Azure portal, Azure PowerShell, or Azure CLI.

Portal

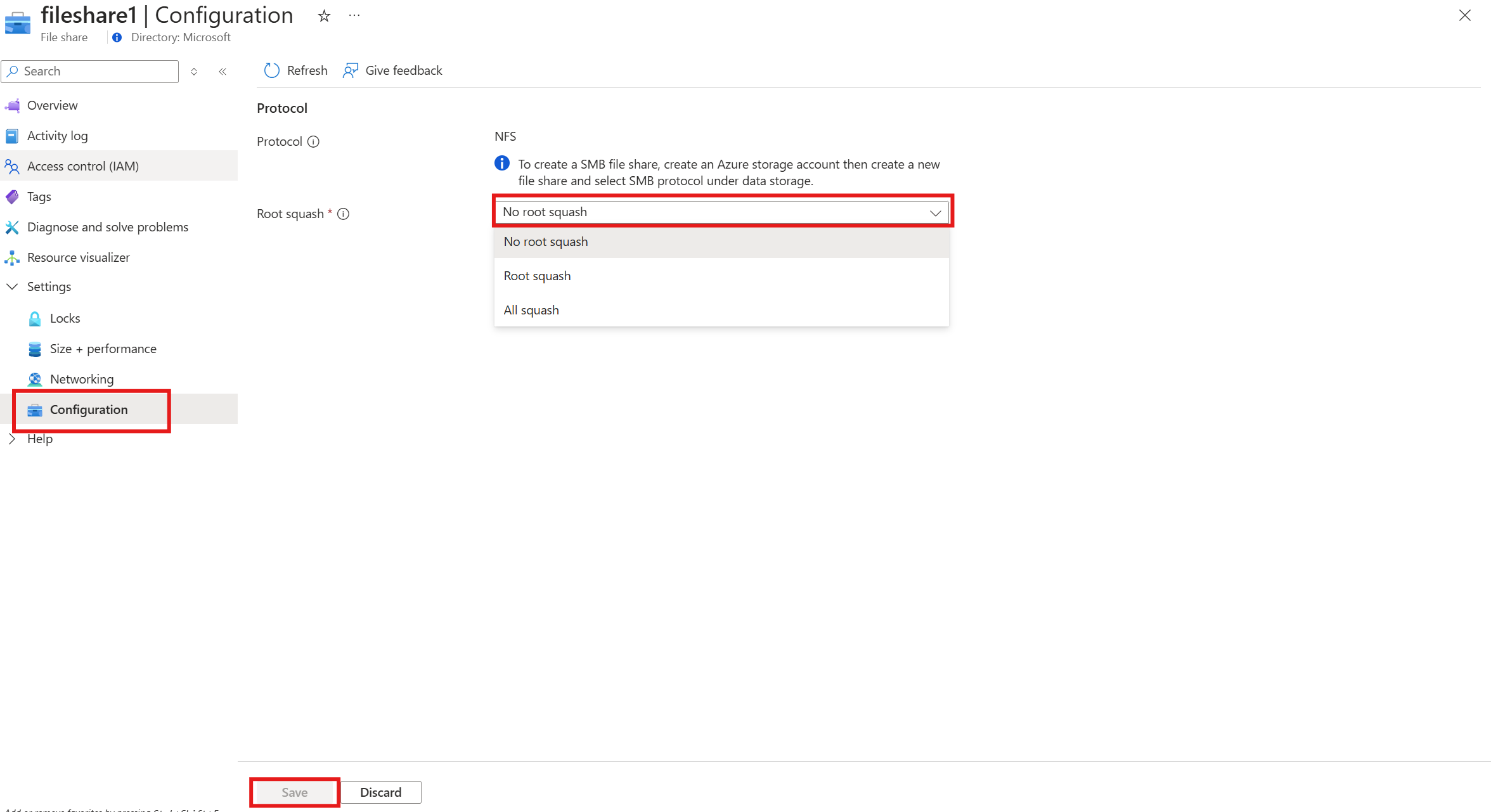

1. Sign in to the Azure portal and navigate to the file share.

2. In the service menu, under Settings, select Configuration.

3. Toggle the Root squash setting as desired.



4. Select Save to update the root squash value.

Azure PowerShell

To change the root squash setting on a file share (Microsoft.FileShares) using PowerShell, run the following commands. Replace the variables with your intended values. Allowed values for -NfProtocolPropertyRootSquash are AllSquash, NoRootSquash, and RootSquash.

# To learn more about the Az.FileShare module, see https://www.powershellgallery.com/packages/Az.FileShare/0.1.0
Install-Module -Name Az.FileShare -Repository psgallery -RequiredVersion 0.1.0

$resourceGroup = "<your-resource-group-name>"
$shareName = "<your-file-share-name>"

Update-AzFileShare -ResourceName $shareName -ResourceGroupName $resourceGroup -NfProtocolPropertyRootSquash RootSquash

Azure CLI

To change the root squash setting on a file share (Microsoft.FileShares) using Azure CLI, run the following commands. Allowed values for --root-squash are AllSquash, NoRootSquash, and RootSquash.

# Install the fileshares extension
az extension add --name fileshares

# Specify your values
shareName="<your-file-share-name>"
resourceGroup="<your-resource-group-name>"

# Update the root squash setting
az fileshare update --name $shareName --resource-group $resourceGroup --root-squash RootSquash

See also

• NFS Azure file shares
