In this quickstart, you learn how to connect to an Azure Database for PostgreSQL flexible server by using Power BI Desktop. By using Power BI Desktop, you can visually explore your data through a free-form drag-and-drop canvas, a broad range of modern data visualizations, and an easy-to-use report authoring experience. You can import data directly from the tables or import data from a SELECT query. This article applies to Power BI Desktop only. Currently, Power Query online or Power BI Service aren't supported.
Prerequisites
- Install Power BI Desktop.
Connect with Power BI desktop from Azure portal
Get the connection information needed to connect to the Azure Database for PostgreSQL flexible server. You need the fully qualified server name and sign in credentials.
Sign in to the Azure portal.
From the left-hand menu in Azure portal, select All resources, and then search for the server you created (such as mydemoserverpbi).
Select the server name.

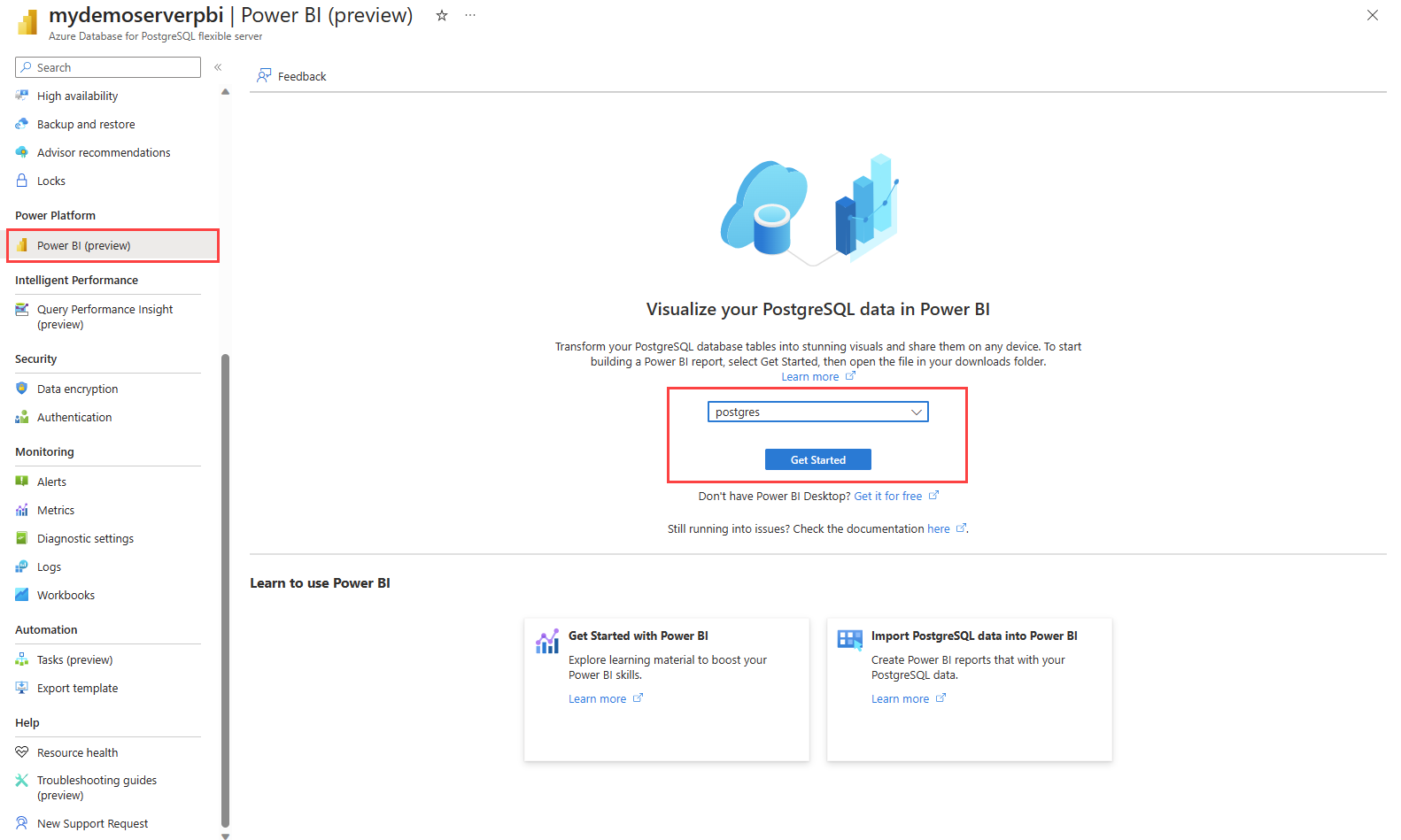

From the server's Overview panel, select Power BI from the left-hand menu.
Select a database from the dropdown, such as postgres, and then select Get started.
Download the Power BI desktop file mydemoserverpbi_postgres.pbids.
Open the file in Power BI desktop.
Switch to the Database tab to provide the username and password for your database server.
Note
Windows authentication isn't supported for Azure Database for PostgreSQL flexible server.

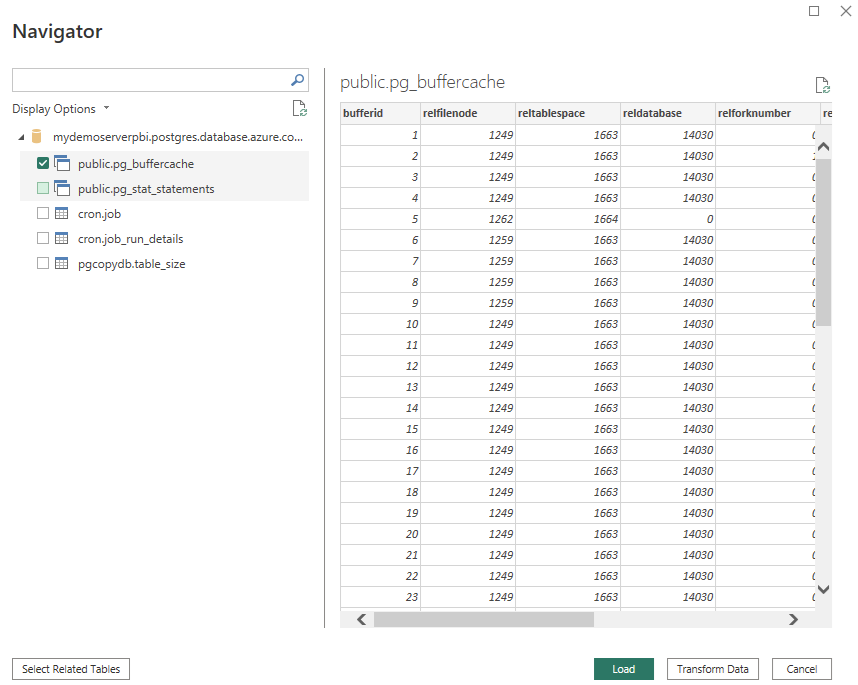

In Navigator, select the data you require, and then either load or transform the data.
Connect to Azure Database for PostgreSQL flexible server from Power BI Desktop
You can connect to an Azure Database for PostgreSQL flexible server by using Power BI Desktop directly, without using the Azure portal.
Get the Azure Database for PostgreSQL connection information
- Sign in to the Azure portal.
- From the left-hand menu in Azure portal, select All resources, and then search for the server you created (such as mydemoserverpbi).
- Select the server name.
- From the server's Overview panel, make a note of the Server name and Server admin login name. If you forget your password, you can also reset the password from this panel.
- Go to Databases page to find the database you want to connect to. Power BI Desktop supports adding a connection to a single database, so you need to provide a database name for importing data.
Add Azure Database for PostgreSQL connection in Power BI Desktop

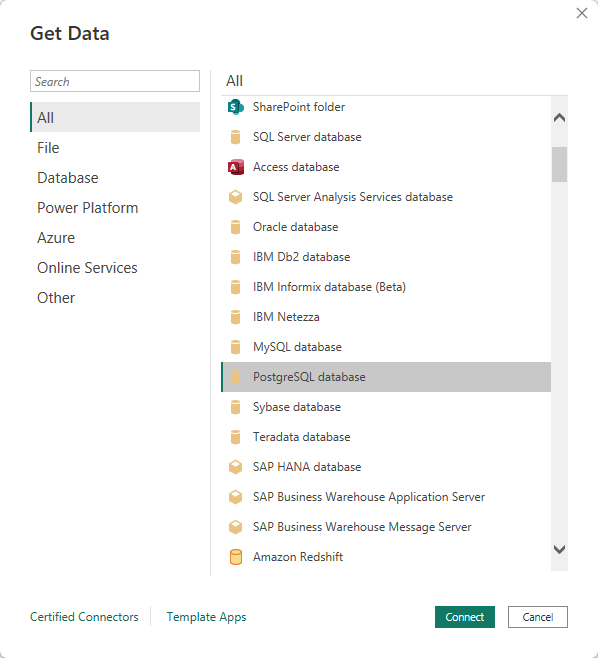

Select the PostgreSQL database option in the connector selection.

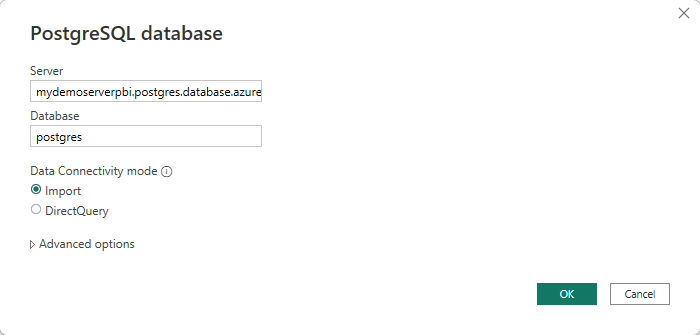

In the PostgreSQL database dialog, enter the name of the server and database.
Select the Database authentication type and enter your Azure Database for PostgreSQL flexible server credentials in the User name and Password boxes. Make sure to select the level to apply your credentials to.
When you finish, select OK.
In Navigator, select the data you require, and then either load or transform the data.
Connect to Azure Database for PostgreSQL flexible server database from Power Query Online
To make the connection, take the following steps:

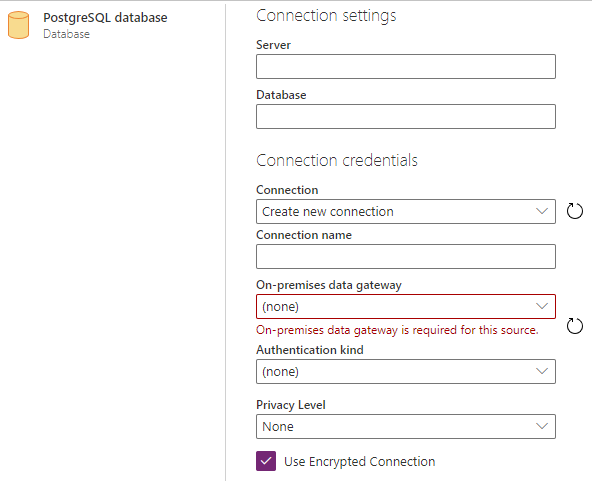

Select the PostgreSQL database option in the connector selection.
In the PostgreSQL database dialog, enter the name of the server and database.
Note
You don't need a data gateway for Azure Database for PostgreSQL flexible server.
Select the Basic authentication type and enter your Azure Database for PostgreSQL flexible server credentials in the Username and Password boxes.
If your connection isn't encrypted, clear Use Encrypted Connection.
Select Next to connect to the database.
In Navigator, select the data you need, and then select Transform data to transform the data in Power Query Editor.
Connect by using advanced options
Power Query Desktop provides a set of advanced options that you can add to your query if needed.
The following table lists all of the advanced options you can set in Power Query Desktop.
| Advanced option | Description |
|---|---|
| Command timeout in minutes | If your connection lasts longer than 10 minutes (the default timeout), enter another value in minutes to keep the connection open longer. This option is only available in Power Query Desktop. |
| SQL statement | For information, see Import data from a database using native database query. |
| Include relationship columns | If selected, includes columns that might have relationships to other tables. If you clear this box, you don't see those columns. |
| Navigate using full hierarchy | If checked, the navigator displays the complete hierarchy of tables in the database you're connecting to. If cleared, the navigator displays only the tables whose columns and rows contain data. |
After you select the advanced options you require, select OK in Power Query Desktop to connect to your PostgreSQL database.
