Sample alert payloads

This article provides sample payloads for Azure Monitor alerts that use the common alert schema. The schema standardizes alert notifications into three sections: Essentials, Alert context, and Custom properties. For the full field-by-field description of each section, see Common alert schema.

Use these samples to understand the payload structure for different alert types and to build or test your integrations.

Sample alert payload

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/<subscription ID>/providers/Microsoft.AlertsManagement/alerts/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e",
      "alertRule": "WCUS-R2-Gen2",
      "severity": "Sev3",
      "signalType": "Metric",
      "monitorCondition": "Resolved",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/<subscription ID>/resourcegroups/pipelinealertrg/providers/microsoft.compute/virtualmachines/wcus-r2-gen2"
      ],
      "configurationItems": [
        "wcus-r2-gen2"
      ],
      "originAlertId": "3f2d4487-b0fc-4125-8bd5-7ad17384221e_PipeLineAlertRG_microsoft.insights_metricAlerts_WCUS-R2-Gen2_-117781227",
      "firedDateTime": "2019-03-22T13:58:24.3713213Z",
      "resolvedDateTime": "2019-03-22T14:03:16.2246313Z",
      "description": "",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": null,
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Percentage CPU",
            "metricNamespace": "Microsoft.Compute/virtualMachines",
            "operator": "GreaterThan",
            "threshold": "25",
            "timeAggregation": "Average",
            "dimensions": [
              {
                "name": "ResourceId",
                "value": "b1b1b1b1-cccc-dddd-eeee-f2f2f2f2f2f2"
              }
            ],
            "metricValue": 7.727
          }
        ]
      }
    }
  }
}

Sample metric alerts

The following are sample metric alert payloads.

Metric alert with a static threshold and the monitoringService = Platform

{
  "alertContext": {
      "properties": null,
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Percentage CPU",
            "metricNamespace": "Microsoft.Compute/virtualMachines",
            "operator": "GreaterThan",
            "threshold": "25",
            "timeAggregation": "Average",
            "dimensions": [
              {
                "name": "ResourceId",
                "value": "b1b1b1b1-cccc-dddd-eeee-f2f2f2f2f2f2"
              }
            ],
            "metricValue": 31.1105
          }
        ],
        "windowStartTime": "2019-03-22T13:40:03.064Z",
        "windowEndTime": "2019-03-22T13:45:03.064Z"
      }
    }
}

Metric alert with a dynamic threshold and the monitoringService = Platform

{
  "alertContext": {
      "properties": null,
      "conditionType": "DynamicThresholdCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "alertSensitivity": "High",
            "failingPeriods": {
              "numberOfEvaluationPeriods": 1,
              "minFailingPeriodsToAlert": 1
            },
            "ignoreDataBefore": null,
            "metricName": "Egress",
            "metricNamespace": "microsoft.storage/storageaccounts",
            "operator": "GreaterThan",
            "threshold": "47658",
            "timeAggregation": "Total",
            "dimensions": [],
            "metricValue": 50101
          }
        ],
        "windowStartTime": "2021-07-20T05:07:26.363Z",
        "windowEndTime": "2021-07-20T05:12:26.363Z"
      }
    }
}

Metric alert for availability tests and the monitoringService = Platform

{
  "alertContext": {
      "properties": null,
      "conditionType": "WebtestLocationAvailabilityCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Failed Location",
            "metricNamespace": null,
            "operator": "GreaterThan",
            "threshold": "2",
            "timeAggregation": "Sum",
            "dimensions": [],
            "metricValue": 5,
            "webTestName": "myAvailabilityTest-myApplication"
          }
        ],
        "windowStartTime": "2019-03-22T13:40:03.064Z",
        "windowEndTime": "2019-03-22T13:45:03.064Z"
      }
    }
}

Sample log search alerts

Note

When you enable the common schema, the fields in the payload reset to the common schema fields. Therefore, log search alerts have these limitations regarding the common schema:

  • Log search alerts that use webhooks with a custom email subject or JSON payload don't support the common schema, since the common schema overwrites the custom configurations.
  • Alerts that use the common schema have an upper size limit of 256 KB per alert. If the log search alerts payload includes search results that cause the alert to exceed the maximum size, the search results aren't embedded in the log search alerts payload. You can check if the payload includes the search results by using the IncludedSearchResults flag. Use LinkToFilteredSearchResultsAPI or LinkToSearchResultsAPI to access query results by using the Log Analytics API if the search results aren't included.

Log search alert with monitoringService = Platform

{
  "alertContext": {
    "SearchQuery": "Perf | where ObjectName == \"Processor\" and CounterName == \"% Processor Time\" | summarize AggregatedValue = avg(CounterValue) by bin(TimeGenerated, 5m), Computer",
    "SearchIntervalStartTimeUtc": "3/22/2019 1:36:31 PM",
    "SearchIntervalEndtimeUtc": "3/22/2019 1:51:31 PM",
    "ResultCount": 2,
    "LinkToSearchResults": "https://portal.azure.com/#Analyticsblade/search/index?_timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToFilteredSearchResultsUI": "https://portal.azure.com/#Analyticsblade/search/index?_timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/workspaceID/query?query=Heartbeat&timespan=2020-05-07T18%3a11%3a51.0000000Z%2f2020-05-07T18%3a16%3a51.0000000Z",
    "LinkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/workspaceID/query?query=Heartbeat&timespan=2020-05-07T18%3a11%3a51.0000000Z%2f2020-05-07T18%3a16%3a51.0000000Z",
    "SeverityDescription": "Warning",
    "WorkspaceId": "a0a0a0a0-bbbb-cccc-dddd-e1e1e1e1e1e1",
    "SearchIntervalDurationMin": "15",
    "AffectedConfigurationItems": [
      "INC-Gen2Alert"
    ],
    "SearchIntervalInMinutes": "15",
    "Threshold": 10000,
    "Operator": "Less Than",
    "Dimensions": [
      {
        "name": "Computer",
        "value": "INC-Gen2Alert"
      }
    ],
    "SearchResults": {
      "tables": [
        {
          "name": "PrimaryResult",
          "columns": [
            {
              "name": "$table",
              "type": "string"
            },
            {
              "name": "Computer",
              "type": "string"
            },
            {
              "name": "TimeGenerated",
              "type": "datetime"
            }
          ],
          "rows": [
            [
              "Fabrikam",
              "33446677a",
              "2018-02-02T15:03:12.18Z"
            ],
            [
              "Contoso",
              "33445566b",
              "2018-02-02T15:16:53.932Z"
            ]
          ]
        }
      ],
      "dataSources": [
        {
          "resourceId": "/subscriptions/bbbb1b1b-cc2c-dd3d-ee4e-ffffff5f5f5f/resourcegroups/test/providers/microsoft.operationalinsights/workspaces/test",
          "tables": [
            "Heartbeat"
          ]
        }
      ]
    },
    "IncludedSearchResults": "True",
    "AlertType": "Metric measurement"
  }
}

Log search alert with monitoringService = Application Insights

{
  "alertContext": {
    "SearchQuery": "requests | where resultCode == \"500\" | summarize AggregatedValue = Count by bin(Timestamp, 5m), IP",
    "SearchIntervalStartTimeUtc": "3/22/2019 1:36:33 PM",
    "SearchIntervalEndtimeUtc": "3/22/2019 1:51:33 PM",
    "ResultCount": 2,
    "LinkToSearchResults": "https://portal.azure.com/AnalyticsBlade/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/?query=search+*+&timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToFilteredSearchResultsUI": "https://portal.azure.com/AnalyticsBlade/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/?query=search+*+&timeInterval.intervalEnd=2018-03-26T09%3a10%3a40.0000000Z&_timeInterval.intervalDuration=3600&q=Usage",
    "LinkToSearchResultsAPI": "https://api.applicationinsights.io/v1/apps/0MyAppId0/metrics/requests/count",
    "LinkToFilteredSearchResultsAPI": "https://api.applicationinsights.io/v1/apps/0MyAppId0/metrics/requests/count",
    "SearchIntervalDurationMin": "15",
    "SearchIntervalInMinutes": "15",
    "Threshold": 10000.0,
    "Operator": "Less Than",
    "ApplicationId": "00001111-aaaa-2222-bbbb-3333cccc4444",
    "Dimensions": [
      {
        "name": "IP",
        "value": "1.1.1.1"
      }
    ],
    "SearchResults": {
      "tables": [
        {
          "name": "PrimaryResult",
          "columns": [
            {
              "name": "$table",
              "type": "string"
            },
            {
              "name": "Id",
              "type": "string"
            },
            {
              "name": "Timestamp",
              "type": "datetime"
            }
          ],
          "rows": [
            [
              "Fabrikam",
              "33446677a",
              "2018-02-02T15:03:12.18Z"
            ],
            [
              "Contoso",
              "33445566b",
              "2018-02-02T15:16:53.932Z"
            ]
          ]
        }
      ],
      "dataSources": [
        {
          "resourceId": "/subscriptions/cccc2c2c-dd3d-ee4e-ff5f-aaaaaa6a6a6a/resourcegroups/test/providers/microsoft.operationalinsights/workspaces/test",
          "tables": [
            "Heartbeat"
          ]
        }
      ]
    },
    "IncludedSearchResults": "True",
    "AlertType": "Metric measurement"
  }
}

Log search alert with monitoringService = Log Alerts V2

Note

Log search alert rules from API version 2020-05-01 use this payload type, which only supports common schema. Search results aren't embedded in the log search alerts payload when you use this version. Use dimensions to provide context to fired alerts. You can also use LinkToFilteredSearchResultsAPI or LinkToSearchResultsAPI to access query results with the Log Analytics API. If you must embed the results, use a logic app with the provided links to generate a custom payload.

{
  "alertContext": {
    "properties": {
      "name1": "value1",
      "name2": "value2"
    },
    "conditionType": "LogQueryCriteria",
    "condition": {
      "windowSize": "PT10M",
      "allOf": [
        {
          "searchQuery": "Heartbeat",
          "metricMeasureColumn": "CounterValue",
          "targetResourceTypes": "['Microsoft.Compute/virtualMachines']",
          "operator": "LowerThan",
          "threshold": "1",
          "timeAggregation": "Count",
          "dimensions": [
            {
              "name": "Computer",
              "value": "TestComputer"
            }
          ],
          "metricValue": 0.0,
          "failingPeriods": {
            "numberOfEvaluationPeriods": 1,
            "minFailingPeriodsToAlert": 1
          },
          "linkToSearchResultsUI": "https://portal.azure.com#@aaaabbbb-0000-cccc-1111-dddd2222eeee/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2FContoso%2Fproviders%2FMicrosoft.Compute%2FvirtualMachines%2FContoso%22%7D%5D%7D/q/eJzzSE0sKklKTSypUSjPSC1KVQjJzE11T81LLUosSU1RSEotKU9NzdNIAfJKgDIaRgZGBroG5roGliGGxlYmJlbGJnoGEKCpp4dDmSmKMk0A/prettify/1/timespan/2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToFilteredSearchResultsUI": "https://portal.azure.com#@aaaabbbb-0000-cccc-1111-dddd2222eeee/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2FContoso%2Fproviders%2FMicrosoft.Compute%2FvirtualMachines%2FContoso%22%7D%5D%7D/q/eJzzSE0sKklKTSypUSjPSC1KVQjJzE11T81LLUosSU1RSEotKU9NzdNIAfJKgDIaRgZGBroG5roGliGGxlYmJlbGJnoGEKCpp4dDmSmKMk0A/prettify/1/timespan/2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToSearchResultsAPI": "https://api.loganalytics.io/v1/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/Contoso/providers/Microsoft.Compute/virtualMachines/Contoso/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282020-07-09T13%3A44%3A34.0000000%29..datetime%282020-07-09T13%3A54%3A34.0000000%29%29&timespan=2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z",
          "linkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/Contoso/providers/Microsoft.Compute/virtualMachines/Contoso/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282020-07-09T13%3A44%3A34.0000000%29..datetime%282020-07-09T13%3A54%3A34.0000000%29%29&timespan=2020-07-07T13%3a54%3a34.0000000Z%2f2020-07-09T13%3a54%3a34.0000000Z"
        }
      ],
      "windowStartTime": "2020-07-07T13:54:34Z",
      "windowEndTime": "2020-07-09T13:54:34Z"
    }
  }
}

Sample activity log alerts

Activity log alert with monitoringService = Activity Log - Administrative

{
  "alertContext": {
      "authorization": {
        "action": "Microsoft.Compute/virtualMachines/restart/action",
        "scope": "/subscriptions/<subscription ID>/resourceGroups/PipeLineAlertRG/providers/Microsoft.Compute/virtualMachines/WCUS-R2-ActLog"
      },
      "channels": "Operation",
      "claims": "{\"aud\":\"https://management.core.windows.net/\",\"iss\":\"https://sts.windows.net/aaaabbbb-0000-cccc-1111-dddd2222eeee/\",\"iat\":\"1553260826\",\"nbf\":\"1553260826\",\"exp\":\"1553264726\",\"aio\":\"42JgYNjdt+rr+3j/dx68v018XhuFAwA=\",\"appid\":\"11112222-bbbb-3333-cccc-4444dddd5555\",\"appidacr\":\"2\",\"http://schemas.microsoft.com/identity/claims/identityprovider\":\"https://sts.windows.net/aaaabbbb-0000-cccc-1111-dddd2222eeee/\",\"http://schemas.microsoft.com/identity/claims/objectidentifier\":\"22223333-cccc-4444-dddd-5555eeee6666\",\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier\":\"22223333-cccc-4444-dddd-5555eeee6666\",\"http://schemas.microsoft.com/identity/claims/tenantid\":\"aaaabbbb-0000-cccc-1111-dddd2222eeee\",\"uti\":\"v5wYC9t9ekuA2rkZSVZbAA\",\"ver\":\"1.0\"}",
      "caller": "22223333-cccc-4444-dddd-5555eeee6666",
      "correlationId": "aaaa0000-bb11-2222-33cc-444444dddddd",
      "eventSource": "Administrative",
      "eventTimestamp": "2019-03-22T13:56:31.2917159+00:00",
      "eventDataId": "bbbbcccc-1111-dddd-2222-eeee3333ffff",
      "level": "Informational",
      "operationName": "Microsoft.Compute/virtualMachines/restart/action",
      "operationId": "aaaaaaaa-0000-1111-2222-bbbbbbbbbbbb",
      "status": "Succeeded",
      "subStatus": "",
      "submissionTimestamp": "2019-03-22T13:56:54.067593+00:00"
    }
}

Activity log alert with monitoringService = Activity Log - Policy

{
  "alertContext": {
    "authorization": {
      "action": "Microsoft.Resources/checkPolicyCompliance/read",
      "scope": "/subscriptions/<GUID>"
    },
    "channels": "Operation",
    "claims": "{\"aud\":\"https://management.azure.com/\",\"iss\":\"https://sts.windows.net/<GUID>/\",\"iat\":\"1566711059\",\"nbf\":\"1566711059\",\"exp\":\"1566740159\",\"aio\":\"42FgYOhynHNw0scy3T/bL71+xLyqEwA=\",\"appid\":\"<GUID>\",\"appidacr\":\"2\",\"http://schemas.microsoft.com/identity/claims/identityprovider\":\"https://sts.windows.net/<GUID>/\",\"http://schemas.microsoft.com/identity/claims/objectidentifier\":\"<GUID>\",\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier\":\"<GUID>\",\"http://schemas.microsoft.com/identity/claims/tenantid\":\"<GUID>\",\"uti\":\"Miy1GzoAG0Scu_l3m1aIAA\",\"ver\":\"1.0\"}",
    "caller": "<GUID>",
    "correlationId": "<GUID>",
    "eventSource": "Policy",
    "eventTimestamp": "2019-08-25T11:11:34.2269098+00:00",
    "eventDataId": "<GUID>",
    "level": "Warning",
    "operationName": "Microsoft.Authorization/policies/audit/action",
    "operationId": "<GUID>",
    "properties": {
      "isComplianceCheck": "True",
      "resourceLocation": "eastus2",
      "ancestors": "<GUID>",
      "policies": "[{\"policyDefinitionId\":\"/providers/Microsoft.Authorization/policyDefinitions/<GUID>/\",\"policySetDefinitionId\":\"/providers/Microsoft.Authorization/policySetDefinitions/<GUID>/\",\"policyDefinitionReferenceId\":\"vulnerabilityAssessmentMonitoring\",\"policySetDefinitionName\":\"<GUID>\",\"policyDefinitionName\":\"<GUID>\",\"policyDefinitionEffect\":\"AuditIfNotExists\",\"policyAssignmentId\":\"/subscriptions/<GUID>/providers/Microsoft.Authorization/policyAssignments/SecurityCenterBuiltIn/\",\"policyAssignmentName\":\"SecurityCenterBuiltIn\",\"policyAssignmentScope\":\"/subscriptions/<GUID>\",\"policyAssignmentSku\":{\"name\":\"A1\",\"tier\":\"Standard\"},\"policyAssignmentParameters\":{}}]"
    },
    "status": "Succeeded",
    "subStatus": "",
    "submissionTimestamp": "2019-08-25T11:12:46.1557298+00:00"
  }
}

Activity log alert with monitoringService = Activity Log - Autoscale

{
  "alertContext": {
    "channels": "Admin, Operation",
    "claims": "{\"http://schemas.xmlsoap.org/ws/2005/05/identity/claims/spn\":\"Microsoft.Insights/autoscaleSettings\"}",
    "caller": "Microsoft.Insights/autoscaleSettings",
    "correlationId": "<GUID>",
    "eventSource": "Autoscale",
    "eventTimestamp": "2019-08-21T16:17:47.1551167+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Insights/AutoscaleSettings/Scaleup/Action",
    "operationId": "<GUID>",
    "properties": {
      "description": "The autoscale engine attempting to scale resource '/subscriptions/d<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS' from 9 instances count to 10 instances count.",
      "resourceName": "/subscriptions/<GUID>/resourceGroups/voiceassistancedemo/providers/Microsoft.Compute/virtualMachineScaleSets/alexademo",
      "oldInstancesCount": "9",
      "newInstancesCount": "10",
      "activeAutoscaleProfile": "{\r\n  \"Name\": \"Auto created scale condition\",\r\n  \"Capacity\": {\r\n    \"Minimum\": \"1\",\r\n    \"Maximum\": \"10\",\r\n    \"Default\": \"1\"\r\n  },\r\n  \"Rules\": [\r\n    {\r\n      \"MetricTrigger\": {\r\n        \"Name\": \"Percentage CPU\",\r\n        \"Namespace\": \"microsoft.compute/virtualmachinescalesets\",\r\n        \"Resource\": \"/subscriptions/<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS\",\r\n        \"ResourceLocation\": \"eastus\",\r\n        \"TimeGrain\": \"PT1M\",\r\n        \"Statistic\": \"Average\",\r\n        \"TimeWindow\": \"PT5M\",\r\n        \"TimeAggregation\": \"Average\",\r\n        \"Operator\": \"GreaterThan\",\r\n        \"Threshold\": 0.0,\r\n        \"Source\": \"/subscriptions/<GUID>/resourceGroups/testRG/providers/Microsoft.Compute/virtualMachineScaleSets/testVMSS\",\r\n        \"MetricType\": \"MDM\",\r\n        \"Dimensions\": [],\r\n        \"DividePerInstance\": false\r\n      },\r\n      \"ScaleAction\": {\r\n        \"Direction\": \"Increase\",\r\n        \"Type\": \"ChangeCount\",\r\n        \"Value\": \"1\",\r\n        \"Cooldown\": \"PT1M\"\r\n      }\r\n    }\r\n  ]\r\n}",
      "lastScaleActionTime": "Wed, 21 Aug 2019 16:17:47 GMT"
    },
    "status": "Succeeded",
    "submissionTimestamp": "2019-08-21T16:17:47.2410185+00:00"
  }
}

Activity log alert with monitoringService = Activity Log - Security

{
  "alertContext": {
    "channels": "Operation",
    "correlationId": "<GUID>",
    "eventSource": "Security",
    "eventTimestamp": "2019-08-26T08:34:14+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Security/locations/alerts/activate/action",
    "operationId": "<GUID>",
    "properties": {
      "threatStatus": "Quarantined",
      "category": "Virus",
      "threatID": "2147519003",
      "filePath": "C:\\AlertGeneration\\test.eicar",
      "protectionType": "Windows Defender",
      "actionTaken": "Blocked",
      "resourceType": "Virtual Machine",
      "severity": "Low",
      "compromisedEntity": "testVM",
      "remediationSteps": "[\"No user action is necessary\"]",
      "attackedResourceType": "Virtual Machine"
    },
    "status": "Active",
    "submissionTimestamp": "2019-08-26T09:28:58.3019107+00:00"
  }
}

Activity log alert with monitoringService = ServiceHealth

{
  "alertContext": {
    "authorization": null,
    "channels": 1,
    "claims": null,
    "caller": null,
    "correlationId": "bbbb1111-cc22-3333-44dd-555555eeeeee",
    "eventSource": 2,
    "eventTimestamp": "2019-06-24T11:31:19.0312699+00:00",
    "httpRequest": null,
    "eventDataId": "<GUID>",
    "level": 3,
    "operationName": "Microsoft.ServiceHealth/maintenance/action",
    "operationId": "<GUID>",
    "properties": {
      "title": "Azure Synapse Analytics Scheduled Maintenance Pending",
      "service": "Azure Synapse Analytics",
      "region": "East US",
      "communication": "<MESSAGE>",
      "incidentType": "Maintenance",
      "trackingId": "<GUID>",
      "impactStartTime": "2019-06-26T04:00:00Z",
      "impactMitigationTime": "2019-06-26T12:00:00Z",
      "impactedServices": "[{\"ImpactedRegions\":[{\"RegionName\":\"East US\"}],\"ServiceName\":\"Azure Synapse Analytics\"}]",
      "impactedServicesTableRows": "<tr>\r\n<td align='center' style='padding: 5px 10px; border-right:1px solid black; border-bottom:1px solid black'>Azure Synapse Analytics</td>\r\n<td align='center' style='padding: 5px 10px; border-bottom:1px solid black'>East US<br></td>\r\n</tr>\r\n",
      "defaultLanguageTitle": "Azure Synapse Analytics Scheduled Maintenance Pending",
      "defaultLanguageContent": "<MESSAGE>",
      "stage": "Planned",
      "communicationId": "<GUID>",
      "maintenanceId": "<GUID>",
      "isHIR": "false",
      "version": "0.1.1"
    },
    "status": "Active",
    "subStatus": null,
    "submissionTimestamp": "2019-06-24T11:31:31.7147357+00:00",
    "ResourceType": null
  }
}

Activity log alert with monitoringService = ResourceHealth

{
  "alertContext": {
    "channels": "Admin, Operation",
    "correlationId": "<GUID>",
    "eventSource": "ResourceHealth",
    "eventTimestamp": "2019-06-24T15:42:54.074+00:00",
    "eventDataId": "<GUID>",
    "level": "Informational",
    "operationName": "Microsoft.Resourcehealth/healthevent/Activated/action",
    "operationId": "<GUID>",
    "properties": {
      "title": "This virtual machine is stopping and deallocating as requested by an authorized user or process",
      "details": null,
      "currentHealthStatus": "Unavailable",
      "previousHealthStatus": "Available",
      "type": "Downtime",
      "cause": "UserInitiated"
    },
    "status": "Active",
    "submissionTimestamp": "2019-06-24T15:45:20.4488186+00:00"
  }
}

Sample Prometheus alert

{
  "alertContext": {
    "interval": "PT1M",
    "expression": "sql_up > 0",
    "expressionValue": "0",
    "for": "PT2M",
    "labels": {
      "Environment": "Prod",
      "cluster": "myCluster1"
    },
    "annotations": {
      "summary": "alert on SQL availability"
    },
    "ruleGroup": "/subscriptions/<subscription ID>/resourceGroups/myResourceGroup/providers/Microsoft.AlertsManagement/prometheusRuleGroups/myRuleGroup"
  }
}

Sample payloads for test actions

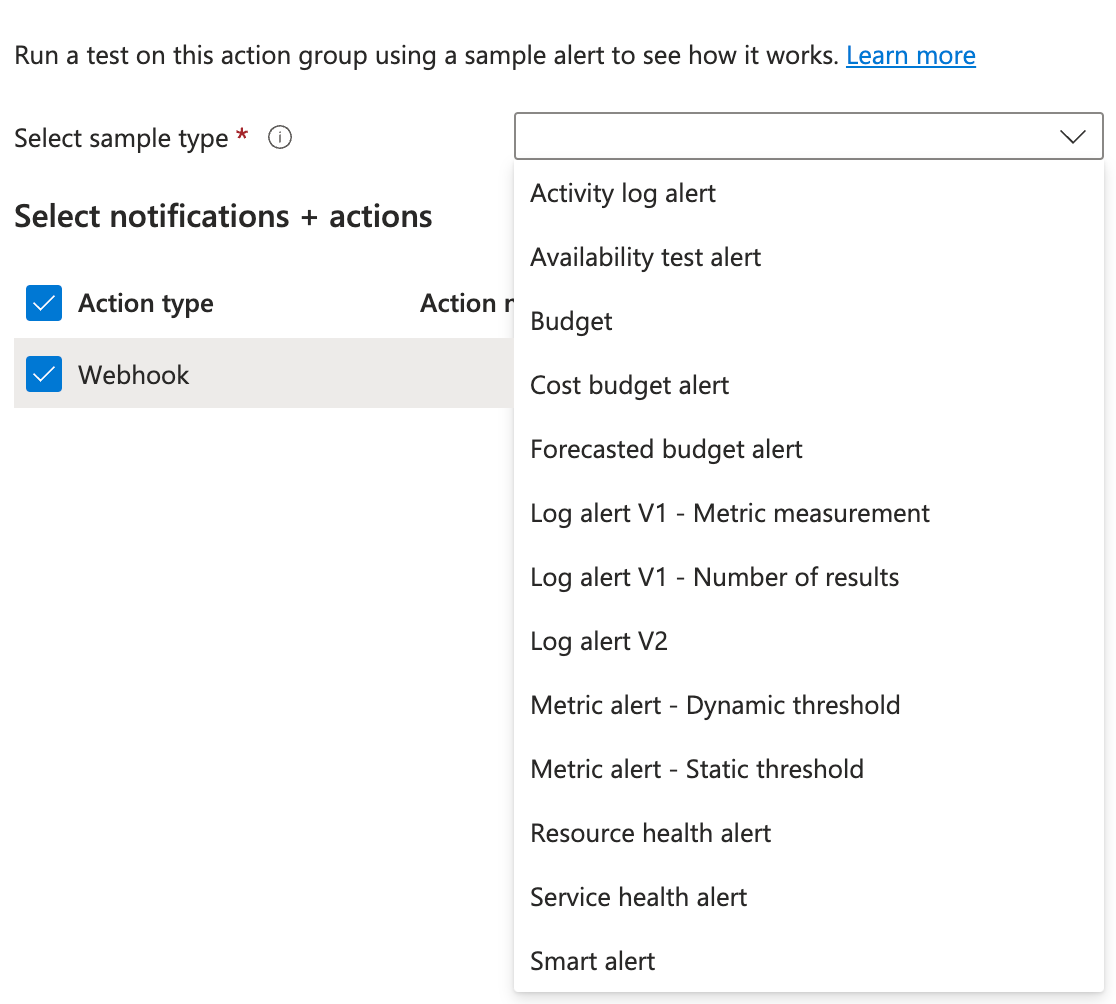

Screenshot showing available alert types when testing an Azure Action Group.

When you configure an Azure Action Group to route alert notifications (for example, through webhook, Logic App, Azure Function, or Event Hub), verify that the receiving endpoint can handle the Common Alert Schema payload structure.

Azure provides a Test Action feature to simulate an alert and send a sample payload to the configured endpoints. This feature helps you validate the integration without needing to trigger an actual resource condition.

This section describes the structure and content of the test payload sent when using the Test Action Group feature with the Common Alert Schema enabled.

Note

The test payload mimics a real alert but contains mocked metadata and doesn't represent any specific resource or condition.

Sample test action Activity log alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/test-RG/providers/microsoft.insights/activityLogAlerts/Test_Alert",
      "alertRule": "test-activityLogAlertRule",
      "severity": "Sev4",
      "signalType": "Activity Log",
      "monitorCondition": "Fired",
      "monitoringService": "Activity Log - Administrative",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.compute/virtualmachines/test-VM"
      ],
      "configurationItems": [
        "test-VM"
      ],
      "originAlertId": "dddd3333-ee44-5555-66ff-777777aaaaaa_123456789012345678901234567890ab",
      "firedDateTime": "2025-04-15T11:26:21.386Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "authorization": {
        "action": "Microsoft.Compute/virtualMachines/restart/action",
        "scope": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/test-RG/providers/Microsoft.Compute/virtualMachines/test-VM"
      },
      "channels": "Operation",
      "claims": "{}",
      "caller": "user@contoso.com",
      "correlationId": "cccc2222-dd33-4444-55ee-666666ffffff",
      "eventSource": "Administrative",
      "eventTimestamp": "2025-04-15T11:26:21.386Z",
      "eventDataId": "dddd3333-ee44-5555-66ff-777777aaaaaa",
      "level": "Informational",
      "operationName": "Microsoft.Compute/virtualMachines/restart/action",
      "operationId": "bbbbbbbb-1111-2222-3333-cccccccccccc",
      "properties": {
        "eventCategory": "Administrative",
        "entity": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/test-RG/providers/Microsoft.Compute/virtualMachines/test-VM",
        "message": "Microsoft.Compute/virtualMachines/restart/action",
        "hierarchy": "22222222-2222-2222-2222-222222222222/CnAIOrchestrationServicePublicCorpprod/33333333-3333-3333-3333-3333333333333/cccccccc-2222-3333-4444-dddddddddddd/dddddddd-3333-4444-5555-eeeeeeeeeeee/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e"
      },
      "status": "Succeeded",
      "subStatus": "",
      "submissionTimestamp": "2025-04-15T11:26:21.386Z",
      "Activity Log Event Description": ""
    }
  }
}

Sample test action Availability test alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/eeeeeeee-4444-5555-6666-ffffffffffff",
      "alertRule": "test-availabilityTest-test-applicationInsights",
      "severity": "Sev4",
      "signalType": "Metric",
      "monitorCondition": "Fired",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.insights/components/test-applicationInsights"
      ],
      "configurationItems": [
        "test-applicationInsights"
      ],
      "originAlertId": "aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e_test-RG_microsoft.insights_metricalerts_test-availabilityTest-test-applicationInsights_1234567890",
      "firedDateTime": "2025-04-15T17:42:34.824Z",
      "description": "Alertruledescription",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": null,
      "conditionType": "WebtestLocationAvailabilityCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "FailedLocation",
            "metricNamespace": null,
            "operator": "GreaterThan",
            "threshold": "2",
            "timeAggregation": "Sum",
            "dimensions": [],
            "metricValue": 5.0,
            "webTestName": "test-availabilityTest-test-applicationInsights"
          }
        ],
        "windowStartTime": "2025-04-15T17:42:34.824Z",
        "windowEndTime": "2025-04-15T17:42:34.824Z"
      }
    },
    "customProperties": {
      "customKey1": "value1",
      "customKey2": "value2"
    }
  }
}

Sample test action Budget alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "monitoringService": "CostAlerts",
      "firedDateTime": "2025-04-15T17:49:34.022Z",
      "description": "Delivery Confirmation: This is a sample budget alert from Azure Monitor Action Groups.",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0",
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.CostManagement/alerts/Test_Alert",
      "alertRule": null,
      "severity": null,
      "signalType": null,
      "monitorCondition": "Fired",
      "alertTargetIDs": null,
      "configurationItems": [
        "budgets"
      ],
      "originAlertId": null
    },
    "alertContext": {
      "AlertCategory": "budgets",
      "AlertData": {
        "Scope": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/",
        "ThresholdType": "Forecasted",
        "BudgetType": "Cost",
        "BudgetThreshold": "$50.00",
        "NotificationThresholdAmount": "$50.00",
        "BudgetName": "Test_forcasted_budget",
        "BudgetId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.Consumption/budgets/Test_forcasted_budget",
        "BudgetStartDate": "2022-11-01",
        "BudgetCreator": "test@sample.test",
        "Unit": "USD",
        "SpentAmount": "$999.99",
        "ForecastedTotalForPeriod": "$1111.11"
      }
    }
  }
}

Sample test action Cost budget alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "monitoringService": "CostAlerts",
      "firedDateTime": "2025-04-15T17:53:32.996Z",
      "description": "YourspendforbudgetTest_actual_cost_budgetisnow$11,111.00exceedingyourspecifiedthreshold$25.00.",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0",
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.CostManagement/alerts/Test_Alert",
      "alertRule": null,
      "severity": null,
      "signalType": null,
      "monitorCondition": "Fired",
      "alertTargetIDs": null,
      "configurationItems": [
        "budgets"
      ],
      "originAlertId": null
    },
    "alertContext": {
      "AlertCategory": "budgets",
      "AlertData": {
        "Scope": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/",
        "ThresholdType": "Actual",
        "BudgetType": "Cost",
        "BudgetThreshold": "$50.00",
        "NotificationThresholdAmount": "$25.00",
        "BudgetName": "Test_actual_cost_budget",
        "BudgetId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.Consumption/budgets/Test_actual_cost_budget",
        "BudgetStartDate": "2022-11-01",
        "BudgetCreator": "test@sample.test",
        "Unit": "USD",
        "SpentAmount": "$11,111.00"
      }
    }
  }
}

Sample test action Forecasted budget alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "monitoringService": "CostAlerts",
      "firedDateTime": "2025-04-15T17:55:39.04Z",
      "description": "Thetotalspendforyourbudget,Test_forcasted_budget,isforecastedtoreach$1111.11beforetheendoftheperiod.Thisamountexceedsyourspecifiedbudgetthresholdof$50.00.",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0",
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.CostManagement/alerts/Test_Alert",
      "alertRule": null,
      "severity": null,
      "signalType": null,
      "monitorCondition": "Fired",
      "alertTargetIDs": null,
      "configurationItems": [
        "budgets"
      ],
      "originAlertId": null
    },
    "alertContext": {
      "AlertCategory": "budgets",
      "AlertData": {
        "Scope": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/",
        "ThresholdType": "Forecasted",
        "BudgetType": "Cost",
        "BudgetThreshold": "$50.00",
        "NotificationThresholdAmount": "$50.00",
        "BudgetName": "Test_forcasted_budget",
        "BudgetId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.Consumption/budgets/Test_forcasted_budget",
        "BudgetStartDate": "2022-11-01",
        "BudgetCreator": "test@sample.test",
        "Unit": "USD",
        "SpentAmount": "$999.99",
        "ForecastedTotalForPeriod": "$1111.11"
      }
    }
  }
}

Legacy Log alerts V1 in action group testing

Azure still supports Log Alerts V1 in certain scenarios, including when you use the Test Action Group feature. Log Alerts V1 represent an earlier generation of alerting on log data in Azure Monitor, preceding the unified Scheduled Query Rules API (v2) and broader adoption of the Common Alert Schema.

When you select Log Alerts V1 as the alert type during a test, the payload structure and schema differ significantly from modern Common Alert Schema formats. This test is primarily relevant for legacy systems that were originally integrated by using Log Alerts V1 notifications.

Note

Microsoft recommends migrating to Log alerts V2 to take advantage of improved schema consistency.

Test Log alerts V1 payloads only if your receiving endpoint or automation is explicitly built for the older schema.

Sample test action Log alert V1 - Metric measurement

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/eeeeeeee-4444-5555-6666-ffffffffffff",
      "alertRule": "test-logAlertRule-v1-metricMeasurement",
      "severity": "Sev4",
      "signalType": "Log",
      "monitorCondition": "Fired",
      "monitoringService": "Log Analytics",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
      ],
      "configurationItems": [],
      "originAlertId": "ffffffff-5555-6666-7777-aaaaaaaaaaaa",
      "firedDateTime": "2025-04-15T17:57:27.967Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.1"
    },
    "alertContext": {
      "SearchQuery": "Heartbeat | summarize AggregatedValue=count() by bin(TimeGenerated, 5m)",
      "SearchIntervalStartTimeUtc": "2025-04-15T17:57:27.967Z",
      "SearchIntervalEndtimeUtc": "2025-04-15T17:57:27.967Z",
      "ResultCount": 2,
      "LinkToSearchResults": "https://portal.azure.com#@cccc2222-dd33-4444-55ee-666666ffffff/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2Faaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2BWqUSguzc1NLMqsSlVwTE8vSk1PLElNCUvMKU21Tc4vzSvRaBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHi/prettify/1/timespan/2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
      "LinkToFilteredSearchResultsUI": "https://portal.azure.com#@cccc2222-dd33-4444-55ee-666666ffffff/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2Faaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHiaBcDeFgHidp%2BOPOhDKsHR%2FFeJXsTgzGJRmVui3KF3RpLyEJCX9A2iMl6jgxMn6jRevng3JmIHLdYtKP4DRI9mhc%3D/prettify/1/timespan/2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
      "LinkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/dddd3333-ee44-5555-66ff-777777aaaaaa/query?query=Heartbeat%20%0A%7C%20summarize%20AggregatedValue%3Dcount%28%29%20by%20bin%28TimeGenerated%2C%205m%29&timespan=2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
      "LinkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/dddd3333-ee44-5555-66ff-777777aaaaaa/query?query=Heartbeat%20%0A%7C%20summarize%20AggregatedValue%3Dcount%28%29%20by%20bin%28TimeGenerated%2C%205m%29%7C%20where%20todouble%28AggregatedValue%29%20%3E%200&timespan=2021-11-15T15%3a16%3a49.0000000Z%2f2021-11-16T15%3a16%3a49.0000000Z",
      "SeverityDescription": "Informational",
      "WorkspaceId": "dddd3333-ee44-5555-66ff-777777aaaaaa",
      "SearchIntervalDurationMin": "1440",
      "AffectedConfigurationItems": [],
      "AlertType": "Metric measurement",
      "IncludeSearchResults": true,
      "Dimensions": [],
      "SearchIntervalInMinutes": "1440",
      "SearchResults": {
        "tables": [
          {
            "name": "PrimaryResult",
            "columns": [
              {
                "name": "TimeGenerated",
                "type": "datetime"
              },
              {
                "name": "AggregatedValue",
                "type": "long"
              }
            ],
            "rows": [
              [
                "2025-04-15T17:57:27.967Z",
                11
              ],
              [
                "2025-04-15T17:57:27.967Z",
                11
              ]
            ]
          }
        ],
        "dataSources": [
          {
            "resourceId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace",
            "region": "eastus",
            "tables": [
              "Heartbeat"
            ]
          }
        ]
      },
      "Threshold": 0,
      "Operator": "Greater Than",
      "IncludedSearchResults": "True"
    }
  }
}

Sample test action Log alert V1 - Number of results

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/eeeeeeee-4444-5555-6666-ffffffffffff",
      "alertRule": "test-logAlertRule-v1-numResults",
      "severity": "Sev4",
      "signalType": "Log",
      "monitorCondition": "Fired",
      "monitoringService": "Log Analytics",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
      ],
      "configurationItems": [
        "test-computer"
      ],
      "originAlertId": "22222222-2222-2222-2222-222222222222",
      "firedDateTime": "2025-04-15T18:04:40.852Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.1"
    },
    "alertContext": {
      "SearchQuery": "Heartbeat",
      "SearchIntervalStartTimeUtc": "2025-04-15T18:04:40.852Z",
      "SearchIntervalEndtimeUtc": "2025-04-15T18:04:40.852Z",
      "ResultCount": 1,
      "LinkToSearchResults": "https://portal.azure.com#@cccc2222-dd33-4444-55ee-666666ffffff/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2Faaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2ABCDE%3D%3D/prettify/1/timespan/2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
      "LinkToFilteredSearchResultsUI": "https://portal.azure.com#@cccc2222-dd33-4444-55ee-666666ffffff/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2Faaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHi%2ABCDE%3D%3D/prettify/1/timespan/2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
      "LinkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/dddd3333-ee44-5555-66ff-777777aaaaaa/query?query=Heartbeat%0A&timespan=2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
      "LinkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/dddd3333-ee44-5555-66ff-777777aaaaaa/query?query=Heartbeat%0A&timespan=2021-11-15T15%3a15%3a24.0000000Z%2f2021-11-16T15%3a15%3a24.0000000Z",
      "SeverityDescription": "Informational",
      "WorkspaceId": "dddd3333-ee44-5555-66ff-777777aaaaaa",
      "SearchIntervalDurationMin": "1440",
      "AffectedConfigurationItems": [
        "test-computer"
      ],
      "AlertType": "Number of results",
      "IncludeSearchResults": true,
      "SearchIntervalInMinutes": "1440",
      "SearchResults": {
        "tables": [
          {
            "name": "PrimaryResult",
            "columns": [
              {
                "name": "TenantId",
                "type": "string"
              },
              {
                "name": "Computer",
                "type": "string"
              },
              {
                "name": "TimeGenerated",
                "type": "datetime"
              }
            ],
            "rows": [
              [
                "dddd3333-ee44-5555-66ff-777777aaaaaa",
                "test-computer",
                "2025-04-15T18:04:40.852Z"
              ]
            ]
          }
        ],
        "dataSources": [
          {
            "resourceId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace",
            "region": "eastus",
            "tables": [
              "Heartbeat"
            ]
          }
        ]
      },
      "Threshold": 0,
      "Operator": "Greater Than",
      "IncludedSearchResults": "True"
    }
  }
}

Sample test action Log alert V2

Note

Log search alerts rules from API version 2020-05-01 use this payload type, which only supports common schema. Search results aren't embedded in the log search alerts payload when you use this version. Use dimensions to provide context to fired alerts.

You can also use LinkToFilteredSearchResultsAPI or LinkToSearchResultsAPI to access query results with the Log Analytics API. If you must embed the results, use a logic app with the provided links to generate a custom payload.

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/eeeeeeee-4444-5555-6666-ffffffffffff",
      "alertRule": "test-logAlertRule-v2",
      "severity": "Sev4",
      "signalType": "Log",
      "monitorCondition": "Fired",
      "monitoringService": "Log Alerts V2",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.operationalinsights/workspaces/test-logAnalyticsWorkspace"
      ],
      "configurationItems": [
        "test-computer"
      ],
      "originAlertId": "22222222-2222-2222-2222-222222222222",
      "firedDateTime": "2025-04-15T18:08:03.626Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": {
        "customKey1": "value1",
        "customKey2": "value2"
      },
      "conditionType": "LogQueryCriteria",
      "condition": {
        "windowSize": "PT1H",
        "allOf": [
          {
            "searchQuery": "Heartbeat",
            "metricMeasureColumn": null,
            "targetResourceTypes": "['Microsoft.OperationalInsights/workspaces']",
            "operator": "GreaterThan",
            "threshold": "0",
            "timeAggregation": "Count",
            "dimensions": [
              {
                "name": "Computer",
                "value": "test-computer"
              }
            ],
            "metricValue": 3.0,
            "failingPeriods": {
              "numberOfEvaluationPeriods": 1,
              "minFailingPeriodsToAlert": 1
            },
            "linkToSearchResultsUI": "https://portal.azure.com#@cccc2222-dd33-4444-55ee-666666ffffff/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2Faaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiJkLmNaBcDeFgHiJkLmNaBcDeFgHiJkLmNaBcDeFgHiJkLmN1234567890ZAZBZiaGBlaG5lbKlnAAFRmnp6WNUZoqvTBAA%3D/prettify/1/timespan/2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
            "linkToFilteredSearchResultsUI": "https://portal.azure.com#@cccc2222-dd33-4444-55ee-666666ffffff/blade/Microsoft_Azure_Monitoring_Logs/LogsBlade/source/Alerts.EmailLinks/scope/%7B%22resources%22%3A%5B%7B%22resourceId%22%3A%22%2Fsubscriptions%2Faaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e%2FresourceGroups%2Ftest-RG%2Fproviders%2FMicrosoft.OperationalInsights%2Fworkspaces%2Ftest-logAnalyticsWorkspace%22%7D%5D%7D/q/aBcDeFgHiJkLmN%2Fl35oOTZoKioEOouaBcDeFgHiJkLmN%2BaBcDeFgHiJkLmN%2BaBcDeFgHiJkLmN7HHgOCZTR0Ak%2FaBcDeFgHiJkLmN1234567890Ltcw%2FOqZS%2FuX0L5d%2Bx3iMHNzQiu3Y%2BzsjpFSWlOzgA87vAxeHW2MoAtQxe6OUvVrZR3XYZPXrd%2FIE/prettify/1/timespan/2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
            "linkToSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/dddd3333-ee44-5555-66ff-777777aaaaaa/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282021-11-16T10%3A17%3A39.0000000Z%29..datetime%282021-11-16T11%3A17%3A39.0000000Z%29%29&timespan=2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z",
            "linkToFilteredSearchResultsAPI": "https://api.loganalytics.io/v1/workspaces/dddd3333-ee44-5555-66ff-777777aaaaaa/query?query=Heartbeat%7C%20where%20TimeGenerated%20between%28datetime%282021-11-16T10%3A17%3A39.0000000Z%29..datetime%282021-11-16T11%3A17%3A39.0000000Z%29%29%7C%20where%20tostring%28Computer%29%20%3D%3D%20%27test-computer%27&timespan=2021-11-16T10%3a17%3a39.0000000Z%2f2021-11-16T11%3a17%3a39.0000000Z"
          }
        ],
        "windowStartTime": "2025-04-15T18:08:03.626Z",
        "windowEndTime": "2025-04-15T18:08:03.626Z"
      }
    }
  }
}

Sample test action Metric alert - Dynamic threshold

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/eeeeeeee-4444-5555-6666-ffffffffffff",
      "alertRule": "test-dynamicMetricAlertRule",
      "severity": "Sev4",
      "signalType": "Metric",
      "monitorCondition": "Fired",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/Microsoft.Storage/storageAccounts/test-storageAccount"
      ],
      "configurationItems": [
        "test-storageAccount"
      ],
      "originAlertId": "aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e_test-RG_microsoft.insights_metricAlerts_test-metricAlertRule_1234567890",
      "firedDateTime": "2025-04-15T18:15:16.104Z",
      "description": "Alertruledescription",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": {
        "customKey1": "value1",
        "customKey2": "value2"
      },
      "conditionType": "DynamicThresholdCriteria",
      "condition": {
        "windowSize": "PT15M",
        "allOf": [
          {
            "alertSensitivity": "Low",
            "failingPeriods": {
              "numberOfEvaluationPeriods": 3,
              "minFailingPeriodsToAlert": 3
            },
            "ignoreDataBefore": null,
            "metricName": "Transactions",
            "metricNamespace": "Microsoft.Storage/storageAccounts",
            "operator": "GreaterThan",
            "threshold": "0.3",
            "timeAggregation": "Average",
            "dimensions": [],
            "metricValue": 78.09,
            "webTestName": null
          }
        ],
        "windowStartTime": "2025-04-15T18:15:16.104Z",
        "windowEndTime": "2025-04-15T18:15:16.104Z"
      }
    },
    "customProperties": {
      "customKey1": "value1",
      "customKey2": "value2"
    }
  }
}

Sample test action Metric alert - Static threshold

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/eeeeeeee-4444-5555-6666-ffffffffffff",
      "alertRule": "test-metricAlertRule",
      "severity": "Sev4",
      "signalType": "Metric",
      "monitorCondition": "Fired",
      "monitoringService": "Platform",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.storage/storageaccounts/test-storageAccount"
      ],
      "configurationItems": [
        "test-storageAccount"
      ],
      "originAlertId": "aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e_test-RG_microsoft.insights_metricAlerts_test-metricAlertRule_1234567890",
      "firedDateTime": "2025-04-15T18:17:12.851Z",
      "description": "Alertruledescription",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "properties": {
        "customKey1": "value1",
        "customKey2": "value2"
      },
      "conditionType": "SingleResourceMultipleMetricCriteria",
      "condition": {
        "windowSize": "PT5M",
        "allOf": [
          {
            "metricName": "Transactions",
            "metricNamespace": "Microsoft.Storage/storageAccounts",
            "operator": "GreaterThan",
            "threshold": "0",
            "timeAggregation": "Total",
            "dimensions": [
              {
                "name": "ApiName",
                "value": "GetBlob"
              }
            ],
            "metricValue": 100,
            "webTestName": null
          }
        ],
        "windowStartTime": "2025-04-15T18:17:12.851Z",
        "windowEndTime": "2025-04-15T18:17:12.851Z"
      }
    },
    "customProperties": {
      "customKey1": "value1",
      "customKey2": "value2"
    }
  }
}

Sample test action Resource health alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/eeeeeeee-4444-5555-6666-ffffffffffff",
      "alertRule": "test-ResourceHealthAlertRule",
      "severity": "Sev4",
      "signalType": "Activity Log",
      "monitorCondition": "Fired",
      "monitoringService": "Resource Health",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.compute/virtualmachines/test-VM"
      ],
      "configurationItems": [
        "test-VM"
      ],
      "originAlertId": "dddd3333-ee44-5555-66ff-777777aaaaaa_123456789012345678901234567890ab",
      "firedDateTime": "2025-04-15T18:19:45.304Z",
      "description": "Alert rule description",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "channels": "Admin, Operation",
      "correlationId": "cccc2222-dd33-4444-55ee-666666ffffff",
      "eventSource": "ResourceHealth",
      "eventTimestamp": "2025-04-15T18:19:45.304Z",
      "eventDataId": "dddd3333-ee44-5555-66ff-777777aaaaaa",
      "level": "Informational",
      "operationName": "Microsoft.Resourcehealth/healthevent/Activated/action",
      "operationId": "dddd3333-ee44-5555-66ff-777777aaaaaa",
      "properties": {
        "title": "Rebooted by user",
        "details": null,
        "currentHealthStatus": "Unavailable",
        "previousHealthStatus": "Available",
        "type": "Downtime",
        "cause": "UserInitiated"
      },
      "status": "Active",
      "submissionTimestamp": "2025-04-15T18:19:45.304Z",
      "Activity Log Event Description": null
    }
  }
}

Sample test action Service health alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh",
      "alertRule": "test-ServiceHealthAlertRule",
      "severity": "Sev4",
      "signalType": "ActivityLog",
      "monitorCondition": "Fired",
      "monitoringService": "ServiceHealth",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e"
      ],
      "originAlertId": "eeeeeeee-4444-5555-6666-ffffffffffff",
      "firedDateTime": "2025-04-15T18:20:36.256Z",
      "description": "Alertruledescription",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "authorization": null,
      "channels": 1,
      "claims": null,
      "caller": null,
      "correlationId": "12345678-abcd-efgh-ijkl-abcd12345678",
      "eventSource": 2,
      "eventTimestamp": "2025-04-15T18:20:36.256Z",
      "httpRequest": null,
      "eventDataId": "eeeeeeee-4444-5555-6666-ffffffffffff",
      "level": 3,
      "operationName": "Microsoft.ServiceHealth/incident/action",
      "operationId": "12345678-abcd-efgh-ijkl-abcd12345678",
      "properties": {
        "title": "TestActionGroup-TestServiceHealthAlert",
        "service": "AzureServiceName",
        "region": "Global",
        "communication": "<p>ThisisatestfromServiceHealthAlert</p>",
        "incidentType": "Incident",
        "trackingId": "TEST-TTT",
        "impactStartTime": "2025-04-15T18:20:36.256Z",
        "impactMitigationTime": "2025-04-15T18:20:36.256Z",
        "impactedServices": [
          {
            "ImpactedRegions": [
              {
                "RegionName": "Global"
              }
            ],
            "ServiceName": "AzureServiceName"
          }
        ],
        "impactedServicesTableRows": "<tr><td>Thisisatestfromservicehealthalert</<td>/<tr>",
        "defaultLanguageTitle": "TestActionGroup-TestServiceHealthAlert",
        "defaultLanguageContent": "<p>ThisisatestfromServiceHealthAlert</p>",
        "stage": "Resolved",
        "communicationId": "11223344556677",
        "isHIR": "false",
        "IsSynthetic": "True",
        "impactType": "SubscriptionList",
        "version": "0.1.1"
      },
      "status": "Resolved",
      "subStatus": null,
      "submissionTimestamp": "2025-04-15T18:20:36.256Z",
      "ResourceType": null
    }
  }
}

Sample test action Smart alert

{
  "schemaId": "azureMonitorCommonAlertSchema",
  "data": {
    "essentials": {
      "alertId": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/providers/Microsoft.AlertsManagement/alerts/eeeeeeee-4444-5555-6666-ffffffffffff",
      "alertRule": "test-SmartAlertRule",
      "severity": "Sev4",
      "signalType": "Log",
      "monitorCondition": "Fired",
      "monitoringService": "SmartDetector",
      "alertTargetIDs": [
        "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourcegroups/test-RG/providers/microsoft.insights/components/test-applicationInsights"
      ],
      "configurationItems": [
        "test-applicationInsights"
      ],
      "originAlertId": "1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh1234abcd5678efgh",
      "firedDateTime": "2021-10-28T19:09:09.1115084Z",
      "description": "Dependency Latency Degradation notifies you of an unusual increase in response by a dependency your app is calling (e.g. REST API or database)",
      "essentialsVersion": "1.0",
      "alertContextVersion": "1.0"
    },
    "alertContext": {
      "DetectionSummary": "A degradation in the dependency duration over the last 24 hours",
      "FormattedOccurrenceTime": "2025-04-15T18:23:16.577Z",
      "DetectedValue": "0.45 sec",
      "NormalValue": "0.27 sec (over the last 7 days)",
      "PresentationInsightEventRequest": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/test-RG/providers/microsoft.insights/components/test-applicationInsights/query?query=systemEvents%0d%0a++++++++++++++++%7c+where+timestamp+%3e%3d+datetime(%272021-10-27T23%3a29%3a59.0000000Z%27)+%0d%0a++++++++++++++++%7c+where+itemType+%3d%3d+%27systemEvent%27+and+name+%3d%3d+%27ProactiveDetectionInsight%27+%0d%0a++++++++++++++++%7c+where+dimensions.InsightType+%3d%3d+3+%0d%0a++++++++++++++++%7c+where+dimensions.InsightVersion+%3d%3d+%27SmartAlert%27%0d%0a++++++++++++++++%7c+where+dimensions.InsightDocumentId+%3d%3d+%2712345678-abcd-1234-5678-abcd12345678%27+%0d%0a++++++++++++++++%7c+project+dimensions.InsightPropertiesTable%2cdimensions.InsightDegradationChart%2cdimensions.InsightCountChart%2cdimensions.InsightLinksTable%0d%0a++++++++++++++++&api-version=2018-04-20",
      "SmartDetectorId": "DependencyPerformanceDegradationDetector",
      "SmartDetectorName": "Dependency Performance Degradation Detector",
      "AnalysisTimestamp": "2025-04-15T18:23:16.577Z"
    }
  }
}

Next steps

  • Last updated on
