Note
This feature is currently in public preview. This preview is provided without a service-level agreement, and is not recommended for production workloads. Certain features might not be supported or might have constrained capabilities. For more information, see Supplemental Terms of Use for Microsoft Azure Previews.
Voice Live API supports a WebRTC (Web Real-Time Communication) connection, enabling low‑latency, real‑time voice interactions directly from web and mobile clients.
WebRTC provides the following capabilities for real-time audio streaming:
- Lower latency: WebRTC is designed to minimize delay, making it more suitable for audio and video communication where low latency is critical for maintaining quality and synchronization.
- Built-in media handling: WebRTC has built-in support for audio and video codecs, providing optimized handling of media streams.
- Network resilience: WebRTC includes mechanisms for handling packet loss and jitter, which are essential for maintaining the quality of audio streams over unpredictable networks.
- Peer-to-peer connection: WebRTC establishes a direct connection between the client and the Voice Live API for real-time audio, eliminating the need for an intermediary server to relay audio data and further reducing latency. Meanwhile, your server retains full control of the session—it can send commands, configure behavior, and manage tool calls through the WebSocket signaling channel at any time.
Tip
WebRTC vs WebSocket: WebRTC is recommended for real-time audio streaming because it uses UDP-based transport, which prioritizes speed and continuous delivery—if a packet is lost, playback continues without waiting for retransmission. WebSocket connections use TCP, which guarantees delivery order but can introduce delays when packets are lost as it waits for retransmission. For real-time voice interactions where natural, low-latency audio is critical, WebRTC provides a noticeably better experience.
Prerequisites
Before using the WebRTC connection, see how to use voice live for supported models and regions, authentication, and session configuration details.
Important
Voice Live API with WebRTC currently uses global standard deployments and automatically routes requests to the nearest region to optimize latency. For more information about the voice live supported regions, see region support.
Set up WebRTC connection

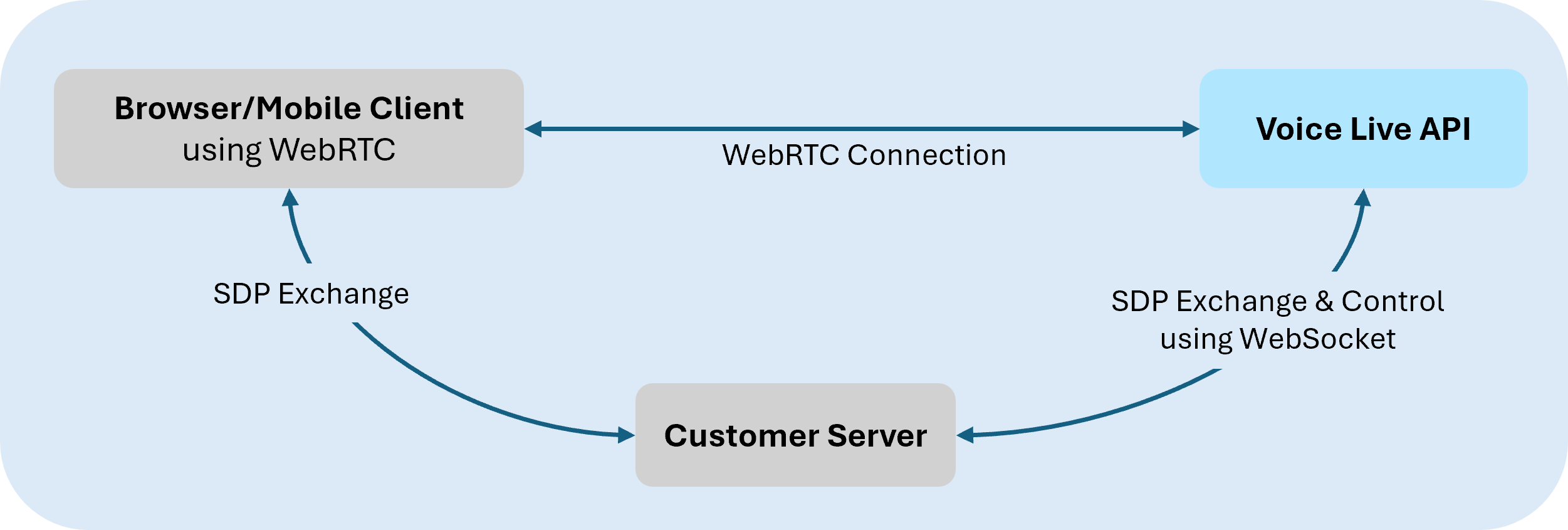

In a typical setup, the client establishes a WebSocket based signaling channel with the Voice Live API to exchange SDP offer/answer messages required for WebRTC session negotiation. Once negotiation completes, audio is transmitted over WebRTC RTP media tracks.
Step 1: Create a control channel
The WebRTC session negotiation is performed by exchanging SDP (Session Description Protocol) messages over a WebSocket control channel.
When initiating a WebRTC call session, use the voice-live/realtime/calls endpoint instead of voice-live/realtime. For example:
wss://<your-ai-foundry-resource-name>.services.ai.azure.com/voice-live/realtime/calls?api-version=2026-01-01-preview&model=gpt-realtime
For general WebSocket setup guidance, see WebSocket endpoint setup.
Step 2: Create WebRTC peer connection and SDP exchange
In the browser, use standard WebRTC APIs to create a peer connection and exchange SDP with the Voice Live API over a WebSocket connection. Audio is streamed over WebRTC media tracks, while non-audio events are exchanged separately.
The following example demonstrates a minimal browser setup.
async function setupWebRTC(signalWs, model) {
// Create peer connection
const pc = new RTCPeerConnection();
// Get microphone access
const stream = await navigator.mediaDevices.getUserMedia({ audio: true });
stream.getTracks().forEach(track => pc.addTrack(track, stream));
// Setup audio playback for remote stream
const audio = document.createElement('audio');
audio.autoplay = true;
document.body.appendChild(audio);
pc.ontrack = event => {
audio.srcObject = event.streams[0];
};
// Create and set local offer
const offer = await pc.createOffer();
await pc.setLocalDescription(offer);
// Wait for ICE candidates in SDP
await new Promise(resolve => {
if (pc.iceGatheringState === 'complete') {
resolve();
} else {
pc.addEventListener('icegatheringstatechange', () => {
if (pc.iceGatheringState === 'complete') {
resolve();
}
});
}
});
// Send offer to server
signalWs.send(JSON.stringify({
type: 'rtc.call.sdp.create',
sdp_offer: pc.localDescription.sdp
}));
// Wait for answer from server
const answer = await new Promise(resolve => {
signalWs.addEventListener('message', event => {
const message = JSON.parse(event.data);
if (message.type === 'rtc.call.sdp.created' && message.sdp_answer) {
resolve(message);
}
}, { once: true });
});
return { pc, stream, audio };
}
For more information about the WebRTC APIs used in this example, see RTCPeerConnection
Step 3: Apply the remote SDP answer
After the SDP answer is received, apply it to complete WebRTC negotiation. After the remote description is set and connectivity checks complete, audio begins flowing.
// Apply the remote SDP answer (activates WebRTC + starts audio flow)
await pc.setRemoteDescription({
type: 'answer',
sdp: answer.sdp_answer
});
Step 4 (optional): Exchange non-audio events via data channel
Voice Live API sessions use client‑sent events from your app and server‑sent lifecycle events from the service. When using WebRTC, model-generated audio is delivered through RTP media tracks. Unlike WebSocket-based connections, audio data isn't sent as discrete events.
To send and receive non-audio client and server events and response metadata, use the WebRTC peer connection’s data channel.
// Data channel created on the WebRTC peer connection for non-audio events
const dataChannel = pc.createDataChannel('voice-live-events');
dataChannel.onmessage = (event) => {
const message = JSON.parse(event.data);
console.log('Event:', message.type);
};
Step 5 (optional): Advanced controls
The WebSocket control channel is required for the initial SDP exchange. After negotiation completes, you can keep the channel open to use it for session control (session.update), session configuration, monitoring, tool/function call events, and other advanced scenarios such as manual audio control and interrupts. For more information about configuring and updating a voice live session, see session configuration.
Note
Avatar configurations are currently unsupported with side-band control.
Event routing
When using WebRTC, a Voice Live WebRTC session establishes three communication channels:
WebSocket control channel: The WebSocket connection used to initiate the session (SDP exchange). After negotiation completes, it remains open and carries session control messages, error notifications, and tool/function call events that need to reach your backend for processing to control the WebRTC session. This channel is typically initiated by your server to the Voice Live API.
WebRTC data channel (
voice-live-events): A peer-to-peer data channel on the RTCPeerConnection between the client and the Voice Live API. It carries voice activity detection (VAD) events, response lifecycle events, and transcription data. These are low-latency, non-audio events delivered directly to the client/browser.WebRTC media track (RTP): The real-time audio stream. Model-generated audio is delivered over RTP media tracks as a continuous stream, not as discrete message events. User audio from the microphone is also sent over RTP in the opposite direction.
Tip
For the complete list of supported voice live API events, see the API reference.
Control channel events
The WebSocket control channel carries session control messages and tool/function call events.
| Event | Direction | Description |
|---|---|---|
rtc.call.sdp.created |
Server → Client | SDP answer after successful session creation |
rtc.call.error |
Server → Client | Error response for any failed operation |
session.created |
Server → Client | VoiceLive session established, includes session ID and model |
session.updated |
Server → Client | Session configuration confirmed |
error |
Server → Client | VoiceLive backend error |
response.function_call_arguments.delta |
Server → Client | Streaming function call arguments |
response.function_call_arguments.done |
Server → Client | Function call arguments complete |
response.output_item.added |
Server → Client | Function/tool call output item added |
response.output_item.done |
Server → Client | Function/tool call output item complete |
conversation.item.created |
Server → Client | Function call output item created |
Function and tool call events are routed to the control WebSocket so they can reach your backend for processing. The response.output_item.* and conversation.item.created events are routed to the data channel instead.
Data channel events (voice-live-events)
The WebRTC data channel carries voice activity, response lifecycle, and transcription events.
Events forwarded from VoiceLive backend:
| Event | Description |
|---|---|
input_audio_buffer.speech_started |
User speech detected (VAD) |
input_audio_buffer.speech_stopped |
User speech ended |
response.created |
AI response generation started |
response.done |
AI response generation complete |
conversation.item.input_audio_transcription.completed |
User speech transcription complete |
conversation.item.input_audio_transcription.delta |
Streaming user speech transcription |
response.audio_transcript.delta |
Streaming AI response transcript |
response.audio_transcript.done |
AI response transcript complete |
response.text.delta |
Streaming text response |
response.text.done |
Text response complete |
conversation.item.created |
Conversation item created |
response.output_item.added |
Output item added |
response.output_item.done |
Output item complete |
Error handling
When an error occurs, the service sends an rtc.call.error message on the control WebSocket:
{
"type": "rtc.call.error",
"operation": "rtc.call.sdp.create",
"rtc_call_id": "session-id",
"error": {
"type": "invalid_request_error",
"code": "missing_sdp",
"message": "SDP offer is required"
}
}
The error.type field is either invalid_request_error for client errors or server_error for service-side failures. The error.code field contains a machine-readable identifier, and error.message provides a human-readable description.
