Prepare environment for a Managed Instance link migration - SQL Server migration in Azure Arc

Applies to: SQL Server

This article helps you prepare your environment for a Managed Instance link migration of your SQL Server instance enabled by Azure Arc to Azure SQL Managed Instance in the Azure portal.

With the link, you can migrate your SQL Server databases to Azure SQL Managed Instance by using real-time replication with a distributed availability group (online migration):

Diagram showing Managed Instance link migration.

Note

You can provide feedback on your migration experience directly to the product group.

Prerequisites

To migrate your SQL Server databases to Azure SQL Managed Instance through the Azure portal, you need the following prerequisites:

Supported SQL Server versions

Both the General Purpose and Business Critical service tiers of Azure SQL Managed Instance support the Managed Instance link. Migration with the link feature works with the Enterprise, Developer, and Standard editions of SQL Server on Windows Server.

The following table lists the minimum supported SQL Server versions for the link:

SQL Server version Minimum required servicing update
SQL Server 2025 (17.x) SQL Server 2025 RTM (17.0.1000.7)
SQL Server 2022 (16.x) SQL Server 2022 RTM (16.0.1000.6)
SQL Server 2019 (15.x) SQL Server 2019 CU20 (15.0.4312.2)
SQL Server 2017 (14.x) SQL Server 2017 CU31 (14.0.3456.2) or later and the matching SQL Server 2017 Azure Connect pack (14.0.3490.10) build
SQL Server 2016 (13.x) SQL Server 2016 SP3 (13.0.6300.2) and the matching SQL Server 2016 Azure Connect pack (13.0.7000.253) build
SQL Server 2014 (12.x) and earlier Versions before SQL Server 2016 aren't supported.

Reverse migration is only supported to SQL Server 2025 and SQL Server 2022 from SQL managed instances with the corresponding update policy. You can manually reverse a migration through other tools such as native backup and restore, or manually configuring a link in SSMS.

Permissions

This section describes the permissions that you need to migrate your SQL Server instance to SQL Managed Instance through the Azure portal.

On the source SQL Server instance, you need the following permissions:

  • If you enable least privilege, necessary permissions such as sysadmin are granted as needed during the database migration process.
  • If you can't use least privilege, you need sysadmin permissions on the source SQL Server instance.

To migrate with the Managed Instance link, you need one of the following permissions on the SQL Managed Instance target:

For minimum permissions, see Custom permissions.

Note

Users with the SqlServerAvailabilityGroups_CreateManagedInstanceLink, SqlServerAvailabilityGroups_failoverMiLink, and SqlServerAvailabilityGroups_deleteMiLink permissions in Azure can perform actions on the Database migration pane during the migration process that elevate the SQL Server permissions of the account used by the extension, including the sysadmin role.

Prepare your SQL Server instance

To prepare your SQL Server instance, complete the following steps:

You need to restart SQL Server for these changes to take effect.

Install service updates

Ensure that your SQL Server version has the appropriate servicing update installed, as listed in the version supportability table. If you need to install any updates, you must restart your SQL Server instance during the update.

To check your SQL Server version, run the following Transact-SQL (T-SQL) script on SQL Server:

-- Run on SQL Server
-- Shows the version and CU of the SQL Server
USE master;
GO
SELECT @@VERSION as 'SQL Server version';

Create a database master key in the master database

The link uses certificates to encrypt authentication and communication between SQL Server and SQL Managed Instance. The database master key protects the certificates used by the link. If you already have a database master key, you can skip this step.

Create a database master key in the master database. Insert your password in place of <strong_password> in the following script, and keep it in a confidential and secure place. Run this T-SQL script on SQL Server:

-- Run on SQL Server
-- Create a master key
USE master;
GO
CREATE MASTER KEY ENCRYPTION BY PASSWORD = '<strong_password>';

To make sure that you have the database master key, use the following T-SQL script on SQL Server:

-- Run on SQL Server
USE master;
GO
SELECT * FROM sys.symmetric_keys WHERE name LIKE '%DatabaseMasterKey%';

Prepare SQL Server 2016 instances

For SQL Server 2016 (13.x), you must complete the extra steps documented in Prepare SQL Server 2016 prerequisites for the link. These extra steps aren't required for SQL Server 2017 (14.x) and later versions supported by the link.

Enable availability groups

The link feature relies on the Always On availability groups feature, which is disabled by default. For more information, see Enable the Always On availability groups feature.

To confirm the availability groups feature is enabled, run the following T-SQL script on SQL Server:

-- Run on SQL Server
-- Is the availability groups feature enabled on this SQL Server
DECLARE @IsHadrEnabled sql_variant = (select SERVERPROPERTY('IsHadrEnabled'))
SELECT
    @IsHadrEnabled as 'Is HADR enabled',
    CASE @IsHadrEnabled
        WHEN 0 THEN 'Availability groups DISABLED.'
        WHEN 1 THEN 'Availability groups ENABLED.'
        ELSE 'Unknown status.'
    END
    as 'HADR status'

If the availability groups feature isn't enabled, follow these steps to enable it:

  1. Open SQL Server Configuration Manager.

  2. Select SQL Server Services from the left pane.

  3. Right-click the SQL Server service, then select Properties:

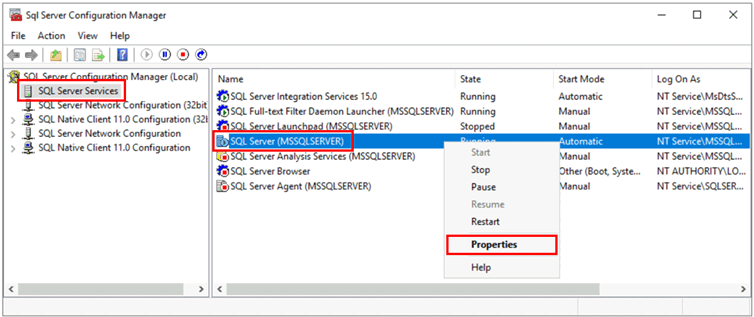

    Screenshot that shows SQL Server Configuration Manager, with selections for opening properties for the service.

  4. Go to the Always On Availability Groups tab.

  5. Select the Enable Always On Availability Groups checkbox, then select OK.

    Screenshot that shows the properties for Always On availability groups.

    • If you're using SQL Server 2016 (13.x), and the Enable Always On Availability Groups option is disabled with the message This computer is not a node in a failover cluster, follow the steps described in Prepare SQL Server 2016 prerequisites for the link. After you complete these steps, return to this step and try again.

  6. Select OK in the dialog.

  7. Restart the SQL Server service.

Enable startup trace flags

To optimize the performance of your link, enable the following trace flags at startup:

  • -T1800: This trace flag optimizes performance when the log files for the primary and secondary replicas in an availability group are on disks with different sector sizes, such as 512 bytes and 4 KB. If both primary and secondary replicas use a disk sector size of 4 KB, you don't need this trace flag. For more information, see KB3009974.
  • -T9567: This trace flag enables compression of the data stream for availability groups during automatic seeding. The compression increases the load on the processor but can significantly reduce transfer time during seeding.

To enable these trace flags at startup, use the following steps:

  1. Open SQL Server Configuration Manager.

  2. Select SQL Server Services from the left pane.

  3. Right-click the SQL Server service, then select Properties.

    Screenshot that shows SQL Server Configuration Manager.

  4. Go to the Startup Parameters tab. In Specify a startup parameter, enter -T1800 and select Add to add the startup parameter. Then enter -T9567 and select Add to add the other trace flag. Select Apply to save your changes.

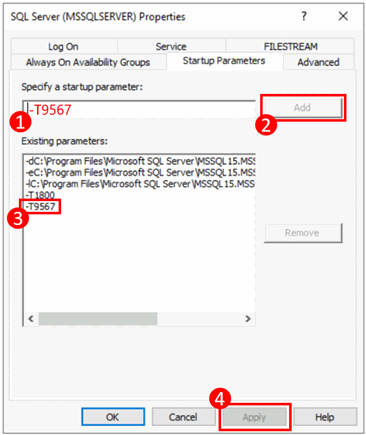

    Screenshot that shows startup parameter properties.

  5. Select OK to close the Properties window.

For more information, see the syntax to enable trace flags.

Restart SQL Server and validate the configuration

If you did not need to upgrade the version of SQL Server, enable the availability group feature, or add startup trace flags, you can skip this section.

After you ensure that you're on a supported version of SQL Server, enable the Always On availability groups feature, and add your startup trace flags, restart your SQL Server instance to apply all of these changes:

  1. Open SQL Server Configuration Manager.

  2. Select SQL Server Services from the left pane.

  3. Right-click the SQL Server service, then select Restart.

    Screenshot that shows the SQL Server restart command call.

After the restart, run the following T-SQL script on SQL Server to validate the configuration of your SQL Server instance:

-- Run on SQL Server
-- Shows the version and CU of SQL Server
USE master;
GO
SELECT @@VERSION as 'SQL Server version';
GO
-- Shows if the Always On availability groups feature is enabled
SELECT SERVERPROPERTY ('IsHadrEnabled') as 'Is Always On enabled? (1 true, 0 false)';
GO
-- Lists all trace flags enabled on SQL Server
DBCC TRACESTATUS;

Your SQL Server version should be one of the supported versions with the appropriate service updates applied. The Always On availability groups feature should be enabled, and you should have the -T1800 and -T9567 trace flags enabled. The following screenshot is an example of the expected outcome for a properly configured SQL Server instance:

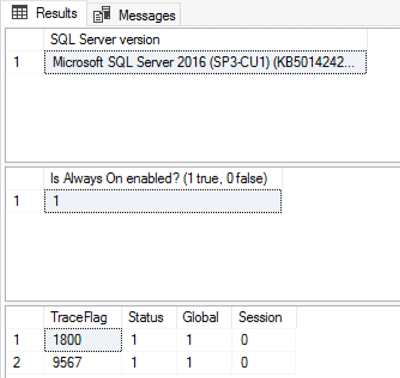

Screenshot that shows the expected outcome in S S M S.

Set database to full recovery model

Databases migrated through the link must be in the full recovery model and have at least one backup.

Run the following code on SQL Server for all databases you wish to migrate. Replace <DatabaseName> with your actual database name.

-- Run on SQL Server
-- Set full recovery model for all databases you want to migrate.
ALTER DATABASE [<DatabaseName>] SET RECOVERY FULL
GO

-- Execute backup for all databases you want to migrate.
BACKUP DATABASE [<DatabaseName>] TO DISK = N'<DiskPath>'
GO

Import Azure-trusted root certificate authority keys to SQL Server

To trust the SQL Managed Instance public key certificates that Azure issues, you need to import Azure-trusted root certificate authority (CA) keys to SQL Server.

You can download the root CA keys from Azure Certificate Authority details. At minimum, download the DigiCert Global Root G2 and Microsoft RSA Root Certificate Authority 2017 certificates and import them to your SQL Server instance.

Note

The root certificate in the certification path for a SQL Managed Instance public key certificate is issued by an Azure trusted root Certificate Authority (CA). The specific root CA can change over time as Azure updates its trusted CA list. For a simplified setup, install all root CA certificates listed in Azure Root Certificate Authorities. You can install just the required CA key by identifying the issuer of a previously imported SQL Managed Instance public key.

Save the certificates local to the SQL Server instance, such as to the sample C:\certs\<name of certificate>.crt path, and then import the certificates from that path by using the following Transact-SQL script. Replace <name of certificate> with the actual certificate name: DigiCert Global Root G2 and Microsoft RSA Root Certificate Authority 2017, which are the required names for these two certificates.

-- Run on SQL Server-- Import <name of certificate> root-authority certificate (trusted by Azure), if not already present
CREATE CERTIFICATE [DigiCertPKI] FROM FILE = 'C:\certs\DigiCertGlobalRootG2.crt'
DECLARE @CERTID int
SELECT @CERTID = CERT_ID('DigiCertPKI')
EXEC sp_certificate_add_issuer @CERTID, N'*.database.windows.net';
GO
CREATE CERTIFICATE [MicrosoftPKI] FROM FILE = 'C:\certs\Microsoft RSA Root Certificate Authority 2017.crt'
DECLARE @CERTID int
SELECT @CERTID = CERT_ID('MicrosoftPKI')
EXEC sp_certificate_add_issuer @CERTID, N'*.database.windows.net';
GO

Tip

If the sp_certificate_add_issuer stored procedure is missing from your SQL Server environment, your SQL Server instance likely doesn't have the appropriate service update installed.

Finally, verify all the created certificates by using the following dynamic management view (DMV):

-- Run on SQL Server
USE master
SELECT * FROM sys.certificates

Configure network connectivity

For the link to work, you must have network connectivity between SQL Server and SQL Managed Instance. The network option that you choose depends on whether or not your SQL Server instance is on an Azure network.

SQL Server outside Azure

If you host your SQL Server instance outside Azure, you can establish a VPN connection between SQL Server and SQL Managed Instance by using either of these options:

Tip

For the best network performance when replicating data, use ExpressRoute. Provision a gateway with enough bandwidth for your use case.

SQL Server on Azure Virtual Machines

Deploying SQL Server on Azure Virtual Machines in the same Azure virtual network that hosts SQL Managed Instance is the simplest method, because network connectivity automatically exists between the two instances. For more information, see Quickstart: Configure an Azure VM to connect to Azure SQL Managed Instance.

If your SQL Server on Azure Virtual Machines instance is in a different virtual network from your SQL managed instance, you need to connect the two virtual networks. Virtual networks don't have to be in the same subscription for this scenario to work.

You have two options to connect virtual networks:

Peering is preferable because it uses the Microsoft backbone network. So, from a connectivity perspective, there's no noticeable difference in latency between virtual machines in a peered virtual network and in the same virtual network. Virtual network peering is supported between networks in the same region. Global virtual network peering is supported for instances hosted in subnets created after September 22, 2020. For more information, see Frequently asked questions (FAQ).

Network ports between the environments

Regardless of the connectivity mechanism, you must meet the following requirements for network traffic to flow between the environments:

The Network Security Group (NSG) rules on the subnet that hosts SQL Managed Instance must allow:

  • Inbound port 5022 and port range 11000-11999 to receive traffic from the source SQL Server IP address
  • Outbound port 5022 to send traffic to the destination SQL Server IP address

All firewalls on the network that hosts SQL Server, and the host OS must allow:

  • Inbound port 5022 opened to receive traffic from the source IP range of the MI subnet /24 (for example 10.0.0.0/24)
  • Outbound ports 5022, and the port range 11000-11999 opened to send traffic to the destination IP range of MI subnet (example 10.0.0.0/24)

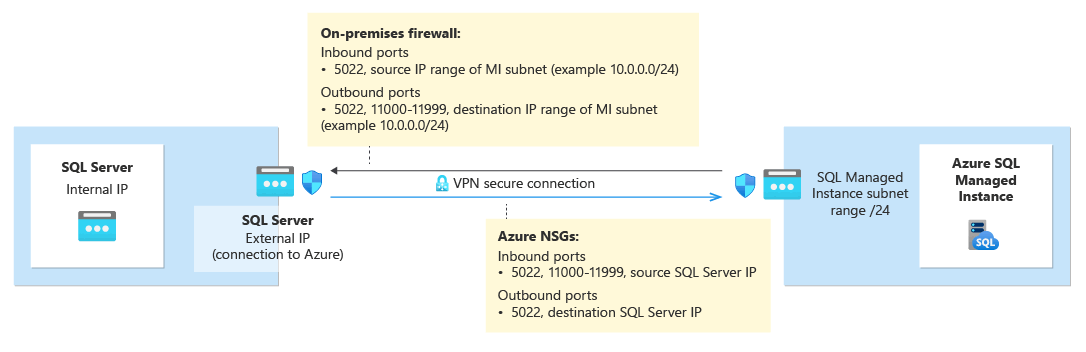

Diagram showing network requirements to set up the link between SQL Server and SQL managed instance.

The following table describes port actions for each environment:

Environment What to do
SQL Server (outside Azure) Open both inbound and outbound traffic on port 5022 for the network firewall to the entire subnet IP range of SQL Managed Instance. If necessary, do the same on the SQL Server host OS Windows firewall.
SQL Server (in Azure) Open both inbound and outbound traffic on port 5022 for the network firewall to the entire subnet IP range of SQL Managed Instance. If necessary, do the same on the SQL Server host OS Windows firewall. To allow communication on port 5022, create a network security group (NSG) rule in the virtual network that hosts the virtual machine (VM).
SQL Managed Instance Create an NSG rule in the Azure portal to allow inbound and outbound traffic from the IP address and the networking that hosts SQL Server on port 5022 and port range 11000-11999.

To open ports in Windows Firewall, use the following PowerShell script on the Windows host OS of the SQL Server instance:

New-NetFirewallRule -DisplayName "Allow TCP port 5022 inbound" -Direction inbound -Profile Any -Action Allow -LocalPort 5022 -Protocol TCP
New-NetFirewallRule -DisplayName "Allow TCP port 5022 outbound" -Direction outbound -Profile Any -Action Allow -LocalPort 5022 -Protocol TCP

The following diagram shows an example of an on-premises network environment, indicating that all firewalls in the environment need to have open ports, including the OS firewall that hosts the SQL Server instance, and any corporate firewalls and gateways:

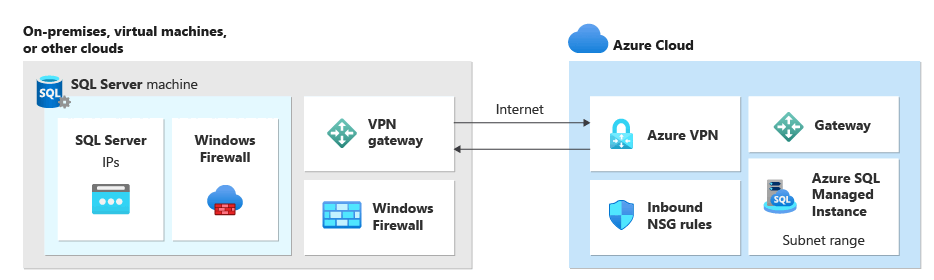

Diagram showing network infrastructure to set up the link between SQL Server and SQL managed instance.

Important

  • You need to open ports in every firewall in the networking environment, including the host server, and any corporate firewalls or gateways on the network. In corporate environments, you might need to show your network administrator the information in this section to help open additional ports in the corporate networking layer.
  • While you can choose to customize the endpoint on the SQL Server side, you can't change or customize port numbers for SQL Managed Instance.
  • IP address ranges of subnets hosting managed instances, and SQL Server must not overlap.

Add URLs to allowlist

Depending on your network security settings, you might need to add URLs to your allowlist for the SQL Managed Instance FQDN and some of the Resource Management endpoints used by Azure.

Add the following resources to your allowlist:

  • The fully qualified domain name (FQDN) of your SQL Managed Instance. For example: managedinstance.a1b2c3d4e5f6.database.windows.net.
  • Microsoft Entra Authority
  • Microsoft Entra Endpoint Resource ID
  • Resource Manager Endpoint
  • Service Endpoint

Follow the steps in the Configure SSMS for government clouds section to access the Tools interface in SQL Server Management Studio (SSMS) and identify specific URLs for the resources within your cloud you need to add to your allowlist.

Migrate a certificate of a TDE-protected database (optional)

If you're linking a SQL Server database protected by Transparent Data Encryption (TDE) to a SQL managed instance, you must migrate the corresponding encryption certificate from the on-premises or Azure VM SQL Server instance to the SQL managed instance before using the link. For detailed steps, see Migrate a certificate of a TDE-protected database to Azure SQL Managed Instance.

SQL Managed Instance databases that are encrypted with service-managed TDE keys can't be linked to SQL Server. You can only link an encrypted database to SQL Server if you encrypted it with a customer-managed key and the destination server has access to the same key used to encrypt the database. For more information, see Set up SQL Server TDE with Azure Key Vault.

Note

Azure Key Vault is supported by SQL Server on Linux starting with Cumulative Update 14 for SQL Server 2022.

Test network connectivity

Before you start the migration, test network connectivity between your SQL Server instance and SQL Managed Instance. You can test connectivity directly from the Azure portal as part of the migration process. However, you can also test connectivity manually by using Transact-SQL and the SQL Server Agent. For more information, see Test network connectivity.

To test connectivity through the Azure portal, follow these steps:

  1. Select Migrate data on the Database migration pane for your SQL Server instance resource.

  2. Select the MI link option.

  3. Select the target databases you want to migrate and then use Next: Settings to go to the next tab.

  4. On the Settings tab, provide the name of the link and the source availability group. Then use Test connection to validate the network connectivity between SQL Server and SQL Managed Instance:

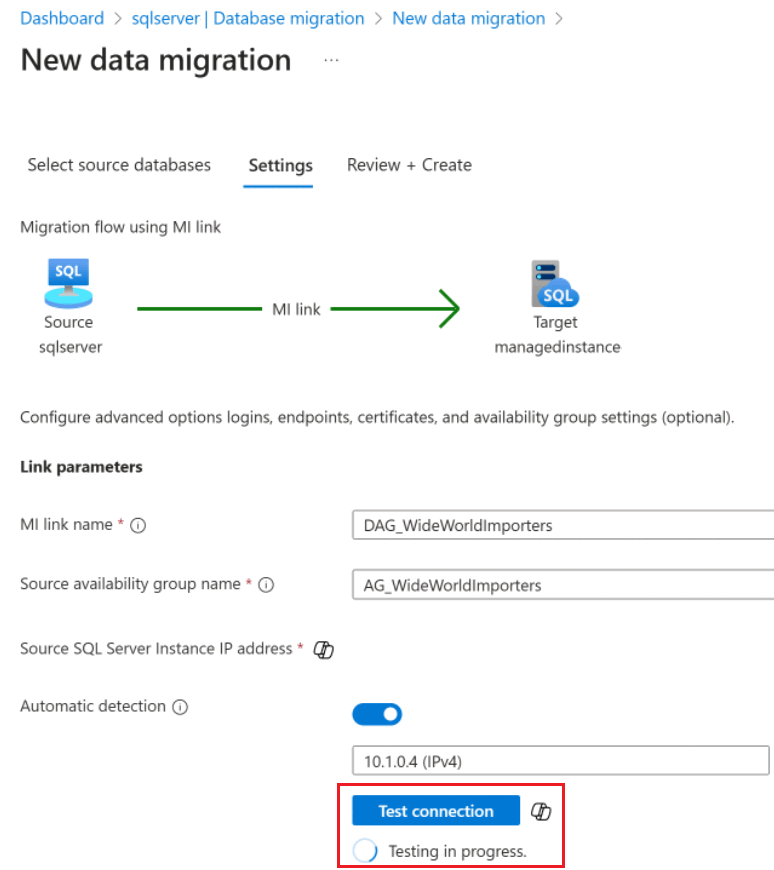

    Screenshot that shows the Managed Instance link test connection button.

Consider the following points:

  • To avoid false negatives, all firewalls along the network path must allow Internet Control Message Protocol (ICMP) traffic.
  • To avoid false positives, all firewalls along the network path must allow traffic on the proprietary SQL Server UCS protocol. Blocking the protocol can lead to a successful connection test, but the link fails to create.
  • Advanced firewall setups with packet-level guardrails need to be properly configured to allow traffic between SQL Server and SQL Managed Instance.

Limitations

The limitations of the Managed Instance link apply to migrations through the Azure portal.

Configuring a link through the Azure portal for the purpose of migration isn't compatible with links you create manually. If a link already exists, you need to drop all certificates and endpoints related to the existing link from your source SQL Server instance before you can create a new link through the Azure portal. You can list all existing certificates with SELECT * FROM sys.certificates and all existing endpoints with SELECT * FROM sys.endpoints.

Then remove the certificates from Azure SQL Managed Instance by running the following PowerShell commands in an Azure Cloud Shell or a local machine signed in with an Azure context: Get-AzSqlInstanceServerTrustCertificate and Remove-AzSqlInstanceServerTrustCertificate.

Monitoring the migration through the Azure portal is available only to SQL Server instances that meet monitoring licensing requirements.
