Set up OIDC authentication in SharePoint Server with Microsoft Azure Active Directory (Azure AD)

APPLIES TO: no-img-132013 no-img-162016 no-img-192019 yes-img-seSubscription Edition no-img-sopSharePoint in Microsoft 365

Prerequisites

When you configure OIDC with Azure AD, you need the following resources:

  1. A SharePoint Server Subscription Edition farm
  2. Azure AD Global Administrator role of the M365 tenant

This article uses the following example values for Azure AD OIDC setup:

Value Link
SharePoint site Uniform Resource Locator (URL) https://spsites.contoso.local/
OIDC site URL https://sts.windows.net/<tenantid>/
Azure AD OIDC authentication endpoint https://login.microsoftonline.com/<tenantid>/oauth2/authorize
Azure AD OIDC RegisteredIssuerName URL https://sts.windows.net/<tenantid>/
Azure AD OIDC SignoutURL https://login.microsoftonline.com/<tenantid>/oauth2/logout
Identity claim type http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress
Windows site collection administrator contoso\yvand
Email value of the federated site collection administrator yvand@contoso.local

Step 1: Setup identity provider

Perform the following steps to set up OIDC with Azure AD:

  1. Select New Registration.

  2. Go to the Register an application page https://portal.azure.com/#blade/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/RegisteredApps.

  3. Enter the following value for Redirect URL: https://spsites.contoso.local/ and select Register.

    Register an application

  4. Save Directory (tenant) ID as the tenant ID we'll use in future and save Application (client) ID which we'll use as DefaultClientIdentifier in SharePoint setup.

    Save Application

  5. After you register the application, go to the Authentication tab, enable ID tokens and select Save.

    Enable ID Tokens

  6. Go to the API permissions tab and add email and profile permissions.

    API Permissions

  7. Go to the Token configuration tab and add email, groups and upn optional claims.

    Token Configuration

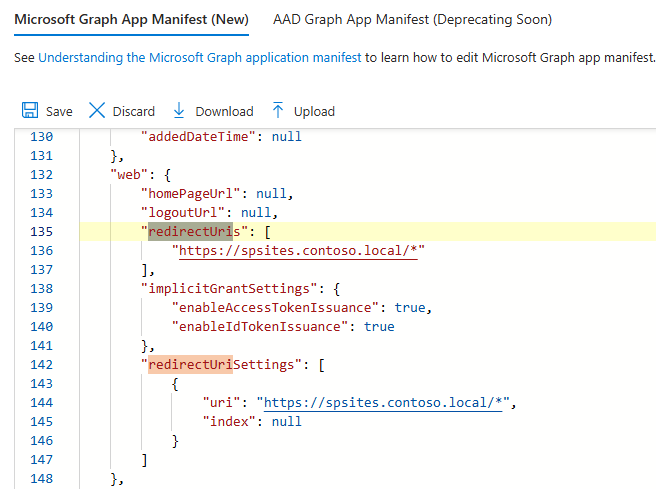

  8. Go to the Manifest tab, and manually change replyUrlsWithType from https://spsites.contoso.local/ to https://spsites.contoso.local/*. Then select Save.

    Manifest

  9. Get OIDC authentication information from OIDC discovery endpoint.

In Azure AD, there are two versions of OIDC authentication endpoints. Therefore, there are two versions of OIDC discovery endpoints respectively:

  • V1.0: https://login.microsoftonline.com/<TenantID>/.well-known/openid-configuration
  • V2.0: https://login.microsoftonline.com/<TenantID>/v2.0/.well-known/openid-configuration

Note

For OIDC authentication, both endpoints are supported but we recommend using V2.0.

Replace TenantID with the Directory (tenant) ID saved in the third step mentioned previously and connect to the endpoint through your browser. Then, save the following information:

Value Link
authorization_endpoint https://login.microsoftonline.com/<tenantid>/oauth2/authorize
end_session_endpoint https://login.microsoftonline.com/<tenantid>/oauth2/logout
issuer https://sts.windows.net/<tenantid>/
jwks_uri https://login.microsoftonline.com/common/discovery/keys

Open jwks_uri (https://login.microsoftonline.com/common/discovery/keys) and save the x5c certificate string of the first key for later use in SharePoint setup (if the first key doesn’t work, try the second or third key).

Discovery keys

Step 2: Change SharePoint farm properties

In this step, you'll need to modify SharePoint farm properties. Start the SharePoint Management Shell and run the following script:

Note

Read the instructions mentioned in the following PowerShell script carefully.

# Setup farm properties to work with OIDC
$cert = New-SelfSignedCertificate -CertStoreLocation Cert:\LocalMachine\My -Provider 'Microsoft Enhanced RSA and AES Cryptographic Provider' -Subject "CN=SharePoint Cookie Cert"
$rsaCert = [System.Security.Cryptography.X509Certificates.RSACertificateExtensions]::GetRSAPrivateKey($cert)
$fileName = $rsaCert.key.UniqueName

#if you have multiple SharePoint servers in the farm, you need to export certificate by Export-PfxCertificate and import certificate to all other SharePoint servers in the farm by Import-PfxCertificate.

#After certificate is successfully imported to SharePoint Server, we will need to grant access permission to certificate private key.

$path = "$env:ALLUSERSPROFILE\Microsoft\Crypto\RSA\MachineKeys\$fileName"
$permissions = Get-Acl -Path $path

#Please replace the <web application pool account> with real application pool account of your web application
$access_rule = New-Object System.Security.AccessControl.FileSystemAccessRule(<Web application pool account>, 'Read', 'None', 'None', 'Allow')
$permissions.AddAccessRule($access_rule)
Set-Acl -Path $path -AclObject $permissions

#Then we update farm properties
$f = Get-SPFarm
$f.Farm.Properties['SP-NonceCookieCertificateThumbprint']=$cert.Thumbprint
$f.Farm.Properties['SP-NonceCookieHMACSecretKey']='seed'
$f.Farm.Update()

Step 3: Configure SharePoint to trust the identity provider

You can configure SharePoint to trust the identity provider in either of the following ways:

  • Configure SharePoint to trust Azure AD as the OIDC provider manually.
  • Configure SharePoint to trust Azure AD as the OIDC provider by using metadata endpoint.
    • By using metadata endpoint, a lot of parameters you need in 'Configure SharePoint to trust Azure AD as the OIDC provider manually' can be automatically retrieved by metadata endpoint.

Configure SharePoint to trust Azure AD as the OIDC provider manually

In this step, you create a SPTrustedTokenIssuer that will store the configuration that SharePoint needs to trust Azure AD OIDC as the OIDC provider. Start the SharePoint Management Shell and run the following script to create it:

Note

Read the instructions mentioned in the following PowerShell script carefully.

# Define claim types
$email = New-SPClaimTypeMapping "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress" -IncomingClaimTypeDisplayName "EmailAddress" -SameAsIncoming

# Public key of the AAD OIDC signing certificate. Please replace <x5c cert string> with the encoded cert string which you get from x5c certificate string of the keys of jwks_uri from Step #1
$encodedCertStr = <x5c cert string>
$signingCert = New-Object System.Security.Cryptography.X509Certificates.X509Certificate2 @(,[System.Convert]::FromBase64String($encodedCertStr))
# Set the AAD OIDC URL where users are redirected to authenticate. Please replace <tenantid> accordingly
$authendpointurl = "https://login.microsoftonline.com/<tenantid>/oauth2/authorize"
$registeredissuernameurl = " https://sts.windows.net/<tenantid>/"
$signouturl = " https://login.microsoftonline.com/<tenantid>/oauth2/logout"

# Please replace <Application (Client) ID> with the value saved in step #3 in AAD setup section
$clientIdentifier = <Application (Client)ID>

# Create a new SPTrustedIdentityTokenIssuer in SharePoint
New-SPTrustedIdentityTokenIssuer -Name "contoso.local" -Description "contoso.local" -ImportTrustCertificate $signingCert -ClaimsMappings $email -IdentifierClaim $email.InputClaimType  -RegisteredIssuerName $registeredissuernameurl  -AuthorizationEndPointUri $authendpointurl -SignOutUrl $signouturl -DefaultClientIdentifier $clientIdentifier

Here, New-SPTrustedIdentityTokenIssuer PowerShell cmdlet is extended to support OIDC by using the following parameters:

Parameter Description
Name Gives a name to the new token issuer.
Description Gives a description to the new token issuer.
ImportTrustCertificate Imports a list of X509 Certificates, which will be used to validate id_token from OIDC identifier. If the OIDC identity provider (IDP) uses more than one certificate to digital sign the id_token, import these certificates and SharePoint will then validate id_token by matching the digital signature generated by using these certificates.
ClaimsMappings A SPClaimTypeMapping object, which will be used to identify which claim in the id_token will be regarded as identifier in SharePoint.
IdentifierClaim Specifies the type of identifier.
RegisteredIssuerName Specifies the issuer identifier, which issues the id_token. It will be used to validate the id_token.
AuthorizationEndPointUrl Specifies the authorization endpoint of the OIDC identity provider.
SignoutUrl Specifies the sign-out endpoint of the OIDC identity provider.
DefaultClientIdentifier Specifies the client_id of SharePoint server, which is assigned by OIDC identity provider. This will be validated against aud claim in id_token.
ResponseTypesSupported Specifies the response type of IDP, which can be accepted by this token issuer. It can accept two strings: id_token and code id_token. If this parameter isn't provided, it will use code id_token as default.

Important

The relevant certificate must be added to the SharePoint root authority certificate store:

New-SPTrustedRootAuthority -Name "AAD OIDC signing root authority" -Certificate $signingCert

Configure SharePoint to trust Azure AD OIDC by using metadata endpoint

SharePoint Server Subscription Edition now supports OIDC metadata discovery capability during configuration.

By using the metadata endpoint provided by the OIDC identity provider, some of the configuration will be retrieved from the OIDC provider metadata endpoint directly, including:

  1. Certificate
  2. Issuer
  3. Authorization Endpoint
  4. SignoutURL

This can simplify the configuration of the OIDC token issuer.

With the following PowerShell example, we can use metadata endpoint from Azure AD to configure SharePoint to trust Azure AD OIDC.

Note

Read the instructions mentioned in the following PowerShell script carefully.

# Define claim types
$email = New-SPClaimTypeMapping "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress" -IncomingClaimTypeDisplayName "EmailAddress" -SameAsIncoming

# Set the AAD metadata endpoint URL. Please replace <TenantID> with the value saved in step #3 in AAD setup section
$metadataendpointurl = "https://login.microsoftonline.com/<TenantID>/.well-known/openid-configuration"

# Please replace <Application (Client) ID> with the value saved in step #3 in AAD setup section
$clientIdentifier = <Application (Client)ID>

# Create a new SPTrustedIdentityTokenIssuer in SharePoint
New-SPTrustedIdentityTokenIssuer -Name "contoso.local" -Description "contoso.local" -ClaimsMappings $email -IdentifierClaim $email.InputClaimType  -DefaultClientIdentifier $clientIdentifier -MetadataEndPoint $ metadataendpointurl
Parameter Description
Name Gives a name to the new token issuer.
Description Gives a description to the new token issuer.
ImportTrustCertificate A certificate that will be used to validate id_token from OIDC identifier.
ClaimsMappings A SPClaimTypeMapping object, which will be used to identify which claim in the id_token will be regarded as identifier in SharePoint.
IdentifierClaim Specifies the type of identifier.
DefaultClientIdentifier Specifies the client_id of SharePoint server, which is assigned by OIDC identity provider. This will be validated against aud claim in id_token.
MetadataEndPoint Specifies the well-known metadata endpoint from OIDC identity provider, which can be used to retrieve latest certificate, issuer, authorization endpoint, and sign out endpoint.

Step 4: Configure the SharePoint web application

In this step, you'll configure a web application in SharePoint to be federated with the Azure AD OIDC, using the SPTrustedIdentityTokenIssuer created in the previous step.

Important

  • The default zone of the SharePoint web application must have Windows authentication enabled. This is required for the search crawler.
  • The SharePoint URL that will use AAD OIDC federation must be configured with Hypertext Transfer Protocol Secure (HTTPS).

You can do this configuration either by:

  • Creating a new web application and using both Windows and Azure AD OIDC authentication in the default zone.
  • Extending an existing web application to set Active Directory Federation Services (AD FS)/AAD OIDC authentication on a new zone.

To create a new web application, do the following:

  1. Start the SharePoint Management Shell and run the following script to create a new SPAuthenticationProvider:

    # This script creates a trusted authentication provider for OIDC

    $sptrust = Get-SPTrustedIdentityTokenIssuer "contoso.local"
    $trustedAp = New-SPAuthenticationProvider -TrustedIdentityTokenIssuer $sptrust

  2. Follow Create a web application in SharePoint Server to create a new web application enabling HTTPS/Secure Sockets Layer (SSL) named SharePoint - OIDC on contoso.local.

  3. Open the SharePoint Central Administration site.

  4. Open the web application you created and pick contoso.local as Trusted Identity Provider.

    Authentication Providers

  5. In the SharePoint Central Administration site, navigate to System Settings > Configure Alternate Access Mappings > Alternate Access Mapping Collection.

  6. Filter the display with the new web application and confirm that you see the following information:

    New web application

To extend an existing web application, do the following:

  1. Start the SharePoint Management Shell and run the following script:

    # This script creates a trusted authentication provider for OIDC

    $sptrust = Get-SPTrustedIdentityTokenIssuer "Contoso.local"
    $ap = New-SPAuthenticationProvider -TrustedIdentityTokenIssuer $sptrust

  2. Open the SharePoint Central Administration site.

  3. Open the web application you want to extend OIDC authentication to and pick contoso.local as Trusted Identity Provider.

    Authentication Providers 2

  4. In the SharePoint Central Administration site, navigate to System Settings > Configure Alternate Access Mappings > Alternate Access Mapping Collection.

  5. Filter the display with the web application that was extended and confirm that you see the following information:

    SharePoint Administration Site

Step 5: Ensure the web application is configured with SSL certificate

Since OIDC 1.0 authentication can only work with HTTPS protocol, a certificate must be set on the corresponding web application. Perform the following steps to set the certificate:

  1. Generate the site certificate:

    Note

    You may skip this step if you have already generated the certificate.

    1. Open the SharePoint PowerShell console.

    2. Run the following script to generate a self-signed certificate and add it to the SharePoint farm:

      New-SPCertificate -FriendlyName "Contoso SharePoint (2021)" -KeySize 2048 -CommonName spsites.contoso.local -AlternativeNames extranet.contoso.local, onedrive.contoso.local -OrganizationalUnit "Contoso IT Department" -Organization "Contoso" -Locality "Redmond" -State "Washington" -Country "US" -Exportable -HashAlgorithm SHA256 -Path "\\server\fileshare\Contoso SharePoint 2021 Certificate Signing Request.txt"
      Move-SPCertificate -Identity "Contoso SharePoint (2021)" -NewStore EndEntity


      Important

      Self-signed certificates are suitable only for test purposes. In production environments, we strongly recommend that you use certificates issued by a certificate authority instead.

  2. Set the certificate:

    You can use the following PowerShell cmdlet to assign the certificate to the web application:

    Set-SPWebApplication -Identity https://spsites.contoso.local -Zone Default -SecureSocketsLayer -Certificate "Contoso SharePoint (2021)"


Step 6: Create the site collection

In this step, you'll create a team site collection with two administrators: One as a Windows administrator and one as a federated (Azure AD) administrator.

  1. Open the SharePoint Central Administration site.

  2. Navigate to Application Management > Create site collections > Create site collections.

  3. Type a title, URL, and select the template Team Site.

  4. In the Primary Site Collection Administrator section, select the Book Icon People Picker (book) icon to open the People Picker dialog.

  5. In the People Picker dialog, type the Windows administrator account, for example yvand.

  6. Filter the list on the left by selecting Organizations. Following is a sample output:

    Select people

  7. Go to the account and select OK.

  8. In the Secondary Site Collection Administrator section, select the book icon to open the People Picker dialog.

  9. In the People Picker dialog, type the exact email value of the Azure AD administrator account, for example yvand@contoso.local.

  10. Filter the list on the left by selecting contoso.local. Following is a sample output:

    Select people 2

  11. Go to the account and select OK to close the People Picker dialog.

  12. Select OK again to create the site collection.

Once the site collection is created, you will be able to sign-in using either the Windows or the federated site collection administrator account.

Step 7: Set up People Picker

In OIDC authentication, the People Picker doesn't validate the input, which can lead to misspellings or users accidentally selecting the wrong claim type. This can be addressed using the new UPA-backed claim provider in SharePoint Server.

To do this, perform the following steps:

1. Create a new claim provider

In the previous step, you've already created an OIDC SPTrustedIdentityTokenIssuer by using New-SPTrustedIdentityTokenIssuer PowerShell cmdlet. In this step, you'll use the following PowerShell cmdlet to create a claim provider, which uses the User Profile Application service to search and resolve users and groups in the People Picker and specifies to use the OIDC SPTrustedIdentityTokenIssuer:

$claimprovider = New-SPClaimProvider -AssemblyName "Microsoft.SharePoint, Version=16.0.0.0, Culture=neutral, publicKeyToken=71e9bce111e9429c" -DisplayName 'OIDC Claim Provider' -Type "Microsoft.SharePoint.Administration.Claims.SPTrustedBackedByUPAClaimProvider" -TrustedTokenIssuer $tokenissuer -Description “OIDC Claim Provider” -Default:$false

Specify the following parameters:

Parameter Description
AssemblyName To be specified as Microsoft.SharePoint, Version=16.0.0.0, Culture=neutral, publicKeyToken=71e9bce111e9429c.
Type To be specified as Microsoft.SharePoint.Administration.Claims.SPTrustedBackedByUPAClaimProvider so that this command creates a claim provider, which uses UPA as the claim source.
TrustedTokenIssuer To be specified as the OIDC SPTrustedIdentityTokenIssuer created in the previous step, which will use this claim provider. This is a new parameter the user needs to provide when the type of the claim provider is Microsoft.SharePoint.Administration.Claims.SPTrustedBackedByUPAClaimProvider.
Default As we've created a claim provider by using this cmdlet, this cmdlet can only work with SPTrustedIdentityTokenIssuer and Default parameter must be set to false so that it won’t be used by any other authentication method assigned to the web application by default.

2. Connect SPTrustedIdentityTokenIssuer with SPClaimProvider

In this step, the OIDC SPTrustedIdentityTokenIssuer uses the claim provider created in step 1 for searching and resolving users and groups:

Set-SPTrustedIdentityTokenIssuer <token issuer name> -ClaimProvider <claim provider object> -IsOpenIDConnect

Specify the following parameters:

Parameter Description
token issuer name The token issuer this People Picker will use.
-ClaimProvider The SPClaimProvider, which will be used to generate claim.
-IsOpenIDConnect Required when SPTrustedIdentityTokenIssuer is OIDC SPTrustedIdentityTokenIssuer. Without this parameter, OIDC SPTrustedIdentityTokenIssuer configuration will fail.

An example of this command is:

$claimprovider = Get-SPClaimProvider -Identity "UPATest"
Set-SPTrustedIdentityTokenIssuer "ADFS Provider" -ClaimProvider $claimprovider -IsOpenIDConnect

3. Synchronize profiles to user profile service application

Now, customers can start to synchronize profiles into the SharePoint user profile service application (UPSA) from the identity provider used in the organization so that the newly created claim provider can work on the correct data set.

There are two ways to synchronize user profiles into the SharePoint UPSA:

  • Create a new SharePoint Active Directory Import (AD Import) connection with Trusted Claims Provider Authentication as the Authentication Provider Type in the connection setting. To utilize AD Import, see Manage user profile synchronization in SharePoint Server.

    Add New Synchronization Connections

  • Use Microsoft Identity Manager (MIM). To utilize MIM, see Microsoft Identity Manager in SharePoint Servers 2016 and 2019.

    • There should be two agents inside the MIM Synchronization Service Manager UX after MIM is set up. One agent is used to import user profiles from the source IDP to the MIM database. The other agent is used to export user profiles from the MIM database to the SharePoint UPSA.

During the synchronization, the following three properties must be provided to the UPSA:

  • SPS-ClaimID

  • SPS-ClaimProviderID

  • SPS-ClaimProviderType

    1. SPS-ClaimID

      During the synchronization, you must pick which unique identity property in the source will be mapped to the SPS-ClaimID property in the UPSA. We suggest using Email or User Principal Name for the SPS-ClaimID. The corresponding IdentifierClaim value needs to be set when token issuer is created from the New-SPTrustedIdentityTokenIssuer cmdlet.

      For AD Import synchronization, Central Administration > Application Management > Manage service applications > User Profile Service Application > Manage User Properties will allow administrators to edit the SPS-ClaimID to indicate which property in the source identity provider should be synchronized to SPS-ClaimID. (The display name of this property is Claim User Identifier and it can be customized to other display names by the administrator.) For example, if email is to be used as the SPS-ClaimID, Claim User Identifier should be set to Email.

      SPS-ClaimID SPS-ClaimProviderID SPS-ClaimProviderType

      MIM synchronization is done by mapping Email or User Principal Name to SPS-ClaimID in the MIM database to the SharePoint UPSA agent:

      • In the MIM Synchronization Service Manager, select the agent and open the Configure Attribute Flow. You can map mail to SPS-ClaimID.

        SPS-ClaimID4

    2. SPS-ClaimProviderID and SPS-ClaimProviderType

      For AD Import synchronization, these properties can be modified in User Profile Service Application > Configure Synchronization Connections > Create New Connection when you create a new AD Import synchronization connection.

      • SPS-ClaimProviderID should be set to the provider name created in step 1 by the New-SPClaimProvider cmdlet.
      • SPS-ClaimProviderType should be set to SPTrustedBackedByUPAClaimProvider.

      For MIM synchronization, these properties can be set in the Configure Attribute Flow for the MIM database to SharePoint UPSA agent:

      • SPS-ClaimProviderType should be set to Trusted as Constant type.
      • SPS-ClaimProviderID should be set to the provider name created in step 1 by the New-SPClaimProvider cmdlet.

      Configure Attribute Flow

4. Make groups searchable

Perform the following steps to enable the People Picker control to work with groups:

  1. Group object must have a property named SID of type groupid in the identity provider.

    You can create a ClaimTypeMapping object by using New-SPClaimTypeMapping and then provide this object to New-SPTrustedIdentityTokenIssuer cmdlet with -ClaimsMappings parameter.

    $sidClaimMap = New-SPClaimTypeMapping -IncomingClaimType "http://schemas.microsoft.com/ws/2008/06/identity/claims/groupsid" -IncomingClaimTypeDisplayName "SID" -SameAsIncoming
    $tokenissuer = New-SPTrustedIdentityTokenIssuer -ClaimsMappings $sidClaimMap, $emailClaimMap


    This sample cmdlet first creates a claimmap object of type groupsid and indicates that it works with the SID property of the group and then creates a new identity issuer, which can understand this mapping.

  2. Synchronize SID property of groups from the identity provider to the SID property in UPSA.

    1. For AD Import synchronization, SID will be synchronized automatically without additional setup from the source identity provider to the SharePoint UPSA.
    2. For MIM synchronization, the property mapping needs to be taken from the identity provider to MIM and then from MIM to the SharePoint UPSA so that MIM can synchronize the group SID from the identity provider to the SharePoint UPSA. This is similar to how we do user profile synchronization for the SPS-ClaimID property for user profiles.
  3. For MIM synchronization, sAMAccountName should also be mapped to accountName from MIM to the SharePoint UPSA. If it doesn’t exist, admin should create mapping pair from sAMAccountName to accountName in MIM manually.

5. Enable fields being searchable in UPSA

To make People Picker work, the final step is to enable fields to be searchable in UPSA.

Users can set which properties are searched by the People Picker by following this sample PowerShell script:

#Get the property list of UPSA connected with the web application
$site = $(Get-SPWebApplication $WebApplicationName).Sites[0]
$context= Get-SPServiceContext $site
$psm = [Microsoft.Office.Server.UserProfiles.ProfileSubTypeManager]::Get($context)
$ps =
$psm.GetProfileSubtype([Microsoft.Office.Server.UserProfiles.ProfileSubtypeManager]::GetDefaultProfileName([Microsoft.Office.Server.UserProfiles.ProfileType]::User))
$properties = $ps.Properties

#Enable people picker search for property name 'FistName', 'LastName' and 'SPS-ClaimID'
$PropertyNames = 'FirstName', 'LastName', 'SPS-ClaimID'
foreach ($p in $PropertyNames) {
    $property = $properties.GetPropertyByName($p)
    if ($property) {
        $property.CoreProperty.IsPeoplePickerSearchable = $true
        $property.CoreProperty.Commit()
        $property.Commit()
    }
}
