Hi!, Recently I upgraded my Surface Pro 1 to Windows 10 Anniversary Update (14393.10) from Windows 10 (10586.****).
Before the update I checked Recovery and Advanced Startup if "Restore factory settings" and my recovery partition was ok, but, after the update I checked again and "Restore factory settings " is missing...
(Unfortunately, I cannot rollback to Windows 10 (10586.****) because "Disk Cleanup" deleted "Previous Windows Installations"... (Not related to the recovery partition).
Also, I have the same problems with a HP/Compaq PC upgraded to Windows 10 Anniversary Update, showing the same symptoms...
I think there is a major bug in the Windows 10 Anniversary Update's "Factory Restore Feature"
Anyway, C:$SysReset\Logs\setuperr.log file says:
2016-08-06 13:17:38, Error Factory: No downlevel WinRE available[gle=0x000000ea]
Here's all the content of C:$SysReset\Logs\setupact.log
2016-08-06 13:17:36, Info LogSession: Starting a new log session at [C:$SysReset\Logs]
2016-08-06 13:17:36, Info ResetCreateSession: Succeeded
2016-08-06 13:17:36, Info OnlineUI: Reset session created successfully
2016-08-06 13:17:36, Info OnlineUI: Determining whether Factory scenario is available
2016-08-06 13:17:36, Info ResetValidateScenario: Scenario: [2] Target: [C:]
2016-08-06 13:17:36, Info Session: Checking main OS for a test ID
2016-08-06 13:17:36, Info Telemetry: Checking [C:] for a test ID
2016-08-06 13:17:36, Info Registry: Loading SOFTWARE hive from online OS
2016-08-06 13:17:36, Info Telemetry: No test ID present
2016-08-06 13:17:36, Info Session: Reading system configuration
2016-08-06 13:17:36, Info SystemInfo: Reading BCD settings
2016-08-06 13:17:37, Info SystemInfo: Locating the boot device
2016-08-06 13:17:37, Info SystemInfo: Reading host version number
2016-08-06 13:17:37, Info SystemInfo: Searching for migration XML
2016-08-06 13:17:37, Info SystemInfo: Reading power configuration
2016-08-06 13:17:37, Info SystemInfo: Checking whether target OS volume is accessible ...
2016-08-06 13:17:37, Info SystemInfo: The target OS volume is accessible
2016-08-06 13:17:37, Info SystemInfo: Detecting target BitLocker state
2016-08-06 13:17:37, Info SystemInfo: Checking whether target is healthy
2016-08-06 13:17:37, Info Registry: Loading SYSTEM hive from online OS
2016-08-06 13:17:37, Info SystemInfo: Reading the target's recovery timestamp
2016-08-06 13:17:37, Info Registry: Loading SYSTEM hive from online OS
2016-08-06 13:17:37, Info SystemInfo: Reading target build information
2016-08-06 13:17:37, Info Registry: Loading SOFTWARE hive from online OS
2016-08-06 13:17:37, Info Registry: Loading SOFTWARE hive from online OS
2016-08-06 13:17:37, Info SystemInfo: Reading target's reset policy flags
2016-08-06 13:17:37, Info Registry: Loading SOFTWARE hive from online OS
2016-08-06 13:17:37, Info SystemInfo: Searching target for OEM extensibility
2016-08-06 13:17:37, Info SystemInfo: Detecting Team OS
2016-08-06 13:17:37, Info Registry: Loading SOFTWARE hive from online OS
2016-08-06 13:17:37, Info SystemInfo: Detecting Windows-to-Go
2016-08-06 13:17:37, Info SystemInfo: Locating WinRE
2016-08-06 13:17:37, Info [systemreset.exe] Enter WinReGetConfig
2016-08-06 13:17:37, Info [systemreset.exe] Parameters: configWinDir: NULL
2016-08-06 13:17:37, Info [systemreset.exe] WinRE config file path: C:\WINDOWS\system32\Recovery\ReAgent.xml
2016-08-06 13:17:37, Info [systemreset.exe] Update enhanced config info is enabled.
2016-08-06 13:17:37, Info [systemreset.exe] WinRE is installed
2016-08-06 13:17:37, Info [systemreset.exe] WinRE is installed at: \?\GLOBALROOT\device\harddisk0\partition5\Recovery\WindowsRE
2016-08-06 13:17:37, Info [systemreset.exe] OS install location: \?\GLOBALROOT\device\harddisk0\partition6\RecoveryImage
2016-08-06 13:17:37, Info [systemreset.exe] System is WimBoot: FALSE
2016-08-06 13:17:37, Info [systemreset.exe] WinRE image validated
2016-08-06 13:17:37, Info [systemreset.exe] Exit WinReGetConfig return value: 1, last error: 0x0
2016-08-06 13:17:37, Info SystemInfo: Detecting current WinRE's build number
2016-08-06 13:17:37, Info SystemInfo: Detecting the recovery image's build number
2016-08-06 13:17:37, Warning 0x80070490 in ParseProperty (base\reset\util\src\wim.cpp:861): Failed to select [DISPLAYNAME]
2016-08-06 13:17:37, Warning 0x80070490 in ParseProperty (base\reset\util\src\wim.cpp:861): Failed to select [DESCRIPTION]
2016-08-06 13:17:37, Info Session: Finished reading SystemInfo
2016-08-06 13:17:37, Info -- Begin SystemInfo dump
2016-08-06 13:17:37, Info [PowerSourceIsUnreliable]: [False]
2016-08-06 13:17:37, Info [HostVersionMajor]: [10]
2016-08-06 13:17:37, Info [HostVersionMinor]: [0]
2016-08-06 13:17:37, Info [HostBuild]: [14393]
2016-08-06 13:17:37, Info [BootLocale]: [it-IT]
2016-08-06 13:17:37, Info [BootTimeout]: [30]
2016-08-06 13:17:37, Info [BootVolume]: [C:]
2016-08-06 13:17:37, Info [BootDrive]: [C]
2016-08-06 13:17:37, Info [IsTeamOS]: [False]
2016-08-06 13:17:37, Info [IsWindowsToGo]: [False]
2016-08-06 13:17:37, Info [IsWindowsPE]: [False]
2016-08-06 13:17:37, Info [RamdiskDevice]: []
2016-08-06 13:17:37, Info [RamdiskVolumeRoot]: []
2016-08-06 13:17:37, Info [RamdiskPath]: []
2016-08-06 13:17:37, Info [WinREAvailable]: [True]
2016-08-06 13:17:37, Info [WinREVolumeRoot]: [\?\Volume{130f22e1-a238-4057-ab62-cdaea3bb887d}]
2016-08-06 13:17:37, Info [WinREPath]: [\Recovery\WindowsRE\winre.wim]
2016-08-06 13:17:37, Info [WinREBootEntry]: [{990F2152-B395-11E2-BE6D-F3400F3C790A}]
2016-08-06 13:17:37, Info [WinREVersionMajor]: [10]
2016-08-06 13:17:37, Info [WinREVersionMinor]: [0]
2016-08-06 13:17:37, Info [WinREBuild]: [14393]
2016-08-06 13:17:37, Info [StagedWinREAvailable]: [False]
2016-08-06 13:17:37, Info [StagedWinREPath]: []
2016-08-06 13:17:37, Info [ArchivedWinREAvailable]: [False]
2016-08-06 13:17:37, Info [ArchivedWinREPath]: []
2016-08-06 13:17:37, Info [DownlevelWinREAvailable]: [False]
2016-08-06 13:17:37, Info [DownlevelWinREVolumeRoot]: []
2016-08-06 13:17:37, Info [DownlevelWinREPath]: []
2016-08-06 13:17:37, Info [DownlevelWinREVersionMajor]: [0]
2016-08-06 13:17:37, Info [DownlevelWinREVersionMinor]: [0]
2016-08-06 13:17:37, Info [DownlevelWinREBuild]: [0]
2016-08-06 13:17:37, Info [RecoveryImageAvailable]: [True]
2016-08-06 13:17:37, Info [RecoveryImageVolumeRoot]: [\?\Volume{8699de07-b4bd-496c-9db4-a1eaeeec4927}]
2016-08-06 13:17:37, Info [RecoveryImagePath]: [\RecoveryImage\install.wim]
2016-08-06 13:17:37, Info [RecoveryImageIndex]: [2]
2016-08-06 13:17:37, Info [RecoveryImageReferencePaths]: [[0] items]
2016-08-06 13:17:37, Info [RecoveryImageVersionMajor]: [6]
2016-08-06 13:17:37, Info [RecoveryImageVersionMinor]: [2]
2016-08-06 13:17:37, Info [RecoveryImageBuild]: [9200]
2016-08-06 13:17:37, Info [RecoveryImageEdition]: [Professional]
2016-08-06 13:17:37, Info [RecoveryImageArchitecture]: [9]
2016-08-06 13:17:37, Info [RecoveryImageOEMResetConfigPath]: [\?\GLOBALROOT\device\harddisk0\partition6\RecoveryImage\ResetConfig.xml]
2016-08-06 13:17:37, Info [TargetAccessible]: [True]
2016-08-06 13:17:37, Info [TargetInstallHealthy]: [True]
2016-08-06 13:17:37, Info [TargetVolumeCapacity]: [117991014400]
2016-08-06 13:17:37, Info [TargetSpaceRemaining]: [100757491712]
2016-08-06 13:17:37, Info [TargetRecoveryTimestamp]: [131148865779491255]
2016-08-06 13:17:37, Info [TargetEncrypted]: [False]
2016-08-06 13:17:37, Info [TargetEncryptionSuspended]: [False]
2016-08-06 13:17:37, Info [TargetLocked]: [False]
2016-08-06 13:17:37, Info [TargetVersionMajor]: [10]
2016-08-06 13:17:37, Info [TargetVersionMinor]: [0]
2016-08-06 13:17:37, Info [TargetBuild]: [14393]
2016-08-06 13:17:37, Info [TargetEdition]: [Professional]
2016-08-06 13:17:37, Info [TargetArchitecture]: [9]
2016-08-06 13:17:37, Info [TargetInstallType]: [3]
2016-08-06 13:17:37, Info [TargetHasRedirectedProfiles]: [False]
2016-08-06 13:17:37, Info [PolicyDisablesReset]: [False]
2016-08-06 13:17:37, Info [PolicyDisablesCustomizations]: [False]
2016-08-06 13:17:37, Info [PolicyDisablesDriverMigration]: [False]
2016-08-06 13:17:37, Info [TargetHydratedProvPackages]: [[0] items]
2016-08-06 13:17:37, Info [TargetDehydratedProvPackages]: [[0] items]
2016-08-06 13:17:37, Info [TargetProvPackageInstallOrder]: []
2016-08-06 13:17:37, Info [TargetRuntimeProvPackages]: [[0] items]
2016-08-06 13:17:37, Info [TargetOEMResetConfigPath]: []
2016-08-06 13:17:37, Info [RamdiskMigrationXML]: []
2016-08-06 13:17:37, Info [TargetMigrationXML]: [C:\Windows\System32\srms.dat]
2016-08-06 13:17:37, Info [IsRecoveryMediaBoot]: [False]
2016-08-06 13:17:37, Info [MediaProvPackages]: [[0] items]
2016-08-06 13:17:37, Info [MediaOEMResetConfigPath]: []
2016-08-06 13:17:37, Info [MediaAutoResetConfigPath]: []
2016-08-06 13:17:37, Info [MediaRecoveryImagePath]: []
2016-08-06 13:17:37, Info [MediaComponentStoreImagePath]: []
2016-08-06 13:17:37, Info -- End SystemInfo dump
2016-08-06 13:17:38, Error Factory: No downlevel WinRE available[gle=0x000000ea]
2016-08-06 13:17:38, Info ResetValidateScenario: Supported: [No] Reason: [13]
2016-08-06 13:17:38, Info OnlineUI: Factory scenario is not available: [13]
2016-08-06 13:17:40, Info OnlineUI: User cancelled reset
2016-08-06 13:17:40, Info ResetNotifyCancel: User canceled on page [OnlineResetTypeSelection]
2016-08-06 13:17:40, Info OnlineUI: Releasing reset session
2016-08-06 13:17:40, Info ResetReleaseSession: Releasing session

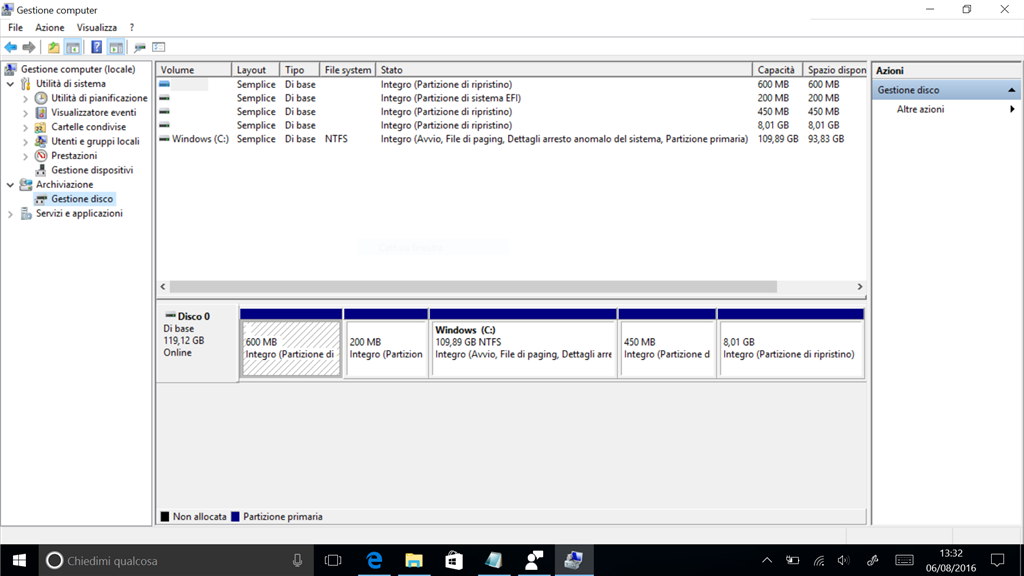

In this screenshot the partitions scheme seems correct
("Partizione di Ripristino" means Recovery Partition and "Integro" means Intact)
(Sorry for my pretty bad English but i'm Italian :D)
Anyone in the Microsoft Community is aware of this bug/removed feature?
Thanks for help (and patience :D)
Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.
Answer accepted by question author
Hello LambdaBlueZ,
Thanks for posting your query on Microsoft Community. We're here to help!
Have you tried the troubleshooting steps here on how to restore and reset your Surface? If yes and issue persists, please contact our Global Support Team and they will definitely provide options for you on how to fix the issue.
Regards,
Thank You! But I think there's a bug in Win10 Recovery.
