CORS and Preflight responses in APIM

Nagashree Balasundaram 741 Reputation points
2022-09-19T17:43:54.3+00:00

Hi,
I am trying to handle preflight responses in APIM using the in-built <cors> policy
I have the <cors> policy configured as below on the inbound

<cors>
 <allowed-origins>
 <origin>https://demo4.myori.com</origin>
 <origin>http://localhost:4200</origin>
 <origin>https://localhost:44346</origin>
 </allowed-origins>
 <allowed-methods>
 <method>GET</method>
 <method>POST</method>
 <method>PUT</method>
 <method>DELETE</method>
 </allowed-methods>
 <allowed-headers>
 <header>*</header>
 </allowed-headers>
 </cors>

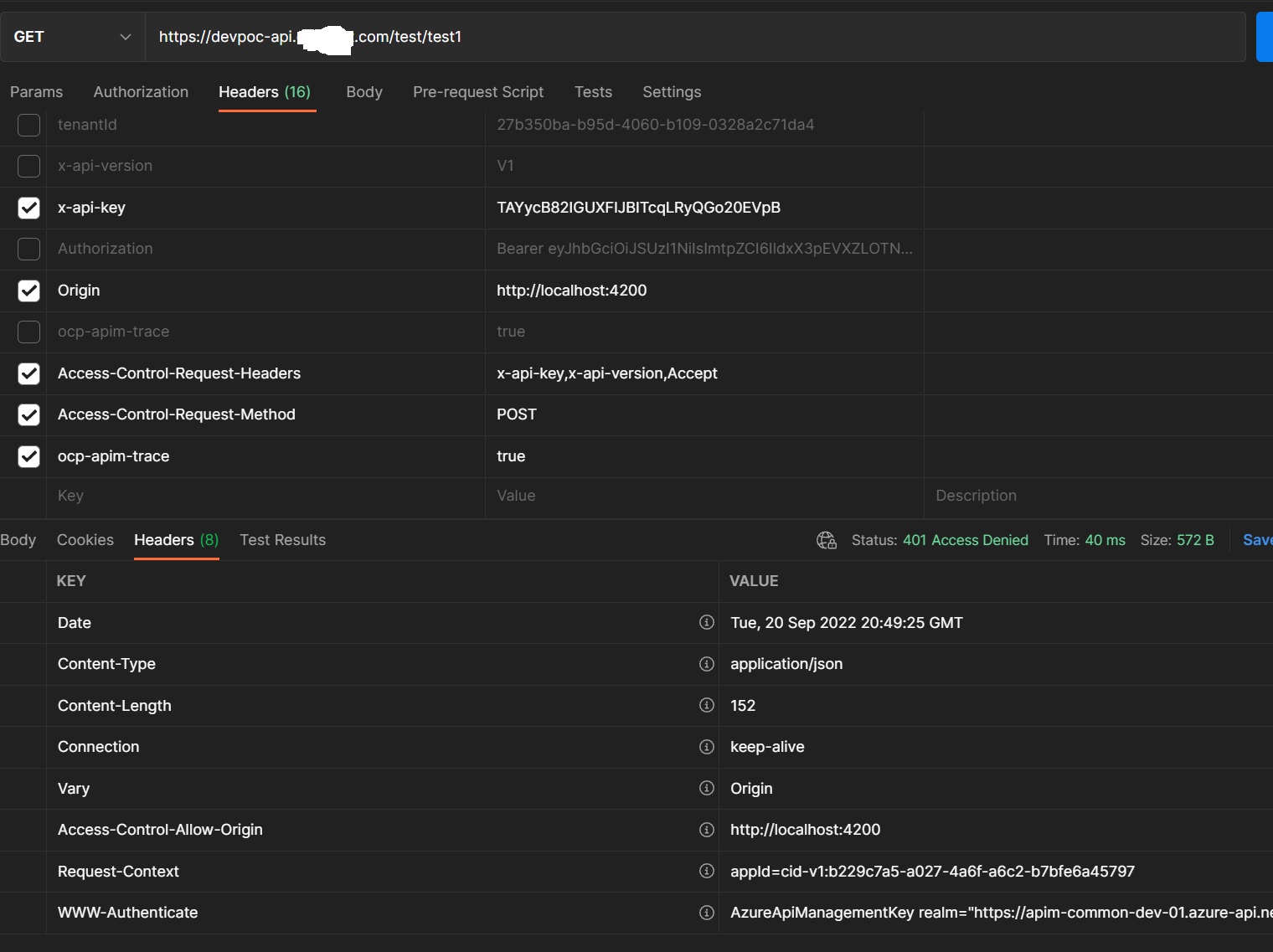

When a preflight request is received, only the Access-Control-Allow_Origin header is set. The Access-Control-Allow-Methods and Access-Control-Allow-Headers are not set. Is there something that needs to be done explicitly to handle this.242664-apim-cors-response.jpg

Additional Details:
I have defined an operation for OPTIONS with route /*, removed <base/> for backend in this operation. This is to prevent the request from getting forwarded to the backend. The backend doesnt handle OPTIONS requests, if fwded to the backend a 404 error is seen.
On the outbound for All Operations, the set-header policy to set the preflight headers are configured. However, those are not set.

<set-header name="Access-Control-Allow-Origin" exists-action="override">
            <value>@(context.Request.Headers.GetValueOrDefault("Origin",""))</value>
        </set-header>
        <set-header name="Access-Control-Allow-Headers" exists-action="override">
            <value>*</value>
        </set-header>
        <set-header name="Access-Control-Allow-Methods" exists-action="override">
            <value>*</value>
        </set-header>
Azure API Management
Azure API Management
An Azure service that provides a hybrid, multi-cloud management platform for APIs.
2,455 questions
0 comments No comments
{count} votes

1 answer

Sort by: Most helpful
  1. MuthuKumaranMurugaachari-MSFT 22,441 Reputation points Moderator
    2022-09-19T21:28:55.403+00:00

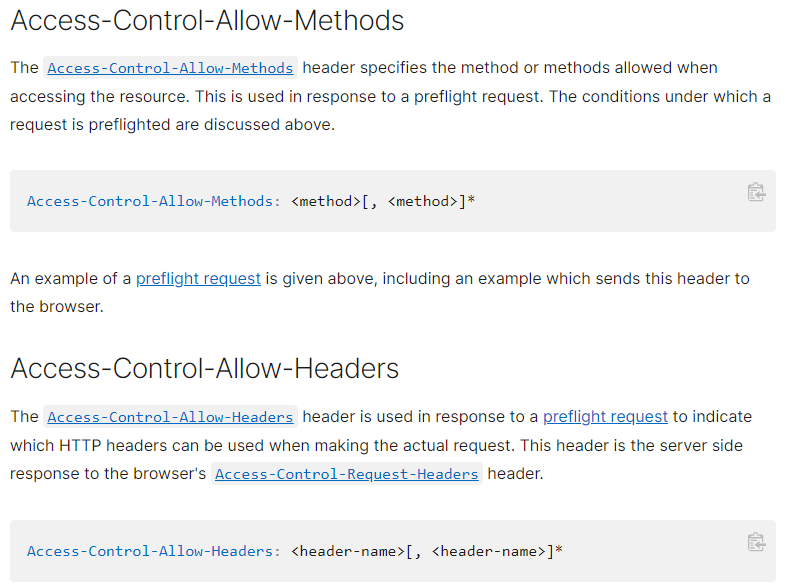

    @Nagashree Balasundaram Thank you for reaching out to Microsoft Q&A. The headers Access-Control-Allow-Methods and Access-Control-Allow-Headers are set if request has Access-Control-Request-Headers and Access-Control-Request-Method respectively and you can refer docs: Access-Control-Request-Headers & Access-Control-Request-Method as well. So, I don't think you need to set explicitly these headers. The same has been described in Preflighted requests.

    I might need the full policy info to investigate or repro this issue. However, I found from your other thread, it worked in Inbound Policy. Please let me know if you still face the issue.
