Fetching metrics from multiple resources and putting them in single tile of azure dashboard

Question

Fetching metrics from multiple resources and putting them in single tile of azure dashboard

Rohit Boddu 471

Hi Team,

I have few resource like Cosmos DB, Sql Db, Storage Account .. i want to get different metrics from them and put all in one single tile in azure dashboard. i have attached screenshot which clarifies my requirement.

If my requirement is not clearely understood then please reply back i will post my question properly.

Regards,
Rohit

tbgangav-MSFT 10,426 Reputation points Moderator

2020-09-24T10:30:02.177+00:00

Hi @Rohit Boddu , Did you get chance to review the below information? Let me know if you have any further queries regarding it.
tbgangav-MSFT 10,426 Reputation points Moderator

2020-09-25T07:22:52.393+00:00

Hi @Rohit Boddu , Hope the below information was helpful. Let me know if you have any further queries regarding it.

1 answer

Your answer

tbgangav-MSFT 10,426 Reputation points Moderator

2020-09-24T10:30:02.177+00:00

Hi @Rohit Boddu , Did you get chance to review the below information? Let me know if you have any further queries regarding it.
tbgangav-MSFT 10,426 Reputation points Moderator

2020-09-25T07:22:52.393+00:00

Hi @Rohit Boddu , Hope the below information was helpful. Let me know if you have any further queries regarding it.

Answer 1

tbgangav-MSFT 10,426 Moderator

Hi @Rohit Boddu ,

I believe Azure Monitor Workbooks helps you to accomplish your requirement partially (because its not under single tile but under single report / visualization). They provide a flexible canvas for data analysis and the creation of rich visual reports within the Azure portal. They allow you to tap into multiple data sources from across Azure, and combine them into unified interactive experiences.

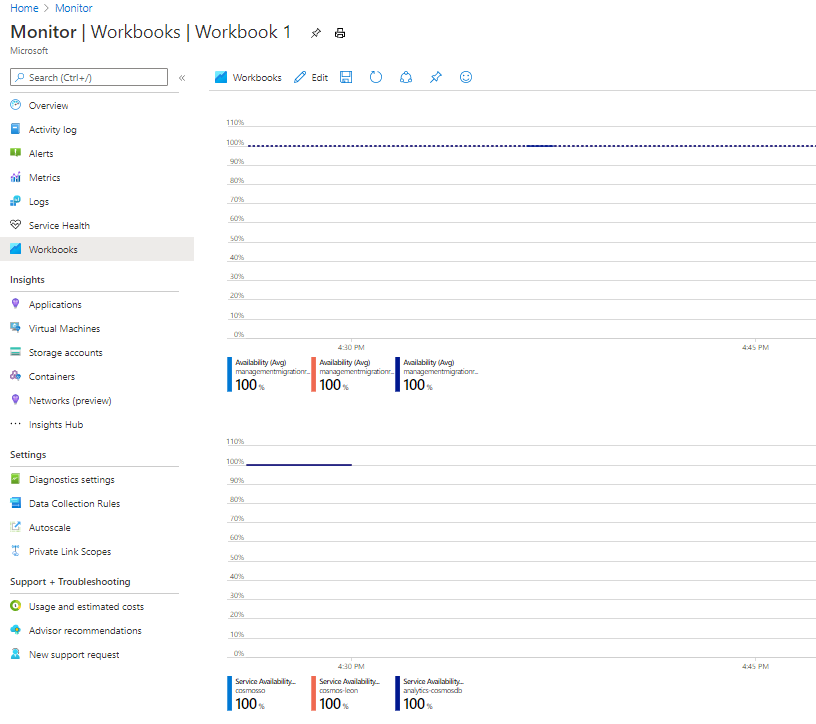

To test it out, I have quickly created a workbook with 2 metrics, one being storage account availability and other being cosmos DB service availability. For reference, check below screenshot. Let me know if this is not what you are looking for. Thanks.

Rohit Boddu 471 Reputation points

2020-09-23T10:45:55.563+00:00

Hi @tbgangav-MSFT this answer is really helpful to me .. this is what i wanted .. i tried the way u did using workbook but there is big gap between tiles of two resources .. i have attached two screenshot which tells diffrence between what is expected and how i am getting the results.

- this is how i want.!
27004-output.png - this is how the result is coming.

Please let me know how can we do this .. just orientation work is to be done please guide me ..

Regards,
Rohit Boddu.
Rohit Boddu 471 Reputation points

2020-09-23T11:11:15.21+00:00

please find the attached screenshot. one shown left hand side of a screenshot is what i need.

Regards,
Rohit
tbgangav-MSFT 10,426 Reputation points Moderator

2020-09-23T12:30:55.89+00:00

Hi @Rohit Boddu ,

Glad to know that it is helpful. You may change the visualization to grid and then change the size to tiny. It's not the only way but this is one of the way to reduce the gap that were referring to. Check advanced setting tab, style tab and column settings, etc. for even more view modifications.

With reference to changing the visualization to grid and then changing the size to tiny, please refer below screenshots.
