ISCSI Target Cluster Problem.

Tomasz Płodzik 1 Reputation point
2022-09-28T15:58:27.81+00:00

Hello,

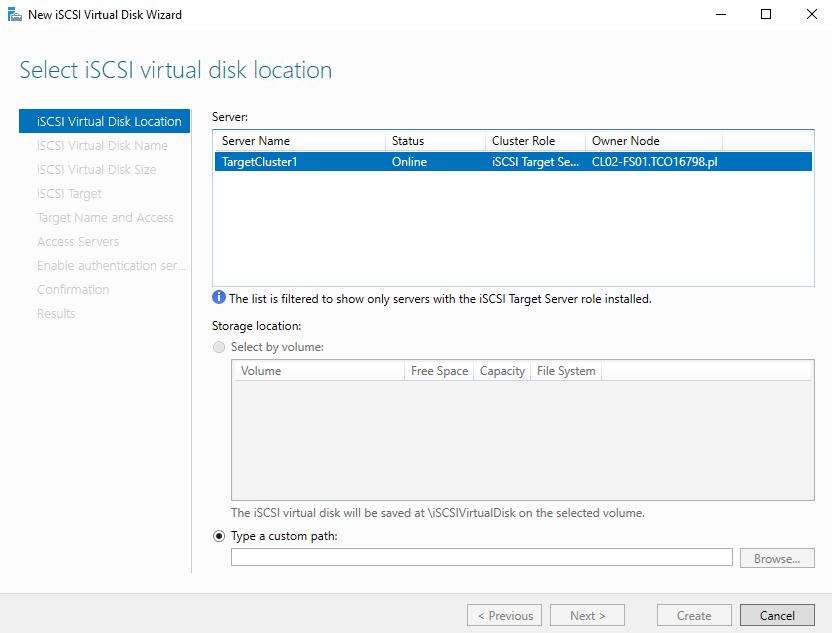

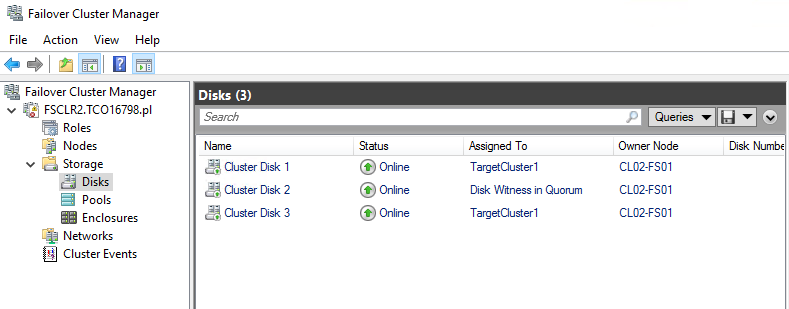

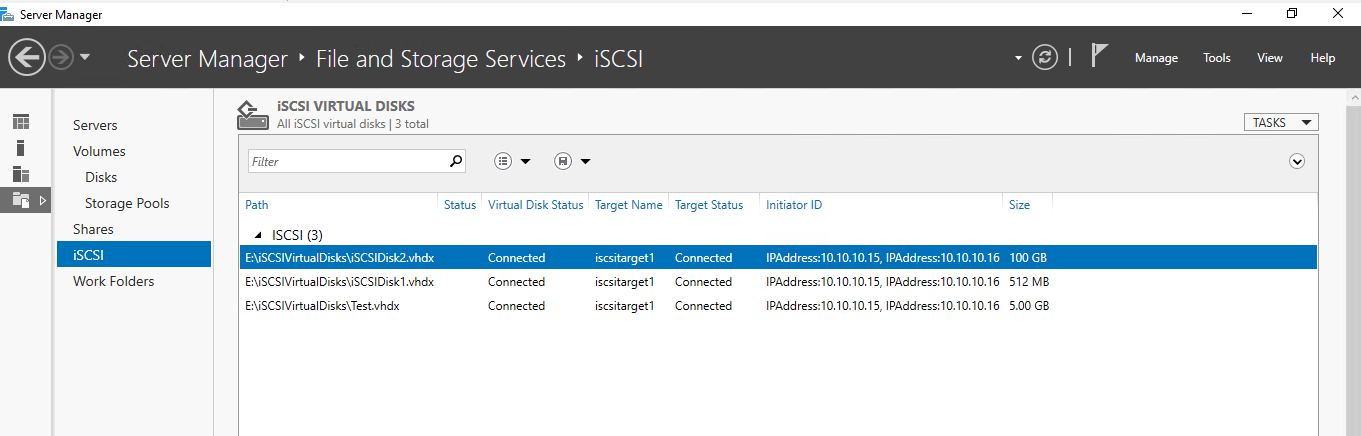

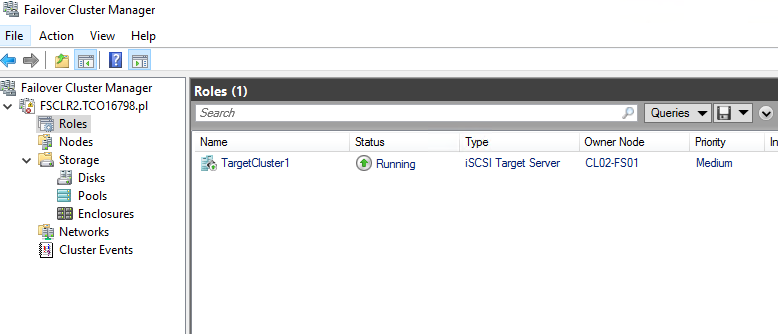

I have a server environment consisting of 4 virtual machines. The two virtual machines form an ISCSI failover cluster. I don't know why ISCSI cannot see disks working within an ISCSI cluster. I shared 3 ISCSI disks from an ISCSI machine. The first and third drives are used for the ISCSI Target Server (picture number 2). On node 1 I want to create a new disk in the ISCSI section.
Please help me solve the problem.

  1. DC - 10.10.10.11
  2. Node 1 - 10.10.10.15
  3. Node 2 - 10.10.10.16
  4. ISCSI - 10.10.10.17





Windows for business | Windows Server | Storage high availability | Clustering and high availability
Windows for business | Windows Server | User experience | Other
0 comments

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. Alex Bykovskyi 2,241 Reputation points
    2022-09-29T18:42:55.43+00:00

    Hey,

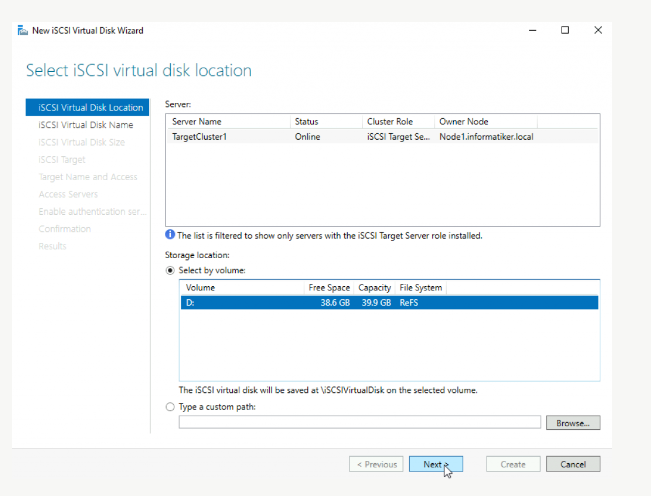

    What are you trying to achieve? Do you want to create Highly Available iSCSI target? You will need shared storage, where vhdx will be placed, which will be used for iSCSI targets. Might help:
    https://www.informaticar.net/create-iscsi-target-cluster-on-windows-server-2019/
    As an alternative, you can use StarWind VSAN free to create HA iSCSI LUNs. Might help:
    https://www.starwindsoftware.com/resource-library/starwind-virtual-san-for-hyper-v-2-node-hyperconverged-scenario-with-windows-server-2016/

    Cheers,
    Alex Bykovskyi
    StarWind Software
    Note: Posts are provided “AS IS” without warranty of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability and/or fitness for a particular purpose.
