CameraX Customization: PreviewView, Size & Resolution
I am trying to figure out how to customize the CameraX
components of my app. I have figured out how to display the preview using the PreviewView
view & take a picture, but I am trying to figure out how to do the following:
- Make the
PreviewView
use the remaining area of the screen. I have tried usinglayout_rowWeight
, but that does not seem to work. I have also tried using things likelayout_gravity="Fill"
, but with no success. - Make the size of the picture taken match the size of the
PreviewView
. Everything that is visible in thePreviewView
MUST be included in the picture that is taken. - Use the maximum resolution. The picture from the camera is not being saved to storage (it is temporary), so file size is not a concern.
If the available sizes are restricted to predefined values, I can deal with that by manually calculating which one will use the maximum amount of the PreviewView
. To sum it up, I need to use the maximum amount of space at the maximum resolution. Any ideas? Are there any good tutorials on how to do these things? Thanks.
Xamarin
-
Leon Lu (Shanghai Wicresoft Co,.Ltd.) 69,691 Reputation points • Microsoft Vendor
2022-10-03T08:02:59.607+00:00 Do you want to make the PreviewView to fill the screen?
If you want to specify resolution, you can use this api to set
it. -
Nathan Sokalski 4,121 Reputation points
2022-10-03T16:32:43.143+00:00 Do you want to make the PreviewView to fill the screen?
I do not want to fill the entire screen, only the remaining area (area not used by the other
View
(s)). This will obviously vary depending on screen size. The width will always (if possible) be the full width of the screen (there are noView
(s) to the left or right), but there will beView
(s) of unknown size below it. Because this will cause the best aspect ratio to be different on different screen sizes, I need to be able to determine the width/height of the remaining area. I am also unsure how to determine the available resolutions & aspect ratios (which I am assuming I will need to choose from based on the resulting size of thePreviewView
after it fills the remaining area (or as much of it as possible)). The documentation also says"You can't set both target aspect ratio and target resolution on the same use case."
Does this mean that the aspect ratio is determined by the
Size
parameter ofsetTargetResolution
? As mentioned in my original post, I need the result from the camera to have EXACTLY the same content as visible in thePreviewView
, while still making thePreviewView
as big as possible and using the highest resolution possible. This is my first time doing anything involving the camera, aspect ratios, or resolution, so please excuse my lack of knowledge of certain classes, concepts, or relationships between them. -
Leon Lu (Shanghai Wicresoft Co,.Ltd.) 69,691 Reputation points • Microsoft Vendor
2022-10-06T06:19:46.743+00:00 Does this mean that the aspect ratio is determined by the Size parameter of setTargetResolution?
No. If you want the aspect ratio, resolution will be changed depend on your displayed height or width and the aspect ratio, resolution is not fixed. When you
setTargetResolution
, The actual image resolution will be the closest available resolution in size that is not smaller than the target resolution, as determined by the Camera implementation.You can try to setScaleType to
FIT_CENTER
for yourPreviewView
. -
Nathan Sokalski 4,121 Reputation points
2022-10-06T17:06:30.76+00:00 I still can't get my
PreviewView
to use the full remaining area. Here is my current XML:<androidx.camera.view.PreviewView android:id="@+id/pvCurrent" android:layout_width="match_parent" android:layout_height="250dp" android:layout_column="0" android:layout_row="0" app:scaleType="fitCenter" android:background="@color/Six"/>
I know that this currently has a fixed
android:layout_height
, but I cannot figure out what to change to use the full remaining height. I tried usingandroid:layout_rowWeight
, but that did not work. The other View(s) in my XML (which has a root layout ofGridLayout
) are aTextView
,RecyclerView
, and aTextView
(all withandroid:layout_height="wrap_content"

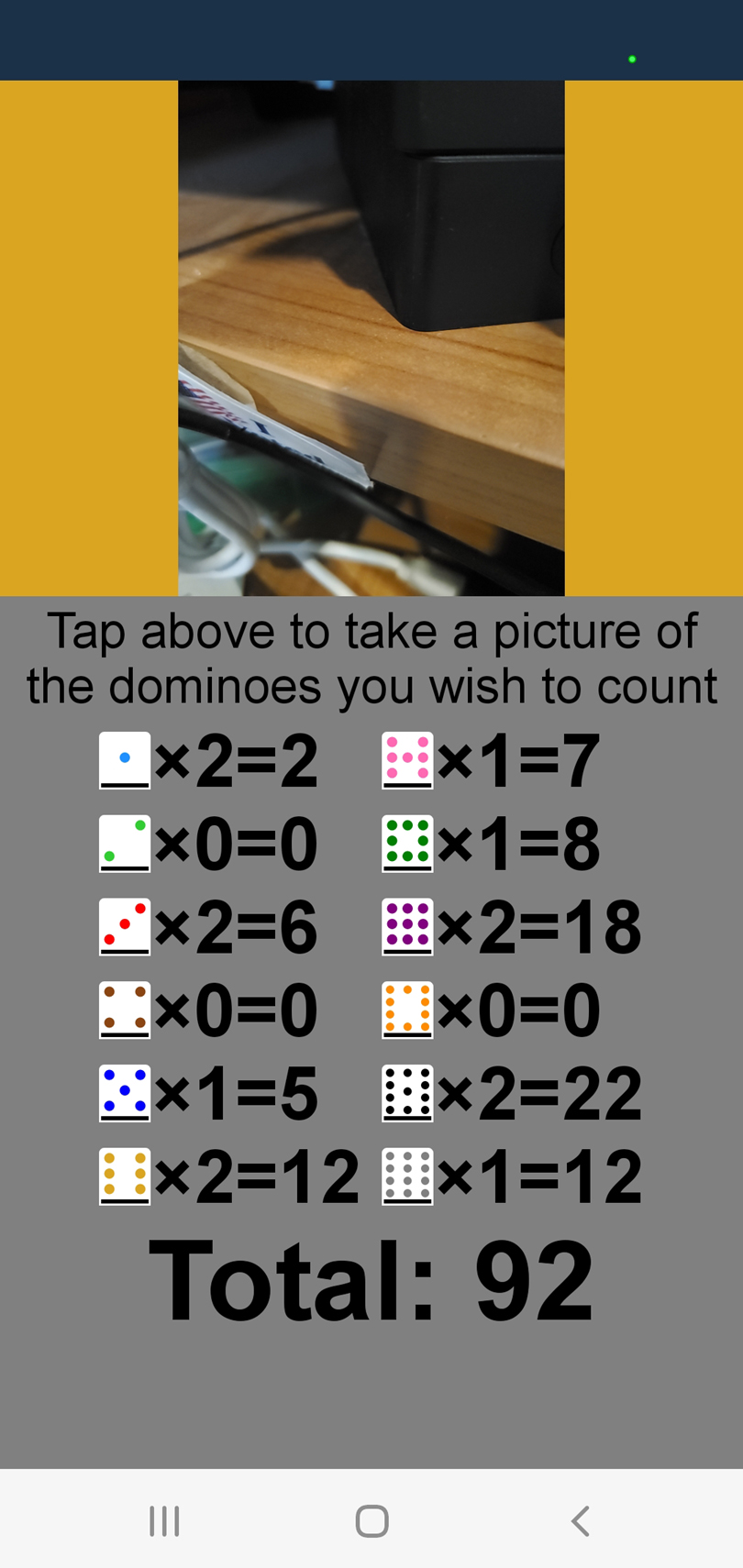

). Here is a screenshot of what I currently get:Notice that (because
PreviewView
has a fixed height) there is still extra space at the bottom. What do I need to change inPreviewView
? -
Leon Lu (Shanghai Wicresoft Co,.Ltd.) 69,691 Reputation points • Microsoft Vendor
2022-10-07T09:57:05.567+00:00 Is this yellow background belong to the
GridLayout
or thePreviewView
? If it is related to thePreviewView
, Please set theandroid:layout_gravity
tofill_horizontal
, if it is still not work, could you share this layout code with us? -
Nathan Sokalski 4,121 Reputation points
2022-10-07T16:50:48.61+00:00 I tried adding
android:layout_gravity="fill_horizontal"
, but it did not make any difference. Here is the complete xml:https://github.com/njsokalski/DominoCounter/blob/main/activity_main.xml
Do I need to remove or modify anything else (like
android:layout_width
orandroid:layout_height
)? -
Leon Lu (Shanghai Wicresoft Co,.Ltd.) 69,691 Reputation points • Microsoft Vendor
2022-10-10T07:05:36.52+00:00 Thanks for your update. I test your
activity_main.xml
,PreviewView
is fill the screen, this issue is related to the source in thePreviewView
, Isandroid:background="@color/Six"
yellow background? -
Nathan Sokalski 4,121 Reputation points
2022-10-10T16:37:06.987+00:00 Is android:background="@Color /Six" yellow background?
Yes,
@color/Six
is the yellow background. I may have stated my problem inaccurately. What I need to do that is not happening is having the actual photo fill the remaining area (the only reason I have a background for thePreviewView
is for debugging purposes). -
Leon Lu (Shanghai Wicresoft Co,.Ltd.) 69,691 Reputation points • Microsoft Vendor
2022-10-11T09:05:57.32+00:00 Now
PreviewView
is fill the width of screen, but camera view cannot fill the width of screen. You can set bigger value of height ofPreviewView
, if the yellow area will be decreased. If you do not want to set a bigger value of height, please set a specify resolution and do not setScaleType. -
Nathan Sokalski 4,121 Reputation points
2022-10-11T17:34:00.38+00:00 Thanks! I think that is probably what I need. After changing my xml to the following:
<androidx.camera.view.PreviewView android:id="@+id/pvCurrent" android:layout_width="match_parent" android:layout_height="0dp" android:layout_column="0" android:layout_row="0" android:layout_gravity="fill" android:layout_rowWeight="1" android:background="@color/Six"/>
And my
Preview
to:this.preview = new Preview.Builder().SetTargetResolution(new Size(1280,720)).Build();
However, because this only seems to work if I include
SetTargetResolution
, I need to know what resolution to use (which will probably vary depending on the screen size). I need EVERYTHING visible to the user in thePreviewView
to be included in the result. I am willing to do this by dynamically decreasing the height of thePreviewView
to match the aspect ratio of the result, or by adding padding to the result. How can I determine the best resolution & size of the result returned from the camera? -
Leon Lu (Shanghai Wicresoft Co,.Ltd.) 69,691 Reputation points • Microsoft Vendor
2022-10-14T09:08:15.64+00:00 You can try to use Xamarin.Essentials: Device Display Information to get device width by
var width = mainDisplayInfo.Width;
,then you can try to set the solution by screen's width and your specific height. -
Nathan Sokalski 4,121 Reputation points
2022-10-14T16:28:17.747+00:00 get device width
It is not the width of the device that I am trying to get, it is whether the size of the visible area (what is displayed on the screen) is the same as the size of what is returned by the camera. I need to guarantee that if it is visible it will be included in the result.
-
Leon Lu (Shanghai Wicresoft Co,.Ltd.) 69,691 Reputation points • Microsoft Vendor
2022-10-19T08:17:50.117+00:00 The camera cannot return the size. Here is a workaround to set the background color of the PreviewView to black.
