How to get Entities related to a SecurityIncident?

Question

Hi,

Earlier the SecurityIncident schema used to show the entities for that incident but now we don't get that in the schema? Is there a new table/mapping created? How do I get the entity information for an incident thru KQL?

Answer 1

Hello @Meenal Luktuke ,

Indeed, the Entities property is not part of the SecurityIncident datatype (table) now.

You can Query your SecurityIncident table to find the required incident, and then you can find there the property called - AlertIds
Then you can use that to join on the SecurityAlert table to find those records and in that table you will have the Entities field as the entities are mapped to an Alert in Sentinel (the Incident is a container of Alerts and other evidence data).

Here's a query that you could use to test this:

248551-kusto.txt

SecurityIncident
| where IncidentNumber == xxxxxx
| summarize arg_max(TimeGenerated, *) by IncidentNumber
| extend Owner = Owner.assignedTo
| project IncidentNumber, Title, Severity, Status,Owner, AlertIds
| mv-expand AlertIds
| extend AlertId = tostring(AlertIds)
| join SecurityAlert on $left.AlertId == $right.SystemAlertId
| extend CustomDetails = todynamic(ExtendedProperties).["Custom Details"]
| project IncidentNumber,Title, Severity, Owner, Status, AlertId, Entities, CustomDetails

I hope that the above helps. If so, please select Accept as an Answer.
Thank you!
BR,
George

Answer 2

Hello, SecurityAlert is the table that holds the Entity information not SecurityIncident

SecurityAlert
| extend Type_ = tostring(parse_json(Entities)[0].Type)
| summarize count() by Type_

You can link the two together

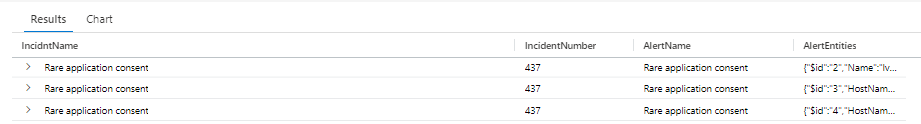

SecurityIncident
| summarize arg_max(TimeGenerated,*) by IncidentNumber
| extend Alerts = extract("\\[(.*?)\\]", 1, tostring(AlertIds))
| mv-expand AlertIds to typeof(string)
| join
(
    SecurityAlert
    | extend AlertEntities = parse_json(Entities)
    | mv-expand AlertEntities
    | where isnotempty(AlertEntities)
) on $left.AlertIds == $right.SystemAlertId
| project IncidntName = Title, IncidentNumber=IncidentNumber,AlertName = AlertName, AlertEntities
