SOAP - REST WSDL Import : DateTime formats are changed

Question

Auto generated policy for SOAP to REST converson in APIM using WSDL Import option changes the DateTime value formats in the incoming payload while building the SOAP request. Is there any configuration to not parse dates in the set-body policy?

Errors seen on the SOAP service:
The string '10/14/2022 5:44:27 PM' is not a valid AllXsd value
at System.Xml.Schema.XsdDateTime..ctor(String text, XsdDateTimeFlags kinds)\n at System.Xml.XmlConvert.ToDateTime(String s, XmlDateTimeSerializationMode dateTimeOption)\n at Microsoft.Xml.Serialization.GeneratedAssembly.XmlSerializationReaderIDDMSListener.Read6_DDMSListenerModel(Boolean isNullable, Boolean checkType)\n at Microsoft.Xml.Serialization.GeneratedAssembly.XmlSerializationReaderIDDMSListener.Read7_SubmitDocument()\n at System.Xml.Serialization.XmlSerializer.Deserialize(XmlReader xmlReader, String encodingStyle, XmlDeserializationEvents events)

"data": {
"message": "Context variable was successfully set.",
"name": "jsonreqbody",
"value": "{\r\n \"EventCode\": \"ddms.document.createfilecontent.completed\",\r\n \"CreatedDate\": \"2022-10-14T17:44:27.854821Z\",\r\n \"SourceSystem\": \"ddmsdocument\",\r\n \"Payload\": {\r\n \"TenantId\": \"xxx-298c-4282-b0c8-9b4f42489d07\",\r\n \"DocumentId\": \"xxx-3133-4429-938d-b095fbb11e20\",\r\n \"FileId\": \"9eae690f-413f-4955-8398-0d90539e4434\",\r\n \"FileName\": \"OAO 2.0 Flow 1.16.20.pdf\",\r\n \"ContentType\": \"application/pdf\",\r\n \"Document\": {\r\n \"DocumentId\": \"xx-3133-4429-938d-b095fbb11e20\",\r\n \"ActiveVersion\": 1,\r\n \"Name\": \"OAO 2.0 Flow 1.16.20.pdf\",\r\n \"ExpirationDate\": \"0001-01-01T00:00:00\",\r\n \"Tags\": [],\r\n \"TenantId\": \"xxxx-298c-4282-b0c8-9b4f42489d07\",\r\n \"IsDeleted\": false,\r\n \"Status\": \"Uploaded\",\r\n \"LastModified\": \"2022-10-14T17:44:27.8539898Z\",\r\n \"ReferenceId\": \"32411354\",\r\n \"TemplateCode\": \"DefaultStipulation\",\r\n \"ReceivedDate\": \"2022-10-14T17:44:27.8539901Z\",\r\n \"IsAnnotated\": false,\r\n \"ContentMimeType\": \"application/pdf\",\r\n \"CustomFields\": [\r\n {\r\n \"Code\": \"source\",\r\n \"Value\": \"ConsumerPortal\"\r\n },\r\n {\r\n \"Code\": \"stipulationId\",\r\n \"Value\": \"101086\"\r\n },\r\n {\r\n \"Code\": \"stipulationDesc\",\r\n \"Value\": \"Stipulation 1\"\r\n }\r\n ],\r\n \"IsCompression\": false,\r\n \"IsEncryptionEnabled\": false,\r\n \"ConvertToPDF\": false,\r\n \"DBDocType\": \"Document\",\r\n \"IsActive\": true,\r\n \"CreatedDate\": \"2022-10-14T17:44:27.4421811Z\",\r\n \"ModifiedDate\": \"2022-10-14T17:44:25.4052175Z\"\r\n },\r\n \"Description\": \"File content stored successfully with document\"\r\n },\r\n \"TenantId\": \"xxxx-298c-4282-b0c8-9b4f42489d07\"\r\n}"
}

Post execution of the set-body policy below
<set-body template="liquid">
{% if body.CreatedDate %}
<CreatedDate xmlns="http://schemas.datacontract.org/2004/07/CUDL.LOS.Models.DDMS">{{body.CreatedDate}}</CreatedDate>
{% else %}
<CreatedDate xmlns="http://schemas.datacontract.org/2004/07/CUDL.LOS.Models.DDMS" xsi:nil="true" />
{% endif %}

Tried using DateTime format as well:
{% if body.CreatedDate %}
<CreatedDate xmlns="http://schemas.datacontract.org/2004/07/CUDL.LOS.Models.DDMS">{{body.CreatedDate | DateTime: yyyy-MM-ddTHH:mm:ss.fffffffZ}}</CreatedDate>
In both cases the date format value from the incoming payload is not retained

the SOAP request payload has
<CreatedDate xmlns=\"http://schemas.datacontract.org/2004/07/CUDL.LOS.Models.DDMS\">10/14/2022 5:44:27 PM</CreatedDate>\n \n \n <Name xmlns=\"http://schemas.datacontract.org/2004/07/CUDL.LOS.Models.DDMS\">OAO 2.0 Flow 1.16.20.pdf</Name>\n \n \n <Description xmlns=\"http://schemas.datacontract.org/2004/07/CUDL.LOS.Models.DDMS\" xsi:nil=\"true\" />\n \n \n <ExpirationDate xmlns=\"http://schemas.datacontract.org/2004/07/CUDL.LOS.Models.DDMS\">1/1/0001 12:00:00 AM</ExpirationDate>

Answer 1

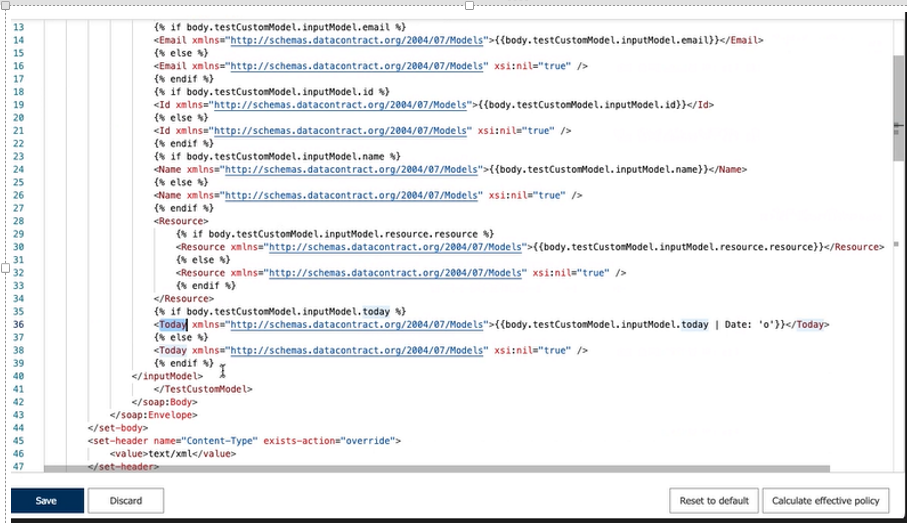

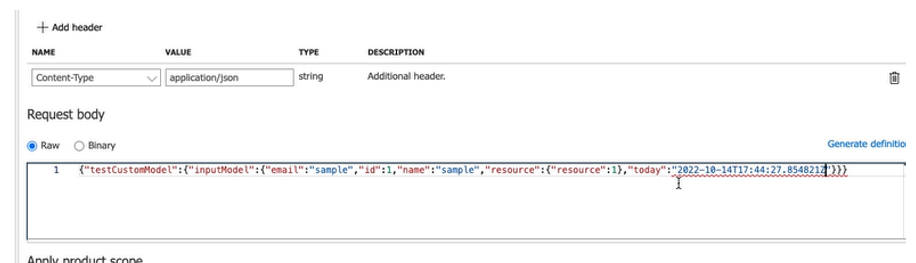

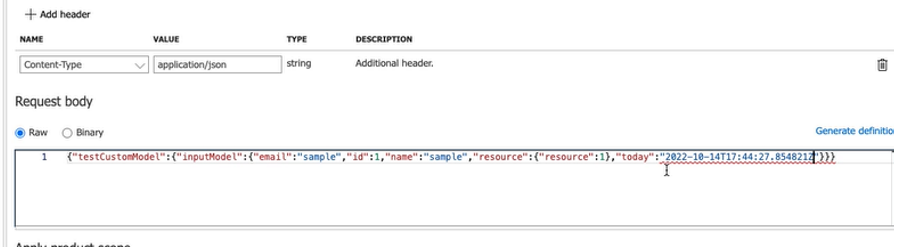

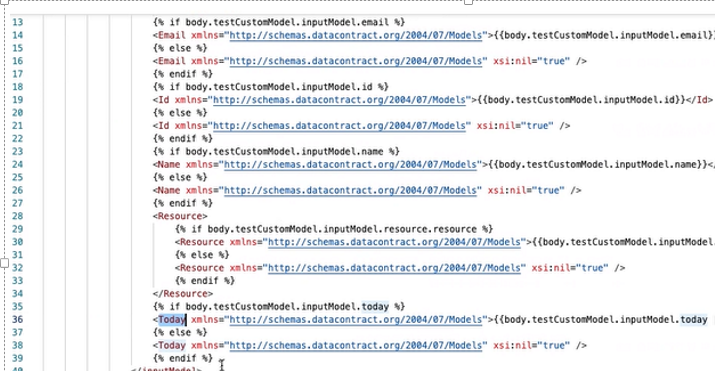

Hi @Nagashree Balasundaram Thanks for reaching out. It is possible to use date string format to liquid templates. This is what we added

Date format string reference: https://learn.microsoft.com/en-us/dotnet/standard/base-types/standard-date-and-time-format-strings

let me know incase of further queries, I would be happy to assist you.

Please 'Accept as answer' and ‘Upvote’ if it helped so that it can help others in the community looking for help on similar topics.
