To handle with special character to split in SQL table accordingly

Question

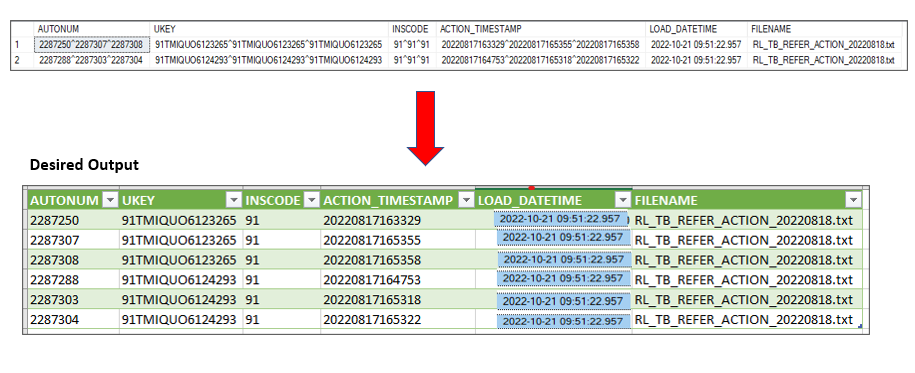

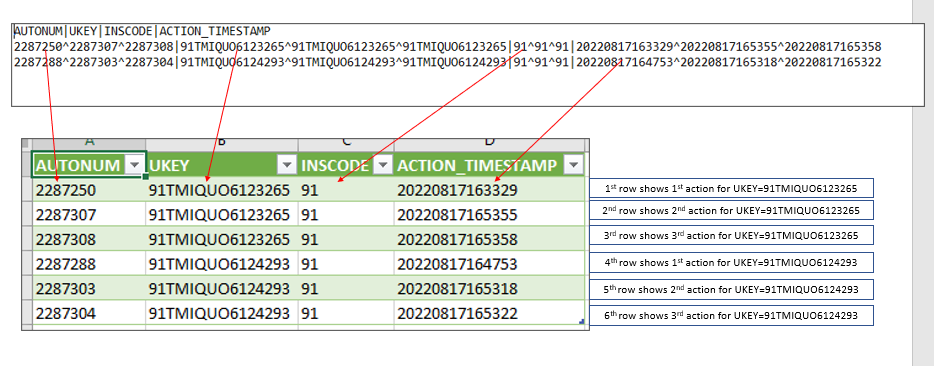

Hi All, Lets say I have sample file as below text file source. First I will load the data from text file to sql table using SSIS,then I would like get final desired output like below in sql table. I'm stuck from B to C as per diagram below. Anyone can help with the SQL code? I attached my SQL version since the method like OPENJSON/string_split only support SQL Server2016 and later. Attached also sample file252405-test.txt.

Answer 1

Hi @jn93 ,

Please try the following solution.
It will work starting from SQL Server 2012 onwards.

SQL

-- DDL and sample data population, start
DECLARE @tbl TABLE (AUTONUM VARCHAR(50), UKEY VARCHAR(50), INSCODE VARCHAR(50), ACTION_TIMESTAMP VARCHAR(50))
INSERT INTO @tbl (AUTONUM, UKEY, INSCODE, ACTION_TIMESTAMP) VALUES
('2287250^2287307^2287308','91TMIQUO6123265^91TMIQUO6123265^91TMIQUO6123265','91^91^91','20220817163329^20220817165355^20220817165358'),
('2287288^2287303^2287304','91TMIQUO6124293^91TMIQUO6124293^91TMIQUO6124293','91^91^91','20220817164753^20220817165318^20220817165322');
-- DDL and sample data population, end

DECLARE @separator CHAR(1) = '^';

;WITH rs AS
(
SELECT *
FROM @tbl AS t
CROSS APPLY (SELECT TRY_CAST('<root><r><![CDATA[' +
  REPLACE(AUTONUM, @separator, ']]></r><r><![CDATA[') +
  ']]></r></root>' AS XML)) AS t1(a)
CROSS APPLY (SELECT TRY_CAST('<root><r><![CDATA[' +
  REPLACE(UKEY, @separator, ']]></r><r><![CDATA[') +
  ']]></r></root>' AS XML)) AS t2(b)
CROSS APPLY (SELECT TRY_CAST('<root><r><![CDATA[' +
  REPLACE(INSCODE, @separator, ']]></r><r><![CDATA[') +
  ']]></r></root>' AS XML)) AS t3(c)
CROSS APPLY (SELECT TRY_CAST('<root><r><![CDATA[' +
  REPLACE(ACTION_TIMESTAMP, @separator, ']]></r><r><![CDATA[') +
  ']]></r></root>' AS XML)) AS t4(d)
), rs_AUTONUM AS
(
SELECT ROW_NUMBER() OVER (ORDER BY (SELECT NULL)) AS ID
, t.c.value('(./text())[1]', 'VARCHAR(50)') AS AUTONUM
FROM rs CROSS APPLY a.nodes('/root/r') AS t(c)
)
, rs_UKEY AS
(
SELECT ROW_NUMBER() OVER (ORDER BY (SELECT NULL)) AS ID
, t.c.value('(./text())[1]', 'VARCHAR(50)') AS UKEY
FROM rs CROSS APPLY b.nodes('/root/r') AS t(c)
), rs_INSCODE AS
(
SELECT ROW_NUMBER() OVER (ORDER BY (SELECT NULL)) AS ID
, t.c.value('(./text())[1]', 'VARCHAR(50)') AS INSCODE
FROM rs CROSS APPLY c.nodes('/root/r') AS t(c)
), rs_ACTION_TIMESTAMP AS
(
SELECT ROW_NUMBER() OVER (ORDER BY (SELECT NULL)) AS ID
, t.c.value('(./text())[1]', 'VARCHAR(50)') AS ACTION_TIMESTAMP
FROM rs CROSS APPLY d.nodes('/root/r') AS t(c)
)
SELECT x1.*, UKEY, INSCODE, ACTION_TIMESTAMP
FROM rs_AUTONUM AS x1 INNER JOIN rs_UKEY AS x2 ON x1.ID = x2.ID
INNER JOIN rs_INSCODE AS x3 ON x2.ID = x3.ID
INNER JOIN rs_ACTION_TIMESTAMP AS x4 ON x3.ID = x4.ID;

Output

+----+---------+-----------------+---------+------------------+
| ID | AUTONUM |      UKEY       | INSCODE | ACTION_TIMESTAMP |
+----+---------+-----------------+---------+------------------+
|  1 | 2287250 | 91TMIQUO6123265 |      91 |   20220817163329 |
|  2 | 2287307 | 91TMIQUO6123265 |      91 |   20220817165355 |
|  3 | 2287308 | 91TMIQUO6123265 |      91 |   20220817165358 |
|  4 | 2287288 | 91TMIQUO6124293 |      91 |   20220817164753 |
|  5 | 2287303 | 91TMIQUO6124293 |      91 |   20220817165318 |
|  6 | 2287304 | 91TMIQUO6124293 |      91 |   20220817165322 |
+----+---------+-----------------+---------+------------------+

Answer 2

And what's the logic for the result?
In B I see 2 rows, with each 3 columns containing each 3 separated values = 54 combination; in your result you have only 6 !?!

Answer 3

SELECT distinct
d1.value AUTONUM
, d2.value INSCODE
,d3.value UKEY
  FROM [dbo].[StageTable]
  cross apply string_split(ACTION_TIMESTAMP ,'^') d1
  cross apply string_split(INSCODE,'^') d2
cross apply string_split(UKEY,'^') d3

Answer 4

;WITH Num1 (n) AS (
SELECT 1 as n
UNION ALL SELECT n+1 as n
FROM Num1 Where n <101),
Num2 (n) AS (SELECT 1 FROM Num1 AS X, Num1 AS Y),
Nums (n) AS (SELECT ROW_NUMBER() OVER(ORDER BY n) FROM Num2)
,cteAUTONUM as (
SELECT n, UKEY,
--ACTION_TIMESTAMP ,
Substring(AUTONUM , n, charindex('^', AUTONUM  + '^', n) - n)  vals
,ROW_NUMBER() Over(partition by UKEY Order by n) rn
FROM [dbo].Stagetable
Cross apply (Select n from nums) d(n)
Where n <= len(AUTONUM)
AND substring('^' + AUTONUM, n, 1) = '^'
)
,cteACTION_TIMESTAMP as (
SELECT n, UKEY,
--ACTION_TIMESTAMP ,
Substring(ACTION_TIMESTAMP , n, charindex('^', ACTION_TIMESTAMP  + '^', n) - n)  vals
,ROW_NUMBER() Over(partition by UKEY Order by n) rn
FROM [dbo].Stagetable
Cross apply (Select n from nums) d(n)
Where n <= len(ACTION_TIMESTAMP)
AND substring('^' + ACTION_TIMESTAMP, n, 1) = '^'
)
,cteINSCODE as (
SELECT n, UKEY,
Substring(INSCODE , n, charindex('^', INSCODE  + '^', n) - n)  vals
,ROW_NUMBER() Over(partition by UKEY Order by n) rn
FROM [dbo].Stagetable
Cross apply (Select n from nums) d(n)
Where n <= len(INSCODE)
AND substring('^' + INSCODE, n, 1) = '^'
)

,cteUKEY as (
SELECT n, UKEY ,
Substring(UKEY , n, charindex('^', UKEY  + '^', n) - n)  vals
,ROW_NUMBER() Over(partition by UKEY Order by n) rn
FROM [dbo].Stagetable
Cross apply (Select n from nums) d(n)
Where n <= len(UKEY)
AND substring('^' + UKEY, n, 1) = '^'
)

select m.vals AUTONUM
,m2.vals UKEY
,m3.vals INSCODE
,m4.vals ACTION_TIMESTAMP
from cteAUTONUM m
left join cteUKEY m2 on m.UKEY=m2.UKEY and m.rn=m2.rn
 left join cteINSCODE m3 on m.UKEY=m3.UKEY and m.rn=m3.rn
 left join cteACTION_TIMESTAMP m4 on m.UKEY=m4.UKEY and m.rn=m4.rn
 order by m2.vals,m3.vals,m4.vals,m.rn
