I have my MainWindows, with a sidebar and a frame.

I have several pages, and many of them look many, except for the title

My question is How can I make b.XAML inherit from my a.XAML so I don't have to write the same XAML

For example, I have this XAML in my "a" page

xmlns:res="clr-namespace:TranscribeMe.Resources"
xmlns:ui="http://schemas.modernwpf.com/2019"
d:DesignHeight="450"
d:DesignWidth="800"
mc:Ignorable="d">

<Grid Margin="20">
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="Auto" />
        <ColumnDefinition />
    </Grid.ColumnDefinitions>
    <Grid.RowDefinitions>
        <RowDefinition />
        <RowDefinition />
        <RowDefinition />
        <RowDefinition />
        <RowDefinition />
        <RowDefinition />
    </Grid.RowDefinitions>

    <Label // This one Is the title of the page
        HorizontalAlignment="Center"
        Grid.ColumnSpan="2"
        Content="{x:Static res:Lang.AudioService}"
        FontSize="18"
        FontWeight="Bold" />

    <Button
        VerticalAlignment="Top"
        Grid.Row="1"
        Command="{Binding PickFileCommad}"
        Content="Pick a file"
        Focusable="False"
        FontWeight="Bold" />

    <Label
        Grid.Row="2"
        Margin="0,5,0,0"
        VerticalContentAlignment="Top"
        Content="{x:Static res:Lang.FileLang}" />

    <TextBox
        Grid.Column="1"
        Grid.Row="1"
        Margin="10,0,10,0"
        VerticalAlignment="Top"
        IsReadOnly="True"
        Text="{Binding FilePath}" />

    <ComboBox
        x:Name="combo"
        Grid.Row="2"
        Grid.Column="1"
        Margin="10,0,10,0"
        HorizontalAlignment="Stretch"
        ui:ControlHelper.PlaceholderText="Select Lenguague"
        DisplayMemberPath="Value.Name"
        ItemsSource="{Binding LanguagesDictionary}"
        SelectedValue="{Binding SelectedItem}"
        SelectedValuePath="Value.Code" />

    <Label
        Grid.Row="3"
        Grid.ColumnSpan="2"
        Margin="10,0,10,0"
        HorizontalContentAlignment="Center"
        VerticalContentAlignment="Center"
        Content="{x:Static res:Lang.ProcessMsg}"
        Visibility="{Binding CanShow}" />

    <ui:ProgressRing
        Grid.Row="4"
        Grid.ColumnSpan="2"
        Width="60"
        Height="60"
        Margin="10,0,10,0"
        IsActive="{Binding IsBusy}" />

    <Button
        Grid.Row="6"
        Grid.ColumnSpan="2"
        Margin="10,0,10,10"
        HorizontalAlignment="Stretch"
        VerticalAlignment="Bottom"
        Command="{Binding StartCommand}"
        Content="Start"
        Focusable="False" />
</Grid>

How can I make my "B" page inherit from "a"

Developer technologies XAML
0 comments No comments
{count} votes

Accepted answer
  1. Hui Liu-MSFT 48,676 Reputation points Microsoft External Staff
    2022-10-24T03:09:19.377+00:00

    WPF does not allow you to visually inherit in this way.
    The reason WPF does not support visual inheritance is due to the fact that the form design is achieved via markup (.xaml) as opposed to winforms which use code-behind to produce the layout. Code-behind is extensible and markup is not.

    I have several pages, and many of them look many, except for the title

    If the above means that many of them look the same except for the title. If you want to set different styles of Label, you could set different styles in App.xaml and then bind them to the corresponding Label of Page.
    Page1:

       <Label
             HorizontalAlignment="Center"
             Grid.ColumnSpan="2"
             Content="page1"
             FontSize="18"
             FontWeight="Bold" Style="{Binding Source={StaticResource LabelPage1}}" />


    Page2:

       <Label
             HorizontalAlignment="Center"
             Grid.ColumnSpan="2"
             Content="page2"
             FontSize="18"
             FontWeight="Bold" Style="{Binding Source={StaticResource LabelPage2}}" />


    App.xaml:


    Update : example

    MyView.xaml:(UserControl)

     <Grid>
            <ComboBox ItemsSource="{Binding TestData}" />
        </Grid>


    Dictionary1.xaml:(ResourceDictionary)

     <DataTemplate DataType="{x:Type local:MyViewModel}">
            <local:MyView/>
        </DataTemplate>


    App.xaml:

    <Application x:Class="XamlViewInherite.App"
    ...
                 xmlns:local="clr-namespace:XamlViewInherite"
                 StartupUri="MainWindow.xaml">
        <Application.Resources>
            <ResourceDictionary Source="Dictionary1.xaml" />
        </Application.Resources>
    </Application>

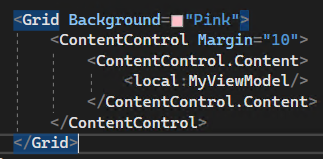

    Page1.xaml:


    Page2.xaml:


    MainWindow.xaml:

    MyViewModel:

    253778-viewmodel.txt

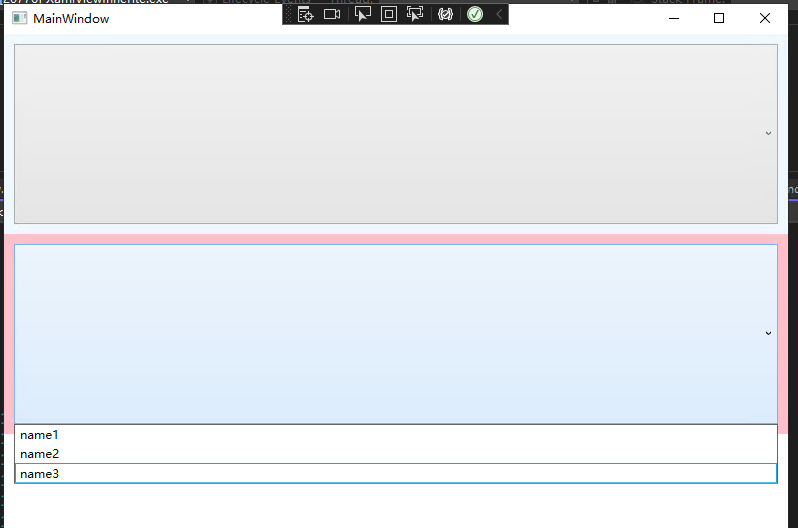

    The result:


    ----------------------------------------------------------------------------

    If the response is helpful, please click "Accept Answer" and upvote it.
    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.
