Application Gateway not able to import certificate from key vault

Question

Hello everyone, my first question in this forum.

I am stuck at importing a certificate from the Azure key vault into the Application Gateway. Basically we want the AGW to be the TLS termination point so that everything behind it is http only (AGW as reverse proxy with some path-based direction).

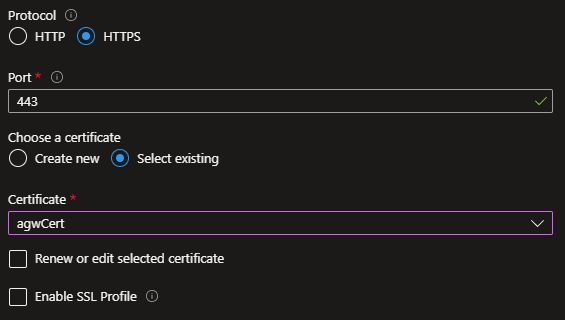

AGW -> Add Listener -> (public https 443, create new cert, choose a certificate from key vault)
I can see my vault, I can see my cert, when I add my identity it says:

"This key vault doesn't allow access to the managed identity. If using role-based access control permission model instead of policy."

I have played for a long time with the access permissions of the managed identity and I can't get it right.

In my key vault, there is no Access Policy. It says Access Policies not available. In its role assignments, I have created a managed identity called "vaultManagedIdentity" with "Key Vault Certificates Officer" role. I've added this MI to the Application Gateway as a "Contributor". I've tried everything there, including owner. Same result.

Answer 1

@jamh
Thank you for your post!

Error Message:
This key vault doesn't allow access to the managed identity. If using role-based access control permission model instead of policy.

I understand that you're having issues enabling TLS termination with Key Vault certificates and have already tried adding the appropriate Access Policies and running the PowerShell script. However, from your error message and the documentation that you're following, can you retry adding the appropriate Key Vault Access Policy or running the Key Vault Azure role-based access control permission model PowerShell script "piece-by-piece", in order to specify the Key Vault certificate via the RBAC permission model.

----------------------

Access Policy:
If your Key Vault is using Access Policies, you can add your Managed Identity by going to your Key Vault:

• Confirm your Vault's Access Configuration
• Select Access Policies
• Add Access Policies
• Configure the Policy from a Template (Optional). The only permission you'll need is GET under Secret Permissions
• Add & Save.


------------------------

Azure Key Vault RBAC:
If you're using the RBAC permission model specifying Azure Key Vault certificates is not supported via the portal. When I ran this script, I was able to run it line by line and didn't have any issues selecting my certificate afterwards.

# Get the Application Gateway we want to modify
$appgw = Get-AzApplicationGateway -Name MyApplicationGateway -ResourceGroupName MyResourceGroup

# Specify the resource id to the user assigned managed identity - This can be found by going to the properties of the managed identity
Set-AzApplicationGatewayIdentity -ApplicationGateway $appgw -UserAssignedIdentityId "/subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/MyResourceGroup/providers/Microsoft.ManagedIdentity/userAssignedIdentities/MyManagedIdentity"

# Get the secret ID from Key Vault
$secret = Get-AzKeyVaultSecret -VaultName "MyKeyVault" -Name "CertificateName"

# Remove the secret version so AppGW will use the latest version in future syncs
$secretId = $secret.Id.Replace($secret.Version, "")

# Specify the secret ID from Key Vault
Add-AzApplicationGatewaySslCertificate -KeyVaultSecretId $secretId -ApplicationGateway $appgw -Name $secret.Name

# Commit the changes to the Application Gateway
Set-AzApplicationGateway -ApplicationGateway $appgw

-------------------------------

I hope this helps!

If you have any other questions, please let me know.
Thank you for your time and patience throughout this issue.

----------

Please remember to "Accept Answer" if any answer/reply helped, so that others in the community facing similar issues can easily find the solution.

Answer 2

There is a link next to the error I get:
https://learn.microsoft.com/en-us/azure/application-gateway/key-vault-certs?WT.mc_id=Portal-Microsoft_Azure_HybridNetworking#key-vault-azure-role-based-access-control-permission-model

When I enter these commands there via powershell (these are just examples, I've changed the values to the right ones):

Get the Application Gateway we want to modify

$appgw = Get-AzApplicationGateway -Name MyApplicationGateway -ResourceGroupName MyResourceGroup

Specify the resource id to the user assigned managed identity - This can be found by going to the properties of the managed identity

Set-AzApplicationGatewayIdentity -ApplicationGateway $appgw -UserAssignedIdentityId "/subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/MyResourceGroup/providers/Microsoft.ManagedIdentity/userAssignedIdentities/MyManagedIdentity"

Get the secret ID from Key Vault

$secret = Get-AzKeyVaultSecret -VaultName "MyKeyVault" -Name "CertificateName"
$secretId = $secret.Id.Replace($secret.Version, "") # Remove the secret version so AppGW will use the latest version in future syncs

Specify the secret ID from Key Vault

Add-AzApplicationGatewaySslCertificate -KeyVaultSecretId $secretId -ApplicationGateway $appgw -Name $secret.Name

Commit the changes to the Application Gateway

Set-AzApplicationGateway -ApplicationGateway $appgw

They all work except the very last one (Set-AzApplicationGateway), which produces this error:
Set-AzApplicationGateway -ApplicationGateway $appgw
Set-AzApplicationGateway : Long running operation failed with status 'Failed'. Additional Info:'Problem occured while
accessing and validating KeyVault Secrets associated with Application Gateway '/subscriptions/../AppGateway'. See
details below:'
At line:1 char:1

• Set-AzApplicationGateway -ApplicationGateway $appgw
• ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
• CategoryInfo : CloseError: (:) [Set-AzApplicationGateway], CloudException
• FullyQualifiedErrorId : Microsoft.Azure.Commands.Network.SetAzureApplicationGatewayCommand
