DNS - LDAP interface NO_OBJECT
Hi all
I am getting LDAP errors in the Directory Service logs on my Domain Controller.
I've done a clean install, the server is pointing to itself and is promoted to DC.
DNS is installed and the ip address is: 10.8.8.4
I want to log LDAP queries.
In addition to the server, I have a domain computer who joined the domain and a total of 2 Domain Users(1 Administrator).
I'm using Virtual Box in Nat Network Mode in order to rollback fast. (PoC environment)

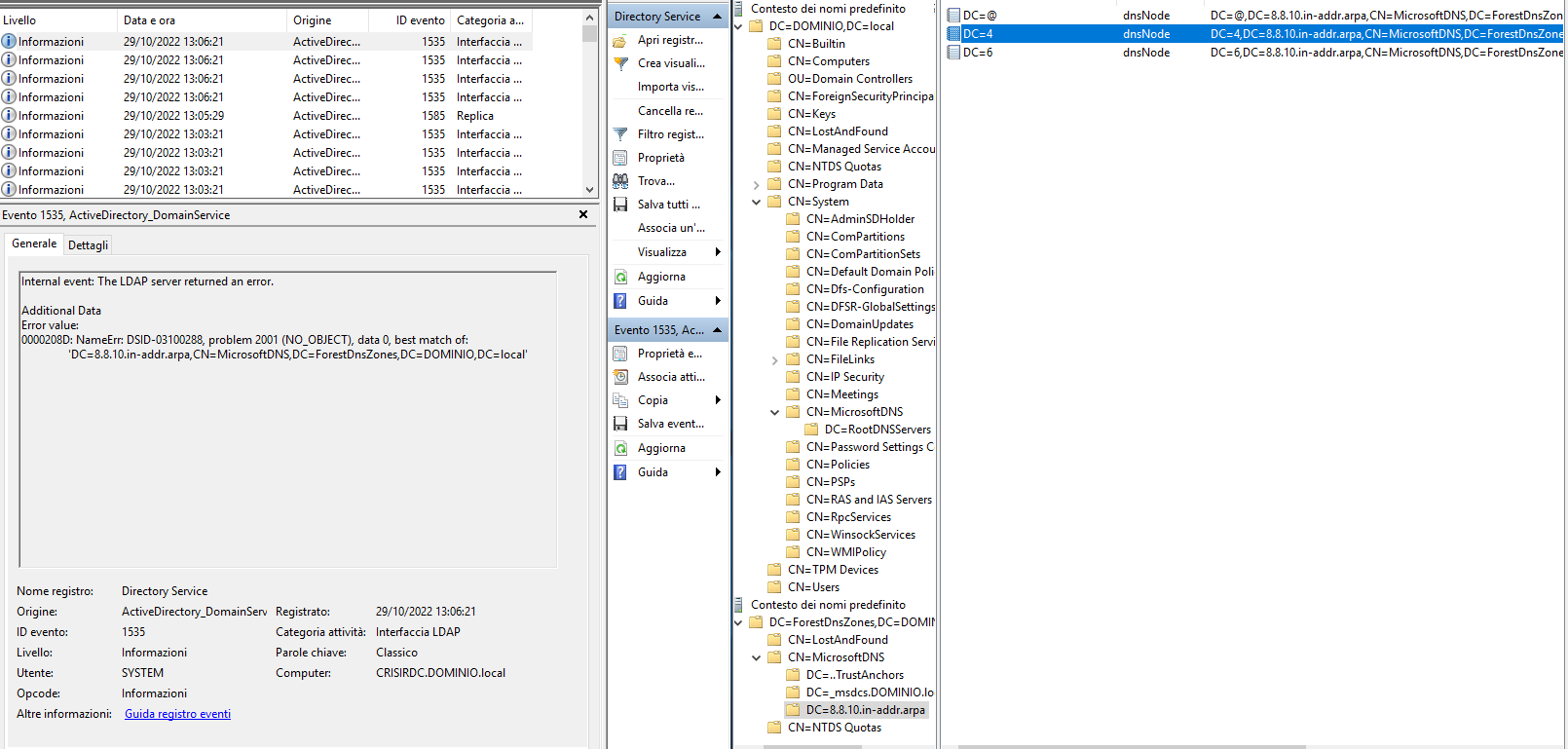

The errors listed under event ID 1535 are these:
*Error value:
0000208D: NameErr: DSID-03100288, problem 2001 (NO_OBJECT), data 0, best match of:
'DC=8.8.10.in-addr.arpa,CN=MicrosoftDNS,DC=ForestDnsZones,DC=DOMINIO,DC=local'
as well as
'DC=_msdcs.DOMINIO.local,CN=MicrosoftDNS,DC=ForestDnsZones,DC=DOMINIO,DC=local'
and
'DC=DOMINIO.local,CN=MicrosoftDNS,DC=DomainDnsZones,DC=DOMINIO,DC=local'*
I've disabled ipv6 address ("unchecked")

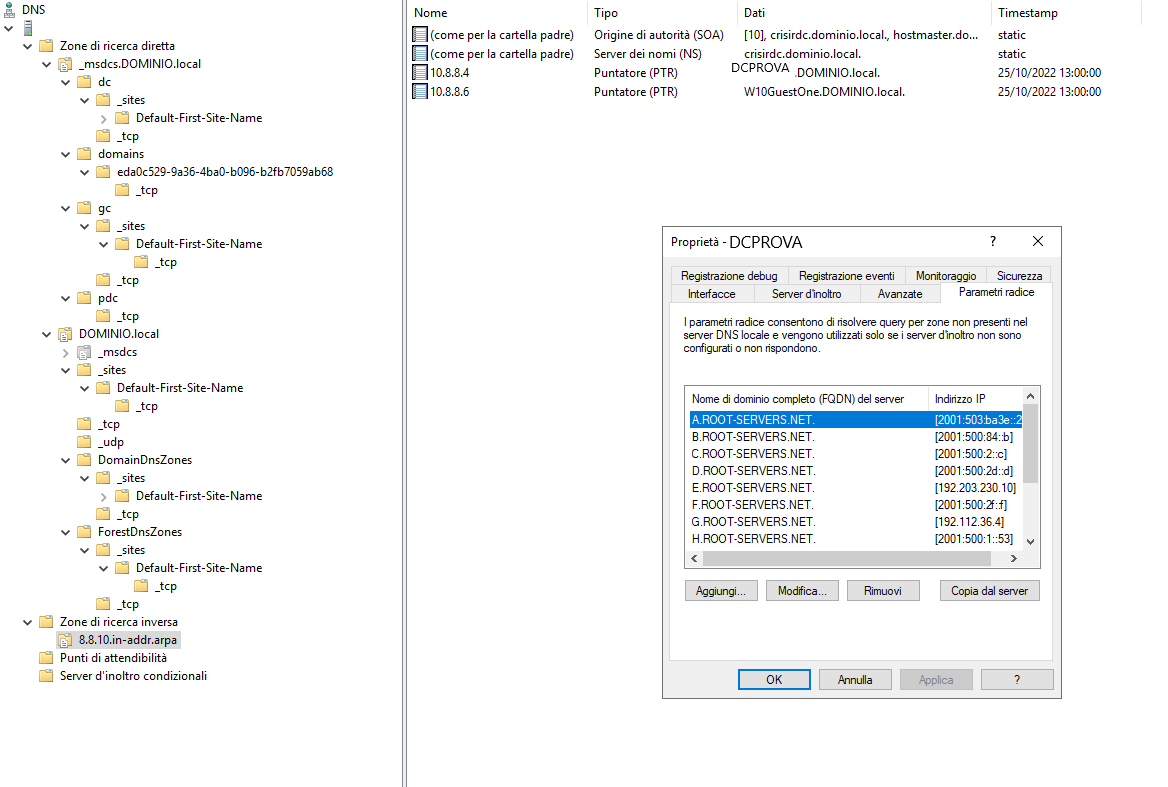

I had also changed the dns server from localhost to: 10.8.8.4 and setup a reverse ip address too.
ipconfig /all
Windows IP Configuration
Host Name . . . . . . . . . . . . . : DCPROVA
Primary Dns Suffix . . . . . . . . : DOMINIO.local
Node Type . . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . . : No
WINS Proxy Enabled. . . . . . . . . : No
DNS Suffix Search List. . . . . . . : DOMINIO.local
Scheda Ethernet:
Connection-specific DNS Suffix:
Description. . . . . . . . . . . . . . : Intel(R) PRO/1000 MT Desktop Adapter
Physical Address . . . . . . . . . . . : 08-00-27-4D-46-B3
DHCP enabled . . . . . . . . . . . . . : No
Autoconfiguration Enabled. . . . . . . : Sì
Link-local IPv6 Address. . . . . . . . : fe80::8088:2589:5012:2552%4(Preferred)
IPv4 Address. .. . . . . . . . . . . . : 10.8.8.4(Preferred)
Subnet mask. . . . . . . . . . . . . . : 255.255.255.0
Default Gateway. . . . . . . . . . . . : 10.8.8.1
DHCPv6 IAID. . . . . . . . . . . . . . : 67633191
DHCPv6 Client DUID. . .. . . . . . . . : 00-01-00-01-2A-D1-A1-56-08-00-27-4D-46-B3
DNS Server. . . . . . . . . . . . . . : 10.8.8.4
NetBIOS over TCP/IP . . . . . . . . . : Enabled
In the registry editor I've set the log level to 2, I did set also '15 Field Engineering' to '5' in order to enable Expensive and Inefficient LDAP calls to be logged in Event Viewer.
I tried to execute a LDAP query with "cn=users, dc=DOMINIO, DC=local" in the base DN fieldwith the search filter and it worked.(it's been done from the domain Host(logged as Admin) and I can get the entry).
During the Active Directory Lightweight Directory Services Setup Wizard I specified to create an application directory partition"CN=DCPROVA,DC=DOMINIO,DC=local"(I add this in case would be useful).In the wizard I left the Network service account. And the Domain users group with administrative privileges assigned, for the instance of AD LDS.
I noticed Firewall couldn't resolve 8.8.8.8 or 1.1.1.1(when I set them as DNS forwarders) when I was connected to my Company. (I'm doing an intern)
I found that dcdiag /test:dns passed at home with my network and with no VPN.
dcdiag /fix logs me:
Inizio test: SystemLog
Si è verificato un evento di avviso. ID evento: 0x000003F6
Data e ora generazione: 10/29/2022 12.10.49
Stringa evento: Timeout della risoluzione dei nomi per il nome wpad. Nessun server DNS configurato ha risposto.
Si è verificato un evento di avviso. ID evento: 0x000003F6
Data e ora generazione: 10/29/2022 12.10.51
Stringa evento: Timeout della risoluzione dei nomi per il nome _ldap._tcp.Default-First-Site-Name._sites.dc._msdcs.DOMINIO.local.. Nessun server DNS configurato ha risposto.
Si è verificato un evento di avviso. ID evento: 0x00000081
Data e ora generazione: 10/29/2022 12.10.51
Stringa evento:
NtpClient: impossibile impostare un peer di dominio da utilizzare come origine ora a causa di un errore di individuazione. Verrà eseguito un nuovo tentativo tra 15 minuti, quindi l'intervallo tra i nuovi tentativi verrà raddoppiato. Errore: Connessione in corso interrotta forzatamente dall'host remoto. (0x80072746)
Si è verificato un evento di avviso. ID evento: 0x00001695
Data e ora generazione: 10/29/2022 12.18.29
Stringa evento:
Registrazione dinamica o eliminazione di uno o più record DNS associati al dominio DNS 'DOMINIO.local.' non riuscita. Questi record sono utilizzati da altri computer per individuare questo server come controller di dominio (se il dominio specificato è un dominio di Active Directory) o come server LDAP (se il dominio specificato è una partizione applicativa).
Si è verificato un evento di avviso. ID evento: 0x00001695
Data e ora generazione: 10/29/2022 12.18.29
Stringa evento:
Registrazione dinamica o eliminazione di uno o più record DNS associati al dominio DNS 'ForestDnsZones.DOMINIO.local.' non riuscita. Questi record sono utilizzati da altri computer per individuare questo server come controller di dominio (se il dominio specificato è un dominio di Active Directory) o come server LDAP (se il dominio specificato è una partizione applicativa).
Si è verificato un evento di avviso. ID evento: 0x00001695
Data e ora generazione: 10/29/2022 12.18.29
Stringa evento:
Registrazione dinamica o eliminazione di uno o più record DNS associati al dominio DNS 'DomainDnsZones.DOMINIO.local.' non riuscita. Questi record sono utilizzati da altri computer per individuare questo server come controller di dominio (se il dominio specificato è un dominio di Active Directory) o come server LDAP (se il dominio specificato è una partizione applicativa).
Si è verificato un evento di errore. ID evento: 0x0000272C
Data e ora generazione: 10/29/2022 12.30.47
Stringa evento:
DCOM: impossibile comunicare con il computer 1.1.1.1 utilizzando i protocolli configurati. Richiesta PID 1568 (C:\Windows\system32\dcdiag.exe) durante l'attivazione di CLSID {8BC3F05E-D86B-11D0-A075-00C04FB68820}.
Si è verificato un evento di errore. ID evento: 0x0000272C
Data e ora generazione: 10/29/2022 12.31.08
Stringa evento:
DCOM: impossibile comunicare con il computer 8.8.8.8 utilizzando i protocolli configurati. Richiesta PID 1568 (C:\Windows\system32\dcdiag.exe) durante l'attivazione di CLSID {8BC3F05E-D86B-11D0-A075-00C04FB68820}.
......................... CRISIRDC non ha superato il test SystemLog
Inizio test: VerifyReferences
......................... CRISIRDC ha superato il test VerifyReferences
Test partizione in esecuzione su: DomainDnsZones
Inizio test: CheckSDRefDom
......................... DomainDnsZones ha superato il test CheckSDRefDom
Inizio test: CrossRefValidation
......................... DomainDnsZones ha superato il test CrossRefValidation
Test partizione in esecuzione su: ForestDnsZones
Inizio test: CheckSDRefDom
......................... ForestDnsZones ha superato il test CheckSDRefDom
Inizio test: CrossRefValidation
......................... ForestDnsZones ha superato il test CrossRefValidation
Test partizione in esecuzione su: Schema
Inizio test: CheckSDRefDom
......................... Schema ha superato il test CheckSDRefDom
Inizio test: CrossRefValidation
......................... Schema ha superato il test CrossRefValidation
Test partizione in esecuzione su: Configuration
Inizio test: CheckSDRefDom
......................... Configuration ha superato il test CheckSDRefDom
Inizio test: CrossRefValidation
......................... Configuration ha superato il test CrossRefValidation
Test partizione in esecuzione su: DOMINIO
Inizio test: CheckSDRefDom
......................... DOMINIO ha superato il test CheckSDRefDom
Inizio test: CrossRefValidation
......................... DOMINIO ha superato il test CrossRefValidation
Test organizzazione in esecuzione su: DOMINIO.local
Inizio test: LocatorCheck
......................... DOMINIO.local ha superato il test LocatorCheck
Inizio test: Intersite
......................... DOMINIO.local ha superato il test Intersite
Any help would be really appreciated, I've been working around for almost a month, I'm finishing my degree.
Maybe a Virtualbox network card configuration setting? It is a Nat Network mode:
the DC and the other host can ping each other and they can test nslookup correctly.
I'm italian, if you need further translations, tell me
Can someone help me understanding what's going on?
