Unable to get Extracted Date field value in the standard/Converted format in a Custom Model

Question

Hi Team,

I have created a custom model in which I have a created a date field. While I am testing the trained model the value of the date field is not getting extracted in a standard format. Please find below extraction response/result.

"fields": {
"document_date": {
"type": "date",
"content": "04-OCT -2021",
"boundingRegions": [
{
"pageNumber": 2,
"polygon": [
5.325,
8.26,
6.96,
8.26,
6.96,
8.49,
5.325,
8.49
]
}
],
"confidence": 0.98,
"spans": [
{
"offset": 3686,
"length": 12
}
]
}
}

The Above response shows only content value got extracted. However the Date is not converted into a standard format.

Thanks & Regards,
Niranjan M.

Answer 1

Hi @Niranjan Mahtole ,

Thank you for bringing this to our notice.
In order for the date conversion to work, 3 things are required from Form Recognizer Studio (FRS):

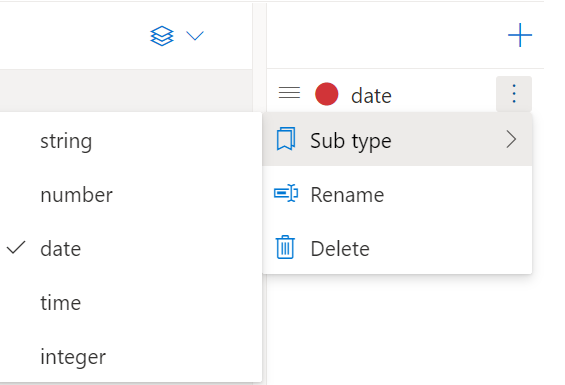

1. Specify the Sub Type to “Date”
2. Specify the Field Format to one of the values: “dmy”, “mdy”, “ymd” in fields.json file. This specifies the
   year/month/day order. Without this info, Form Recognizer does not know how to interpret the
   year/month/day value. (The functionality as of today is very limited)
3. The extracted date string must exactly match the year/month/day order as specified in the Field Format. If it
   does not match, no conversation will happen.
   o For example, if the user specifies "dmy", and the date string is "13-11-20", it will be converted to "2020- 11-13".
   o However, if the "dmy" is still specified, but the date string is "11-15-20", the conversation won’t happen, as “15” is not a valid month.

The date conversion is supported natively by Form Recognizer 3.0 API. Here is the workaround:

• Start labeling as usual in Form Recognizer Studio (FRS), and specify the date fields as “Date” in FRS.

• Go to blob storage of the training files, there is a file called fields.json generated by FRS in the previous step.

• Download the fields.json and open it in an editor or Right click on file and click edit to make changes without downloading.
• Look for all nodes with “fieldType”:”date” in the “fields” section in fields.json.

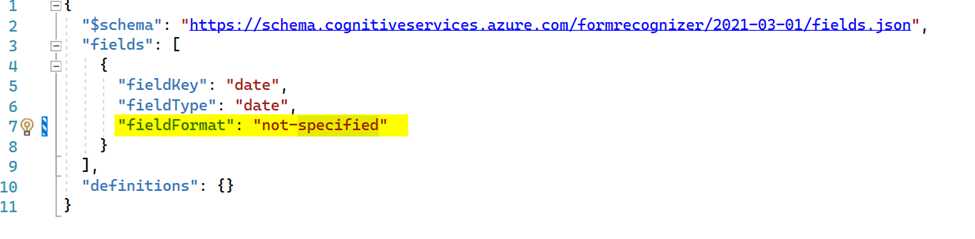

• All matching nodes should have this additional value: “fieldFormat”:”not-specified”.

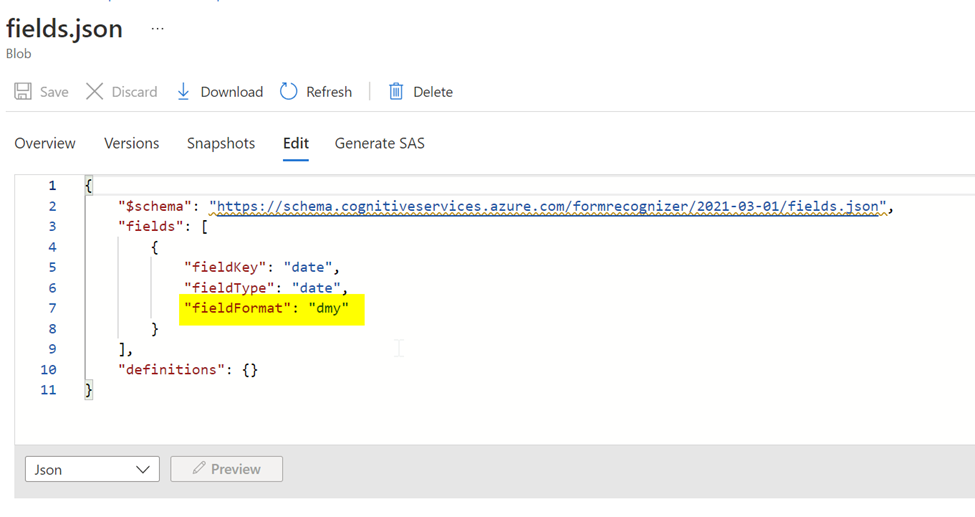

• Change “not-specified” value to one of the value: “dmy”, “mdy”, “ymd”

• Save and upload the fields.json back to the same folder in the blob storage.
• Train the model as usual
• The created model should now be able to convert the date strings if the extracted date string is valid, as mentioned in the item #3 above.

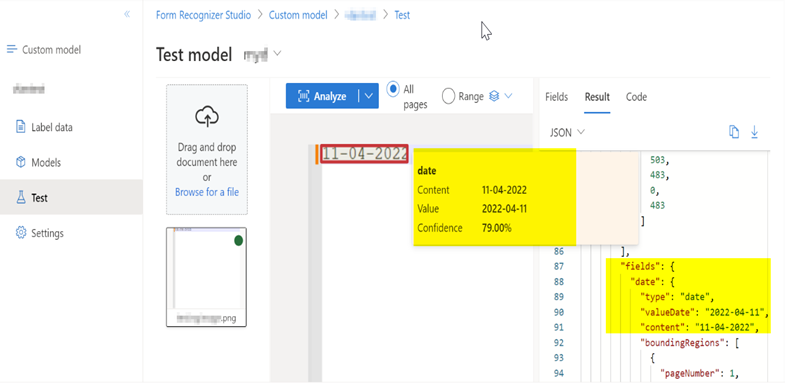

• Here is an example of the conversion. Note that the converted value will be in the “valueDate”.


Please let me know if you have more questions about this.

I hope this helps.

Regards,
Vasavi
