MAUI Splash screen rounded image

Question

MAUI Splash screen rounded image

Bhuwan 881

Hi

i am facing issue on MAUI splash screen. Multiple time i am trying but always display image in rounded shape. Can you suggest me exact splash screen svg image height and width.

1 answer

Your answer

Answer 1

Anonymous

Hello,

Do you set the target-framework to android 12 or later?
If so, this issue is related to the splash changes in android 12

Android 12+ has additional image requirements for splash screen.

I found a similar thread in GitHub, and this issue was solved in Service release 5, please update your VS to the latest.

Here is a workaround to fix this issue, you can refer to it as well.

Best Regards,

Leon Lu

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Bhuwan 881 Reputation points

2022-11-08T11:07:39.077+00:00

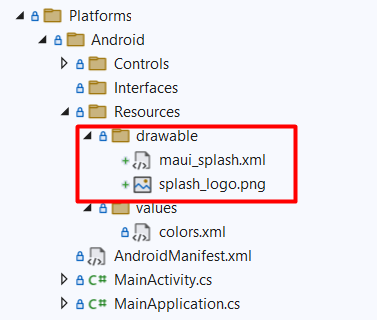

Platforms\Android\Resources\drawable\maui_splash.xml

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android" android:opacity="opaque">
<item android:drawable="@Color /maui_splash_color" />
<item
android:width="108dp"
android:height="108dp"
android:gravity="center">
<bitmap
android:gravity="fill"
android:src="@drawable/name_of_your_splash_image"
android:mipMap="true"/>
</item>
</layer-list>

as per suggested above code i am added new file but which splash image used same svg image inside splash folder or add different image.
Bhuwan 881 Reputation points

2022-11-08T11:34:44.623+00:00

Hi @Anonymous

i have added but it's not display in splash screen.

target-framework to android 12
Bhuwan 881 Reputation points

2022-11-09T05:29:27.29+00:00

Hi @Anonymous

today update VS on version - Microsoft Visual Studio Professional 2022 (64-bit) - Current Version 17.4.0

but issue still exist for Android 12 And API 31
Anonymous

2022-11-09T09:07:07.913+00:00

If it is still not working, you can create a custom splash screen like this document, please remove MainLauncher = true and change Theme = "@style/MyTheme" in MainActivity.cs.
Anonymous

2022-11-11T08:45:29.7+00:00

@Bhuwan May I know if you have got any chance to check my answer? I am glad to help if you have any other questions
Bhuwan 881 Reputation points

2022-11-11T11:03:33.623+00:00

Hi @Anonymous

i am trying multiple times but it's not working Android 12 or later devices but in below Android 12 devices it's working. Once i will get any solution then i will update the threat.
Bhuwan 881 Reputation points

2022-11-12T05:50:05.47+00:00

Hi @Anonymous

is possible to display full image on splash screen in MAUI application.
Anonymous

2022-11-14T08:52:27.407+00:00
Yes, but this workaround is kind of ugly.

Firstly, Add splash activity like this document:splash-screen, you can change the bitmap‘s android:gravity="fill" to display full image on splash screen.

<?xml version="1.0" encoding="utf-8"?> <layer-list xmlns:android="http://schemas.android.com/apk/res/android"> <item> <color android:color="@color/splash_background"/> </item> <item> <bitmap android:src="@drawable/splash_logo_land" android:tileMode="disabled" android:gravity="fill"/> </item> </layer-list>

After that, you have two splash screens, the first is generated by android 12, the other is created by yourself from this document.

We need to hide the splash screen from native android 12. Add <item name="android:windowIsTranslucent">true</item> in your splash screen 's style
Anonymous

2022-11-16T01:43:30.653+00:00

@Bhuwan May I know if you have got any chance to check my above solution? I am glad to help if you have any other questions
Bhuwan 881 Reputation points

2022-11-16T04:58:58.243+00:00

Hi @Anonymous Tried my end but its not working.
Anonymous

2022-11-16T08:39:18.54+00:00

I try to use Microsoft Visual Studio Community 2022 Version 17.4.0 Preview 2.1 and use demo from this link.. I can get the display image without rounded shape.

For your scenario, it is recommended to open a support ticket for this. Please contact our paid phone support at MS Support. You will get 1:1 support on that.
Bhuwan 881 Reputation points

2022-11-16T09:44:36.877+00:00

Hi @Anonymous

thanks for this reply i will connect.
Anonymous

2022-11-16T09:47:17.923+00:00

You are welcome.
