How to configure a web app service backup using terraform

Question

We need to know how to configure web app backup using terraform , looks like the below is not working

resource "azurerm_app_service" "apptftest1" {
name = var.web_app_name
location = data.azurerm_app_service_plan.sp.location
resource_group_name = data.azurerm_resource_group.rg.name
app_service_plan_id = data.azurerm_app_service_plan.sp.id

enable_backup = true
storage_account_name = "stdiagfortesting1"
backup_settings = {
enabled = true
name = var.web_app_name
frequency_interval = 1
frequency_unit = "Day"
retention_period_in_days = 30
}

Answer 1

@Hector Huerta Tricolor Thank you for reaching out to Microsoft Q&A. Apologize for the inconvenience caused on this. Based on the shared information I have understood that you are trying to create Web App and also enabling the custom backup to it using Terraform.

I have created the below Terraform script which create a Webapp, storage account and also it enables the custom backup using the existing app service plan and I have tested this it is working fine I would suggest to validate from your end as well.

Here is the sample terraform script :

provider "azurerm" {
  features {}
}

data "azurerm_resource_group" "rggroup" {
  name = "<ResourceGroupName>"

}

data "azurerm_service_plan" "appplan"{
    name= "<AppServicePlan>"
    resource_group_name=data.azurerm_resource_group.rggroup.name
}

variable "app_name"{
    type=string
    default="<WebAppName>"

}

variable "storage_name"{
    type=string
    default="<StorageAccountName"
}


resource "azurerm_storage_account" "backupaccount" {
    name= var.storage_name
    location = data.azurerm_resource_group.rggroup.location
    resource_group_name = data.azurerm_resource_group.rggroup.name
    access_tier = "Hot"
    account_tier = "Standard"
    account_replication_type = "LRS"
    account_kind = "BlobStorage"
}
resource "azurerm_storage_container" "backupcontainer" {
  name ="<ContainerName>"
  storage_account_name = azurerm_storage_account.backupaccount.name
  container_access_type = "container"
}

data "azurerm_storage_account_blob_container_sas" "containersas"{
  connection_string = azurerm_storage_account.backupaccount.primary_connection_string
  container_name = azurerm_storage_container.backupcontainer.name
  https_only = true
  start = "2022-11-23T12:20:23Z"
  expiry = "2022-11-24T00:00:00Z"
  permissions {
    read   = true
    add    = true
    create = true
    write  = true
    delete = true
    list   = true
  }

}

resource "azurerm_windows_web_app" "config" {
    name = var.app_name
    location = data.azurerm_resource_group.rggroup.location
    resource_group_name = data.azurerm_resource_group.rggroup.name
    service_plan_id = data.azurerm_service_plan.appplan.id
    site_config {
    always_on                 = true
    ftps_state                = "FtpsOnly"
    managed_pipeline_mode     = "Integrated"
    use_32_bit_worker = false
    application_stack {
      current_stack = "dotnet"
      dotnet_version= "v6.0"
    }

    }
    backup{
      name = "testbackup"
      schedule{
        frequency_interval =1
        frequency_unit ="Day"
        retention_period_days = 30
        start_time = "2022-11-23T10:33:28.000Z"
      }
      storage_account_url = "https://${resource.azurerm_storage_account.backupaccount.name}.blob.core.windows.net/${resource.azurerm_storage_container.backupcontainer.name}${data.azurerm_storage_account_blob_container_sas.containersas.sas}"
    }
}

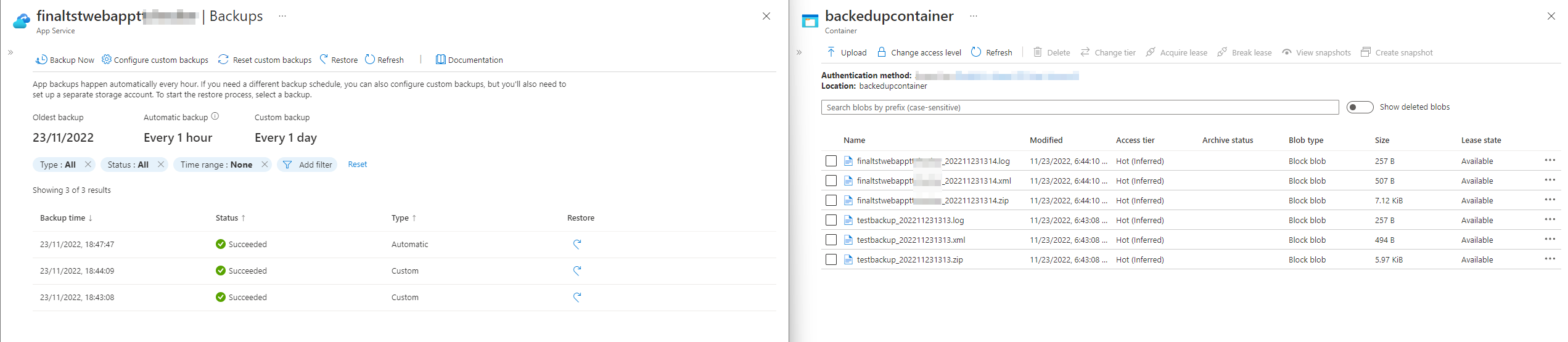

Here is the sample output for your reference:

Feel free to reach back to me if you have any further questions on this.
