MVC menu showing small rectangle

Question

MVC menu showing small rectangle

JUAN MIGUEL C. NIETO 61

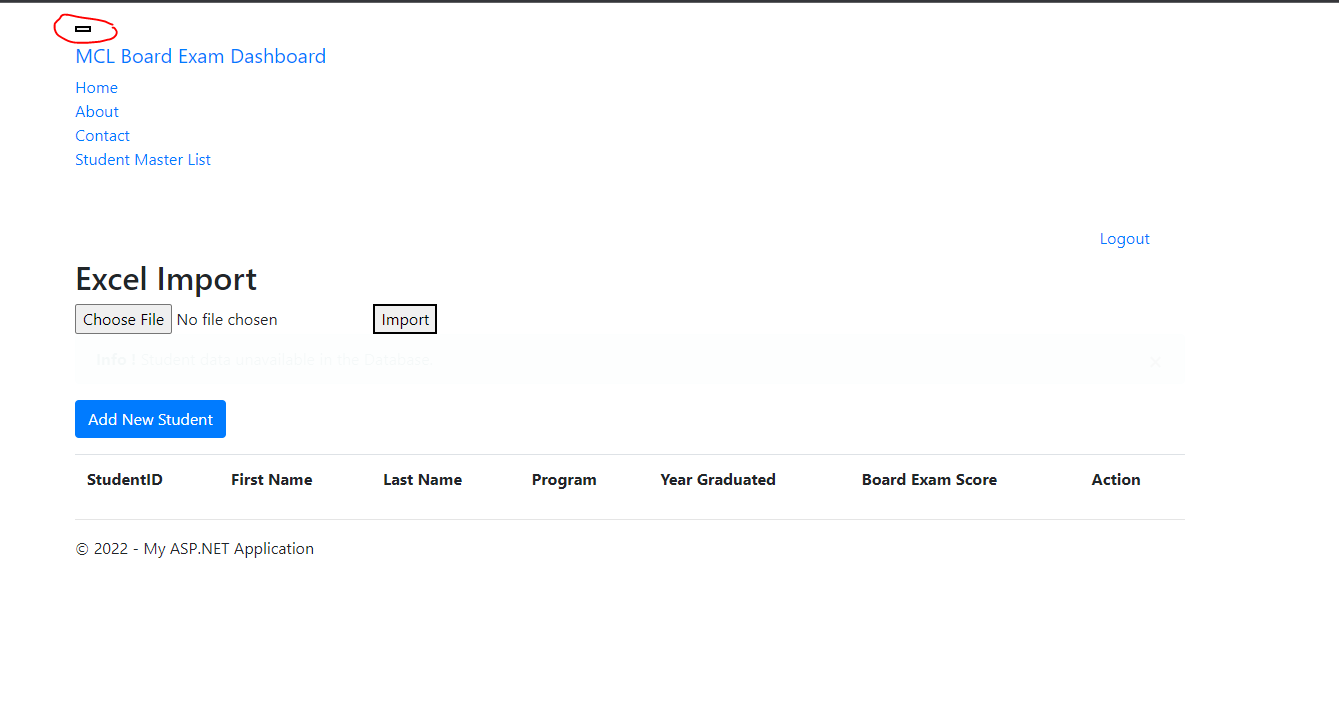

My MVC menu was working a fine while ago but now it shows a small rectangle. I try to reload my previous prototypes then the same error occurs.
What did I do wrong? The UI just came distorted

Shared Layout:
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>@ViewBag.Title - My ASP.NET Application</title>
@Styles.Render("~/Content/css")
@Scripts.Render("~/bundles/modernizr")
</head>
<body>
<div class="navbar navbar-inverse navbar-fixed-top">
<div class="container">
<div class="navbar-header">
<button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse" title="more options">
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
</div>
<div class="navbar-collapse collapse">
<ul class="nav navbar-nav">

                @if (Session["UserName"] != null)
                {
                    @Html.ActionLink("MCL Board Exam Dashboard", "Index", "Home", new { area = "" }, new { @class = "navbar-brand" })
                    <li>@Html.ActionLink("Home", "Index", "Home")</li>
                    <li>@Html.ActionLink("About", "About", "Home")</li>
                    <li>@Html.ActionLink("Contact", "Contact", "Home")</li>
                    <li>@Html.ActionLink("Student Master List", "Index", "Student")</li>

                }



            </ul>

            <ul class="nav navbar-nav" style="float:right !important">
                @if (Session["UserName"] != null)
                {
                    <li><p style="color:#fff;margin-top:15px;">Hello @Session["UserName"] </p></li>
                    <li>@Html.ActionLink("Logout", "Index", "Login")</li>
                }
                else
                {

                }


            </ul>
        </div>
    </div>
</div>
<div class="container body-content">
    @RenderBody()
    <hr />
    <footer>
        <p>&copy; @DateTime.Now.Year - My ASP.NET Application</p>
    </footer>
</div>
<script src="~/Scripts/CustomJS/AutoHideAlert.js"></script>
@Scripts.Render("~/bundles/jquery")
@Scripts.Render("~/bundles/bootstrap")
@RenderSection("scripts", required: false)

</body>
</html>

AgaveJoe 30,126 Reputation points

2022-11-25T12:51:30.38+00:00

Unexpected format is usually due to an incorrect or missing CSS file reference.

Do standard troubleshooting. Open the browser's dev tools (F12). Open the network view and look for 404 errors.

Also, you tagged this question as Core MVC but the markup looks like the MVC template from the ASP.NET framework? Did you add the wrong tag or maybe you copied the layout markup from an older project?

1 answer

Your answer

AgaveJoe 30,126 Reputation points

2022-11-25T12:51:30.38+00:00

Unexpected format is usually due to an incorrect or missing CSS file reference.

Do standard troubleshooting. Open the browser's dev tools (F12). Open the network view and look for 404 errors.

Also, you tagged this question as Core MVC but the markup looks like the MVC template from the ASP.NET framework? Did you add the wrong tag or maybe you copied the layout markup from an older project?

Answer 1

SurferOnWww 4,631

MVC menu showing small rectangle

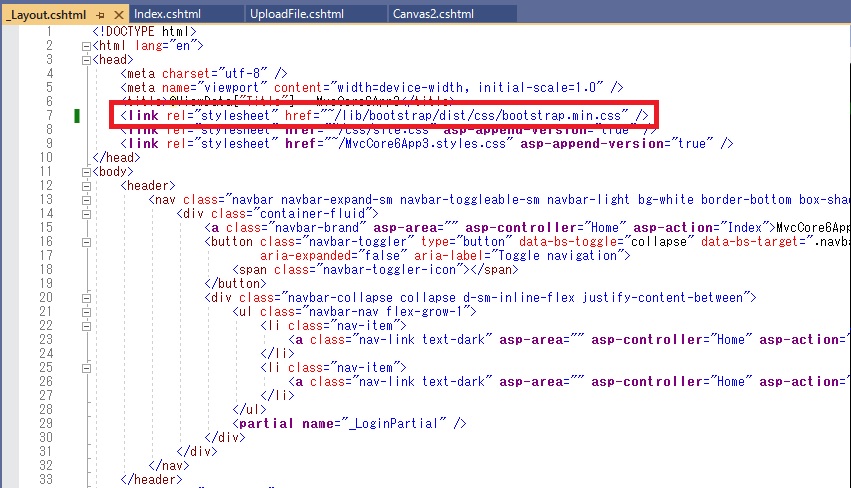

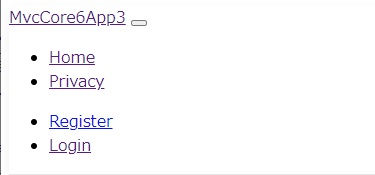

It is the button in the navbar. When the bootstrap.css is missing,

the navbar is shown as follows:

When the bootstrap.css is properly set the navbar is shown as follow:
