Flattening of hierarchy in SQL Server

Question

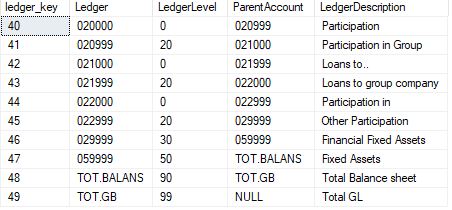

We have a table LedgerAccount with the parent-child relationship as:

CREATE TABLE [dbo].[LedgerAccounts](
	[ledger_key] [int] NOT NULL,
	[Ledger] [nvarchar](12) NULL,
	[LedgerLevel] [int] NULL,
	[ParentAccount] [nvarchar](12) NULL,
	[LedgerDescription] [nvarchar](30) NULL,
 CONSTRAINT [PK_LedgerAccounts] PRIMARY KEY CLUSTERED
(
	[ledger_key] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]

INSERT INTO [dbo].[LedgerAccounts]
  -     VALUES (40, '020000', 0, '020999', 'Participation'),
  - (41, '020999', 20, '021000', 'Participation in Group'),
  - (42, '021000', 0, '021999', 'Loans to..'),
  - (43, '021999', 20, '022000', 'Loans to group company'),
  - (44, '022000', 0, '022999', 'Participation in'),
  - (45, '022999', 20, '029999', 'Other Participation'),
  - (46, '029999', 30, '059999', 'Financial Fixed Assets'),
  - (47, '059999', 50, 'TOT.BALANS', 'Fixed Assets'),
  - (48, 'TOT.BALANS', 90, 'TOT.GB', 'Total Balance sheet'),
  - (49, 'TOT.GB', 99, 'NULL', 'Total GL')

LedgerLevel defines the level in the hierarchy. The parent 059999 is on the highest level( in this example i.e. 90) and 0 is the lowest level child node.

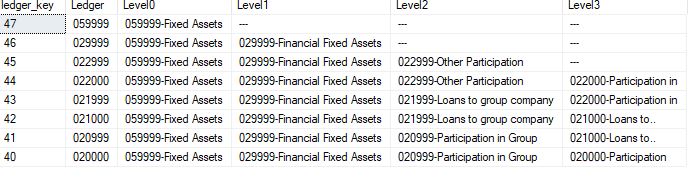

I need to create a table/structure/tmp.table using the hierarchical relationship in the above table as follows :

Here, we can parameterize the number of levels and level ids.
Following is the query I have tried without considering the parameterization and assuming the number of levels = 4.
How can I achieve the same without hard-coding the number of levels and levels id?
I am a newbie in SQL and have basic knowledge of it.

create or alter    view [dbo].[Ledgerview] as
    WITH LedgerAccountstree AS
    (
        SELECT
    		ledger_key,
            Ledger as CurrLedgerCode,
            Ledger,
            Ledger as Lvl0Code,
            LedgerDescription as Lvl0Description,
            cast('-' as nvarchar(12)) as Lvl1Code,
            cast('-' as nvarchar(30)) as Lvl1Description,
            cast('-' as nvarchar(12)) as Lvl2Code,
            cast('-' as nvarchar(30)) as Lvl2Description,
            cast('-' as nvarchar(12)) as Lvl3Code,
            cast('-' as nvarchar(30)) as Lvl3Description,
            ParentAccount,
            LedgerLevel
        FROM
            [dbo].[LedgerAccounts]
        WHERE
            LedgerLevel = 50
        UNION ALL
        SELECT
    		[dbo].[LedgerAccounts].ledger_key,
            LedgerAccountstree.CurrLedgerCode,
            [dbo].[LedgerAccounts].Ledger,
            LedgerAccountstree.Lvl0Code,
            LedgerAccountstree.Lvl0Description,
            case when [dbo].[LedgerAccounts].LedgerLevel = 30 then [dbo].[LedgerAccounts].Ledger else LedgerAccountstree.Lvl1Code end as Lvl1Code,
            case when [dbo].[LedgerAccounts].LedgerLevel = 30 then [dbo].[LedgerAccounts].LedgerDescription else LedgerAccountstree.Lvl1Description end as Lvl1Description,
            case when [dbo].[LedgerAccounts].LedgerLevel = 20 then [dbo].[LedgerAccounts].Ledger else LedgerAccountstree.Lvl2Code end as Lvl2Code,
            case when [dbo].[LedgerAccounts].LedgerLevel = 20 then [dbo].[LedgerAccounts].LedgerDescription else LedgerAccountstree.Lvl2Description end as Lvl2Description,
            case when [dbo].[LedgerAccounts].LedgerLevel = 0 then [dbo].[LedgerAccounts].Ledger else LedgerAccountstree.Lvl3Code end as Lvl3Code,
            case when [dbo].[LedgerAccounts].LedgerLevel = 0 then [dbo].[LedgerAccounts].LedgerDescription else LedgerAccountstree.Lvl3Description end as Lvl3Description,
            [dbo].[LedgerAccounts].ParentAccount,
            [dbo].[LedgerAccounts].LedgerLevel
        FROM
            [dbo].[LedgerAccounts]
        JOIN
            LedgerAccountstree
            ON LedgerAccountstree.Ledger = [dbo].[LedgerAccounts].[ParentAccount]
    )
    SELECT
        ledger_key,
        Ledger,
		Lvl0Code +'-'+ Lvl0Description as Level0,
		Lvl1Code +'-'+ Lvl1Description as Level1,
    	Lvl2Code +'-'+ Lvl2Description as Level2,
    	Lvl3Code +'-'+ Lvl3Description as Level3

    FROM
           LedgerAccountstree

GO



Answer 1

Hi @Anonymous ，

Please refer to:

 create PROCEDURE [dbo].[Ledgerview] (@LedgerLevel int)as
	 WITH LedgerAccountstree AS
     (
         SELECT
             ledger_key,
             Ledger as CurrLedgerCode,
             Ledger,
             Ledger as Lvl0Code,
             LedgerDescription as Lvl0Description,
             cast('-' as nvarchar(12)) as Lvl1Code,
             cast('-' as nvarchar(30)) as Lvl1Description,
             ParentAccount,
             LedgerLevel
         FROM
             [dbo].[LedgerAccounts]
         WHERE
             LedgerLevel = 50
         UNION ALL
         SELECT
             [dbo].[LedgerAccounts].ledger_key,
             LedgerAccountstree.CurrLedgerCode,
             [dbo].[LedgerAccounts].Ledger,
             LedgerAccountstree.Lvl0Code,
             LedgerAccountstree.Lvl0Description,
             case when [dbo].[LedgerAccounts].LedgerLevel = @LedgerLevel then [dbo].[LedgerAccounts].Ledger else LedgerAccountstree.Lvl1Code end as Lvl1Code,
             case when [dbo].[LedgerAccounts].LedgerLevel = @LedgerLevel then [dbo].[LedgerAccounts].LedgerDescription else LedgerAccountstree.Lvl1Description end as Lvl1Description,
             [dbo].[LedgerAccounts].ParentAccount,
             [dbo].[LedgerAccounts].LedgerLevel
         FROM
             [dbo].[LedgerAccounts]
         JOIN
             LedgerAccountstree
             ON LedgerAccountstree.Ledger = [dbo].[LedgerAccounts].[ParentAccount]
     )
    SELECT ledger_key,Ledger,Lvl1Code +'-'+ Lvl1Description as Level
     FROM
            LedgerAccountstree

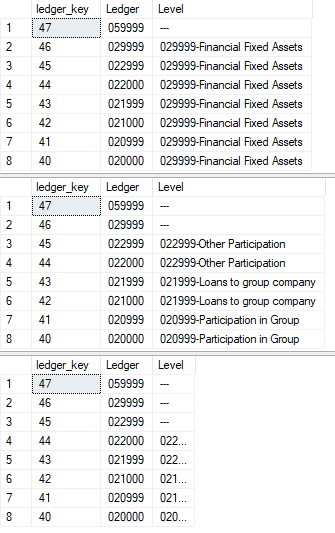

EXEC [dbo].[Ledgerview] @LedgerLevel = 30
EXEC [dbo].[Ledgerview] @LedgerLevel = 20
EXEC [dbo].[Ledgerview] @LedgerLevel = 0


drop procedure [dbo].[Ledgerview]
