Help with data on serial port

Stan De Smedt 1 Reputation point
2022-12-07T17:25:34.553+00:00

The English language is difficult for me, that's why I use google translate.
Sorry for the mistakes. I don't even know if I'm in the right forum here.
Arduino programming works fine, but I really don't understand vb very much.
Can someone help me with the following:
For several years I have been using a visual studio program to control my aquarium.
That worked perfectly until I connected new meters for measuring temperature,
acidity and conductivity of the water.
An Arduino mega displays the read values on the serial monitor.
The EC value should appear in TextBox3.Text
The TEMP value should appear in tb_temperature.Text
The PH value should appear in tb_pH.Text
The BV value should appear in TextBox4.Text
From there they can then be further processed to control the outputs of the Arduino mega board.
So the difficulty lies in sizing and writing the input data of the serial port.

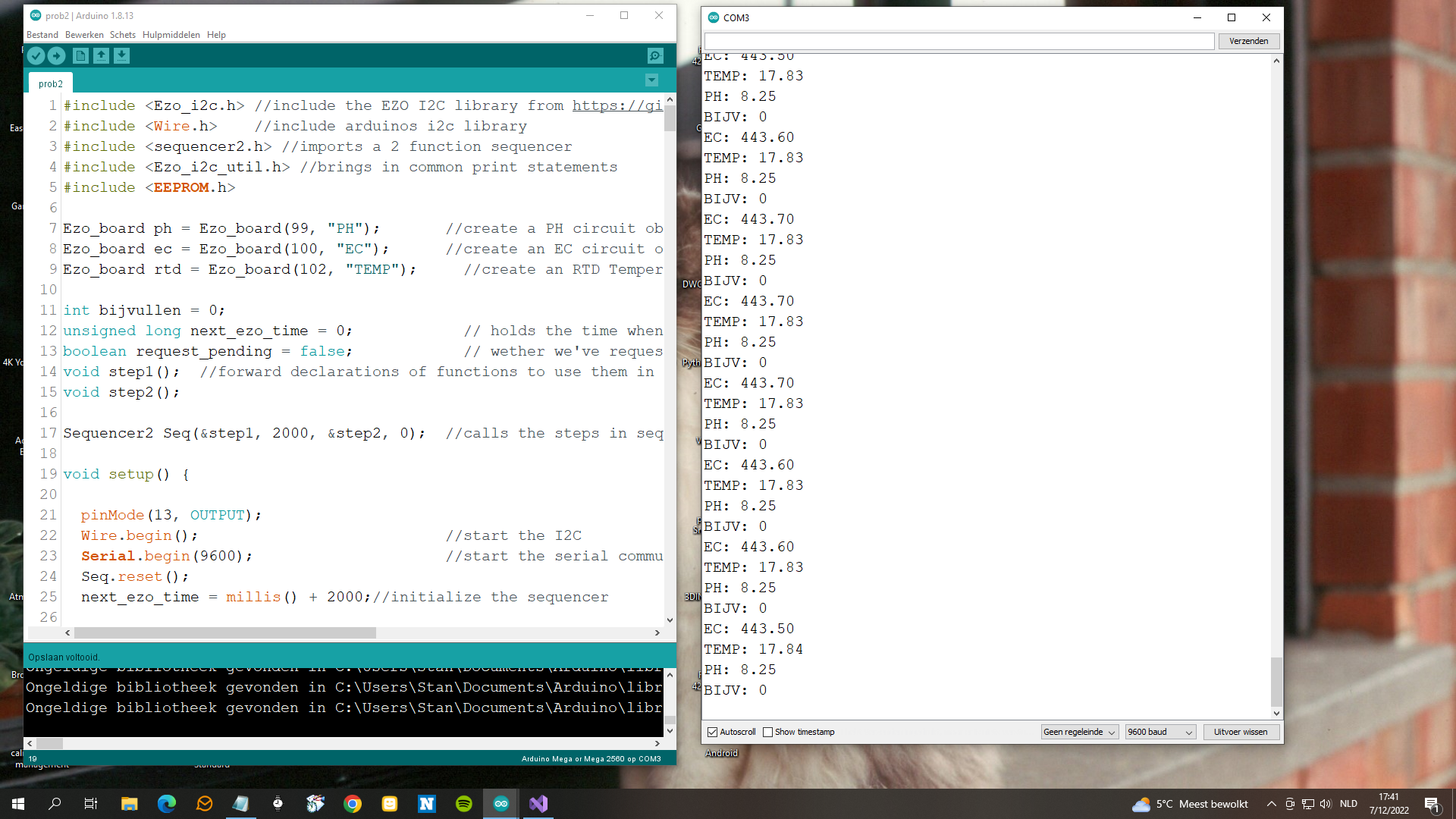

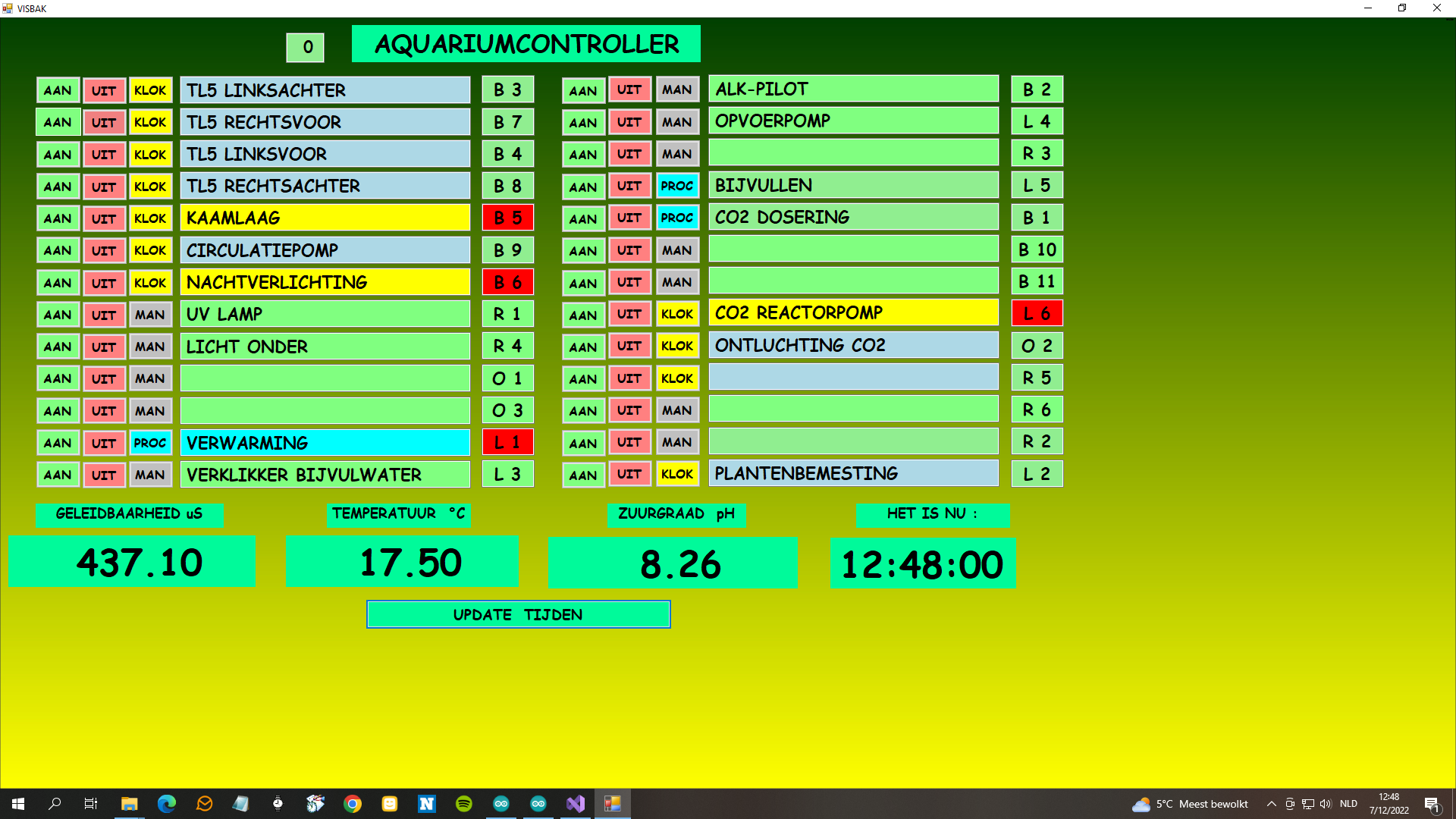

Enclosed are a few images of what arrives on the serial port, the vb program and a
screenshot of the result I sometimes get on the screen.
Also a picture of the error code: "the index is outside the matrix bounds".
Do any of you want to modify the vb class so that my "Aquarium Controller" works again ???

I would be very grateful if I could get everything working again.
Sincerely,
Stan

The program:

Imports System.IO
Imports System.Windows.Markup

Public Class VISBAK

Dim inputData As String = ""

Dim flasch As Boolean = True

Public P_Klok830l_Aan_Uit As Boolean
Public P_Klok830r_Aan_Uit As Boolean
Public P_Klok840l_Aan_Uit As Boolean
Public P_Klok840r_Aan_Uit As Boolean
Public P_Klok865l_Aan_Uit As Boolean
Public P_Klok865r_Aan_Uit As Boolean
Public P_Kloknacht_Aan_Uit As Boolean
Public P_KlokledspotLinks_Aan_Uit As Boolean
Public P_KlokledspotRechts_Aan_Uit As Boolean
Public P_ProcVerwarming_Aan_Uit As Boolean
Public P_ProcKoeling_Aan_Uit As Boolean
Public P_ProcBijvullen_Aan_Uit As Boolean
Public P_ProcCO2Dosering_Aan_Uit As Boolean
Public P_KlokReactor_Aan_Uit As Boolean
Public P_KlokCirculatie_Aan_Uit As Boolean

Public P_FolderNames() As String
Public P_AanUit_Tijden(28) As String


Public Event DataReceived As IO.Ports.SerialDataReceivedEventHandler


Private Sub Form1_Load(ByVal sender As System.Object,
               ByVal e As System.EventArgs) Handles MyBase.Load


    SerialPort1.PortName = "COM3"
    SerialPort1.BaudRate = 9600
    SerialPort1.Parity = IO.Ports.Parity.None
    SerialPort1.DataBits = 8
    SerialPort1.StopBits = IO.Ports.StopBits.One
    SerialPort1.Handshake = IO.Ports.Handshake.None
    SerialPort1.RtsEnable = True



    If Not SerialPort1.IsOpen Then
        SerialPort1.Open()
    End If
    P_Klok830l_Aan_Uit = True
    P_Klok830r_Aan_Uit = True
    P_Klok840l_Aan_Uit = True
    P_Klok840r_Aan_Uit = True
    P_Klok865l_Aan_Uit = True
    P_Klok865r_Aan_Uit = True
    P_Kloknacht_Aan_Uit = True
    P_ProcVerwarming_Aan_Uit = True
    P_ProcKoeling_Aan_Uit = False
    P_ProcBijvullen_Aan_Uit = True
    P_ProcCO2Dosering_Aan_Uit = True
    P_KlokReactor_Aan_Uit = True
    P_KlokCirculatie_Aan_Uit = True
    P_KlokledspotLinks_Aan_Uit = True
    P_KlokledspotRechts_Aan_Uit = True

    'Read the 28 On & Off times
    F_ReadAMSFolders()


End Sub

Private Sub SerialPort1_DataReceived(ByVal sender As System.Object,
 ByVal e As System.IO.Ports.SerialDataReceivedEventArgs) _
  Handles SerialPort1.DataReceived
    Dim inputData = SerialPort1.ReadLine
    Me.Invoke(New Action(Of String)(AddressOf DoUpdate), inputData)
End Sub


Private Sub DoUpdate(inputData As String)
    Dim values() As String = inputData.Split(":")
    TextBox3.Text = values(1)                  'Geleidbaarheid
    tb_temperatuur.Text = values(2)            'Temperatuur
    tb_pH.Text = values(3)                     'Zuurgraad
    TextBox4.Text = values(4)                  'Bijvullen
End Sub

Private Sub Timer1_Tick(sender As Object, e As EventArgs) Handles Timer1.Tick

    Actueletijd.Text = DateTime.Now.ToLongTimeString

    If P_ProcBijvullen_Aan_Uit = True Then
        If TextBox4.Text = "1" Then
            SerialPort1.Write("Q")
            tb_bijvullen.BackColor = Color.Aqua
            TextBox4.BackColor = Color.LightBlue
            tb_OL5.BackColor = Color.Red
        Else
            'TextBox4.Text = "0"
            SerialPort1.Write("q")
            tb_bijvullen.BackColor = Color.LightGreen
            TextBox4.BackColor = Color.LightGreen
            tb_OL5.BackColor = Color.LightGreen
        End If
    End If



    If P_ProcVerwarming_Aan_Uit = True Then
        If tb_temperatuur.Text <= P_AanUit_Tijden(15) And tb_temperatuur.Text <= P_AanUit_Tijden(16) Then
            SerialPort1.Write("L")
            tb_verwarming.BackColor = Color.Aqua
            tb_OL1.BackColor = Color.Red
        Else
            SerialPort1.Write("l")
            tb_verwarming.BackColor = Color.LightGreen
            tb_OL1.BackColor = Color.LightGreen
        End If
    End If



        If P_ProcKoeling_Aan_Uit = True Then
        If tb_temperatuur.Text >= P_AanUit_Tijden(17) And tb_temperatuur.Text <= P_AanUit_Tijden(18) Then
            SerialPort1.Write("M")
            tb_koeling.BackColor = Color.Aqua
            tb_OL3.BackColor = Color.Red
        Else
            SerialPort1.Write("m")
            tb_koeling.BackColor = Color.LightGreen
            tb_OL3.BackColor = Color.LightGreen
        End If
    End If






    If P_ProcCO2Dosering_Aan_Uit = True Then
        If tb_pH.Text >= P_AanUit_Tijden(19) And tb_pH.Text >= P_AanUit_Tijden(20) And
                 DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(21) Then 'And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(22) Then

            SerialPort1.Write("R")
            tb_co2_dosering.BackColor = Color.Aqua
            tb_B1.BackColor = Color.Red

        Else

            SerialPort1.Write("r")
            tb_co2_dosering.BackColor = Color.LightGreen
            tb_B1.BackColor = Color.LightGreen

        End If
    End If



    If P_Klok830l_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(1) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(2) Then
            SerialPort1.Write("A")
            btn_klok_830_links.BackColor = Color.Yellow
            tb_tl_5_voor.BackColor = Color.Yellow
            tb_B3.BackColor = Color.Red
        Else
            SerialPort1.Write("a")
            tb_tl_5_voor.BackColor = Color.LightBlue
            btn_klok_830_links.BackColor = Color.Yellow
            tb_B3.BackColor = Color.LightGreen
        End If
    End If

    If P_Klok830r_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(3) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(4) Then
            SerialPort1.Write("B")
            btn_klok_830_rechts.BackColor = Color.Yellow
            tb_830_rechts.BackColor = Color.Yellow
            tb_B7.BackColor = Color.Red
        Else
            SerialPort1.Write("b")
            tb_830_rechts.BackColor = Color.LightBlue
            btn_klok_830_rechts.BackColor = Color.Yellow
            tb_B7.BackColor = Color.LightGreen
        End If
    End If

    If P_Klok840l_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(5) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(6) Then
            SerialPort1.Write("C")
            btn_klok_840_links.BackColor = Color.Yellow
            tb_840_links.BackColor = Color.Yellow
            tb_B4.BackColor = Color.Red
        Else
            SerialPort1.Write("c")
            tb_840_links.BackColor = Color.LightBlue
            btn_klok_840_links.BackColor = Color.Yellow
            tb_B4.BackColor = Color.LightGreen
        End If
    End If

    If P_Klok840r_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(7) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(8) Then
            SerialPort1.Write("D")
            btn_klok_840_rechts.BackColor = Color.Yellow
            tb_840_rechts.BackColor = Color.Yellow
            tb_B8.BackColor = Color.Red
        Else
            SerialPort1.Write("d")
            tb_840_rechts.BackColor = Color.LightBlue
            btn_klok_840_rechts.BackColor = Color.Yellow
            tb_B8.BackColor = Color.LightGreen
        End If
    End If

    If P_Klok865l_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(9) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(10) Then
            SerialPort1.Write("E")
            btn_klok_865_links.BackColor = Color.Yellow
            tb_865_links.BackColor = Color.Yellow
            tb_B5.BackColor = Color.Red
        Else
            SerialPort1.Write("e")
            tb_865_links.BackColor = Color.LightBlue
            btn_klok_865_links.BackColor = Color.Yellow
            tb_B5.BackColor = Color.LightGreen
        End If
    End If

    If P_Klok865r_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(11) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(12) Then
            SerialPort1.Write("F")
            btn_klok_865_rechts.BackColor = Color.Yellow
            tb_865_rechts.BackColor = Color.Yellow
            tb_B9.BackColor = Color.Red
        Else
            SerialPort1.Write("f")
            tb_865_rechts.BackColor = Color.LightBlue
            btn_klok_865_rechts.BackColor = Color.Yellow
            tb_B9.BackColor = Color.LightGreen
        End If
    End If

    If P_Kloknacht_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(13) And DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(14) Then
            SerialPort1.Write("g")
            btn_klok_nachtverlichting.BackColor = Color.Yellow
            tb_nachtverlichting.BackColor = Color.LightBlue
            tb_B6.BackColor = Color.LightGreen
        Else
            SerialPort1.Write("G")
            tb_nachtverlichting.BackColor = Color.Yellow
            btn_klok_nachtverlichting.BackColor = Color.Yellow
            tb_B6.BackColor = Color.Red
        End If
    End If

    If P_KlokReactor_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(21) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(22) Then
            SerialPort1.Write("U")
            btn_klok_reactor.BackColor = Color.Yellow
            tb_co2_reactor.BackColor = Color.Yellow
            tb_OL6.BackColor = Color.Red
        Else
            SerialPort1.Write("u")
            tb_co2_reactor.BackColor = Color.LightBlue
            btn_klok_reactor.BackColor = Color.Yellow
            tb_OL6.BackColor = Color.LightGreen
        End If
    End If

    If P_KlokCirculatie_Aan_Uit = True Then

        P_KlokCirculatie_Aan_Uit = True
        tb_L2.BackColor = Color.LightGreen
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(23) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(24) Then
            SerialPort1.Write("Z")
            btn_klok_circulatie.BackColor = Color.Yellow
            tb_circulatie.BackColor = Color.Yellow
            tb_L2.BackColor = Color.Red
        Else
            SerialPort1.Write("z")
            tb_circulatie.BackColor = Color.LightBlue
            btn_klok_circulatie.BackColor = Color.Yellow
            tb_L2.BackColor = Color.LightGreen
        End If
    End If



    If P_KlokledspotLinks_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(25) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(26) Then
            SerialPort1.Write("V")
            btn_klok_ledspot_links.BackColor = Color.Yellow
            tb_ledspot_links.BackColor = Color.Yellow
            tb_O2.BackColor = Color.Red
        Else
            SerialPort1.Write("v")
            tb_ledspot_links.BackColor = Color.LightBlue
            btn_klok_ledspot_links.BackColor = Color.Yellow
            tb_O2.BackColor = Color.LightGreen
        End If
    End If


    If P_KlokledspotRechts_Aan_Uit = True Then
        If DateTime.Now.ToLongTimeString >= P_AanUit_Tijden(27) And DateTime.Now.ToLongTimeString <= P_AanUit_Tijden(28) Then
            SerialPort1.Write("W")
            btn_klok_ledspot_rechts.BackColor = Color.Yellow
            tb_ledspot_rechts.BackColor = Color.Yellow
            tb_R5.BackColor = Color.Red
        Else
            SerialPort1.Write("w")
            tb_ledspot_rechts.BackColor = Color.LightBlue
            btn_klok_ledspot_rechts.BackColor = Color.Yellow
            tb_R5.BackColor = Color.LightGreen
        End If
    End If

End Sub

Private Sub btn_klok_830_links_Click(sender As Object, e As EventArgs) Handles btn_klok_830_links.Click
    If P_Klok830l_Aan_Uit = False Then
        P_Klok830l_Aan_Uit = True
        btn_klok_830_links.BackColor = Color.Yellow
    Else
        P_Klok830l_Aan_Uit = False
        btn_klok_830_links.BackColor = Color.Lime
        tb_tl_5_voor.BackColor = Color.Lime
    End If
End Sub

Private Sub btn_klok_830_rechts_Click(sender As Object, e As EventArgs) Handles btn_klok_830_rechts.Click
    If P_Klok830r_Aan_Uit = False Then
        P_Klok830r_Aan_Uit = True
        btn_klok_830_rechts.BackColor = Color.Yellow
    Else
        P_Klok830r_Aan_Uit = False
        btn_klok_830_rechts.BackColor = Color.Lime
        tb_830_rechts.BackColor = Color.Lime
    End If
End Sub

Private Sub btn_klok_840_links_Click(sender As Object, e As EventArgs) Handles btn_klok_840_links.Click
    If P_Klok840l_Aan_Uit = False Then
        P_Klok840l_Aan_Uit = True
        btn_klok_840_links.BackColor = Color.Yellow
    Else
        P_Klok840l_Aan_Uit = False
        btn_klok_840_links.BackColor = Color.Lime
        tb_840_links.BackColor = Color.Lime
    End If
End Sub

Private Sub btn_klok_840_rechts_Click(sender As Object, e As EventArgs) Handles btn_klok_840_rechts.Click

    If P_Klok840r_Aan_Uit = False Then
        P_Klok840r_Aan_Uit = True
        btn_klok_840_rechts.BackColor = Color.Yellow
    Else
        P_Klok840r_Aan_Uit = False
        btn_klok_840_rechts.BackColor = Color.Lime
        tb_840_rechts.BackColor = Color.Lime
    End If
End Sub

Private Sub btn_klok_865_links_Click(sender As Object, e As EventArgs) Handles btn_klok_865_links.Click
    If P_Klok865l_Aan_Uit = False Then
        P_Klok865l_Aan_Uit = True
        btn_klok_865_links.BackColor = Color.Yellow
    Else
        P_Klok865l_Aan_Uit = False
        btn_klok_865_links.BackColor = Color.Lime
        tb_865_links.BackColor = Color.Lime
    End If
End Sub

Private Sub btn_klok_865_rechts_Click(sender As Object, e As EventArgs) Handles btn_klok_865_rechts.Click
    If P_Klok865r_Aan_Uit = False Then
        P_Klok865r_Aan_Uit = True
        btn_klok_865_rechts.BackColor = Color.Yellow
    Else
        P_Klok865r_Aan_Uit = False
        btn_klok_865_rechts.BackColor = Color.Lime
        tb_865_rechts.BackColor = Color.Lime
    End If
End Sub

Private Sub btn_klok_nachtverlichting_Click(sender As Object, e As EventArgs) Handles btn_klok_nachtverlichting.Click
    If P_Kloknacht_Aan_Uit = False Then
        P_Kloknacht_Aan_Uit = True
        btn_klok_nachtverlichting.BackColor = Color.Yellow
    Else
        P_Kloknacht_Aan_Uit = False
        btn_klok_nachtverlichting.BackColor = Color.Lime
        tb_nachtverlichting.BackColor = Color.Lime
    End If
End Sub

Private Sub btn_klok_ledspot_links_Click(sender As Object, e As EventArgs) Handles btn_klok_ledspot_links.Click
    If P_KlokledspotLinks_Aan_Uit = False Then
        P_KlokledspotLinks_Aan_Uit = True
        btn_klok_ledspot_links.BackColor = Color.Yellow
    Else
        P_KlokledspotLinks_Aan_Uit = False
        btn_klok_ledspot_links.BackColor = Color.Lime
        tb_ledspot_links.BackColor = Color.Lime
    End If
End Sub




Function F_MyDocuments_Path() As String
    Dim objFSO As Object
    Dim objShell As Object
    Dim objFolder As Object
    Dim objFolderItem As Object

    Const MY_DOCUMENTS = &H5&

    objFSO = CreateObject("Scripting.FileSystemObject")
    objShell = CreateObject("Shell.Application")
    objFolder = objShell.Namespace(MY_DOCUMENTS)
    objFolderItem = objFolder.Self
    F_MyDocuments_Path = objFolderItem.Path
End Function

Private Sub F_ReadAMSFolders()

    Try
        ' Check if folder "Stan_Tijden" exists
        Dim dirs As String() = Directory.GetDirectories(F_MyDocuments_Path() & "\Stan_Tijden")
        F_ReadLogFiles("Stan_Tijden")

        ' if folder "Stan_Tijden" not exists, create folder "Stan_Tijden"
    Catch e As Exception
        Dim filePath As String
        filePath = System.IO.Path.Combine(
                   My.Computer.FileSystem.SpecialDirectories.MyDocuments, "Stan_Tijden\")

        My.Computer.FileSystem.CreateDirectory(filePath)
        ' Create default .TXT log file in folder "Stan_Tijden" with 28 on off times with 0:00:00 values
        F_SaveOnOffTimes()
    End Try

End Sub

Private Sub F_SaveOnOffTimes()
    'Save the On & Off Times
    Dim filePath As String
    filePath = System.IO.Path.Combine(
               My.Computer.FileSystem.SpecialDirectories.MyDocuments, "Stan_Tijden\")

    My.Computer.FileSystem.CreateDirectory(filePath)
    ' Create .TXT log file in folder "Stan_Tijden"
    F_WriteLogFiles("Stan_Tijden\")
    'Read the 28 On & Off times
    F_ReadAMSFolders()
End Sub

Private Sub F_WriteLogFiles(FolderName As String)
    Dim Y As Integer
    Try
        Dim filePath As String
        filePath = System.IO.Path.Combine(
                   My.Computer.FileSystem.SpecialDirectories.MyDocuments, FolderName, "Stan_Tijden" & ".txt")
        If My.Computer.FileSystem.FileExists(filePath) Then
            FileOpen(168, filePath, OpenMode.Output)

            For Y = 1 To 28
                PrintLine(168, "00:00:00")
            Next
            FileClose(168)

        Else
            System.IO.File.Create(filePath).Dispose()
            FileOpen(168, filePath, OpenMode.Output)

            For Y = 1 To 28
                PrintLine(168, "00:00:00")
            Next
            FileClose(168)
        End If
    Catch fileException As Exception
        Throw fileException
    End Try
End Sub

Function F_ReadLogFiles(FolderName As String) As Boolean

    Dim LogLineAmount As Integer

    Try
        Dim filePath As String
        filePath = System.IO.Path.Combine(
                   My.Computer.FileSystem.SpecialDirectories.MyDocuments, FolderName, "Stan_Tijden" & ".txt")
        If My.Computer.FileSystem.FileExists(filePath) Then
            FileOpen(168, filePath, OpenMode.Input)
            LogLineAmount = 0
            While Not EOF(168)
                LogLineAmount = LogLineAmount + 1
                P_AanUit_Tijden(LogLineAmount) = LineInput(168)
            End While
            FileClose(168)
            F_ReadLogFiles = True
        Else
            My.Computer.FileSystem.WriteAllText(filePath, "", True)

        End If
    Catch fileException As Exception
        MsgBox("Save new reefsystem " & FolderName & " first")
        FileClose(168)
        F_ReadLogFiles = False
        Exit Function
    End Try


End Function

Private Sub Update_btn_Click(sender As Object, e As EventArgs) Handles Update_btn.Click
    'Read the 28 On & Off times
    F_ReadAMSFolders()
End Sub

Private Sub aan_btn_bijvullen_Click(sender As Object, e As EventArgs) Handles aan_btn_bijvullen.Click
    SerialPort1.Write("Q")
    tb_bijvullen.BackColor = Color.LightCoral
    tb_OL5.BackColor = Color.Red
End Sub

Private Sub uit_btn_bijvullen_Click(sender As Object, e As EventArgs) Handles uit_btn_bijvullen.Click
    SerialPort1.Write("q")
    tb_bijvullen.BackColor = Color.LightGreen
    tb_OL5.BackColor = Color.LightGreen
End Sub

Private Sub aan_btn_830_links_Click(sender As Object, e As EventArgs) Handles aan_btn_TL_5_VOOR.Click
    SerialPort1.Write("A")
    tb_tl_5_voor.BackColor = Color.LightCoral
    tb_B3.BackColor = Color.Red
End Sub

Private Sub uit_btn_830_links_Click(sender As Object, e As EventArgs) Handles uit_btn_TL_5_VOOR.Click
    SerialPort1.Write("a")
    tb_tl_5_voor.BackColor = Color.LightGreen
    tb_B3.BackColor = Color.LightGreen
End Sub

Private Sub aan_btn_830_rechts_Click(sender As Object, e As EventArgs) Handles aan_btn_830_rechts.Click
    SerialPort1.Write("B")
    tb_830_rechts.BackColor = Color.LightCoral
    tb_B7.BackColor = Color.Red
End Sub

Private Sub aan_btn_840_links_Click(sender As Object, e As EventArgs) Handles aan_btn_840_links.Click
    SerialPort1.Write("C")
    tb_840_links.BackColor = Color.LightCoral
    tb_B4.BackColor = Color.Red
End Sub

Private Sub aan_btn_840_rechts_Click(sender As Object, e As EventArgs) Handles aan_btn_840_rechts.Click
    SerialPort1.Write("D")
    tb_840_rechts.BackColor = Color.LightCoral
    tb_B8.BackColor = Color.Red
End Sub

Private Sub aan_btn_865_links_Click(sender As Object, e As EventArgs) Handles aan_btn_865_links.Click
    SerialPort1.Write("E")
    tb_865_links.BackColor = Color.LightCoral
    tb_B5.BackColor = Color.Red
End Sub

Private Sub aan_btn_865_rechts_Click(sender As Object, e As EventArgs) Handles aan_btn_865_rechts.Click
    SerialPort1.Write("F")
    tb_865_rechts.BackColor = Color.LightCoral
    tb_B9.BackColor = Color.Red
End Sub

Private Sub aan_bt_nachtverlichting_Click(sender As Object, e As EventArgs) Handles aan_bt_nachtverlichting.Click
    SerialPort1.Write("G")
    tb_nachtverlichting.BackColor = Color.LightCoral
    tb_B6.BackColor = Color.Red
End Sub

Private Sub aan_bt_uv_lamp_Click(sender As Object, e As EventArgs) Handles aan_bt_uv_lamp.Click
    SerialPort1.Write("H")
    tb_uv_lamp.BackColor = Color.LightCoral
    tb_OR1.BackColor = Color.Red
End Sub

Private Sub aan_bt_licht_onder_Click(sender As Object, e As EventArgs) Handles aan_bt_licht_onder.Click
    SerialPort1.Write("I")
    tb_licht_onder.BackColor = Color.LightCoral
    tb_OR4.BackColor = Color.Red
End Sub

Private Sub aan_bt_filter_links_Click(sender As Object, e As EventArgs) Handles aan_bt_filter_links.Click
    SerialPort1.Write("J")
    tb_filter_links.BackColor = Color.LightCoral
    tb_O1.BackColor = Color.Red
End Sub

Private Sub aan_bt_filter_rechts_Click(sender As Object, e As EventArgs) Handles aan_bt_filter_rechts.Click
    SerialPort1.Write("K")
    tb_filter_rechts.BackColor = Color.LightCoral
    tb_O3.BackColor = Color.Red
End Sub

Private Sub aan_bt_verwarming_Click(sender As Object, e As EventArgs) Handles aan_bt_verwarming.Click
    SerialPort1.Write("L")
    tb_verwarming.BackColor = Color.LightCoral
    tb_OL1.BackColor = Color.Red
End Sub

Private Sub aan_bt_koeling_Click(sender As Object, e As EventArgs) Handles aan_bt_koeling.Click
    SerialPort1.Write("M")
    tb_koeling.BackColor = Color.LightCoral
    tb_OL3.BackColor = Color.Red
End Sub

Private Sub uit_btn_830_rechts_Click(sender As Object, e As EventArgs) Handles uit_btn_830_rechts.Click
    SerialPort1.Write("b")
    tb_830_rechts.BackColor = Color.LightGreen
    tb_B7.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_840_links_Click(sender As Object, e As EventArgs) Handles uit_btn_840_links.Click
    SerialPort1.Write("c")
    tb_840_links.BackColor = Color.LightGreen
    tb_B4.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_840_rechts_Click(sender As Object, e As EventArgs) Handles uit_btn_840_rechts.Click
    SerialPort1.Write("d")
    tb_840_rechts.BackColor = Color.LightGreen
    tb_B8.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_865_links_Click(sender As Object, e As EventArgs) Handles uit_btn_865_links.Click
    SerialPort1.Write("e")
    tb_865_links.BackColor = Color.LightGreen
    tb_B5.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_865_rechts_Click(sender As Object, e As EventArgs) Handles uit_btn_865_rechts.Click
    SerialPort1.Write("f")
    tb_865_rechts.BackColor = Color.LightGreen
    tb_B9.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_nachtverlichting_Click(sender As Object, e As EventArgs) Handles uit_btn_nachtverlichting.Click
    SerialPort1.Write("g")
    tb_nachtverlichting.BackColor = Color.LightGreen
    tb_B6.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_uv_lamp_Click(sender As Object, e As EventArgs) Handles uit_btn_uv_lamp.Click
    SerialPort1.Write("h")
    tb_uv_lamp.BackColor = Color.LightGreen
    tb_OR1.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_licht_onder_Click(sender As Object, e As EventArgs) Handles uit_btn_licht_onder.Click
    SerialPort1.Write("i")
    tb_licht_onder.BackColor = Color.LightGreen
    tb_OR4.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_filter_links_Click(sender As Object, e As EventArgs) Handles uit_btn_filter_links.Click
    SerialPort1.Write("j")
    tb_filter_links.BackColor = Color.LightGreen
    tb_O1.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_filter_rechts_Click(sender As Object, e As EventArgs) Handles uit_btn_filter_rechts.Click
    SerialPort1.Write("k")
    tb_filter_rechts.BackColor = Color.LightGreen
    tb_O3.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_verwarming_Click(sender As Object, e As EventArgs) Handles uit_btn_verwarming.Click
    SerialPort1.Write("l")
    tb_verwarming.BackColor = Color.LightGreen
    tb_OL1.BackColor = Color.LightGreen
End Sub

Private Sub uit_btn_koeling_Click(sender As Object, e As EventArgs) Handles uit_btn_koeling.Click
    SerialPort1.Write("m")
    tb_koeling.BackColor = Color.LightGreen
    tb_OL3.BackColor = Color.LightGreen
End Sub

Private Sub aan_btn_ventilator_Click(sender As Object, e As EventArgs) Handles aan_btn_ventilator.Click
    SerialPort1.Write("N")
    tb_ventilator.BackColor = Color.LightCoral
    tb_B2.BackColor = Color.Red
End Sub

Private Sub uit_btn_ventilator_Click(sender As Object, e As EventArgs) Handles uit_btn_ventilator.Click
    SerialPort1.Write("n")
    tb_ventilator.BackColor = Color.LightGreen
    tb_B2.BackColor = Color.LightGreen
End Sub

Private Sub aan_btn_co2_dosering_Click(sender As Object, e As EventArgs) Handles aan_btn_co2_dosering.Click
    SerialPort1.Write("R")
    tb_co2_dosering.BackColor = Color.LightCoral
    tb_B1.BackColor = Color.Red
End Sub

Private Sub aan_btn_230v_reserve_1_Click(sender As Object, e As EventArgs) Handles aan_btn_230v_reserve_1.Click
    SerialPort1.Write("S")
    tb_230v_reserve1.BackColor = Color.LightCoral
    tb_B10.BackColor = Color.Red
End Sub

Private Sub aan_btn_230v_reserve_2_Click(sender As Object, e As EventArgs) Handles aan_btn_230v_reserve_2.Click
    SerialPort1.Write("T")
    tb_230v_reserve2.BackColor = Color.LightCoral
    tb_B11.BackColor = Color.Red
End Sub


Private Sub aan_btn_ledspot_rechts_Click(sender As Object, e As EventArgs) Handles aan_btn_ledspot_rechts.Click
    SerialPort1.Write("W")
    tb_ledspot_rechts.BackColor = Color.LightCoral
    tb_R5.BackColor = Color.Red
End Sub

Private Sub aan_btn_230v_reserve_5_Click(sender As Object, e As EventArgs) Handles aan_btn_230v_reserve_5.Click
    SerialPort1.Write("X")
    tb_230v_reserve5.BackColor = Color.LightCoral
    tb_OR6.BackColor = Color.Red
End Sub

Private Sub aan_btn_230v_reserve_6_Click(sender As Object, e As EventArgs) Handles aan_btn_230v_reserve_6.Click
    SerialPort1.Write("Y")
    tb_230v_reserve6.BackColor = Color.LightCoral
    tb_OR2.BackColor = Color.Red
End Sub

Private Sub aan_btn_circulatie_Click(sender As Object, e As EventArgs) Handles aan_btn_circulatie.Click
    SerialPort1.Write("Z")
    tb_circulatie.BackColor = Color.LightCoral
    tb_L2.BackColor = Color.Red
End Sub

Private Sub aan_btn_opvoerpomp_Click(sender As Object, e As EventArgs) Handles aan_btn_opvoerpomp.Click
    SerialPort1.Write("O")
    tb_opvoerpomp.BackColor = Color.LightCoral
    tb_L4.BackColor = Color.Red
End Sub

Private Sub aan_btn_bodemverw_rechts_Click(sender As Object, e As EventArgs) Handles aan_btn_bodemverw_rechts.Click
    SerialPort1.Write("P")
    tb_bodemverw_rechts.BackColor = Color.LightCoral
    tb_OR3.BackColor = Color.Red
End Sub

Private Sub aan_btn_co2_reactor_Click(sender As Object, e As EventArgs) Handles aan_btn_co2_reactor.Click
    SerialPort1.Write("U")
    tb_co2_reactor.BackColor = Color.LightCoral
    tb_OL6.BackColor = Color.Red
End Sub

Private Sub uit_btn_opvoerpomp_Click(sender As Object, e As EventArgs) Handles uit_btn_opvoerpomp.Click
    SerialPort1.Write("o")
    tb_opvoerpomp.BackColor = Color.LightG
VB
VB
An object-oriented programming language developed by Microsoft that is implemented on the .NET Framework. Previously known as Visual Basic .NET.
2,828 questions
0 comments

3 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Stan De Smedt 1 Reputation point
    2022-12-07T18:00:07.057+00:00

    sorry, i think i forgot the attachments268334-schermopname-4.png

    0 comments
  2. Stan De Smedt 1 Reputation point
    2022-12-07T18:01:24.22+00:00


    0 comments
  3. Stan De Smedt 1 Reputation point
    2022-12-07T18:02:03.75+00:00


    0 comments

Your answer

Answers can be marked as Accepted Answers by the question author, which helps users to know the answer solved the author's problem.
