WinUI3 : Absolute positionig of UIElement

Question

Hi,

I was trying to achieve absolute positioning in WinUI3 and got to know that the GUI child elements are built relative to the parent element(Page, Grid and etc). So to achieve absolute positioning we have to wrap the UIElement in a canvas and set the a X and Y to the Canvas to do absolute positioning,

But in the application build of large number of UIElement, it would not be the best practice to use 2 UIElement[Canvas and UIElement] for each UIElement. Is there any way where we can achieve absolute positioning without canvas or any kind of wrapper?

Thank You

Answer 1

Hello @Harshithraj1871 ,
Welcome to Microsoft Q&A!

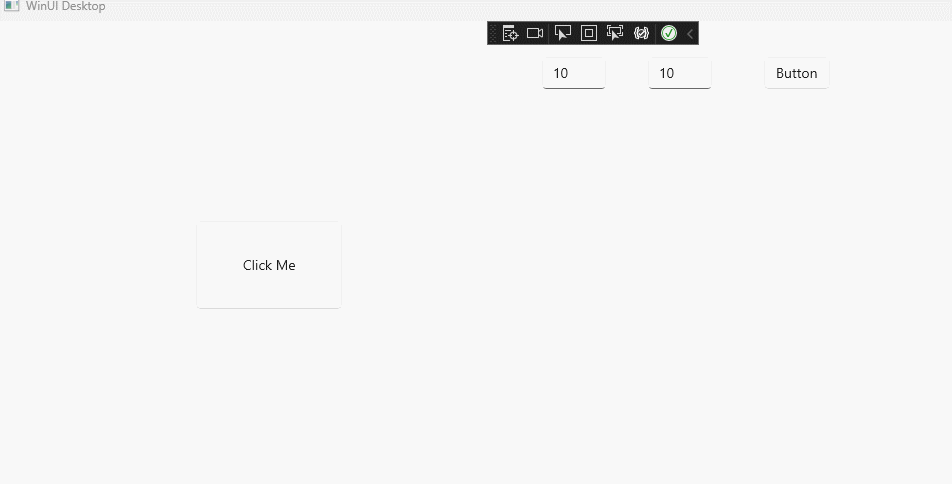

Here is a workaround, using Margin and VerticalAlignment="Top", this can achieve a similar absolute positioning.

Mainwindows.xaml

<Window
   ...
    <Grid x:Name="testGrid">
        <Button x:Name="myButton"  VerticalAlignment="Top" Height="88" Width="146" Margin="200,200,0,0">Click Me</Button>
        <TextBox x:Name="txtBoxX" HorizontalAlignment="Left" Margin="546,36,0,0" TextWrapping="Wrap" Text="TextBox" VerticalAlignment="Top"/>
        <TextBox x:Name="txtBoxY" HorizontalAlignment="Left" Margin="652,36,0,0" TextWrapping="Wrap" Text="TextBox" VerticalAlignment="Top"/>
        <Button Content="Button" Margin="768,36,0,0" VerticalAlignment="Top" Click="Button_Click"/>
    </Grid>
</Window>

Mainwindows.xaml.cs

   private void Button_Click(object sender, RoutedEventArgs e)
    {
        int pointX = int.Parse(txtBoxX.Text);
        int pointY = int.Parse(txtBoxY.Text);
        Thickness thickness = new Thickness();
        thickness.Top = pointX;
        thickness.Left = pointY;
        thickness.Right = 0;
        thickness.Bottom = 0;

        myButton.Margin = thickness;
    }

Thank you.

---
