Recursive CTE tree Up and Down

Question

Hello,

I have a table with two columns id that creates a hierarchy.

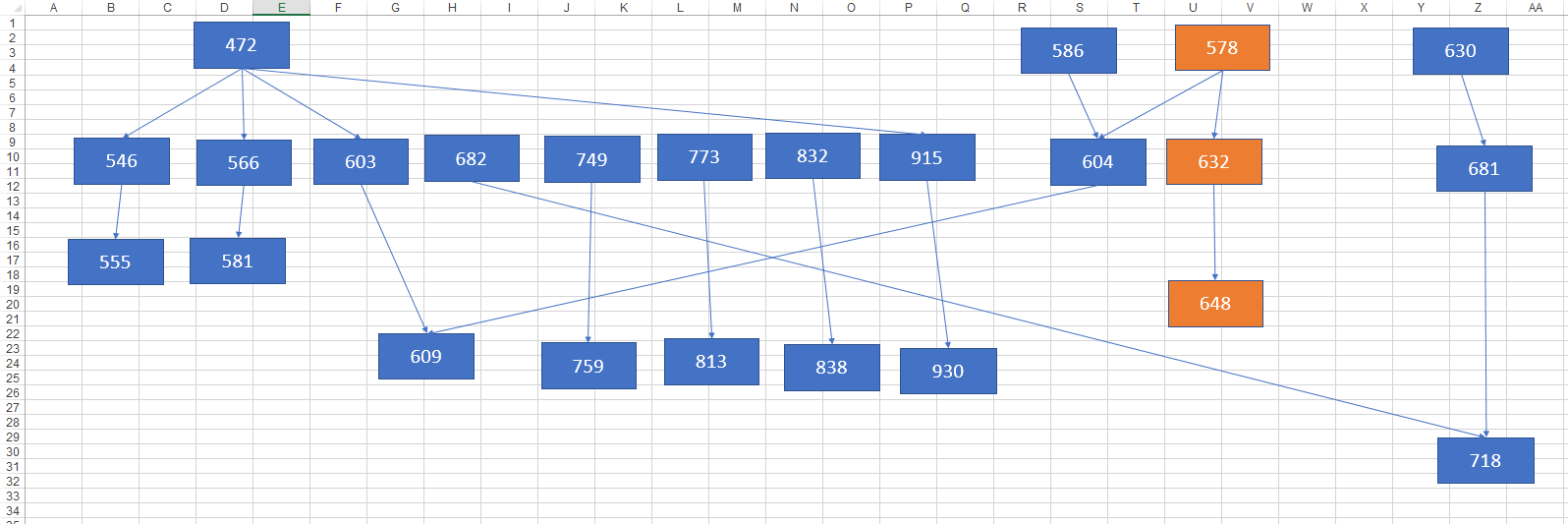

The hierarchy is not a classic tree like manager/employee tree, because in my scenario, a child can have more then one parent and vise versa (As you can see in the following image)

I want to create a table function that gets an ID parameter and returns two columns, one is the ID parameter and second is all the related ID's for all the levels, no meter if it is a parent ID or a child ID until all the Id's that are related to each other have been returned.

(of course in the image It shows only one tree, in my real table I have a lot of trees)

This is my query I created, it almost get the job, the problem is that its not go up all the levels, for example if the Root Id is 11, I will not get id's 24 and 35.

alter   function [dbo].[fn_Tree](
 @ID int
 )
returns table
as


 return(

 with cte
 as
 (

 select
 1 as Lvl
 ,t.Parent
  ,t.Child
 from
 Tbl as t
 where
 t.Parent = @ID


 union all


 select
 c.Lvl + 1 as Lvl
 ,t.Parent
 ,t.Child
 from
 cte as c
 inner join Tbl as t
 on c.Child = t.Parent

 ),
 cte2 as (

 select
 c.Lvl + 1 as Lvl
 ,t.Parent
 ,t.Child
 from
 cte as c
 inner join Tbl as t
 on
 (
 c.Child = t.Child
 and c.Parent <> t.Parent
 )
 )

 select
 c.Lvl
 ,c.Parent
 ,c.Child
 from
 cte as c

 union all

 select
 c.Lvl
 ,c.Parent
 ,c.Child
 from
 cte2 as c

 )

I prefer not to use a loop because of performance reasons (my end goal is to join this function)

Answer 1

Hi @nd0911

If I understand correctly, you can try this query.

create or alter function [dbo].[fn_Tree](@ID int)
returns table
as
return(
  with t1 as(
    select child from tbl where parent = @id
    union all
    select b.child from t1 as a inner join tbl as b
    on b.parent = a.child
  ),t2 as(
    select child from t1
    union all
    select d.parent from t2 as c inner join tbl as d
    on d.child = c.child
  ),t3 as(
    select child from t2
    union all
    select f.child from t3 as e inner join tbl as f
    on f.parent = e.child
  ),t4 as(
    select parent from tbl where child = @id
    union all
    select h.parent from t4 as g inner join tbl as h
    on h.child = g.parent
  ),t5 as(
    select parent from t4
    union all
    select j.child from t5 as i inner join tbl as j
    on j.parent = i.parent
  ),t6 as(
    select parent from t5
    union all
    select l.parent from t6 as k inner join tbl as l
    on l.child = k.parent
  ),t7 as(
    select parent from t6
    union all
    select n.child from t7 as m inner join tbl as n
    on n.parent = m.parent)
  select @id as Root,child as 'Relateds Ids' from t3
  union
  select @id,parent from t7)

Best regards,
Percy Tang

----------

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
Note: Please follow the steps in our Documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

you just join part to child and child to parent

declare @id int = 14;
with p1 as
(
	select parent, child
	from parentchild
	where parent = @id
	union all
	select p2.parent, p2.child
	from parentchild p2
	inner join p1 on p1.child = p2.parent
 ), p3 as
 (
	select child, parent
	from parentchild
	where child = @id
	union all
	select p4.child, p4.parent
	from parentchild p4
	inner join p3 on p3.parent = p4.child
 )
 select @id, child
 from p1
 union
 select @id, parent
 from p3;


Answer 3

can someone please tell me why I cant publish a message ?

I tried to publish 10 times the values for my second scenario and I get a black screen

Answer 4

Hi @nd0911

I have to say that the code I wrote has a certain limitation, that is, it cannot be recursed indefinitely. For the first case you raised, I wrote yesterday's string of code, and the number of recursions in it was enough. But the relationship in your second case is significantly more complicated, and I can only increase the number of recursions in the code to achieve the result you want.

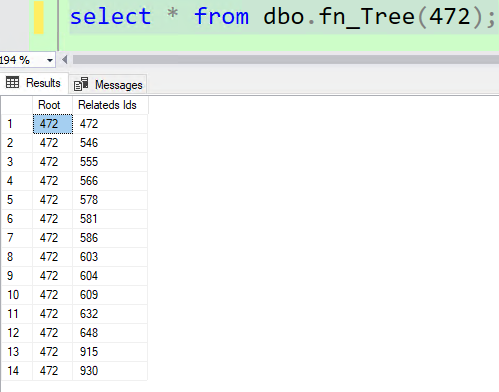

For your second case, you can try the following code.

create or alter function [dbo].[fn_Tree](@ID int)
returns table
as
return(
  with t1 as(
    select child from tbl where parent = @id
    union all
    select b.child from t1 as a inner join tbl as b
    on b.parent = a.child
  ),t2 as(
    select child from t1
    union all
    select d.parent from t2 as c inner join tbl as d
    on d.child = c.child
  ),t3 as(
    select child from t2
    union all
    select f.child from t3 as e inner join tbl as f
    on f.parent = e.child
  ),t4 as(
    select child from t3
    union all
    select h.parent from t4 as g inner join tbl as h
    on h.child = g.child
  ),t5 as(
    select child from t4
    union all
    select j.child from t5 as i inner join tbl as j
    on j.parent = i.child
  ),t6 as(
    select parent from tbl where child = @id
    union all
    select l.parent from t6 as k inner join tbl as l
    on l.child = k.parent
  ),t7 as(
    select parent from t6
    union all
    select n.child from t7 as m inner join tbl as n
    on n.parent = m.parent
  ),t8 as(
    select parent from t7
    union all
    select p.parent from t8 as o inner join tbl as p
    on p.child = o.parent
  ),t9 as(
    select parent from t8
    union all
    select r.child from t9 as q inner join tbl as r
    on r.parent = q.parent
  ),t10 as(
    select parent from t9
    union all
    select t.parent from t10 as s inner join tbl as t
    on t.child = s.parent)
  select @id as Root,child as 'Relateds Ids' from t5
  union
  select @id,parent from t10);

Best regards,
Percy Tang
