Wpf CheckedListBox SelectedIndex in an ICommand

Question

I hope someone can help.
I am trying to follow MVVM principles and using .Net Core C#
I have a need to utilise a CheckedListBox so I am currently utilising the following simple solution:

<ListBox x:Name="PeopleListBox" Grid.Column="1" ItemsSource="{Binding PeopleCollection}" HorizontalContentAlignment="Stretch">
                <ListBox.ItemTemplate>
                <DataTemplate>
                    <CheckBox x:Name="GridColumnVisibilityCheckBox" Content="{Binding FirstName}" HorizontalAlignment="Stretch" IsChecked="{Binding Path=IsSelected, Mode=TwoWay}"/>
                </DataTemplate>
                </ListBox.ItemTemplate>
                </ListBox>

I require a Command when ever an item IsSelected/Checked/Unchecked.
The command would need to have access to the SelectedIndex and whether the item was checked.
I appear to be going round in circles on this with no look and would very much appreciate some assistance, sample code for a solution.

Answer 1

Hi,
to solve your problem you must bind Command of CheckBox to ICommand property in ViewModel and CommandParameter to actual item. See my demo:

<Window x:Class="WpfApp1.Window035"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp035"
        mc:Ignorable="d"
        Title="BigH61-8942_221215" Height="450" Width="800">
  <Window.Resources>
    <local:ViewModel x:Key="vm"/>
  </Window.Resources>
  <Grid DataContext="{StaticResource vm}">
    <Grid.ColumnDefinitions>
      <ColumnDefinition Width="100"/>
      <ColumnDefinition/>
    </Grid.ColumnDefinitions>
    <Grid.RowDefinitions>
      <RowDefinition/>
      <RowDefinition/>
    </Grid.RowDefinitions>
    <ListBox Grid.Column="1" ItemsSource="{Binding PeopleCollection}" HorizontalContentAlignment="Stretch">
      <ListBox.ItemTemplate>
        <DataTemplate>
          <CheckBox Content="{Binding FirstName}" HorizontalAlignment="Stretch"
                    IsChecked="{Binding Path=IsSelected, Mode=TwoWay}"
                    Command="{Binding Source={StaticResource vm}}" CommandParameter="{Binding}"/>
        </DataTemplate>
      </ListBox.ItemTemplate>
    </ListBox>
    <StackPanel Grid.Column="1" Grid.Row="1" DataContext="{Binding LastItem}">
      <Label Content="Last checked / unchecked item"/>
      <Label Content="  FirstName"/>
      <TextBlock Text="{Binding FirstName}"/>
      <Label Content="  IsSelected"/>
      <TextBlock Text="{Binding IsSelected}"/>
    </StackPanel>
  </Grid>
</Window>

and ViewModel:

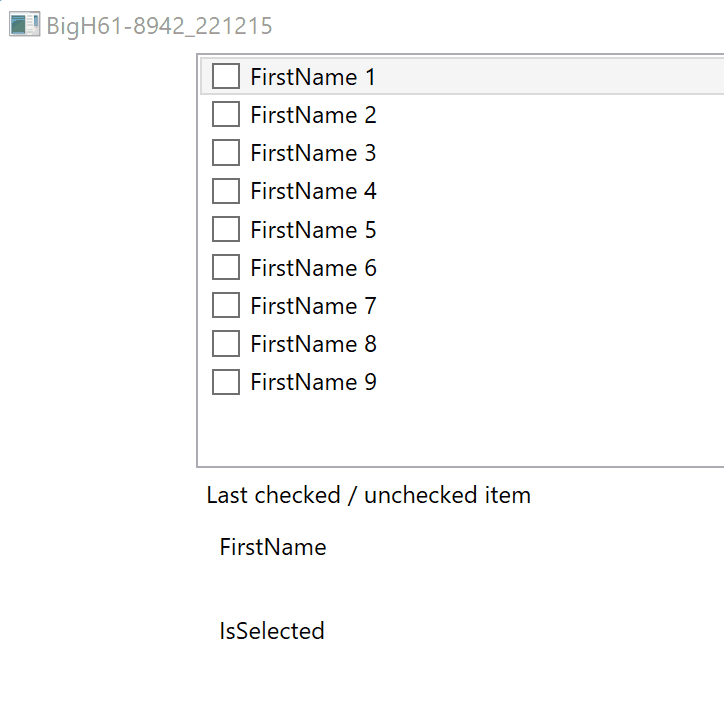

Result:

Answer 2

Hi,
for resetting change your ViewModel:

using System;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Runtime.CompilerServices;
using System.Threading;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Data;
using System.Windows.Input;

namespace WpfApp035
{
 public class ViewModel : ICommand, INotifyPropertyChanged
 {
 private CollectionViewSource cvs = new();
 public ICollectionView PeopleCollection
 {
 get
 {
 if (cvs.Source == null) cvs.Source = LoadData();
 return cvs.View;
 }
 }

 public People? LastItem { get; set; }

 public event EventHandler? CanExecuteChanged;
 public event PropertyChangedEventHandler? PropertyChanged;

#pragma warning disable CS1998, CS4014, CS8602
 public bool CanExecute(object? parameter) => true;
 public async void Execute(object? parameter)
 {
 var item = (parameter == null) ? null : (People)parameter;
 LastItem = item;
 PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(nameof(LastItem)));
 Task.Factory.StartNew(() => ResetIsSelected(item));
 }

 private async void ResetIsSelected(People? p)
 {
 if (p == null) return;
 await Task.Delay(1000);
 p.IsSelected = false;
 p.OnPropertyChanged("IsSelected");
 }

 private ObservableCollection<People> LoadData()
 {
 ObservableCollection<People> col = new();
 for (int i = 1; i < 10; i++) col.Add(new People() { FirstName = $"FirstName {i}" });
 return col;
 }

 public class People : INotifyPropertyChanged
 {
 public string FirstName { get; set; }
 public bool IsSelected { get; set; }

 public event PropertyChangedEventHandler? PropertyChanged;
 internal void OnPropertyChanged([CallerMemberName] string propName = "") =>
 PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName));
 }
 }
}

Result:
