SSRS chart with hint on series results on mouse over graph in "Parameter is not valid"

Question

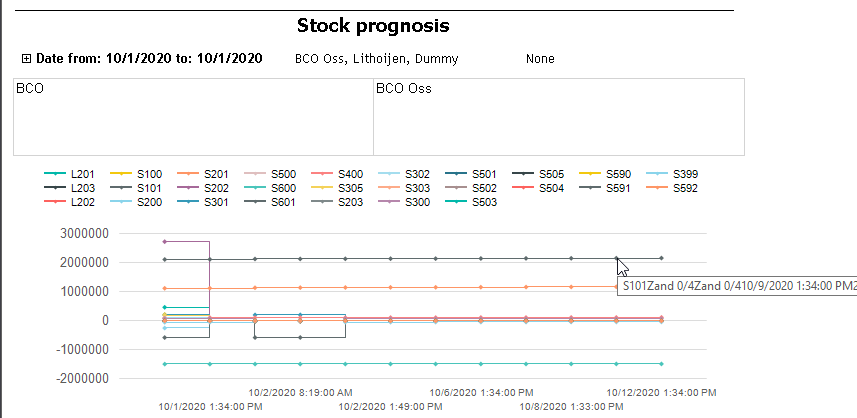

I have a very strange problem when I set the tooltip (hint) in the Series properties of a line that includes Environment.NewLine (in all different formats) and even spaces (" ") and other tekst to the different field values. When I preview the report the graph is shown:

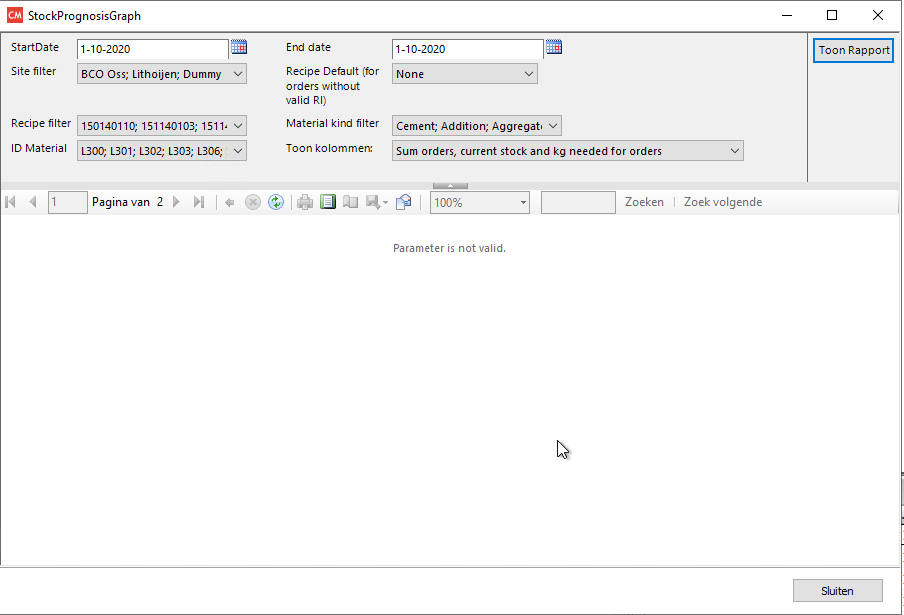

However when I move the mouse over the chart I get an message: "Paramter is not valid":

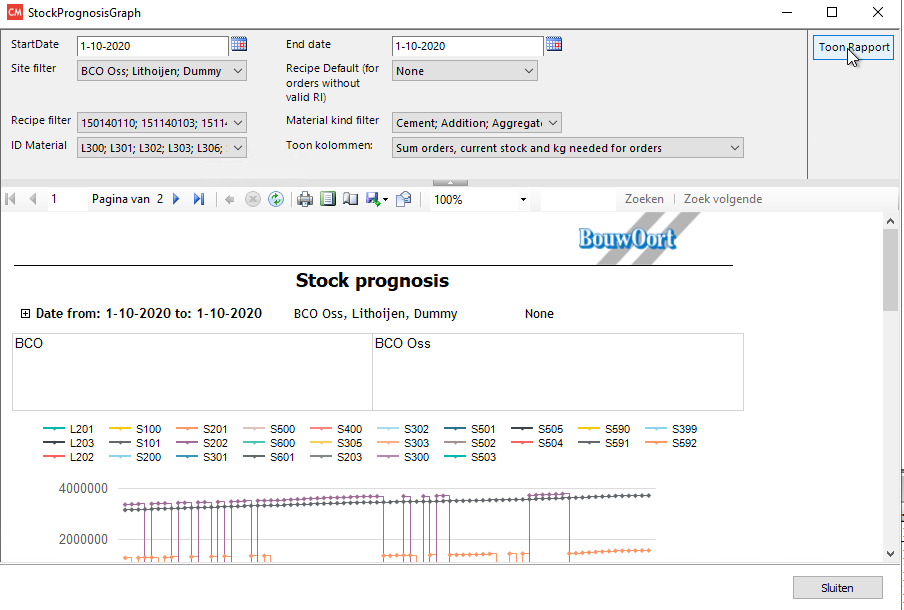

However if i change the tooltip hint to show every field in one line (without dividers) the report and the hint works fine:

I have tried all kinds of dividers and different types of charts... The line series uses =iif(isnothing(Sum(Fields!cumsum_mass.Value)),0,Sum(Fields!cumsum_mass.Value)) expression to show a continuous line per material.

Does anyone have an idea how come?

Answer 1

I changed the chart type to "Line with markers" and now it seems to work with dividers... So my question seems answered!

Answer 2

Hi @Rutger Laarveld ,

Glad to hear that the issue has been solved by yourself.

You may "Accept Answer" so that others who are also troubled with this issue could get an idea.
