WPF DocumentViewer doesn't display images

Question

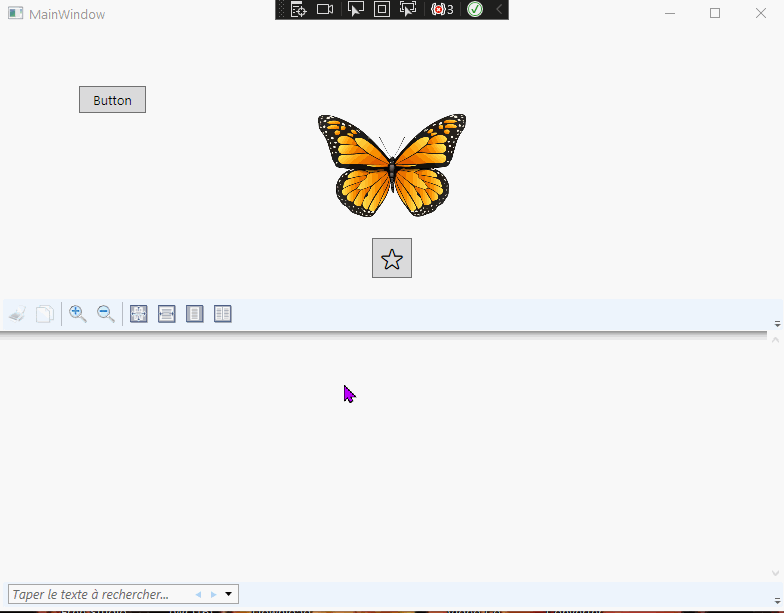

I have an XPS file, originaly created from WPF with 2 controls, one TextBox and one Image.
I can open the XPS file in the Windows Viewer without problem.

When running this code, the image is not displayed, what is wrong?

public partial class MainWindow : Window
{
    public MainWindow()
    {
        InitializeComponent();

        var xps = new XpsDocument("printPreview.xps", FileAccess.Read);
        viewer.Document = xps.GetFixedDocumentSequence();

        xps.Close();
    }
}

<Window x:Class="XpsTest.MainWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:local="clr-namespace:XpsTest"
    mc:Ignorable="d"
    Title="MainWindow" Height="450" Width="800">
    <Grid>
        <DocumentViewer Name="viewer"/>
    </Grid>
</Window>

Git:
https://github.com/yannicklal/XpsTest

Answer 1

There is a KB : KB5022083 Change in how WPF-based applications render XPS documents

Answer 2

reg add "HKLM\SOFTWARE\Microsoft.NETFramework\Windows Presentation Foundation\XPSAllowedTypes" /v "DisableDec2022Patch" /t REG_SZ /d "*" /reg:64

This is de Solution for me

Answer 3

I used the exact same code to test in .NetFramework 4.8 and in .NET6 respectively. It doesn't show pictures in .NetFramework 4.8 and shows pictures in .NET6( .NET5).

Xaml:

<Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
        </Grid.ColumnDefinitions>

        <Grid.RowDefinitions>
            <RowDefinition Height="40"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
        </Grid.RowDefinitions>
        <Button Grid.Row="0" Grid.Column="1"  HorizontalAlignment="Center" Width="80" Click="Button_Click_1">save as xps</Button>
        <FlowDocumentReader Height="150" Width="170" Grid.Column="1" Grid.Row="1">
            <FlowDocument  Name="flowDocument"   ColumnWidth="400" FontSize="14" FontFamily="Georgia">
                <Paragraph>
                    <Grid>
                        <Image Source="C:\Users\Admin\Downloads\WpfApp3\45.jpg" Width="200" Height="300" />
                        <TextBlock Text="Hello World!" HorizontalAlignment="Center" VerticalAlignment="Top"  Foreground="Red" />
                    </Grid>
                </Paragraph>
            </FlowDocument>
        </FlowDocumentReader>
        <Button Grid.Row="0" HorizontalAlignment="Center" Width="80" Click="Button_Click">open xps file</Button>
        <DocumentViewer Name="viewer"  Grid.Row="1"/>
    </Grid>

Codebehind:

274176-xps.txt

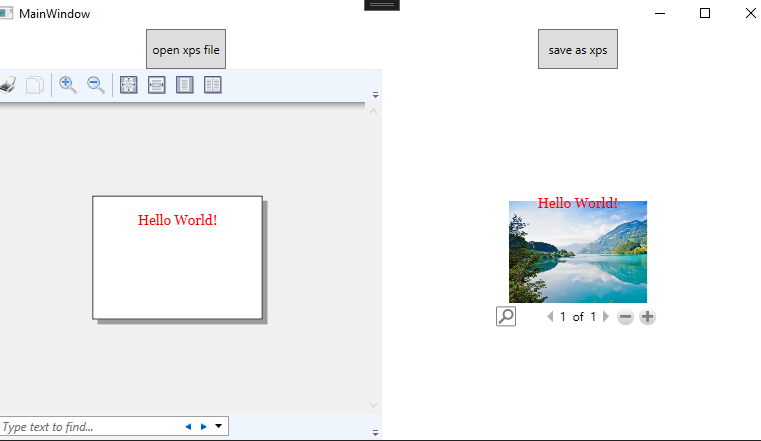

The result in .NetFramework 4.8 :

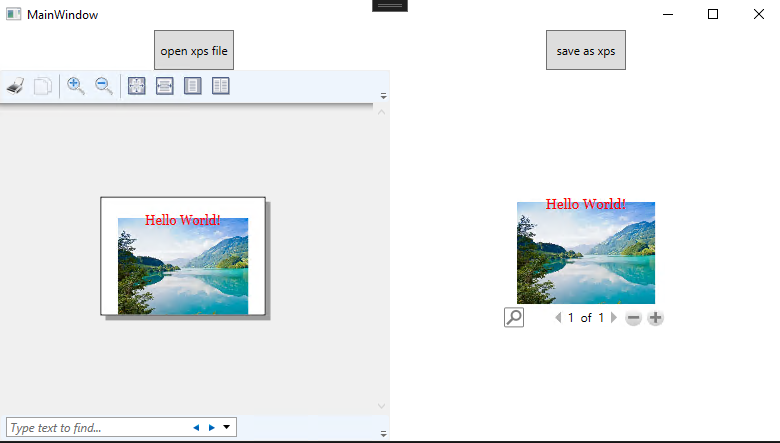

The result in .NET6(.NET5) :

----------------------------------------------------------------------------

If the response is helpful, please click "Accept Answer" and upvote it.
Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 4

Your printPreview.xps file is detected as a virus on my OS (Windows 10 21H1)
But if I force the download and open it in another test project, it works normally with the same code (on Button click to test):

Answer 5

Our software is used to print boreholes in the large mining industry. Today our customers started to ask us about printing error because the images are not displayed. I think something changed in windows and it affects how the XPS Document viewer works.
My OS is W10Pro 21H2.
