How databrick save ml model into Azure Storage Container?

Question

I am trying to use mlflow package in databricks to save the model into Azure Storage.

The Script:

abfss_path='abfss://mlops@dlsgdpeasdev03.dfs.core.windows.net'

project = 'test'

model_version = 'v1.0.1'

model = {model training step}
prefix_model_path = os.path.join(abfss_path, project, model_version)

model_path = prefix_model_path

print(model_path) # abfss://mlops@dlsgdpeasdev03.dfs.core.windows.net/test/v1.0.1

mlflow.sklearn.save_model(model, model_path)

The message is successfully save the model.

When I check the container and file does not exist, but I am able to load model with the same path. That mean the model file saved in databricks somewhere.

I want to know where is the model file in databricks, and how to save the model directly from databricks notebook to Azure Storage.

Thanks

Answer 1

Hello @Benny Lau ,Shui Hong - Group Office ,

Thanks for the ask and welcome to Microsoft Q&A .

As I understand the ask here is to where the model is saved and how you can save to the blob .

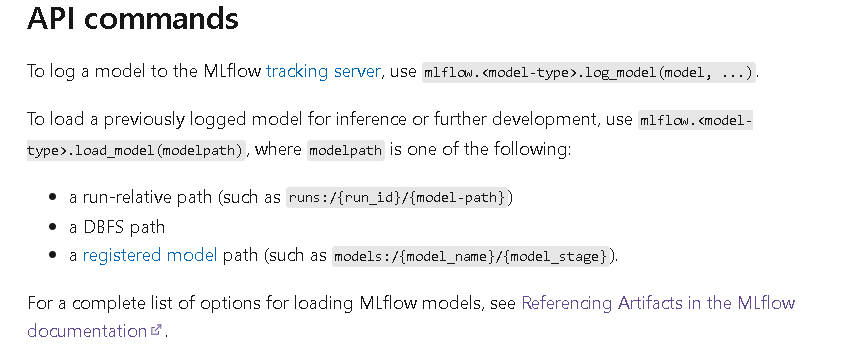

As per the document here : [https://learn.microsoft.com/en-us/azure/databricks/mlflow/models#api-commands

You have three option and I assume that your model file is getting stored in the DBFS on the Azure databricks cluster .

Databricks can save a machine learning model to an Azure Storage Container using the dbutils.fs module. This module provides a set of functions for interacting with the Databricks file system (DBFS) and Azure Blob Storage. Here is an example of how to save a model to an Azure Storage Container:

1. First, you will need to mount the Azure Storage Container to DBFS, this can be done using the dbutils.fs.mount function.

dbutils.fs.mount(
  source='wasbs://<your-container-name>@<your-storage-account-name>.blob.core.windows.net',
  mount_point='/mnt/<your-mount-point>',
  extra_configs={
    "fs.azure.account.auth.type": "OAuth",
    "fs.azure.account.oauth.provider.type": "org.apache.hadoop.fs.azurebfs.oauth2.ClientCredsTokenProvider",
    "fs.azure.account.oauth2.client.id": "<your-client-id>",
    "fs.azure.account.oauth2.client.secret": "<your-client-secret>",
    "fs.azure.account.oauth2.client.endpoint": "https://login.microsoftonline.com/<your-tenant-id>/oauth2/token"
  }
)

1. Once the container is mounted, you can use the dbutils.fs.cp function to copy the model from the local file system to the mount point.

dbutils.fs.cp("path/to/local/model", "/mnt/<your-mount-point>/model")

1. You can also use model.save() method to save the model in the mounted container path

model.save("/mnt/<your-mount-point>/model")

Note: Be sure to replace the placeholders in the above code with the appropriate values for your use case.
