SharePoint JSON formatting - tel: protocol

Question

Hello,

It seems the tel: protocol is now available ([https://learn.microsoft.com/en-us/sharepoint/dev/declarative-customization/column-formatting#create-clickable-actions)

Does anyone have an idea on how to write the correct JSON for this?

My column settings in SharePoint list are for a single line of text as I would like to be able to include special characters and visual separators.

Thanks,

Answer 1

Hi @Volesini Matej ,

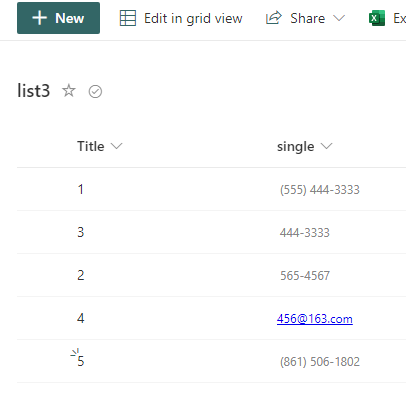

For example, I created a single line of text column, when an e-mail address is entered, I would like the column to display a clickable mailto: link. When a phone number is entered, I would like it to be formatted (000) 000-0000.The display effect is as follows( You can change the JSON according to your specific needs):

You can use following JSON:

{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/column-formatting.schema.json",
  "elmType": "div",
  "children": [
    {
      "elmType": "a",
      "style": {
        "padding-right": "8px",
        "display": "=if(indexOf(@currentField,'@') > -1, 'block','none')"
      },
      "txtContent": "@currentField",
      "attributes": {
        "target": "_blank",
        "href": {
          "operator": "+",
          "operands": [
            "mailto:",
            "@currentField"
          ]
        }
      }
    },
    {
      "elmType": "span",
      "style": {
        "overflow": "hidden",
        "text-overflow": "ellipsis",
        "padding": "0 3px",
        "display": "=if(indexOf(@currentField,'@') > -1, 'none','block')"
      },
      "txtContent": "=if(indexOf(@currentField + '^', '^') == 10,'('+substring(toString(@currentField),0,3)+') '+substring(toString(@currentField),3,6)+'-'+substring(toString(@currentField),6,10),if(indexOf(@currentField + '^', '^') == 7,substring(toString(@currentField),0,3)+'-'+substring(toString(@currentField),3,8),@currentField)",
      "attributes": {
        "class": ""
      }
    }
  ]
}

Reference Link: https://sharepoint.stackexchange.com/questions/303082/json-to-make-a-sharepoint-list-column-accept-a-phone-number-and-or-an-e-mail-add

---
