Azure AD sync fails delta import with status stopped-connectivity

Ulrik Sieverts 20 Reputation points
2023-01-24T16:49:55.7366667+00:00

Just migrated our ADsync to new 2016 server following this guide: https://blog.expta.com/2021/07/how-to-migrate-aad-connect-to-new-server.html

Now with every new synccycle on the new server Im getting this Event ID 6050:

- <Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
- <System>
  <Provider Name="ADSync" />
  <EventID Qualifiers="49152">6050</EventID>
  <Level>2</Level>
  <Task>1</Task>
  <Keywords>0x80000000000000</Keywords>
  <TimeCreated SystemTime="2023-01-24T16:27:34.519869300Z" />
  <EventRecordID>8651</EventRecordID>
  <Channel>Application</Channel>
  <Computer>AzureAdSync.xxxxxxxxxxx.xx</Computer>
  <Security />
  </System>
- <EventData>
  <Data>mydomain.xxx</Data>
  <Data>Delta Import</Data>
  <Data>0</Data>
  <Data>0</Data>
  <Data>0</Data>
  <Data>0</Data>
  <Data>0</Data>
  </EventData>
  </Event>

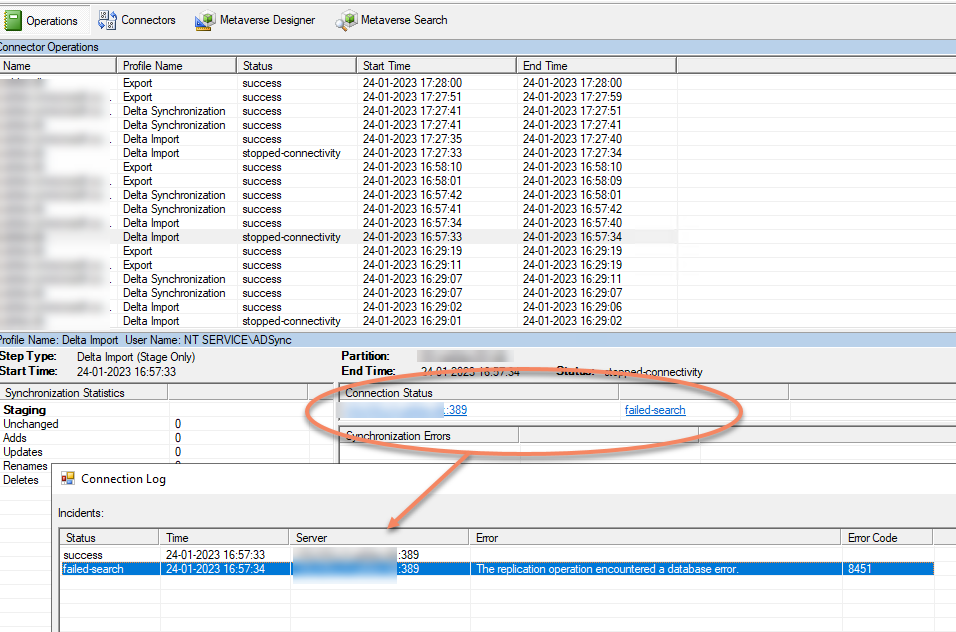

Synchronization Service Manager shows that is is the Delta Import for our-domain that fails with the error 'The replication operation encountered a database error', error code 8451. The delta import for our-domain.onmicrosoft.com ends with succes, as do all the other synchronization tasks:

User's image

Any ideas to what the cause of this might be? I'm a little stumped :(

Regards

/Ulrik

Microsoft Security | Microsoft Entra | Microsoft Entra ID
0 comments No comments
{count} votes

Accepted answer
  1. Andy David - MVP 157.8K Reputation points MVP Volunteer Moderator
    2023-01-25T12:25:35.3433333+00:00

    Do you have multiple DCs? So you can move the PDC role to another server.

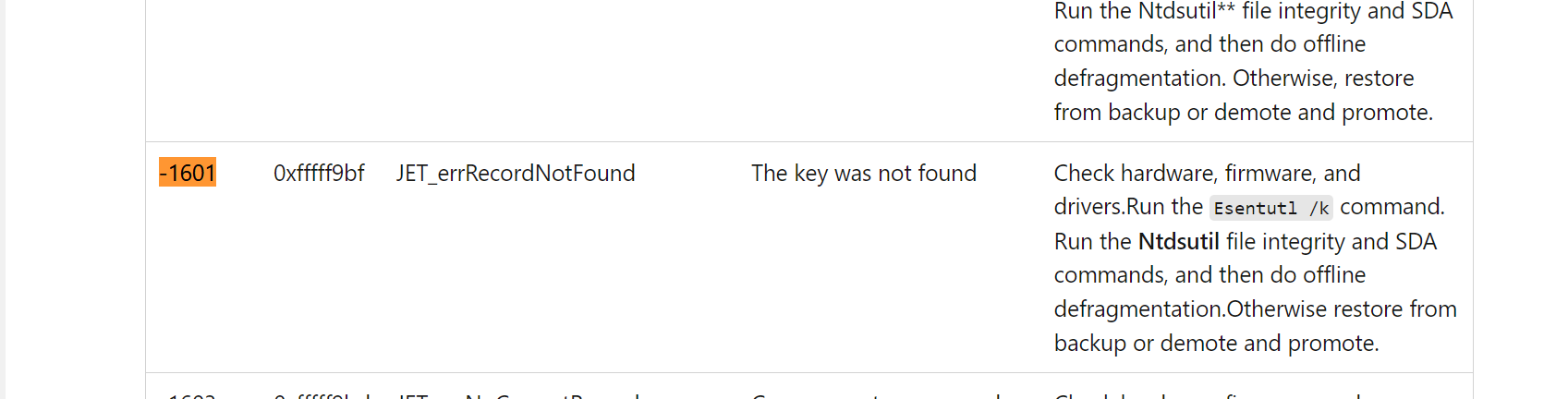

    For that error from the doc above:

    User's image

    0 comments No comments

5 additional answers

Sort by: Most helpful
  1. Andy David - MVP 157.8K Reputation points MVP Volunteer Moderator
    2023-01-24T16:58:29.6833333+00:00

    Are the Domain controllers healthy?

    [https://learn.microsoft.com/en-us/troubleshoot/windows-server/identity/active-directory-replication-error-8451https://learn.microsoft.com/en-us/troubleshoot/windows-server/identity/active-directory-replication-error-8451


  2. Thameur-BOURBITA 36,261 Reputation points Moderator
    2023-01-25T11:55:56.1633333+00:00

    Hi @Ulrik Sieverts

    Check if adconnect server still able to contact the DC mentioned in the adconnect sync console on LDAP port 389:

    Test-NetConnection -Port 389 -ComputerName DC.domainName.lan

    Please don't forget to mark helpful answer as accepted

    0 comments No comments

  3. Ulrik Sieverts 20 Reputation points
    2023-01-25T12:24:35.73+00:00

    Seems my comments are dissapearing? I'll try again:

    Thank you for the answers!

    LDAP connection from the adsyncserver and my pdc is working:

    ComputerName     : DC.mydomain.xxx
    RemoteAddress    : 192.168.255.18
    RemotePort       : 389
    InterfaceAlias   : Ethernet
    SourceAddress    : 192.168.8.227
    TcpTestSucceeded : True



    AD seems healthy. Repadmin and dcdiag shows no errors.

    I have however noticed that I get this error on my PDC with every synchronization attempt:

    - <Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
    - <System>
      <Provider Name="Microsoft-Windows-ActiveDirectory_DomainService" Guid="{0e8478c5-3605-4e8c-8497-1e730c959516}" EventSourceName="NTDS Database" />
      <EventID Qualifiers="49152">1168</EventID>
      <Version>0</Version>
      <Level>2</Level>
      <Task>9</Task>
      <Opcode>0</Opcode>
      <Keywords>0x8080000000000000</Keywords>
      <TimeCreated SystemTime="2023-01-25T10:08:57.839237900Z" />
      <EventRecordID>30786</EventRecordID>
      <Correlation />
      <Execution ProcessID="636" ThreadID="3504" />
      <Channel>Directory Service</Channel>
      <Computer>pdc.mydomain.xxx</Computer>
      <Security UserID="S-1-5-21-3135561391-2215252232-3658666570-29115" />
      </System>
    - <EventData>
      <Data>-1601</Data>
      <Data>fffff9bf</Data>
      <Data>2070ab5</Data>
      <Binary>0A07000000000000A8340000A7000000</Binary>
      </EventData>
      </Event>



    So it seems there is something wrong/corrupt in my NTDS database :-(

    0 comments No comments

  4. Thameur-BOURBITA 36,261 Reputation points Moderator
    2023-01-25T12:55:57.8433333+00:00

    Hi @Ulrik Sieverts ,

    Did you try to specify another DC from connector settings ?

    Please don't forget to mark helpful answer as accepted

    0 comments No comments
