How to connect Logic App to on-premise network via VNET integration?

Question

Hi,

I have used the on-premise data gateway to connect the logic app: consumption plan type to the on premise network. In Logic App, I have used the file system connector as an action.

However, I would like to try out using VNET integration instead of on premise data gateway.

I cannot find the way to do it in a step-by-step description.

Can anyone provide me with the material describing the steps?

Also,

Is that true that we can only achieve this by using Logic app (standard), not using consumption plan?

Lastly,

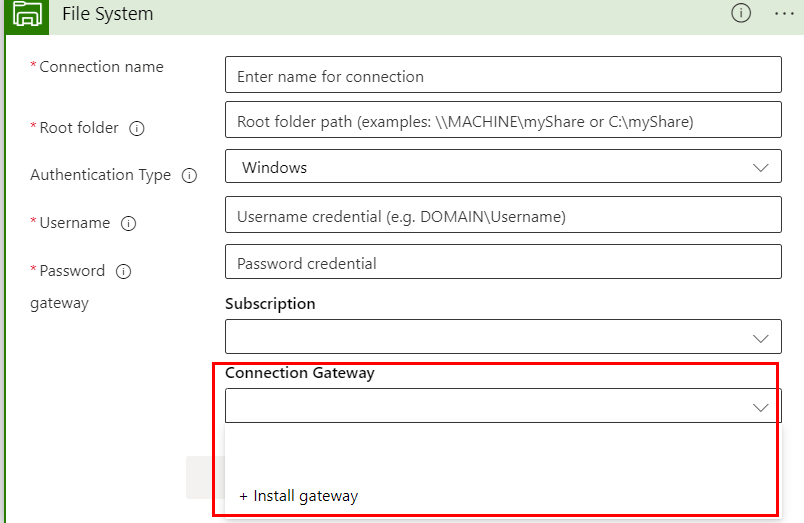

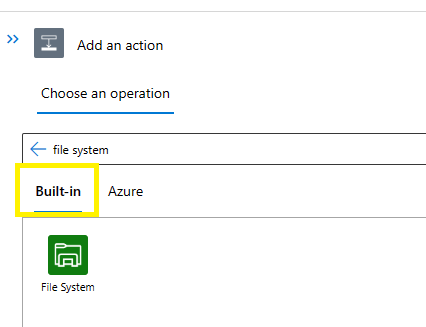

Should I still use the file system connector in logic app if I manage to use VNET integration?

Thank you.

Answer 1

Hi

There is this a walkthrough for that but can be a little high level if you have not set a vpn before:

[https://learn.microsoft.com/en-us/azure/logic-apps/secure-single-tenant-workflow-virtual-network-private-endpoint

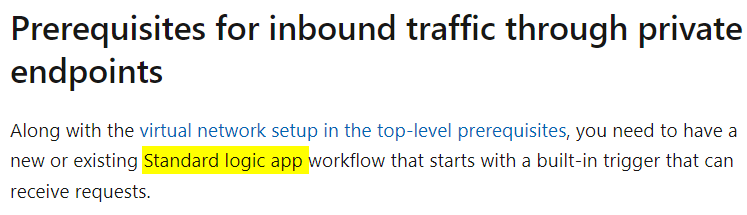

but you can only use this approach on standard.

"Consumption resource type runs in the multi-tenant Azure Logic Apps or integration service environment, while the Standard resource type runs in single-tenant Azure Logic Apps environment."'

Would be complicated to have a vnet on a multi-tenant environment.

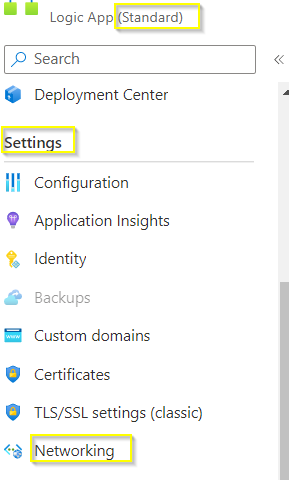

notice the networking option is only available in standard:

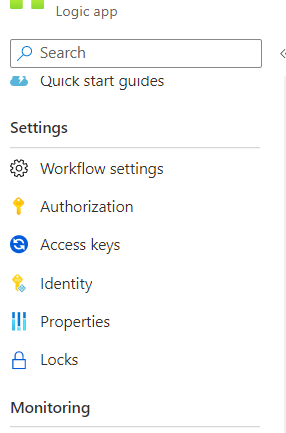

but its not in the consumption:
