Flow of Azure B2C (OpenID) when using a custom Identity Provider to authenticate and then redirect to external client

Question

Hello!

I'm having some problems with the authentication flow from one web application to another web application, where B2C acts as the "middleman" between the two applications allowing for a seamless login (one directional). My scenario is as follows:

I have a web application (1) using a user flow that uses my Custom Identity Provider, this allows me to authenticate into B2C successfully. I then want to use this authenticated session in B2C to allow a second web application (2) to be able to be logged in automatically. I don't want the two applications to be aware of each other, all communication I want is strictly via B2C.

1. User logs into web application 1
2. User clicks a link in web application 1 to initiate the flow with B2C
3. B2C calls my Custom Identity Provider's Authorization endpoint to create the session in B2C
4. A redirect occurs to web application 2 whereby an automatic redirect to B2C's authorization endpoint takes place
5. *** This is where I would expect the code/user details to be returned to web application 2, however, B2C calls my Custom Identity Provider's Authorization endpoint again

A problem I'm having is when web application 2 calls B2C's authorization endpoint to retrieve the B2C's logged in user's details, B2C tries to authenticate with web application 1, even though a session already exists in B2C. I assume this is because both web applications are set to use the same user flow (which is assigned my Custom Identity Provider). I tried setting the second web application to a different user flow (Manual Login), but when attempting to authenticate I get the manual login screen for B2C even though a session already exists.

To confirm, the user flows I used for testing are predefined user flows, I am not using custom policies.

My set-up is a little complicated whereby the scenario assumes there will always be an authenticated session in B2C when it attempts to get the logged in user's details.

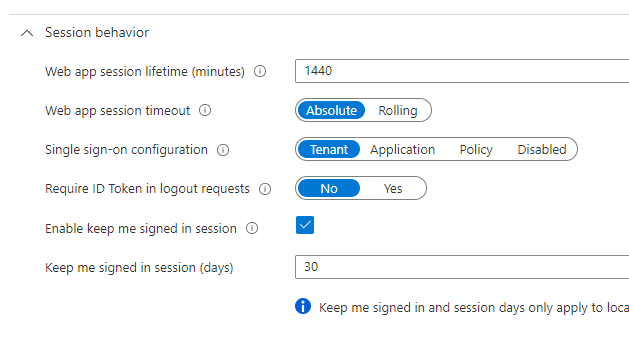

To confirm, I already have "Tenant" selected under the session behaviour of the user flow:

If it seems I am misunderstanding some fundamentals of B2C and my scenario isn't feasible, then please do let me know.

Is there a way to recognise in B2C that a user is already authenticated and therefore no need to reauthenticate with my Custom Identity Provider?

Answer 1

@Matt

As per Federated identity provider session, If there is an active session at Facebook (federated IDP) , the user is not prompted to provide their credentials and is immediately redirected to Azure AD B2C with a Facebook token.

Kindly validate that the application is not using the prompt=login parameter which would invalidate the session.

Please do let me know if you have any further queries in the comments section.

Thanks,

Akshay Kaushik
