How to clear previous layers, point and data in Azure Map

Question

Hi All,

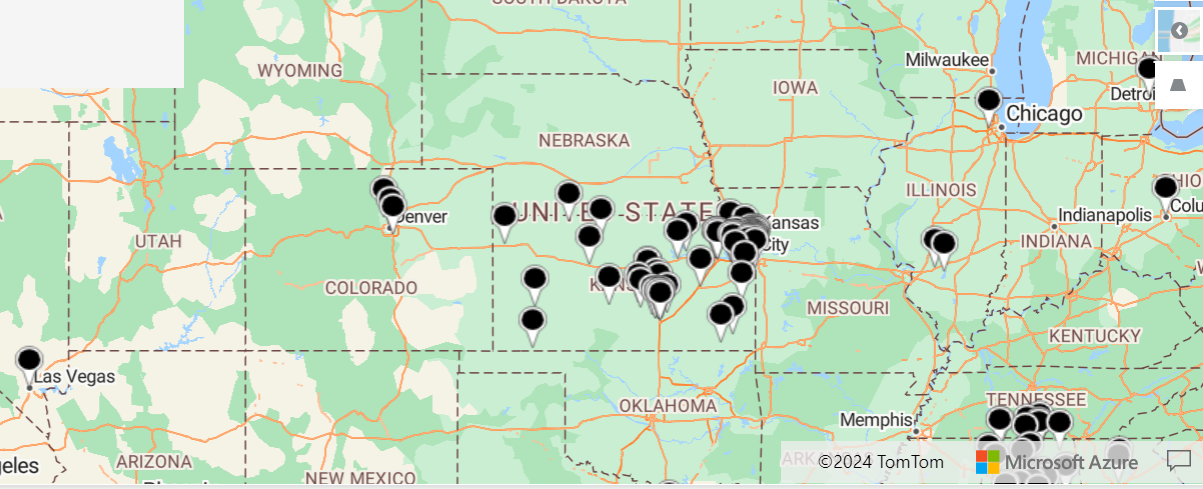

I'm new to Azure Maps. I managed to create the map based on the given date range with (long & lat). The first query brings back say 50 rows and the data are correct. On the second query (short date range and expecting 2 rows), but the map is still showing points and other layers from the first query. How could I fix the problem?
I tried the following in the javascript with no luck

if (null != clusterBubbleLayer) {
        map.layers.remove(clusterBubbleLayer);
    }
    if (null != clusterLayer) {
        map.layers.remove(clusterLayer);
    }
    if (null != timeTextLayer) {
        map.layers.remove(timeTextLayer);
    }

    if (dataSource != undefined && dataSource.shapes.length > 0) {
        dataSource.shapes = [];
    }

any help is much appreciated.

TIA,
Steve

P.S. I'm using ASP.NET c# with javascript front end.

Answer 1

Hello rbrundritt,

I went thru my code again and I was clearing the dataSource in the wrong location.
In my code, I was trying to clear the dataSource in the drawfunction() and I moved it to prior fetching of the data, and it works.

Again, thanks for your help.

Steve

Answer 2

All data is managed by a Source. Your app is most likely using the DataSource class. You can add data to a data source using the add function on this class. Clear all data using the clear function. Overwrite all data (clear+add) all at once using the setShapes function. This last one triggers a single re-render on the map, while calling clear then add would trigger two re-renders.

Rendering layers connect to these, but once connected and configured, should rarely need to be changed.

If you haven't come across it yet, tons of great examples here: https://azuremapscodesamples.azurewebsites.net/
