Word: Issue when creating nested tables in Word2021 from VB.NET

Question

I'm struggling with an issue when trying to create nested tables in word from Inventor iLogic 2022 (basically VB.NET)

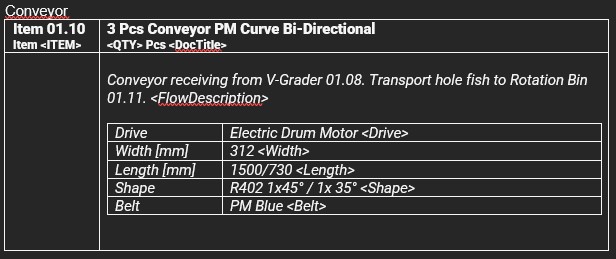

What I'm trying to achieve is something like this:

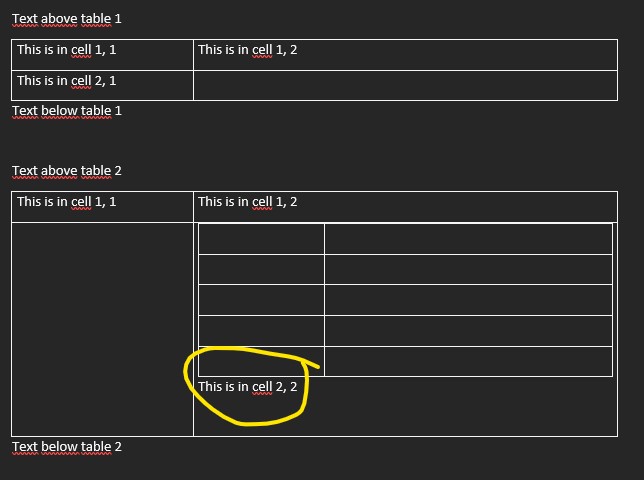

Text, 1. level table and texts in 1. level cells are working as intended. Even inserting a 2. level table into a cell seems to work. The issue arises when I want to include a text and then a table in the same cell (line 16 and 17). No matter what I do I end up with the table on top of the cell and the text below. Like this:

I've posted a simple test code below. I don't quite understand the "Range" object and believe this is why I can't get this to work as I want.

The code needs to be easy to edit by a non-developer, and build the entire word document from "Sub CreateWordContent". The finished document will consist of many different versions of the table in the image above.

Any and all help would be appreciated. I've tried searching the forum, google and ChatGPT, but haven't found the missing piece yet.

Thanks in advance

Sub CreateWordContent()
	Debug("Debug", "CreateWordContent Start")

	InsertTextLf("Text above table 1")
	InsertPrimaryTable(2, 2, 30, 70)
	InsertTextInCell(1, 1, "This is in cell 1, 1")
	InsertTextInCell(1, 2, "This is in cell 1, 2")
	InsertTextInCell(2, 1, "This is in cell 2, 1")
	InsertTextLf("Text below table 1")
	InsertTextLf("")

	InsertTextLf("Text above table 2")
	InsertPrimaryTable(2, 2, 30, 70)
	InsertTextInCell(1, 1, "This is in cell 1, 1")
	InsertTextInCell(1, 2, "This is in cell 1, 2")
	InsertTextInCellLf(2, 2, "This is in cell 2, 2")
	InsertSecondaryTableInCell(2, 2, 5, 2, 30, 68)
	InsertTextLf("Text below table 2")

	Debug("Debug", "CreateWordContent End")
End Sub

Sub InsertTextLf(sText As String)

	oWordDoc.Range.InsertAfter(sText & vbCrLf)

End Sub

Sub InsertPrimaryTable(iRows As Integer, iColumns As Integer, iWidthColumn1 As Integer, iWidthColumn2 As Integer)
	Debug("Debug", "InsertPrimaryTable Start")

	Dim oRange As Microsoft.Office.Interop.Word.Range

	oRange = oWordDoc.Range
	oRange.Collapse(Microsoft.Office.Interop.Word.WdCollapseDirection.wdCollapseEnd)

	oPrimaryTable = oWordDoc.Tables.Add(oRange, iRows, iColumns)

	Dim dPageWidth As Decimal = oWordDoc.PageSetup.PageWidth
	Dim dLeftMargin As Decimal = oWordDoc.PageSetup.LeftMargin
	Dim dRightMargin As Decimal = oWordDoc.PageSetup.RightMargin
	Dim dAvailableWidth As Decimal = dPageWidth - (dLeftMargin + dRightMargin)

	Debug("Debug", "AvailableWidth: " & dAvailableWidth)
	Dim iWidth1Points As Integer = dAvailableWidth * iWidthColumn1 / 100
	Dim iWidth2Points As Integer = dAvailableWidth * iWidthColumn2 / 100

	oPrimaryTable.Columns(1).SetWidth(iWidth1Points, WdRulerStyle.wdAdjustFirstColumn)
	oPrimaryTable.Columns(2).SetWidth(iWidth2Points, WdRulerStyle.wdAdjustFirstColumn)

	oPrimaryTable.Borders.Enable = True

	Debug("Debug", "InsertPrimaryTable End")
End Sub

Sub InsertTextInCellLf(iRows As Integer, iColumns As Integer, sText As String)

	oPrimaryTable.Cell(iRows, iColumns).Range.InsertAfter(sText & vbCrLf)

End Sub

Sub InsertTextInCell(iRows As Integer, iColumns As Integer, sText As String)

	oPrimaryTable.Cell(iRows, iColumns).Range.InsertAfter(sText)

End Sub

Sub InsertSecondaryTableInCell(iCellRow As Integer, iCellColumn As Integer, iRows As Integer, iColumns As Integer, iWidthColumn1 As Integer, iWidthColumn2 As Integer)
	Debug("Debug", "InsertSecondaryTable Start")

	Try
		Dim oRange2 As Microsoft.Office.Interop.Word.Range
		oRange2 = oPrimaryTable.Cell(iCellRow, iCellColumn).Range
		oRange2.Collapse(Microsoft.Office.Interop.Word.WdCollapseDirection.wdCollapseEnd)
		oRange2.MoveEnd(WdUnits.wdCell, -1)

		oSecondaryTable = oWordDoc.Tables.Add(oRange2, iRows, iColumns)

		Dim dCellWidth As Decimal = oPrimaryTable.Cell(iCellRow, iCellColumn).Width

		Debug("Debug", "CellWidth: " & dCellWidth)
		Dim iWidth1Points As Integer = dCellWidth * iWidthColumn1 / 100
		Dim iWidth2Points As Integer = dCellWidth * iWidthColumn2 / 100

		oSecondaryTable.Columns(1).SetWidth(iWidth1Points, WdRulerStyle.wdAdjustFirstColumn)
		oSecondaryTable.Columns(2).SetWidth(iWidth2Points, WdRulerStyle.wdAdjustFirstColumn)

		oSecondaryTable.Borders.Enable = True

	Catch ex As Exception
		Debug("Error", "Error inserting secondary table: " & ex.Message)
	End Try

	Debug("Debug", "InsertSecondaryTable End")
End Sub
