Create a site-to-site VPN connection in the Azure portal

Palamalaiswamy.K 0 Reputation points
2023-02-10T07:08:00.9133333+00:00

Dear Team,

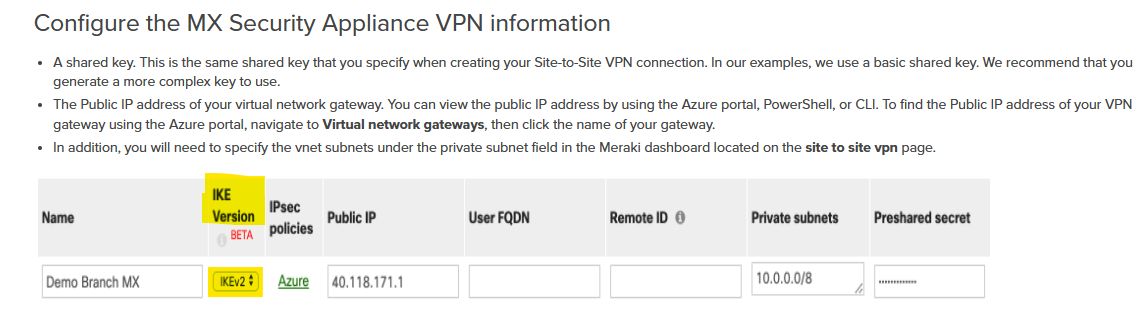

I have established a VPN connection to my meraki firewall

based on the reference link https://learn.microsoft.com/en-us/azure/vpn-gateway/tutorial-site-to-site-portal

But the connection status is showing not connected. P

Azure VPN Gateway
Azure VPN Gateway
An Azure service that enables the connection of on-premises networks to Azure through site-to-site virtual private networks.
1,795 questions
{count} votes

1 answer

Sort by: Most helpful
  1. msrini-MSFT 9,291 Reputation points Microsoft Employee
    2023-02-20T14:51:48.66+00:00

    Hi, From your Cisco device logs, please check if the failure happens on Main mode or quick mode. If it happens on Main mode, it could be due to the pre-shared key misconfig, Main mode policy mismatch, IKE protocol config mismatch etc. If it's failing in quick mode, then check if the traffic selectors are configured correctly. Also, check if quick mode policy matches with what you have configured.

    0 comments No comments
