arrange results in pivot table

Question

arrange results in pivot table

Debilon 431

SQL Version is - Microsoft SQL Server 2019 (RTM-CU16-GDR) (KB5014353) - 15.0.4236.7 (X64) Copyright (C) 2019 Microsoft Corporation Standard Edition (64-bit) on Windows Server 2019 Standard 10.0 <X64> (Build 17763: )
I need to display totals from a rating table and display the results via 5 column pivot table
DDL and sample data

DECLARE @T AS TABLE

(

    id int identity(1,1),

	BName			Varchar (50),

	Adress1			Varchar(50),

    City		    Varchar(10),

	BState			Varchar(2),

	ARatingClass1	Varchar(1),

	ARatingClass2   Varchar(1),

	ARatingClass3   Varchar(1),

	PRatingClass1	Varchar(1),

	PRatingClass2	Varchar(1),

	PRatingClass3	Varchar(1),

	IRatingClass1   Varchar(1),

	IRatingClass2   Varchar(1),

	IRatingClass3   Varchar(1),

	IRatingClass4   Varchar(1),

	IRatingLimited  VarChar(1),

	FloatsLimited   VarChar(1),

	RadioLimited    Varchar(1)



)



INSERT INTO @T VALUES

('Alpha','128 Alpha Street','New York','NY',     'N','Y','N','Y','Y','Y','N','Y','Y','N','Y','N','N'),

('Bravo','126 Bravo Street','Van Nuys','CA',     'Y','N','Y','N','N','n','y','N','N','Y','N','Y','Y'),

('Charlie','124 Charlie Street','Chicago','IL',  'Y','N','Y','N','N','n','y','N','N','N','Y','N','N'),

('Delta','121 Delta Street','Miami','FL',        'N','N','N','N','N','N','N','N','N','N','Y','N','N'),

('Echo','119 Echo Street','Augusta','GA',        'N','N','N','N','N','N','N','N','N','N','Y','Y','Y')

;with mycte as (

select BName,Col,Sum(case when val='Y' then 1 else 0 end) cnt from @t

t

CROSS APPLY (Values

	('ARatingClass1',  ARatingClass1),

	('ARatingClass2',  ARatingClass2),

	('ARatingClass3',  ARatingClass3),

	('PRatingClass1',  PRatingClass1),

	('PRatingClass2',  PRatingClass2),

	('PRatingClass3',  PRatingClass3),

	('IRatingClass1',  IRatingClass1),

	('IRatingClass2',  IRatingClass2),

	('IRatingClass3',  IRatingClass3),

	('IRatingClass4',  IRatingClass4),

	('IRatingLimited', IRatingLimited),

	('FloatsLimited ', FloatsLimited),

	('RadioLimited',   RadioLimited)





	)  d(Col,val)

Group by Col,BName)

,cteUnDesignated as (

select 'UnDesignated' Col, count(distinct BName) cnt

from mycte

group by BName

Having(sum(cnt)=0)

)

,mycteFinal as

(

select Col, Sum(cnt) cnt from mycte

group by Col

UNION ALL

select Col,sum(cnt) cnt from cteUnDesignated

group by Col

)

,myPivot as (

select Col, cnt ,row_number()Over(partition by left(Col,10) Order by Right(Col,1) )

rn from mycteFinal)

Select

max(Case when rn=1 then Col else null end) 'Class 1',

max(Case when rn=1 then cnt else null end) 'Total',

max(Case when rn=2 then Col else null end) 'Class 2',

max(Case when rn=2 then cnt else null end) 'Total',

max(Case when rn=3 then Col else null end) 'Class 3',

max(Case when rn=3 then cnt else null end) 'Total',

max(Case when rn=4 then Col else null end) 'Class 4',

max(Case when rn=4 then cnt else null end) 'Total',

max(Case when rn=5 then Col else null end) 'Limited',

max(Case when rn=5 then cnt else null end) 'Total'

from mypivot

group by left(Col,10)

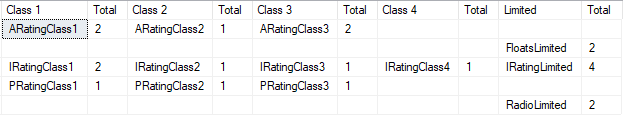

results i'm getting now
Desired Results
All Classes, 1 - 4 under appropriate pivot table columns, per table definition. if a class doesn't exist column remains empty
5.1 if limited class for rating is available limited should follow class 4 (as in IRating Class)
5.2 If Only limited class exist, then class 1- 4 displays nothing (as in Radio Limited & floats limited)
5.3 Null Value should display nothing.
Additional output desired:
A count of all the businesses that has only a single class association.
totals to be displayed by total count of class.

DECLARE @T AS TABLE
    (
        id int identity(1,1),
		BName			Varchar (50),
		Adress1			Varchar(50),
        City		    Varchar(10),
		BState			Varchar(2),
		ARatingClass1	Varchar(1),
		ARatingClass2   Varchar(1),
		ARatingClass3   Varchar(1),
		PRatingClass1	Varchar(1),
		PRatingClass2	Varchar(1),
		PRatingClass3	Varchar(1),
		IRatingClass1   Varchar(1),
		IRatingClass2   Varchar(1),
		IRatingClass3   Varchar(1),
		IRatingClass4   Varchar(1),
		IRatingLimited  VarChar(1),
		FloatsLimited   VarChar(1),
		RadioLimited    Varchar(1)


    )

    INSERT INTO @T VALUES
    ('Alpha','128 Alpha Street','New York','NY',     'N','Y','N','Y','Y','Y','N','Y','Y','N','Y','N','N'),
	('Bravo','126 Bravo Street','Van Nuys','CA',     'Y','N','Y','N','N','n','y','N','N','Y','N','Y','Y'),
	('Charlie','124 Charlie Street','Chicago','IL',  'Y','N','Y','N','N','n','y','N','N','N','Y','N','N'),
	('Delta','121 Delta Street','Miami','FL',        'N','N','N','N','N','N','N','N','N','N','Y','N','N'),
	('Echo','119 Echo Street','Augusta','GA',        'N','N','N','N','N','N','N','N','N','N','Y','Y','Y')


;with mycte as (
select BName,Col,Sum(case when val='Y' then 1 else 0 end) cnt from @t
  t
CROSS APPLY (Values
		('ARatingClass1',  ARatingClass1),
		('ARatingClass2',  ARatingClass2),
		('ARatingClass3',  ARatingClass3),
		('PRatingClass1',  PRatingClass1),
		('PRatingClass2',  PRatingClass2),
		('PRatingClass3',  PRatingClass3),
		('IRatingClass1',  IRatingClass1),
		('IRatingClass2',  IRatingClass2),
		('IRatingClass3',  IRatingClass3),
		('IRatingClass4',  IRatingClass4),
		('IRatingLimited', IRatingLimited),
		('FloatsLimited ', FloatsLimited),
		('RadioLimited',   RadioLimited)


		)  d(Col,val)
Group by Col,BName)
,cteUnDesignated as (
select 'UnDesignated'   Col, count(distinct BName) cnt
from mycte
group by BName
 Having(sum(cnt)=0)
 )

 ,mycteFinal as
 (
 select Col, Sum(cnt) cnt from mycte
  group by Col
 UNION ALL
  select Col,sum(cnt) cnt from cteUnDesignated
 group by Col
 )


,myPivot as (
 select Col, cnt ,row_number()Over(partition by left(Col,10)  Order by Right(Col,1) )
 rn from mycteFinal)

 Select
  max(Case when rn=1 then Col else null end) 'Class 1',
  max(Case when rn=1 then cnt else null end) 'Total',
  max(Case when rn=2 then Col else null end) 'Class 2',
  max(Case when rn=2 then cnt else null end) 'Total',
  max(Case when rn=3 then Col else null end) 'Class 3',
  max(Case when rn=3 then cnt else null end) 'Total',
  max(Case when rn=4 then Col else null end) 'Class 4',
  max(Case when rn=4 then cnt else null end) 'Total',
  max(Case when rn=5 then Col else null end) 'Limited',
  max(Case when rn=5 then cnt else null end) 'Total'
  from mypivot
 group by  left(Col,10)

Answer accepted by question author

0 additional answers

Your answer

Answer 1

LiHongMSFT-4306 31,616

Hi @Debilon

Null Value should display nothing

Use ISNULL function to convert NULL to blank value.

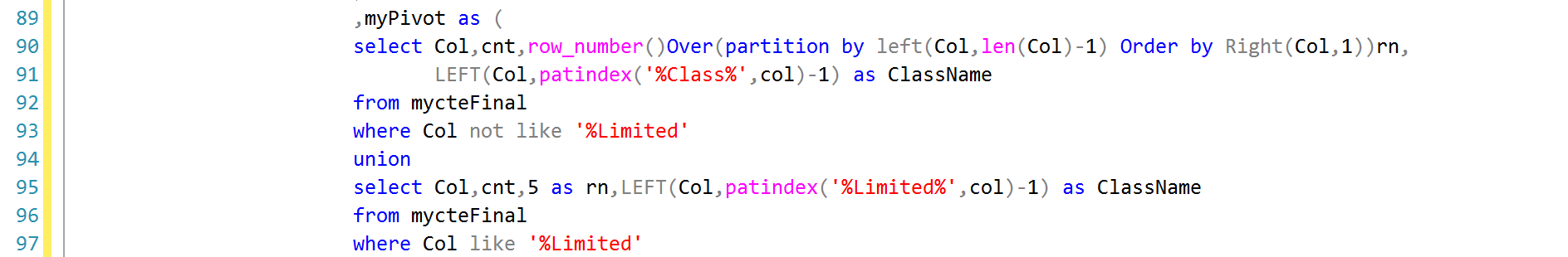

Please check this modified query: code.txt

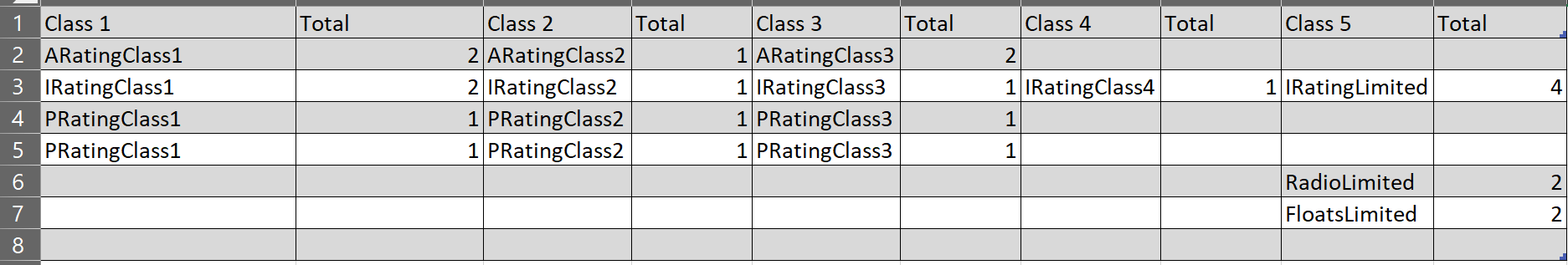

Output:

User's image

Best regards,

Cosmog Hong

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our Documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Debilon 431 Reputation points

2023-02-20T18:06:53.16+00:00

I'm getting an error with the CTE

Msg 537, Level 16, State 2, Line 34

Invalid length parameter passed to the LEFT or SUBSTRING function.

and i guess it comes from here

But i can't figure out why.
Debilon 431 Reputation points

2023-02-20T18:46:45.5466667+00:00

For some reason i am getting an error
Msg 537, Level 16, State 2, Line 34

Invalid length parameter passed to the LEFT or SUBSTRING function.

and i think it comes from this, but can't figure out why.
Naomi Nosonovsky 8,881 Reputation points

2023-02-20T18:54:27.3966667+00:00

Try changing LEFT expression (in both cases) to the following to prevent the error:

LEFT(col, NULIFF(patindex('%Class%',col),0)-1) as ClassName
Debilon 431 Reputation points

2023-02-20T19:40:22.9833333+00:00

NULIFF is not a recognized built in function in server 2019.
You Mean NULLIF ?
Naomi Nosonovsky 8,881 Reputation points

2023-02-20T20:44:54.5266667+00:00

Yes, I meant NULLIF. This is what happens when typing from the top of my head.
