unable to set azure sql dataase connection in logic app trhough ARM

Question

i have created a API connection through ARM template and in Second task i'm calling that API connection to set up sql connection. but it is not working.

API connection is successfully created , in the logic app it not showing up

API connetion ARM template

   resources": [
       {
         "type": "Microsoft.Web/connections",
         "apiVersion": "2016-06-01",
         "location": "centralus",
         "name": "DataBase",
         "properties": {
           "api": {
             "id": "[concat(subscription().Id,'/providers/Microsoft.Web/locations/','centralus','/managedApis/sql')]"
           },
           "displayName": "SQLDataBase",
           "parameterValues": {
             "server": "[parameters('SqlServerr')]",
             "database": "[parameters('database')]",
             "username": "[parameters('username')]",
             "password": "[parameters('password')]"
           }
         }
       }
     ],  "variables": {}

Connetcion in logic app**

"parameters": { "$connections": { "value": { "DataBase": { "connectionId": "[concat(subscription().id,'/resourceGroups/',resourceGroup().id,'/providers/Microsoft.Web/connections/DataBase')]", "connectionName": "DataBase", "id": "[concat(subscription().id,'/providers/Microsoft.Web/locations/centralus/managedApis/sql')]" } } } }

Answer 1

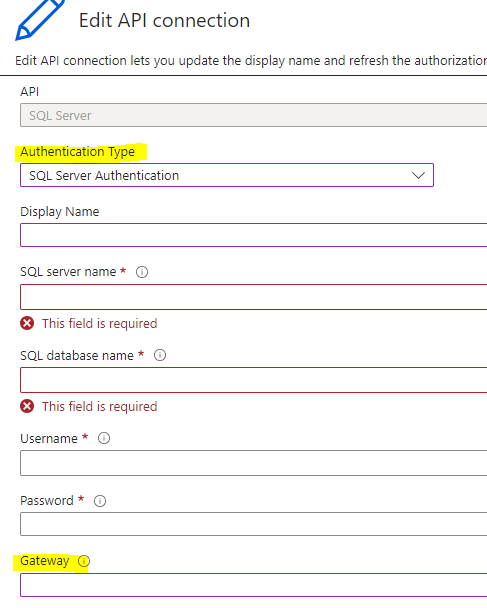

@Josh Thanks for reaching out. Your resource type Microsoft.Web/connections is missing authType value for the SQL connection.

  resources": [
       {
         "type": "Microsoft.Web/connections",
         "apiVersion": "2016-06-01",
         "location": "centralus",
         "name": "DataBase",
         "properties": {
           "api": {
             "id": "[concat(subscription().Id,'/providers/Microsoft.Web/locations/','centralus','/managedApis/sql')]"
           },
           "displayName": "SQLDataBase",
           "parameterValues": {
             "server": "[parameters('SqlServerr')]",
             "database": "[parameters('database')]",
             "username": "[parameters('username')]",
             "password": "[parameters('password')]",
             "authType":"basic"
           }
         }
       }
     ]

Your $connection looks good as below:

{
   "parameters":{
      "$connections":{
         "value":{
            "DataBase":{
               "connectionId":"[concat(subscription().id,'/resourceGroups/',resourceGroup().id,'/providers/Microsoft.Web/connections/DataBase')]",
               "connectionName":"DataBase",
               "id":"[concat(subscription().id,'/providers/Microsoft.Web/locations/centralus/managedApis/sql')]"
            }
         }
      }
   }
}

For your reference sharing the ARM template that creates the SQL connector and logic app with an SQL action. I have tested the same at my end and the connection and logic app was deployed successful and tested the same by executing my workflow.

{
   "$schema":"https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
   "contentVersion":"1.0.0.0",
   "parameters":{
      "connections_sql_name":{
         "defaultValue":"sql",
         "type":"String"
      },
      "workflows_logicappmaktest_name":{
         "defaultValue":"logicappmaktest",
         "type":"String"
      }
   },
   "resources":[
      {
         "type":"Microsoft.Web/connections",
         "apiVersion":"2016-06-01",
         "name":"[parameters('connections_sql_name')]",
         "location":"[resourceGroup().location]",
         "properties":{
            "api":{
               "id":"[concat(subscription().id, '/providers/Microsoft.Web/locations/', [resourceGroup().location], '/managedApis/', 'sql')]"
            },
            "displayName":"[parameters('connections_sql_name')]",
            "customParameterValues":{

            },
            "parameterValues":{
               "server":"servername",
               "database":"databasename",
               "username":"username",
               "password":"password",
               "authType":"basic"
            }
         }
      },
      {
         "type":"Microsoft.Logic/workflows",
         "apiVersion":"2017-07-01",
         "name":"[parameters('workflows_logicappmaktest_name')]",
         "location":"eastus",
         "dependsOn":[
            "[resourceId('Microsoft.Web/connections', parameters('connections_sql_name'))]"
         ],
         "properties":{
            "state":"Enabled",
            "definition":{
               "$schema":"https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
               "contentVersion":"1.0.0.0",
               "parameters":{
                  "$connections":{
                     "defaultValue":{

                     },
                     "type":"Object"
                  }
               },
               "triggers":{
                  "manual":{
                     "type":"Request",
                     "kind":"Http",
                     "inputs":{
                        "schema":{

                        }
                     }
                  }
               },
               "actions":{
                  "Get_rows_(V2)":{
                     "runAfter":{

                     },
                     "type":"ApiConnection",
                     "inputs":{
                        "host":{
                           "connection":{
                              "name":"@parameters('$connections')['sql']['connectionId']"
                           }
                        },
                        "method":"get",
                        "path":"/v2/datasets/@{encodeURIComponent(encodeURIComponent('default'))},@{encodeURIComponent(encodeURIComponent('default'))}/tables/@{encodeURIComponent(encodeURIComponent('[SalesLT].[Address]'))}/items"
                     }
                  }
               },
               "outputs":{

               }
            },
            "parameters":{
               "$connections":{
                  "value":{
                     "sql":{
                        "connectionId":"[resourceId('Microsoft.Web/connections', parameters('connections_sql_name'))]",
                        "connectionName":"sql",
                        "id":"/subscriptions/yoursubscriptionID/providers/Microsoft.Web/locations/eastus/managedApis/sql"
                     }
                  }
               }
            }
         }
      }
   ]
}

Let me know if you need any assistance.
