Thank you for reaching out to us on Q&A platform.
I have performed the same steps in my lab tenant, and I am able to get the expected results.
In my lab I took an example of user account with email "User1@xxxxxxxxxx.onmicrosoft.com"
I transformed this claim and got the output claim as user1@fabrikam.com

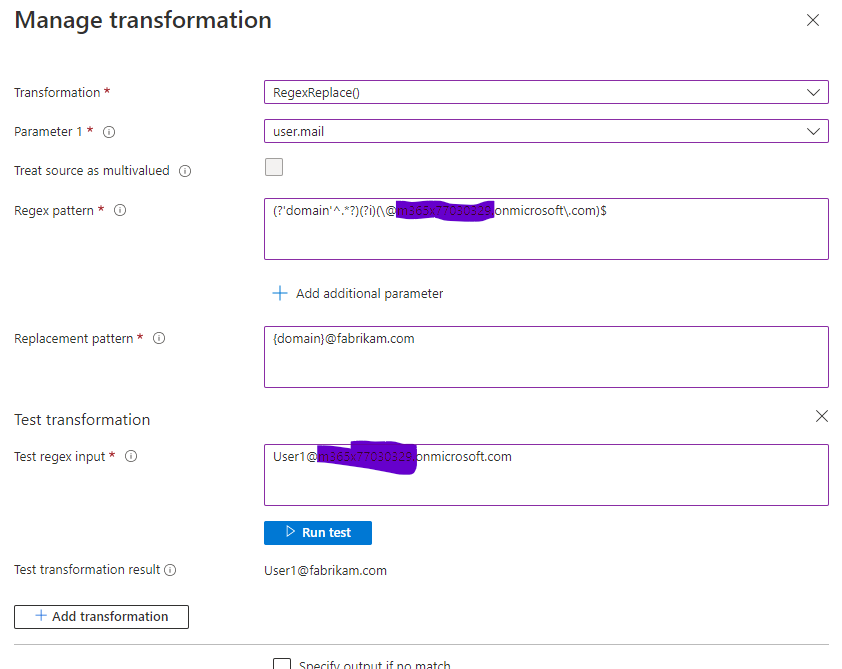

Below is the screenshot with my output result,
In above screen shot you can see that in Regex pattern I have mentioned the value as "(?'domain'^.*?)(?i)(@xxxxxxxxxx.onmicrosoft.com)$", where "xxxxxxxxxx.onmicrosoft.com" is my input domain name.
In my output domain I wanted to get the value as User1@fabrikam.com.
I configured Replacement pattern value as "{domain}@fabrikam.com".
Now as seen in above screenshot I am getting the Test transformation result as "User1@fabrikam.com".
It is working as expected. You can configure the claim values as I did and change domain names as you are expecting them in the output value.
Let me know if you have any further questions.
