How to check the Specific vm is part of Load balancer ?

Question

HI ,

Currently we are having Multiple Vms and Multiple Internal Load balancers .

Now i want to check the specific vm is part of which load balancer?

From LB side , I can check the Backend pool but is there any way to check from vm point of view ?

Can anyone help on this?

Answer 1

Hello @Naveen Neerukattu

Thank you for reaching out to the Microsoft Q&A platform.

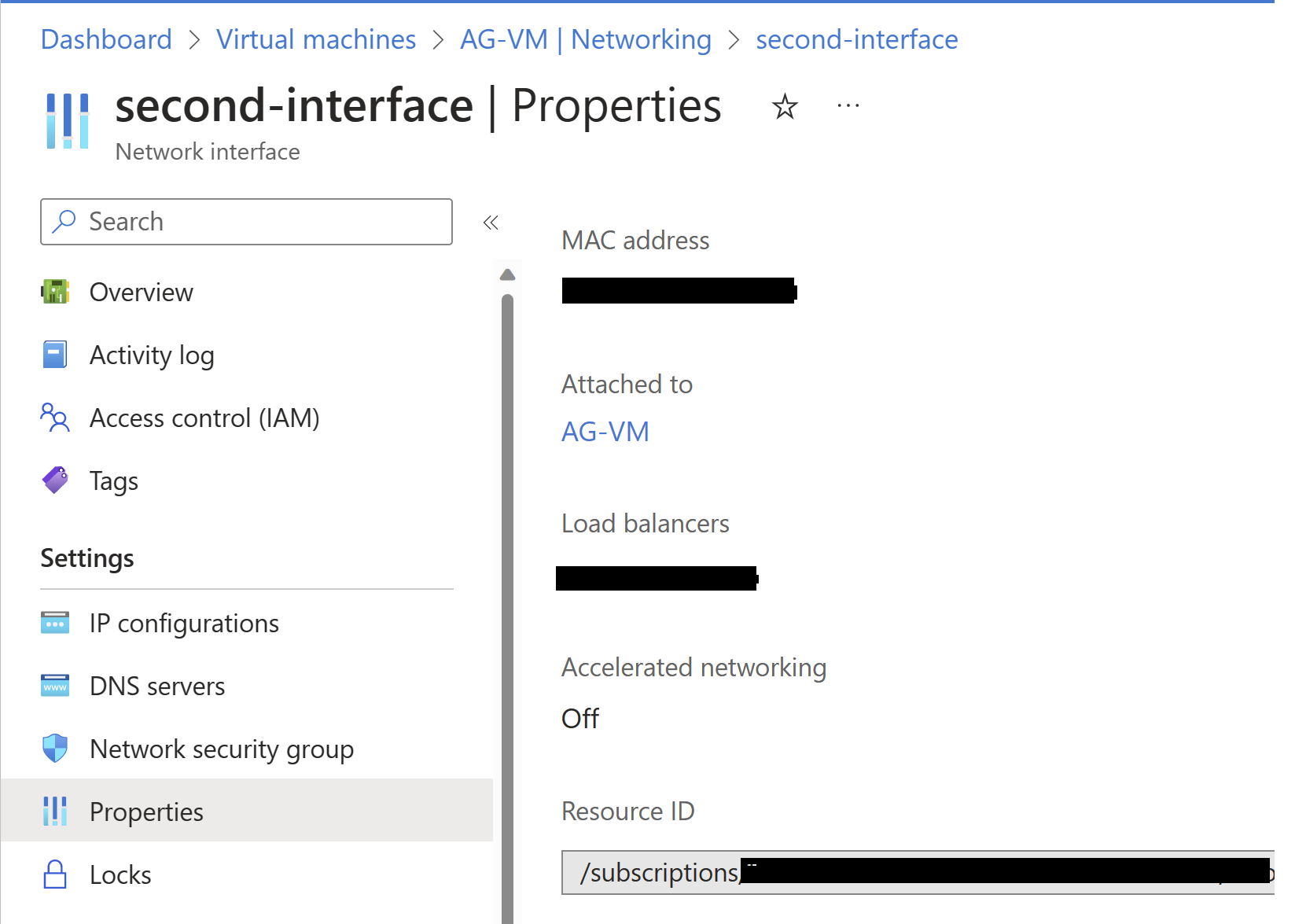

Yes, you can check the load balancer that a virtual machine is part of from the virtual machine's network interface. In the Azure portal, navigate to the virtual machine, select the network interface from networking blade and then view the load balancer that the network interface is associated with from the properties blade of network interface.

You also can use Azure CLI, or Azure PowerShell
In Azure CLI, you can use the following command to view the network interface of a virtual machine:
az network nic show --resource-group <resource-group-name> --name <nic-name>*

---

In Azure PowerShell, you can use the following command to view the network interface of a virtual machine:

Get-AzNetworkInterface -ResourceGroupName <resource-group-name> -Name <nic-name>*
