Draging a Window by the Top Level Menu.

Orlando Gondar 61 Reputation points
2023-03-07T22:03:18.6333333+00:00

Hello I do not know is this is possible, but I create a Window that only have
a Client Area and a Menu Resource.
Is there a way that I can drag a the window by holding the Menu?

I know how to do this on a area of the Window's Client Area, but I wonder if
something similar could be done to a Menu.

Thanks.

Windows API - Win32
Windows API - Win32
A core set of Windows application programming interfaces (APIs) for desktop and server applications. Previously known as Win32 API.
2,488 questions
0 comments No comments
{count} votes

Accepted answer
  1. RLWA32 42,181 Reputation points
    2023-03-08T11:54:57.22+00:00

    Try this -

        case WM_NCHITTEST:
        {
            auto result = DefWindowProc(hWnd, message, wParam, lParam);
            if (result == HTMENU)
            {
                HMENU hBar = GetMenu(hWnd);
                auto x = GET_X_LPARAM(lParam);
                auto y = GET_Y_LPARAM(lParam);
                auto item = MenuItemFromPoint(hWnd, hBar, POINT{ x, y });
                if (item == -1)
                    return HTCAPTION;
                else
                    return result;
            }
            else
                return result;
        }
        break;

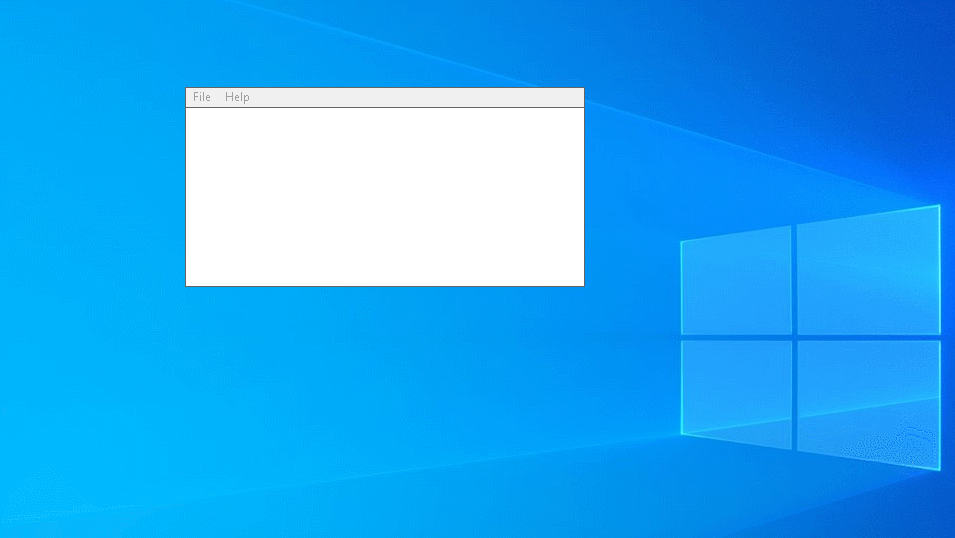

    And these are the results -

    MenuDrag

    2 people found this answer helpful.

1 additional answer

Sort by: Most helpful
  1. Jeanine Zhang-MSFT 9,351 Reputation points Microsoft Vendor
    2023-03-08T02:22:51.1366667+00:00

    Hello,

    Welcome to Microsoft Q&A!

    You could try to use WM_NCHITTEST message. If you want to drag the window by holding the Menu. You could refer to the code:

    case WM_NCHITTEST: {
        LRESULT hit = DefWindowProc(hWnd, message, wParam, lParam);
        if (hit == HTMENU) {
             hit = HTCAPTION;
        }
        return hit;
        break;
    }


    However, this will make interaction with your application very difficult. You couldn't click the File/Help buttons. So, I couldn't advise you to do that.

    Thank you.

    Jeanine
