SQL Server 2022 won't install

Question

Overall summary:
  Final result:                  Failed: see details below
  Exit code (Decimal):           -2068119551
  Exit facility code:            1211
  Exit error code:               1
  Exit message:                  Cannot find registry key 'SOFTWARE\Microsoft\Microsoft SQL Server\160\ConfigurationState'.
  Start time:                    2023-03-08 21:21:41
  End time:                      2023-03-08 21:22:01
  Requested action:              Install
  Exception help link:           https://go.microsoft.com/fwlink?LinkId=20476&ProdName=Microsoft+SQL+Server&EvtSrc=setup.rll&EvtID=50000&ProdVer=16.0.1000.6&EvtType=0xF96176E5%400xD3BEBD98%401211%401&EvtType=0xF96176E5%400xD3BEBD98%401211%401

Setup completed with required actions for features.
Troubleshooting information for those features:
  Next step for SQLEngine:       Use the following information to resolve the error, and then try the setup process again.
  Next step for Writer:          SQL Server Setup was canceled before completing the operation. Try the setup process again.


Machine Properties:
  Machine name:                  ZUHAYRARIF
  Machine processor count:       12
  OS version:                    Microsoft Windows 11 Home Single Language (10.0.22621)
  OS service pack:
  OS region:                     United States
  OS language:                   English (United States)
  OS architecture:               x64
  Process architecture:          64 Bit
  OS clustered:                  No

Product features discovered:
  Product              Instance             Instance ID                    Feature                                  Language             Edition              Version         Clustered  Configured

Package properties:
  Description:                   Microsoft SQL Server 2022
  ProductName:                   SQL Server 2022
  Type:                          RTM
  Version:                       16
  SPLevel:                       0
  Installation location:         C:\SQL2022\Express_ENU\x64\setup\
  Installation edition:          Express

Product Update Status:
  User selected not to include product updates.

Notice: Please read Microsoft SQL Server Software License Terms at aka.ms/useterms.

User Input Settings:
  ACTION:                        Install
  ADDCURRENTUSERASSQLADMIN:      true
  AGTSVCACCOUNT:                 NT AUTHORITY\NETWORK SERVICE
  AGTSVCPASSWORD:                *****
  AGTSVCSTARTUPTYPE:             Disabled
  ASBACKUPDIR:                   Backup
  ASCOLLATION:                   Latin1_General_CI_AS
  ASCONFIGDIR:                   Config
  ASDATADIR:                     Data
  ASLOGDIR:                      Log
  ASPROVIDERMSOLAP:              1
  ASSERVERMODE:                  TABULAR
  ASSVCACCOUNT:                  <empty>
  ASSVCPASSWORD:                 <empty>
  ASSVCSTARTUPTYPE:              Automatic
  ASSYSADMINACCOUNTS:            <empty>
  ASTELSVCACCT:                  <empty>
  ASTELSVCPASSWORD:              <empty>
  ASTELSVCSTARTUPTYPE:           0
  ASTEMPDIR:                     Temp
  AZUREARCPROXYSERVER:           <empty>
  AZUREBILLEDEDITION:
  AZUREREGION:                   <empty>
  AZURERESOURCEGROUP:            <empty>
  AZURESERVICEPRINCIPAL:         <empty>
  AZURESERVICEPRINCIPALSECRET:   <empty>
  AZURESUBSCRIPTIONID:           <empty>
  AZURETENANTID:                 <empty>
  BROWSERSVCSTARTUPTYPE:         Disabled
  CONFIGURATIONFILE:             C:\Program Files\Microsoft SQL Server\160\Setup Bootstrap\Log\20230308_212141\ConfigurationFile.ini
  ENABLERANU:                    true
  ENU:                           true
  EXTSVCACCOUNT:                 <empty>
  EXTSVCPASSWORD:                <empty>
  FEATURES:                      SQLENGINE
  FILESTREAMLEVEL:               0
  FILESTREAMSHARENAME:           <empty>
  FTSVCACCOUNT:                  <empty>
  FTSVCPASSWORD:                 <empty>
  HELP:                          false
  IACCEPTSQLSERVERLICENSETERMS:  true
  IACKNOWLEDGEENTCALLIMITS:      false
  INDICATEPROGRESS:              true
  INSTALLSHAREDDIR:              C:\Program Files\Microsoft SQL Server\
  INSTALLSHAREDWOWDIR:           C:\Program Files (x86)\Microsoft SQL Server\
  INSTALLSQLDATADIR:             <empty>
  INSTANCEDIR:                   C:\Program Files\Microsoft SQL Server
  INSTANCEID:                    SQLEXPRESS
  INSTANCENAME:                  SQLEXPRESS
  ISMASTERSVCACCOUNT:            NT AUTHORITY\Network Service
  ISMASTERSVCPASSWORD:           <empty>
  ISMASTERSVCPORT:               8391
  ISMASTERSVCSSLCERTCN:          <empty>
  ISMASTERSVCSTARTUPTYPE:        Automatic
  ISMASTERSVCTHUMBPRINT:         <empty>
  ISSVCACCOUNT:                  NT AUTHORITY\Network Service
  ISSVCPASSWORD:                 <empty>
  ISSVCSTARTUPTYPE:              Automatic
  ISTELSVCACCT:                  <empty>
  ISTELSVCPASSWORD:              <empty>
  ISTELSVCSTARTUPTYPE:           0
  ISWORKERSVCACCOUNT:            NT AUTHORITY\Network Service
  ISWORKERSVCCERT:               <empty>
  ISWORKERSVCMASTER:             <empty>
  ISWORKERSVCPASSWORD:           <empty>
  ISWORKERSVCSTARTUPTYPE:        Automatic
  NPENABLED:                     0
  PBDMSSVCACCOUNT:               <empty>
  PBDMSSVCPASSWORD:              <empty>
  PBDMSSVCSTARTUPTYPE:           0
  PBENGSVCACCOUNT:               <empty>
  PBENGSVCPASSWORD:              <empty>
  PBENGSVCSTARTUPTYPE:           0
  PBPORTRANGE:                   <empty>
  PID:                           *****
  PRODUCTCOVEREDBYSA:            false
  QUIET:                         true
  QUIETSIMPLE:                   false
  ROLE:                          AllFeatures_WithDefaults
  SAPWD:                         <empty>
  SECURITYMODE:                  <empty>
  SQLBACKUPDIR:                  <empty>
  SQLCOLLATION:                  SQL_Latin1_General_CP1_CI_AS
  SQLMAXDOP:                     0
  SQLMAXMEMORY:                  2147483647
  SQLMINMEMORY:                  0
  SQLSVCACCOUNT:                 NT Service\MSSQL$SQLEXPRESS
  SQLSVCINSTANTFILEINIT:         true
  SQLSVCPASSWORD:                <empty>
  SQLSVCSTARTUPTYPE:             Automatic
  SQLSYSADMINACCOUNTS:           ZUHAYRARIF\zuhay
  SQLTELSVCACCT:                 NT Service\SQLTELEMETRY$SQLEXPRESS
  SQLTELSVCPASSWORD:             <empty>
  SQLTELSVCSTARTUPTYPE:          Automatic
  SQLTEMPDBDIR:                  <empty>
  SQLTEMPDBFILECOUNT:            1
  SQLTEMPDBFILEGROWTH:           64
  SQLTEMPDBFILESIZE:             8
  SQLTEMPDBLOGDIR:               <empty>
  SQLTEMPDBLOGFILEGROWTH:        64
  SQLTEMPDBLOGFILESIZE:          8
  SQLUSERDBDIR:                  <empty>
  SQLUSERDBLOGDIR:               <empty>
  SUPPRESSPAIDEDITIONNOTICE:     false
  SUPPRESSPRIVACYSTATEMENTNOTICE: false
  TCPENABLED:                    0
  UIMODE:                        AutoAdvance
  UpdateEnabled:                 false
  UpdateSource:                  MU
  USEMICROSOFTUPDATE:            false
  USESQLRECOMMENDEDMEMORYLIMITS: false

  Configuration file:            C:\Program Files\Microsoft SQL Server\160\Setup Bootstrap\Log\20230308_212141\ConfigurationFile.ini

Detailed results:
  Feature:                       Database Engine Services
  Status:                        Failed
  Reason for failure:            An error occurred during the setup process of the feature.
  Next Step:                     Use the following information to resolve the error, and then try the setup process again.
  Component name:                SQL Server Database Engine Services Instance Features
  Component error code:          1639
  Component log file:            C:\Program Files\Microsoft SQL Server\160\Setup Bootstrap\Log\20230308_212141\sql_engine_core_inst_Cpu64_1.log
  Error description:             Invalid command line argument. Consult the Windows Installer SDK for detailed command line help.
  Error help link:               https://go.microsoft.com/fwlink?LinkId=20476&ProdName=Microsoft+SQL+Server&EvtSrc=setup.rll&EvtID=50000&ProdVer=16.0.1000.6&EvtType=sql_engine_core_inst.msi%400x162A16FE%400x1639

  Feature:                       SQL Writer
  Status:                        Failed
  Reason for failure:            Setup was canceled for the feature.
  Next Step:                     SQL Server Setup was canceled before completing the operation. Try the setup process again.

Rules with failures or warnings:

Global rules:
Warning    IsFirewallEnabled                The Windows Firewall is enabled. Make sure the appropriate ports are open to enable remote access. See the rules documentation at https://go.microsoft.com/fwlink/?linkid=2162127 for information about ports to open for each feature.

Rules report file:               C:\Program Files\Microsoft SQL Server\160\Setup Bootstrap\Log\20230308_212141\SystemConfigurationCheck_Report.htm

Exception summary:
The following is an exception stack listing the exceptions in outermost to innermost order
Inner exceptions are being indented

Exception type: Microsoft.SqlServer.Configuration.Sco.ScoException
    Message:
        Cannot find registry key 'SOFTWARE\Microsoft\Microsoft SQL Server\160\ConfigurationState'.
    HResult : 0x84bb0001
        FacilityCode : 1211 (4bb)
        ErrorCode : 1 (0001)
    Data:
      DisableWatson = true
    Stack:
        at Microsoft.SqlServer.Configuration.Sco.FeatureRegistration.SetFeatureFlag(String machine, String featureId, String flagName, String registryKey, Object flagState, RegistryView cpuView)
        at Microsoft.SqlServer.Configuration.Sco.FeatureRegistration.SetFeatureConfigState(String featureId, ConfigurationState configState, String version, RegistryView cpuView)
        at Microsoft.SqlServer.Configuration.SetupExtension.UpgradeIncompleteFeatureConfigEventHandler.MarkFeatureConfigured(FeatureId featureId, ConfigActionScenario scenario, Dictionary`2 actionData, String instanceId, Boolean keepFailedState)
        at Microsoft.SqlServer.Configuration.SetupExtension.UpgradeIncompleteFeatureConfigEventHandler.FeatureConfigurationExecutionEventHandler(Object sender, FeatureConfigScenarioEventArgs eventArgs, Boolean runValidation, Boolean featureFailed)
        at Microsoft.SqlServer.Configuration.SetupExtension.UpgradeIncompleteFeatureConfigEventHandler.FeatureConfigurationExecutionEventHandler(Object sender, Object[] objectArray)
        at Microsoft.SqlServer.Chainer.Infrastructure.NotificationHandler.Invoke(Object notification, Object[] objectArray)
        at Microsoft.SqlServer.Chainer.Infrastructure.NotificationService.OnNotify(Object eventKey, Object notification, Object[] objectArray)
        at Microsoft.SqlServer.Configuration.ConfigExtension.ConfigFeatureActionListener.InFeatureConfigurationExecutionEventHandler(ActionKey key, TextWriter loggingStream)
        at Microsoft.SqlServer.Setup.Chainer.Workflow.ActionMetadata.NotifyInExecution(ActionKey actionRunning, TextWriter loggingStream)
        at Microsoft.SqlServer.Setup.Chainer.Workflow.ActionInvocation.ExecuteActionHelper(ActionWorker workerDelegate)

Answer 1

If you´ll use installationpath C:\SQL2022\Express_ENU\x64\setup, system could not find key. Plz try with default path like C:\Program Files\Microsoft SQL Server.

regards

Roland

Answer 2

I would guess your registry is locked down or corrupt.

Answer 3

Hi @Zuhayr Arif Zakaria,

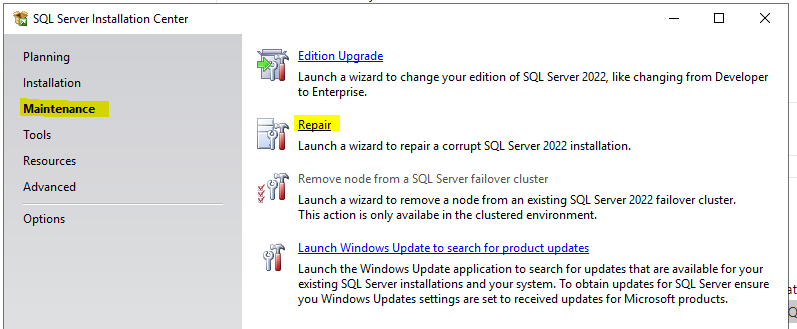

Please go to SQL Server Setup program (setup.exe) from SQL Server installation media-> Maintenance in the left-hand navigation area-> Repair.

If this doesn't work, you can uninstall it cleanly and reinstall it.

please follow the below steps to remove all components of previous installed SQL Server completely:

1. Remove all SQL Server components from 'Programs and Features'
2. Backup the registry
3. Delete the following keys in regedit:

--HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft SQL Server

--HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\MSSQLServer

4. Go to HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall and delete all the sub-keys referencing SQL Server
5. Go to HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services and delete all the keys referencing SQL Server
6. Reboot the machine

In addition, please use an administrator account to reinstall SQL Server on your computer(Right click->run as administrator).

You'd better disable your anti-virus software and firewall before installation. Also, it is recommended that you install in the default location.

Best regards,

Seeya

---

If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
