Request Entity Too Large - IIS 10 error on request sent

Question

Hi.

I receive the "Request Entity Too Large" on sending a request to an application set up in IIS. The size of the message is ~150 kb, which is a little bit higher than the default limit. I have tried a few potential solutions:

• set uploadReadAheadSize to max value (2147483647)
• set custom webHttpBinding

   <webHttpBinding>

           <binding

             name="webHttpBindingIncreasedSize"

             receiveTimeout="01:00:00"

             maxBufferPoolSize="2147483647"

             maxReceivedMessageSize="2147483647"

             maxBufferSize="2147483647"

             transferMode="Streamed"

             >

             <readerQuotas

                 maxDepth="2147483647"

                 maxStringContentLength="2147483647"

                 maxArrayLength="2147483647"

                 maxBytesPerRead="2147483647"

                 maxNameTableCharCount="2147483647"/>

             <!-- binding config: security, httpTransport and more  -->

           </binding>

         </webHttpBinding>

• using said custom webBinding

<services>

      <service name="Namespace.Importer" behaviorConfiguration="ImporterBehavior">

        <endpoint address="" binding="webHttpBinding" bindingConfiguration="webHttpBindingIncreasedSize" contract="Namespace.IImporter"

                       behaviorConfiguration="web" />

      </service>

    </services>

• change endpointBehaviour by adding maxItemsInObjectGraph

<endpointBehaviors>

        <behavior name="web">

          <dataContractSerializer maxItemsInObjectGraph="2147483647" />

          <webHttp/>

        </behavior>

      </endpointBehaviors>

• add maxRequestLength to httpRuntime

   <httpRuntime targetFramework="4.5" maxRequestLength="1048576" />

• • • use customBinding

<customBinding>
        <binding>
          <httpTransport maxReceivedMessageSize="2147483647" maxBufferSize="2147483647" useDefaultWebProxy="true" transferMode="Buffered" />
        </binding>
      </customBinding>

• set maxAllowedContentLength to 1073741824

   <security>
         <requestFiltering>
           <!-- Measured in Bytes -->
           <requestLimits maxAllowedContentLength="1073741824" />
           <!-- 1 GB-->
         </requestFiltering>
       </security>

Unfortunately nothing solved the issue and i am still stuck with the same error: Request Entity Too Large . Any help would be appreciated.

Answer 1

Hi @MWBQ

The solution you tried was this document? Alright, changing uploadReadAheadSize does not work in all cases.

You can try the following steps:

1. Go to IIS.
2. Click on the server name
3. In the features (icons), chose the configuration editor.
4. Click on the dropdowns on the top with Settings

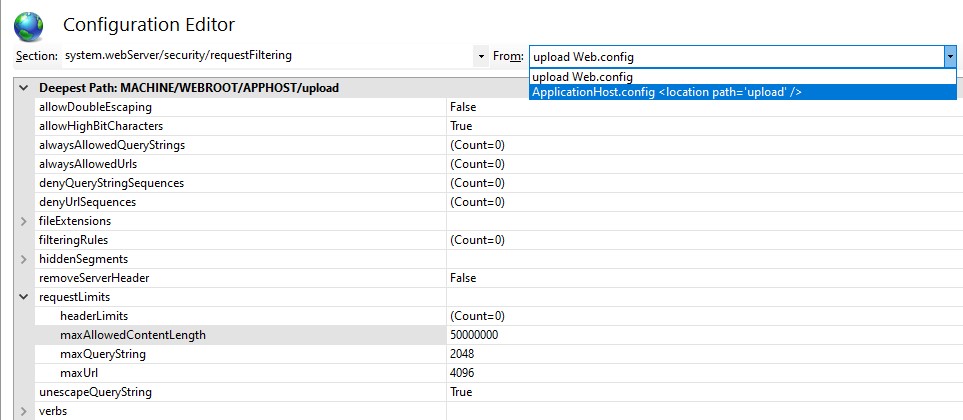

5. Traverse the path system.webServer -> security -> requestFiltering -> maxAllowedContentLength and set it to 334217728. (Then hit enter and then apply on the top right).

Also you can try below settings:

<system.web>

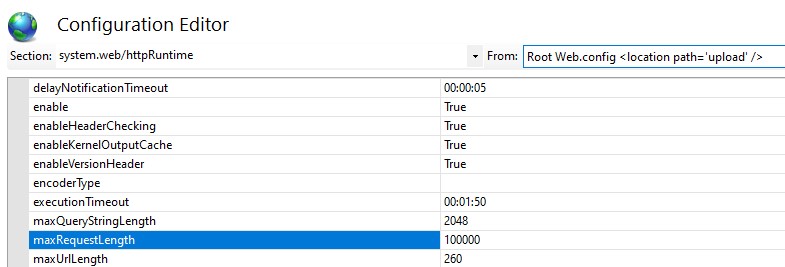

  <httpRuntime maxRequestLength="1048576" />
</system.web>
<system.webServer>
  <security>
    <requestFiltering>
      <requestLimits maxAllowedContentLength="1073741824" />
    </requestFiltering>
  </security>
</system.webServer>

Refer to: https://stackoverflow.com/a/73481150/20058276

Best Regard,

TengFei Xie

---

If the answer is the right solution, please click "Accept Answer" and kindly upvote. If you have extra questions about this answer, please click "Comment". Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

While you changed most IIS and WCF related settings, have you tried HTTP API settings?

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\HTTP\Parameters\MaxFieldLength
HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\HTTP\Parameters\MaxRequestBytes

https://learn.microsoft.com/en-US/troubleshoot/developer/webapps/iis/iisadmin-service-inetinfo/httpsys-registry-windows#registry-keys

https://knowledge.broadcom.com/external/article/172865/the-request-failed-with-http-status-413.html
