problem in installing sql sever 2022

Question

hello

i have problem installing sql server 2022

i tried many times to uninstall everything and install back but still not working

i checked the log file and this summary note of the problem i guess

Overall summary:
  Final result:                  Failed: see details below
  Exit code (Decimal):           -2061893607
  Start time:                    2023-03-24 08:07:35
  End time:                      2023-03-24 08:18:51
  Requested action:              Install

Setup completed with required actions for features.
Troubleshooting information for those features:
  Next step for SQLEngine:       Use the following information to resolve the error, uninstall this feature, and then run the setup process again.


Machine Properties:
  Machine name:                  DESKTOP-VADSI1R
  Machine processor count:       8
  OS version:                    Microsoft Windows 11 Pro (10.0.22621)
  OS service pack:
  OS region:                     United States
  OS language:                   English (United Kingdom)
  OS architecture:               x64
  Process architecture:          64 Bit
  OS clustered:                  No

Product features discovered:
  Product              Instance             Instance ID                    Feature                                  Language             Edition              Version         Clustered  Configured

Package properties:
  Description:                   Microsoft SQL Server 2022
  ProductName:                   SQL Server 2022
  Type:                          RTM
  Version:                       16
  SPLevel:                       0
  Installation location:         C:\Users\LENOVO\Desktop\ExpressAdv_ENU\x64\setup\
  Installation edition:          Express

Product Update Status:
  None discovered.

Notice: Please read Microsoft SQL Server Software License Terms at aka.ms/useterms.

User Input Settings:
  ACTION:                        Install
  ADDCURRENTUSERASSQLADMIN:      true
  AGTSVCACCOUNT:                 NT AUTHORITY\NETWORK SERVICE
  AGTSVCPASSWORD:                *****
  AGTSVCSTARTUPTYPE:             Disabled
  ASBACKUPDIR:                   Backup
  ASCOLLATION:                   Latin1_General_CI_AS
  ASCONFIGDIR:                   Config
  ASDATADIR:                     Data
  ASLOGDIR:                      Log
  ASPROVIDERMSOLAP:              1
  ASSERVERMODE:                  TABULAR
  ASSVCACCOUNT:                  <empty>
  ASSVCPASSWORD:                 <empty>
  ASSVCSTARTUPTYPE:              Automatic
  ASSYSADMINACCOUNTS:            <empty>
  ASTELSVCACCT:                  <empty>
  ASTELSVCPASSWORD:              <empty>
  ASTELSVCSTARTUPTYPE:           0
  ASTEMPDIR:                     Temp
  AZUREARCPROXYSERVER:
  AZUREBILLEDEDITION:
  AZUREREGION:
  AZURERESOURCEGROUP:
  AZURESERVICEPRINCIPAL:
  AZURESERVICEPRINCIPALSECRET:   *****
  AZURESUBSCRIPTIONID:
  AZURETENANTID:
  BROWSERSVCSTARTUPTYPE:         Disabled
  CONFIGURATIONFILE:
  ENABLERANU:                    true
  ENU:                           true
  EXTSVCACCOUNT:                 <empty>
  EXTSVCPASSWORD:                <empty>
  FEATURES:                      SQLENGINE
  FILESTREAMLEVEL:               0
  FILESTREAMSHARENAME:           <empty>
  FTSVCACCOUNT:                  <empty>
  FTSVCPASSWORD:                 <empty>
  HELP:                          false
  IACCEPTSQLSERVERLICENSETERMS:  true
  IACKNOWLEDGEENTCALLIMITS:      false
  INDICATEPROGRESS:              false
  INSTALLSHAREDDIR:              C:\Program Files\Microsoft SQL Server\
  INSTALLSHAREDWOWDIR:           C:\Program Files (x86)\Microsoft SQL Server\
  INSTALLSQLDATADIR:             <empty>
  INSTANCEDIR:                   C:\Program Files\Microsoft SQL Server\
  INSTANCEID:                    SQLEXPRESS
  INSTANCENAME:                  SQLEXPRESS
  ISMASTERSVCACCOUNT:            NT AUTHORITY\Network Service
  ISMASTERSVCPASSWORD:           <empty>
  ISMASTERSVCPORT:               8391
  ISMASTERSVCSSLCERTCN:          <empty>
  ISMASTERSVCSTARTUPTYPE:        Automatic
  ISMASTERSVCTHUMBPRINT:         <empty>
  ISSVCACCOUNT:                  NT AUTHORITY\Network Service
  ISSVCPASSWORD:                 <empty>
  ISSVCSTARTUPTYPE:              Automatic
  ISTELSVCACCT:                  <empty>
  ISTELSVCPASSWORD:              <empty>
  ISTELSVCSTARTUPTYPE:           0
  ISWORKERSVCACCOUNT:            NT AUTHORITY\Network Service
  ISWORKERSVCCERT:               <empty>
  ISWORKERSVCMASTER:             <empty>
  ISWORKERSVCPASSWORD:           <empty>
  ISWORKERSVCSTARTUPTYPE:        Automatic
  NPENABLED:                     0
  PBDMSSVCACCOUNT:               <empty>
  PBDMSSVCPASSWORD:              <empty>
  PBDMSSVCSTARTUPTYPE:           0
  PBENGSVCACCOUNT:               <empty>
  PBENGSVCPASSWORD:              <empty>
  PBENGSVCSTARTUPTYPE:           0
  PBPORTRANGE:                   <empty>
  PID:                           *****
  PRODUCTCOVEREDBYSA:            false
  QUIET:                         false
  QUIETSIMPLE:                   false
  ROLE:                          AllFeatures_WithDefaults
  SAPWD:                         <empty>
  SECURITYMODE:                  <empty>
  SQLBACKUPDIR:                  <empty>
  SQLCOLLATION:                  Latin1_General_CI_AS
  SQLMAXDOP:                     0
  SQLMAXMEMORY:                  2147483647
  SQLMINMEMORY:                  0
  SQLSVCACCOUNT:                 NT Service\MSSQL$SQLEXPRESS
  SQLSVCINSTANTFILEINIT:         false
  SQLSVCPASSWORD:                <empty>
  SQLSVCSTARTUPTYPE:             Automatic
  SQLSYSADMINACCOUNTS:           DESKTOP-VADSI1R\LENOVO
  SQLTELSVCACCT:                 NT Service\SQLTELEMETRY$SQLEXPRESS
  SQLTELSVCPASSWORD:             <empty>
  SQLTELSVCSTARTUPTYPE:          Automatic
  SQLTEMPDBDIR:                  <empty>
  SQLTEMPDBFILECOUNT:            1
  SQLTEMPDBFILEGROWTH:           64
  SQLTEMPDBFILESIZE:             8
  SQLTEMPDBLOGDIR:               <empty>
  SQLTEMPDBLOGFILEGROWTH:        64
  SQLTEMPDBLOGFILESIZE:          8
  SQLUSERDBDIR:                  <empty>
  SQLUSERDBLOGDIR:               <empty>
  SUPPRESSPAIDEDITIONNOTICE:     false
  SUPPRESSPRIVACYSTATEMENTNOTICE: false
  TCPENABLED:                    0
  UIMODE:                        AutoAdvance
  UpdateEnabled:                 true
  UpdateSource:                  MU
  USEMICROSOFTUPDATE:            false
  USESQLRECOMMENDEDMEMORYLIMITS: false

  Configuration file:            C:\Program Files\Microsoft SQL Server\160\Setup Bootstrap\Log\20230324_080735\ConfigurationFile.ini

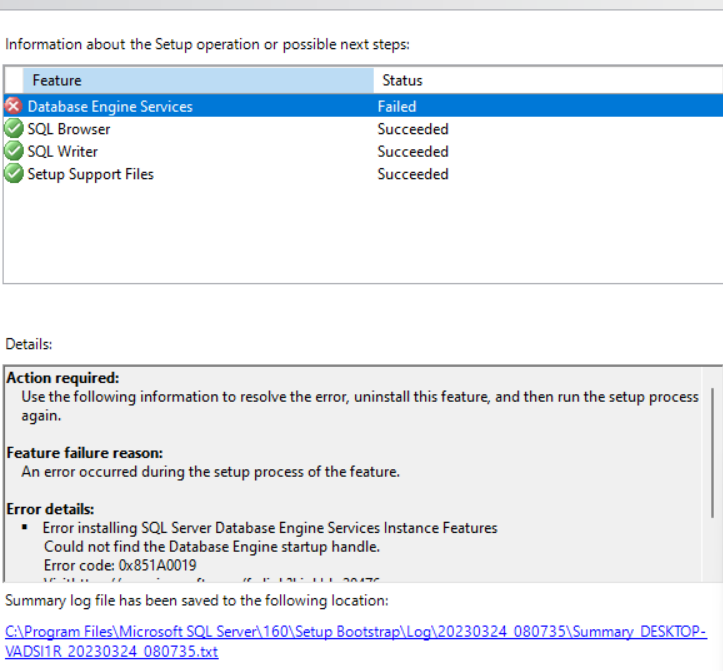

Detailed results:
  Feature:                       Database Engine Services
  Status:                        Failed
  Reason for failure:            An error occurred during the setup process of the feature.
  Next Step:                     Use the following information to resolve the error, uninstall this feature, and then run the setup process again.
  Component name:                SQL Server Database Engine Services Instance Features
  Component error code:          0x851A0019
  Error description:             Could not find the Database Engine startup handle.
  Error help link:               https://go.microsoft.com/fwlink?LinkId=20476&ProdName=Microsoft+SQL+Server&EvtSrc=setup.rll&EvtID=50000&ProdVer=16.0.1000.6&EvtType=0xD15B4EB2%400x4BDAF9BA%401306%4025&EvtType=0xD15B4EB2%400x4BDAF9BA%401306%4025

  Feature:                       SQL Browser
  Status:                        Passed

  Feature:                       SQL Writer
  Status:                        Passed

  Feature:                       Setup Support Files
  Status:                        Passed

Rules with failures or warnings:

Global rules:
Warning    IsFirewallEnabled                The Windows Firewall is enabled. Make sure the appropriate ports are open to enable remote access. See the rules documentation at https://go.microsoft.com/fwlink/?linkid=2162127 for information about ports to open for each feature.

Rules report file:               C:\Program Files\Microsoft SQL Server\160\Setup Bootstrap\Log\20230324_080735\SystemConfigurationCheck_Report.htm

i will appreciate any help

Answer 1

The message "Could not find the Database Engine startup handle." means that SQL Server did not start when Setup wanted to run configuration. To find out why SQL Server did not start, you need to look in the SQL Server errorlog. You find this file in C:\Program Files\Microsoft SQL Server\MSSQL16.SQLEXPRESS\MSSQL\LOG\ERRORLOG.

If you see a message about 256 misaligned reads, you are running into a known issue where Windows 11 and SQL Server are not compatible with regards to disk-sector sizes. Microsoft has published this troubleshooter about the issue: https://learn.microsoft.com/en-us/troubleshoot/sql/database-engine/database-file-operations/troubleshoot-os-4kb-disk-sector-size

If you don't see the mesage about 256 misaligned reads, feel free to upload your error log here.

Answer 2

Thanks for your question.

Please find “SQL Server Troubleshooting: Could Not Find Database Engine Startup Handle Error During installation” blog below-

SQL Server Troubleshooting: Could Not Find Database Engine Startup Handle Error During installation - TechNet Articles - United States (English) - TechNet Wiki (microsoft.com)

If that doesn't work, we'd want to be looking at the Setup logs.

You can also check if the account running setup has the required permissions - https://support.microsoft.com/en-us/help/2000257/sql-server-installation-fail-if-setup-account-not-have-some-user-right

Let us know if this helps in case not, please feel free to share error logs.
