Exchange2019 relay recive connector

Question

Good day,

Installed Exchange2019 server, but can't work sending e-mail to internet mail

Have

1. ADDC server dc01.local-domain.local 192.168.4.101
2. Exchange server exchange.local-domain.local 192.168.4.17
3. Domain name company.com, as a web site and for mailing like mail@company.com

What i did

In DNS:

1. added mx 10 mail.company.com.
2. added A mail=router IP
3. TXT for spf

In Exchange

1. mail-flow>accepted domains added domain company.com (type authoritative, default)
2. standard send connector (domain=*)
3. address policy: smtp:alias@company.com and aslis:local-domain.local
4. like in https://learn.microsoft.com/en-us/exchange/mail-flow/connectors/allow-anonymous-relay?view=exchserver-2019
   New-ReceiveConnector -Name "Anonymous Relay" -TransportRole FrontendTransport -Custom -Bindings 0.0.0.0:25 -RemoteIpRanges 192.168.4.17,127.0.0.1
   Set-ReceiveConnector "Anonymous Relay" -PermissionGroups AnonymousUsers
   Get-ReceiveConnector "Anonymous Relay" | Add-ADPermission -User "NT AUTHORITY\ANONYMOUS LOGON" -ExtendedRights "Ms-Exch-SMTP-Accept-Any-Recipient"

In Router

1. port forwarding 25,80,110,143,443,465,587,717,993,995 to 192.168.4.17

In this case I can

1. send and receive mail from internal mail (testmail@company.com can send and receive mail from tesmail2@company.com)
2. receive mail from internet mail (like aakandal@gmail.com)
3. when I send mail from testmail@company.com to aakandal@gmail.com I have a error
4. EXCHANGE.local-domain.local rejected your message to the following email addresses:
   aakandal@gmail.com (aakandal@gmail.com)
   Your message couldn't be sent because the mail server is not ready to accept your message.
   EXCHANGE.local-domain.local gave this error:
   SMTP; Unable to relay recipient in non-accepted domain
   Diagnostic information for administrators:
   Generating server: EXCHANGE.local-domain.local
   aakandal@gmail.com
   EXCHANGE.local-domain.local
   Remote Server returned '550 5.7.54 SMTP; Unable to relay recipient in non-accepted domain'
   Original message headers:
   Received: from EXCHANGE.local-domain.local (192.168.4.17) by EXCHANGE.local-domain.local
   (192.168.4.17) with Microsoft SMTP Server (version=TLS1_2, cipher=TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384) id 15.2.1118.7; Sat, 25 Mar 2023 08:23:47 +0500
   Received: from EXCHANGE.local-domain.local ([::1]) by EXCHANGE.local-domain.local ([::1]) with mapi id 15.02.1118.007; Sat, 25 Mar 2023 08:23:47 +0500
   From: testmail testmail@company.com
   To: "aakandal@gmail.com" aakandal@gmail.com
   Subject: 112333
   Thread-Topic: 112333
   Thread-Index: AdleySt3XEmRGDcnQZK9O85ATlHlHg==
   Date: Sat, 25 Mar 2023 03:23:46 +0000
   Message-ID: 11f0292549774ef4a6935728a6fbe338@company.com
   Accept-Language: en-US, ru-RU
   Content-Language: ru-RU
   X-MS-Has-Attach:
   X-MS-TNEF-Correlator:
   x-originating-ip: [192.168.4.253]
   Content-Type: multipart/alternative;
   boundary="000_11f0292549774ef4a6935728a6fbe338companycom"
   MIME-Version: 1.0

Tests
exchange managment shell
Get-ReceiveConnector "Anonymous Relay" | Format-List Enabled,TransportRole,Bindings,RemoteIPRanges
Enabled : True
TransportRole : FrontendTransport
Bindings : {0.0.0.0:25}
RemoteIPRanges : {127.0.0.1, 192.168.4.17}

Get-ADPermission "Anonymous Relay" -User "NT AUTHORITY\ANONYMOUS LOGON" | where {($.Deny -eq $false) -and ($.IsInherited -eq $false)} | Format-Table User,ExtendedRights
User ExtendedRights
NT AUTHORITY\ANONYMOUS LOGON {ms-Exch-SMTP-Accept-Any-Sender}
NT AUTHORITY\ANONYMOUS LOGON {ms-Exch-SMTP-Accept-Any-Recipient}
NT AUTHORITY\ANONYMOUS LOGON {ms-Exch-Accept-Headers-Routing}
NT AUTHORITY\ANONYMOUS LOGON {ms-Exch-SMTP-Submit}
NT AUTHORITY\ANONYMOUS LOGON {ms-Exch-SMTP-Accept-Authoritative-Domain-Sender}

Telnet
open 192.168.4.17 25
220 EXCHANGE.local-domain.local Microsoft ESMTP MAIL Service ready at Sat, 25 Mar 2023 08:35:43 +0500
ehlo
250-EXCHANGE.local-domain.local Hello [192.168.4.17]
250-SIZE 37748736
250-PIPELINING
250-DSN
250-ENHANCEDSTATUSCODES
250-STARTTLS
250-8BITMIME
250-BINARYMIME
250-CHUNKING
250 SMTPUTF8
mail from:testmail@company.com
250 2.1.0 Sender OK
rcpt to:aakandal@gmail.com
250 2.1.5 Recipient OK
data
354 Start mail input; end with .
subject:test
message
.
250 2.6.0 9b98be1d-b712-437c-9265-9bd13869f9ff@EXCHANGE.local-domain.local [InternalId=4032974290969, Hostname=EXCHANGE.local-domain.local] 1563 bytes in 2.970, 0,514 KB/sec Queued mail for delivery
quit

Answer 1

Hello @Aleksandr Kandalov

If you read the Docs we need a Send Connector

Do you have a Send connector created ?

New-SendConnector -Name <Name> -AddressSpaces * -Internet [-SourceTransportServer <fqdn1>,<fqdn2>...]

I can see you have a mention there , just making sure cause you mention Domain it is not Domain it is generally *

make sure traffic is not Proxied from your Router also and remove any Packet Inspectin

Can you provide the Send and Receive connectors please ?

In case this answer helped kindly mark it as Accepted !

I will keep am eye in case you have more info !

Have a nice day !

Answer 2

Hi @Aleksandr Kandalov ,

From the RemoteIPRanges : {127.0.0.1, 192.168.4.17} part, it seems you only have your Exchange server’s ip addresses added to the Remote Address Settings.

Please note that if you would like network hosts to use this anonymous relay receive connector to relay messages to internet, you may need to add the hosts’ ip addresses to this connector.

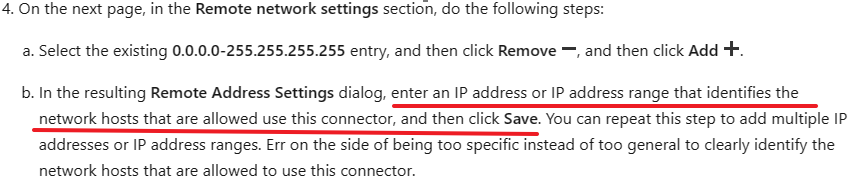

As mentioned in the documentation:

---
