How to send email via Azure AD authentication

Question

I need a solution for an App (Java J2EE application) without user to login and send email (to any email inside and outside organisations).

The suggestion from various groups is to use Azure AD with shared mailbox in O365 and necessary permissions.

Could someone please provide a step by step guide on how/what to be done to achieve this. Appreciate if can provide any git location if this has already been done!!

There are confusions with saml2/openid. what is required?

Please note this is a backend application only and user is not involved!!

Answer 1

Hi @Veera Anjani Kumar Valivarthi ,

Thanks for reaching out.

I understand you are trying to send email via Azure AD without user's login.

For this you need to first register your application in Azure Active Directory and to get the access token with required permissions to send the mail using client credential flow (which do not require user's login).

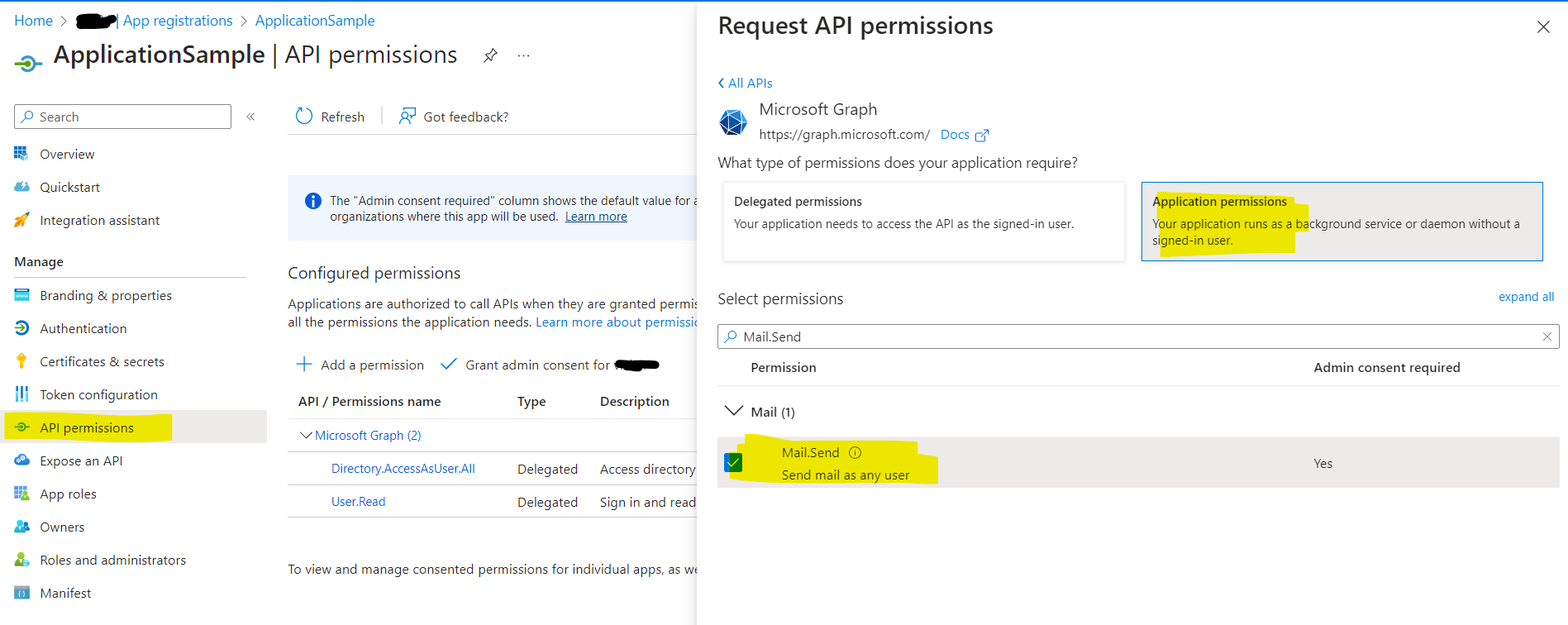

To get the permissions in the access token, assign the application permission 'Mail.Send' to your registered application and grant admin consent for the permission.

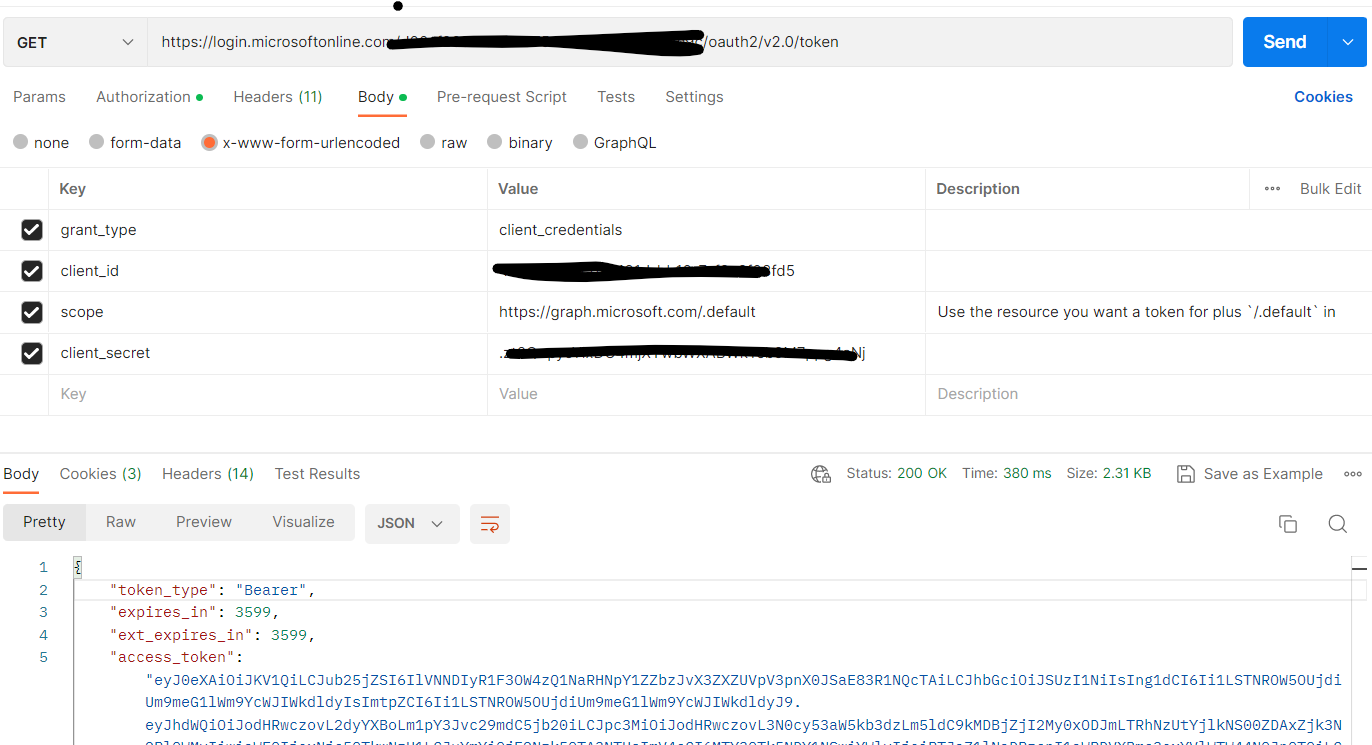

Use the client credential flow which does not require user interaction to get the access token.

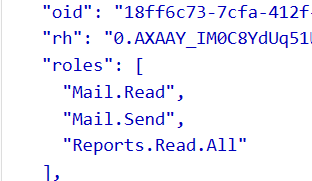

You can validate the access token using jwt.ms to check the required roles.

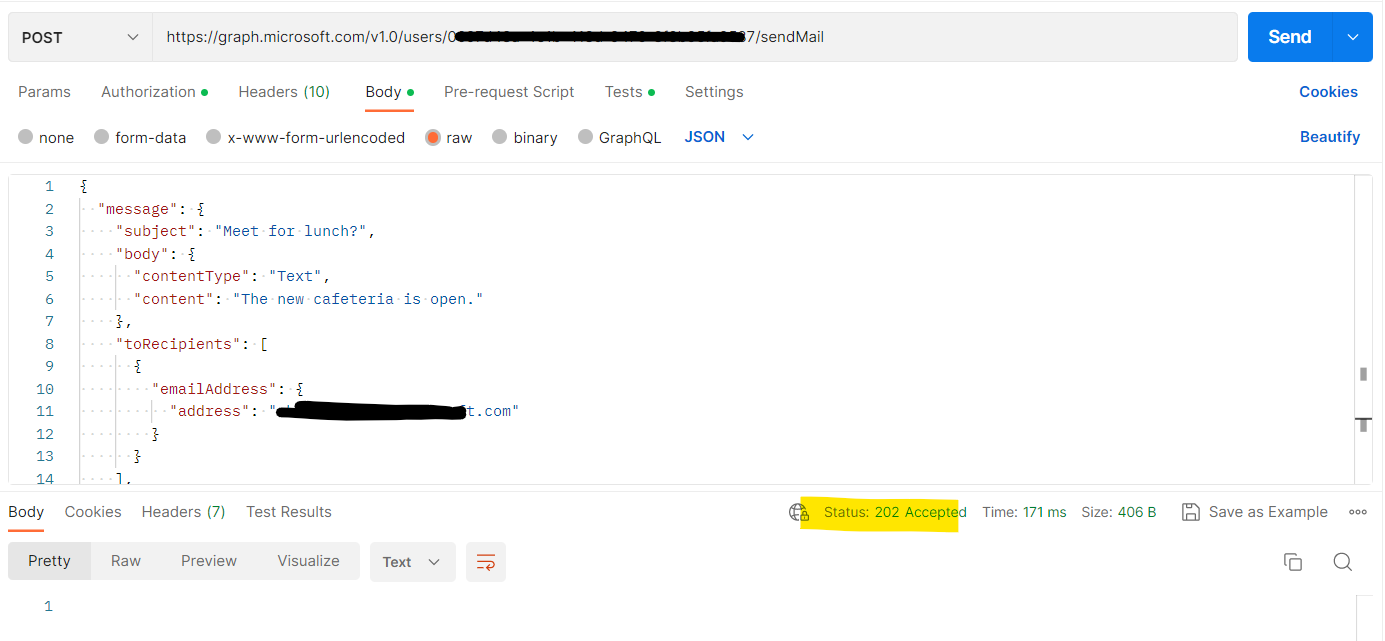

Then you can use the access token to pass as bearer token in Authorization header to call Graph API endpoint https://graph.microsoft.com/v1.0/users/{userId}/sendMail to send to any email address.

As for SAML2/OpenID, these protocols are used for user authentication. Since you are sending emails without requiring user authentication, you do not need to use SAML2 or OpenID in this scenario.

Hope this will help.

Thanks,

Shweta

Please remember to "Accept Answer" if answer helped you.

Answer 2

Hi @Veera Anjani Kumar Valivarthi

I know from your context that you are trying to send email on behalf of a user in the tenant. If you need some examples, then please refer to my sample code (using Graph Java SDK).

Download dependencies (latest version) via Maven:

<dependency>
  <groupId>com.microsoft.graph</groupId>
  <artifactId>microsoft-graph</artifactId>
  <version>5.51.0</version>
</dependency>
<dependency>
    <groupId>com.azure</groupId>
    <artifactId>azure-identity</artifactId>
    <version>1.8.1</version>
</dependency>

final ClientSecretCredential clientSecretCredential = new ClientSecretCredentialBuilder()
        .clientId(clientId)
        .clientSecret(clientSecret)
        .tenantId(tenant)
        .build();

final TokenCredentialAuthProvider tokenCredentialAuthProvider = new TokenCredentialAuthProvider(scopes, clientSecretCredential);

final GraphServiceClient graphClient =
  GraphServiceClient
    .builder()
    .authenticationProvider(tokenCredentialAuthProvider)
    .buildClient();

Message message = new Message();
message.subject = "Meet for lunch?";
ItemBody body = new ItemBody();
body.contentType = BodyType.TEXT;
body.content = "The new cafeteria is open.";
message.body = body;
LinkedList<Recipient> toRecipientsList = new LinkedList<Recipient>();
Recipient toRecipients = new Recipient();
EmailAddress emailAddress = new EmailAddress();
emailAddress.address = "email address";
toRecipients.emailAddress = emailAddress;
toRecipientsList.add(toRecipients);
message.toRecipients = toRecipientsList;
LinkedList<Recipient> ccRecipientsList = new LinkedList<Recipient>();
Recipient ccRecipients = new Recipient();
EmailAddress emailAddress1 = new EmailAddress();
emailAddress1.address = "email address";
ccRecipients.emailAddress = emailAddress1;
ccRecipientsList.add(ccRecipients);
message.ccRecipients = ccRecipientsList;

boolean saveToSentItems = false;

graphClient.users("user id")
	.sendMail(UserSendMailParameterSet
		.newBuilder()
		.withMessage(message)
		.withSaveToSentItems(saveToSentItems)
		.build())
	.buildRequest()
	.post();

Hope this helps.

If the reply is helpful, please click Accept Answer and kindly upvote it. If you have additional questions about this answer, please click Comment.
