Could not connect to the remote container registry !

Question

Could not connect to the remote container registry !

Grafana Monitor 5

Hello,

For me, many a times, we face the below issue:

User's image

This is quite weird, and no reason listed anywhere. Please suggest if any soluiton.

vipullag-MSFT 26,522 Reputation points Moderator

2023-03-29T04:30:38.75+00:00
Hello Grafana Monitor

Welcome to Microsoft Q&A Platform, thanks for posting your query here.

This error can occur due to various reasons. One of the reasons could be that the registry login server did not respond with a refresh token, so access to the target registry was denied. Another reason could be that there are firewall or network configurations that prevent registry access.

Please try the below and see if that helps:

Verify if the user has the right permissions on the registry.

Run az login to refresh permissions, tokens, and credentials.

Check if Docker client and daemon (Docker Engine) are running in your environment.

Confirm that the Docker CLI client and daemon (Docker Engine) are running in your environment.

Configure firewall rules to access the registry's public REST and data endpoints.

Configure public access to registry.

Check your network connectivity to the Azure container registry. Ensure that your firewall is not blocking access to the registry, and that you have a stable internet connection.

Confirm that the virtual network is configured with either a private endpoint for Private Link or a service endpoint.

Ensure that you are using a compatible version of Docker to connect to the container registry.

Ref:

https://learn.microsoft.com/en-us/azure/container-registry/container-registry-troubleshoot-access

https://learn.microsoft.com/en-us/azure/container-registry/container-registry-troubleshoot-login

https://github.com/MicrosoftDocs/azure-docs/blob/main/articles/container-registry/container-registry-health-error-reference.md

Hope this helps.
Grafana Monitor 5 Reputation points

2023-03-29T06:55:48.0866667+00:00

Hi @vipullag-MSFT , all the above checks are already verified. My machine doesn't have any firewall. Further, I am the owner of the subscription, so I should at least see the repositories in the portal. Here, portal itself gives me the error as mentioned above. This I have observed in two ACRs we have created in our subscription. Kindly let me know if you need to have a call on this.

Grafana Monitor 5

@vipullag-MSFT this is the error I saw in F12 of the portal:

pm Resource/Repository/ViewModels/RepositoryBrowseBlade RepositoryBrowseBlade: Failed to list repositories. Registry id: /subscriptions/ad436b41-c5f5-4ad7-b357-38384068ac08/resourceGroups/bdfare-prod/providers/Microsoft.ContainerRegistry/registries/prodbdfareregistry, Reason: _errorData: {"readyState":0,"status":0,"statusText":"error"}
_sourceErrorLevel: undefined
baseTypes: ["MsPortalFx.Errors.FetchDataError","MsPortalFx.Errors.DataError","MsPortalFx.Errors.Error"]
code: undefined
data: undefined
dataSetName: DataCache:6:6
errorData: {"readyState":0,"status":0,"statusText":"error"}
errorLevel: 2
extension: Microsoft_Azure_ContainerRegistries
handled: undefined
innerErrors: []
message: FetchDataError: data set DataCache:6:6
name: FetchDataError
source: undefined
stack: FetchDataError: FetchDataError: data set DataCache:6:6
    at r.t (https://portal.azure.com/Content/Dynamic/5WwZNpAbPkRe.js:73:895)
    at r (https://portal.azure.com/Content/Dynamic/9Jc7PiJU6jPF.js:18:248)
    at new r (https://portal.azure.com/Content/Dynamic/9Jc7PiJU6jPF.js:18:469)
    at yt (https://portal.azure.com/Content/Dynamic/9Jc7PiJU6jPF.js:99:817)
    at https://portal.azure.com/Content/Dynamic/9Jc7PiJU6jPF.js:99:6772
timestamp: 7199.29999999702
type: MsPortalFx.Errors.FetchDataError

1 answer

Your answer

vipullag-MSFT 26,522 Reputation points Moderator

2023-03-29T04:30:38.75+00:00

Hello Grafana Monitor

Welcome to Microsoft Q&A Platform, thanks for posting your query here.

This error can occur due to various reasons. One of the reasons could be that the registry login server did not respond with a refresh token, so access to the target registry was denied. Another reason could be that there are firewall or network configurations that prevent registry access.

Please try the below and see if that helps:

Verify if the user has the right permissions on the registry.

Run az login to refresh permissions, tokens, and credentials.

Check if Docker client and daemon (Docker Engine) are running in your environment.

Confirm that the Docker CLI client and daemon (Docker Engine) are running in your environment.

Configure firewall rules to access the registry's public REST and data endpoints.

Configure public access to registry.

Check your network connectivity to the Azure container registry. Ensure that your firewall is not blocking access to the registry, and that you have a stable internet connection.

Confirm that the virtual network is configured with either a private endpoint for Private Link or a service endpoint.

Ensure that you are using a compatible version of Docker to connect to the container registry.

Ref:

https://learn.microsoft.com/en-us/azure/container-registry/container-registry-troubleshoot-access

https://learn.microsoft.com/en-us/azure/container-registry/container-registry-troubleshoot-login

https://github.com/MicrosoftDocs/azure-docs/blob/main/articles/container-registry/container-registry-health-error-reference.md

Hope this helps.
Grafana Monitor 5 Reputation points

2023-03-29T06:55:48.0866667+00:00

Hi @vipullag-MSFT , all the above checks are already verified. My machine doesn't have any firewall. Further, I am the owner of the subscription, so I should at least see the repositories in the portal. Here, portal itself gives me the error as mentioned above. This I have observed in two ACRs we have created in our subscription. Kindly let me know if you need to have a call on this.
Grafana Monitor 5 Reputation points

2023-03-29T06:57:47.6933333+00:00

@vipullag-MSFT this is the error I saw in F12 of the portal:

pm Resource/Repository/ViewModels/RepositoryBrowseBlade RepositoryBrowseBlade: Failed to list repositories. Registry id: /subscriptions/ad436b41-c5f5-4ad7-b357-38384068ac08/resourceGroups/bdfare-prod/providers/Microsoft.ContainerRegistry/registries/prodbdfareregistry, Reason: _errorData: {"readyState":0,"status":0,"statusText":"error"} _sourceErrorLevel: undefined baseTypes: ["MsPortalFx.Errors.FetchDataError","MsPortalFx.Errors.DataError","MsPortalFx.Errors.Error"] code: undefined data: undefined dataSetName: DataCache:6:6 errorData: {"readyState":0,"status":0,"statusText":"error"} errorLevel: 2 extension: Microsoft_Azure_ContainerRegistries handled: undefined innerErrors: [] message: FetchDataError: data set DataCache:6:6 name: FetchDataError source: undefined stack: FetchDataError: FetchDataError: data set DataCache:6:6 at r.t (https://portal.azure.com/Content/Dynamic/5WwZNpAbPkRe.js:73:895) at r (https://portal.azure.com/Content/Dynamic/9Jc7PiJU6jPF.js:18:248) at new r (https://portal.azure.com/Content/Dynamic/9Jc7PiJU6jPF.js:18:469) at yt (https://portal.azure.com/Content/Dynamic/9Jc7PiJU6jPF.js:99:817) at https://portal.azure.com/Content/Dynamic/9Jc7PiJU6jPF.js:99:6772 timestamp: 7199.29999999702 type: MsPortalFx.Errors.FetchDataError

Answer 1

Eddie Neto 1,256

HI @Grafana Monitor

Thanks for reaching Microsoft Q&A

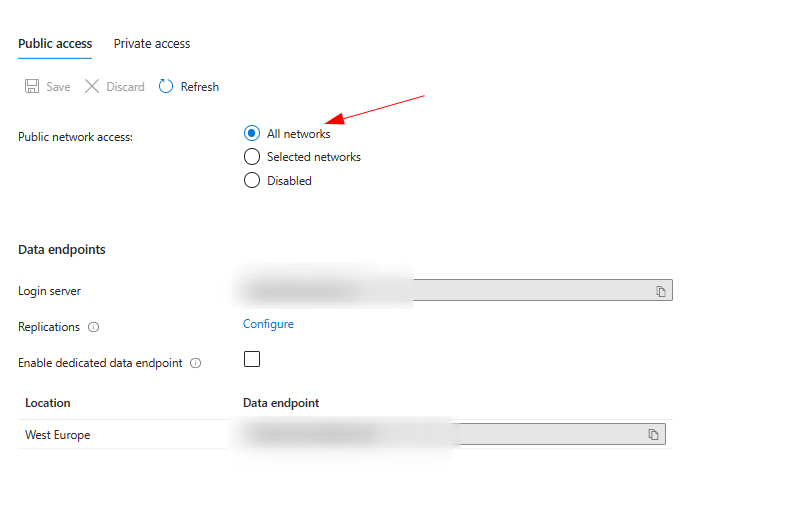

Regarding your issue that is because you have your public network restricted to some IP or even disabled. Please allow to all network and then you are going to see the repository.

Hope this helps. Please "Accept as Answer" if it helped, so that it can help others in the community looking for help on similar topics.

User's image

vipullag-MSFT 26,522 Reputation points Moderator

2023-04-10T06:52:01.67+00:00

Hello Grafana Monitor Just checking in to see if you got a chance to see this response. If the suggested response helped you resolve your issue, please 'Accept as answer', so that it can help others in the community looking for help on similar topics.
