Bicep template to display CPU time metric for an app service plan on a Azure Dashboard

Question

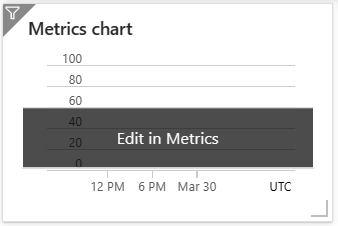

I am trying to use a Bicep file to deploy and create a shared dashboard to display the Server Response Time, Server requests, CPU performance, Memory alert etc of an App service Plan. But I get the following tile.

I am using Type

Extension/HubsExtension/PartType/MonitorChartPart

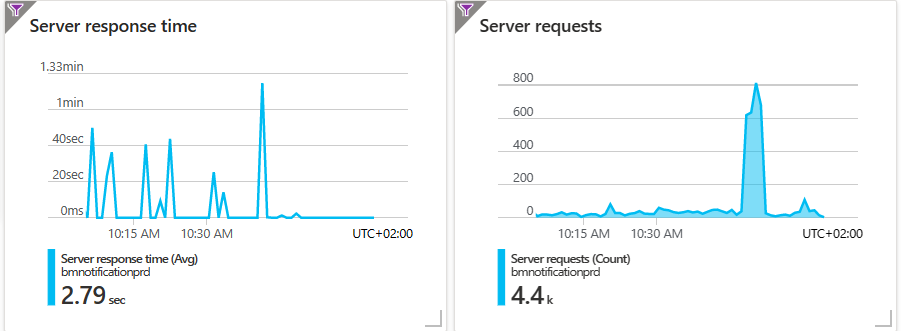

I am looking for a tile to be displayed as the following. Please provide me a bicep template for the same

Answer 1

Hi @Sangeetha Vadukut Try the following bicep

resource dashboardTile 'Microsoft.Portal/dashboards/tiles@2021-08-01-preview' = {
  name: 'dashboardTileName'
  location: 'westus'
  properties: {
    lenses: {
      '0': {
        order: 0
        parts: {
          '0': {
            position: {
              x: 0
              y: 0
              rowSpan: 2
              colSpan: 3
            }
            metadata: {
              inputs: [
                {
                  name: 'queryInputs'
                  value: {
                    timespan: {
                      duration: 'PT1H'
                      start: null
                      end: null
                    }
                    id: '/subscriptions/6531c8c8-df32-4254-d717-b6e983273e5d/resourceGroups/contoso/providers/Microsoft.Web/serverfarms/appServicePlanName'
                    chartType: 0
                    metrics: [
                      {
                        name: 'Requests'
                        displayName: 'Server Requests'
                        aggregation: 'Total'
                        chartType: 'line'
                        color: '#00bfff'
                      }
                      {
                        name: 'ResponseTime'
                        displayName: 'Server Response Time'
                        aggregation: 'Average'
                        chartType: 'line'
                        color: '#ff8c00'
                      }
                      {
                        name: 'CpuTime'
                        displayName: 'CPU Performance'
                        aggregation: 'Average'
                        chartType: 'line'
                        color: '#ff0000'
                      }
                      {
                        name: 'MemoryWorkingSet'
                        displayName: 'Memory'
                        aggregation: 'Average'
                        chartType: 'line'
                        color: '#008000'
                      }
                    ]
                  }
                }
              ]
              type: 'Extension/HubsExtension/PartType/MonitorChartPart'
            }
          }
        }
      }
    }
  }
}

Make sure you update the resource with the ID you want the tile to display for.
